Help CenterUTM WDW-200KN Factory Price Computer-Controlled Electronic Universal Tensile Testing Machine
Product Spotlights
Related Products
-
220V Universal Traction Testing Machine for Rubber Plastic Metal-100KN 10kN 20kN 50kN 200kN 300kN 100kN Testing EquipmentUS$ 4750 - 4800MOQ: 1 Set -
50KN Computer Universal Spring Rubber Plastic Tensile Strength Compression Testing Machine Stripping Bending DrawUS$ 4650 - 4850MOQ: 1 Set
-
5000N Universal Material Tensile Strength Testing Machine Cloth Tensile Strength Tester Wire Tension Test MachineUS$ 1700 - 1800MOQ: 1 Set
-
100KN Universal Tensile Testing Machine for Metal Steel Plate Copper Utm Universal Test Machine Tensile MachinesUS$ 4800MOQ: 1 Set
-
WDW-50KN Universal Tensile & Compression Tester - 2%-100%FS RangeUS$ 3550 - 3650MOQ: 1 Set

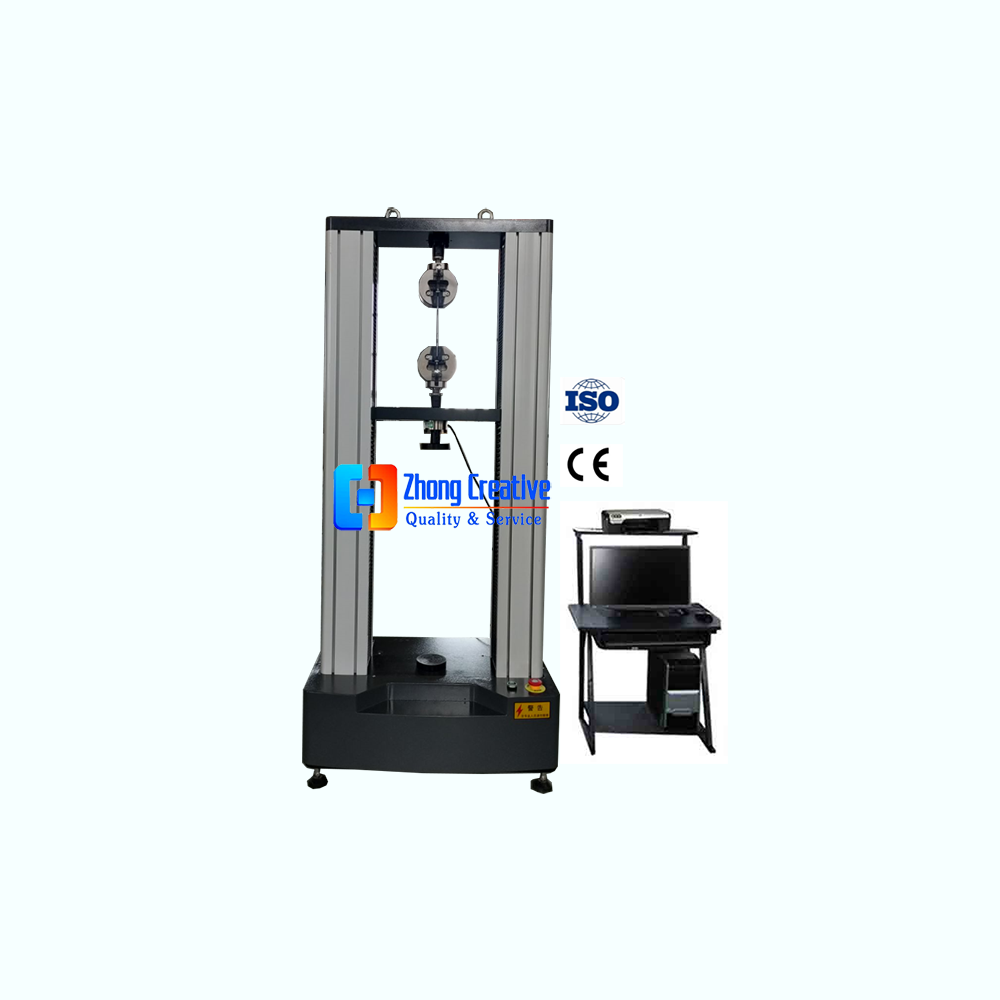

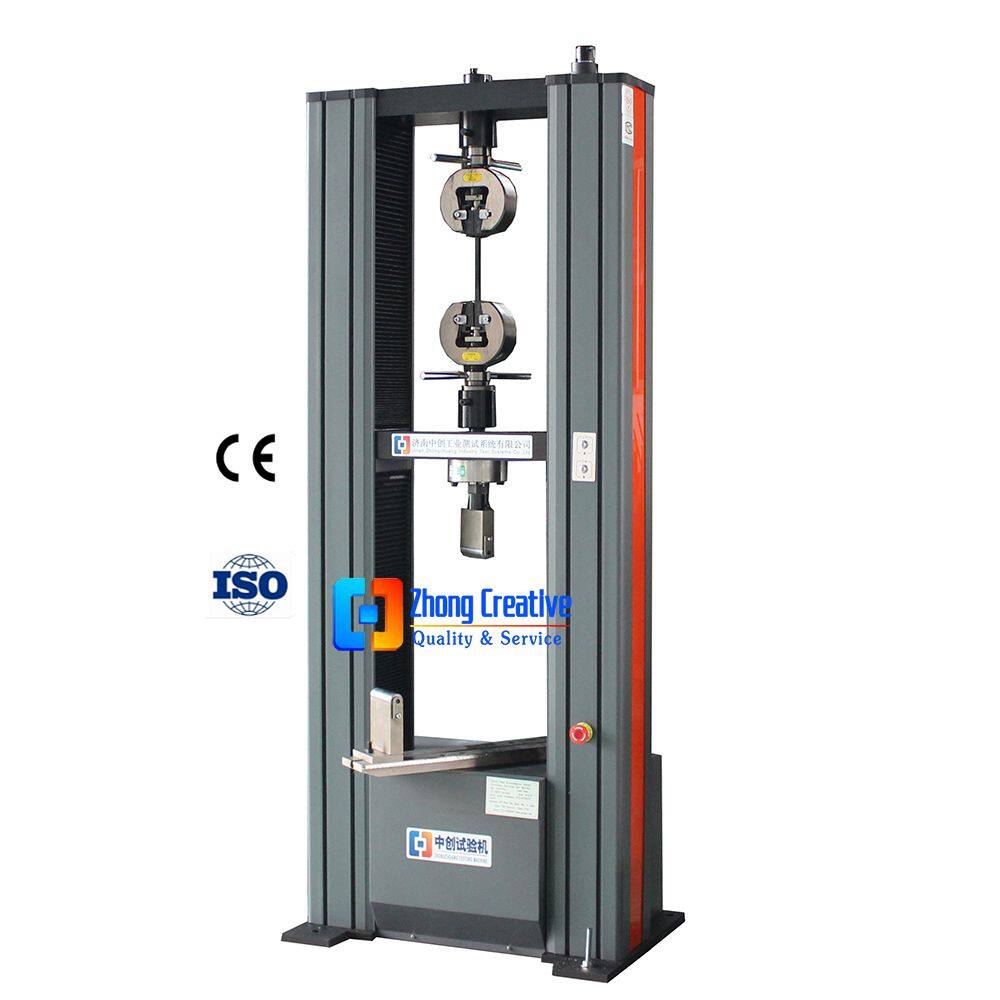

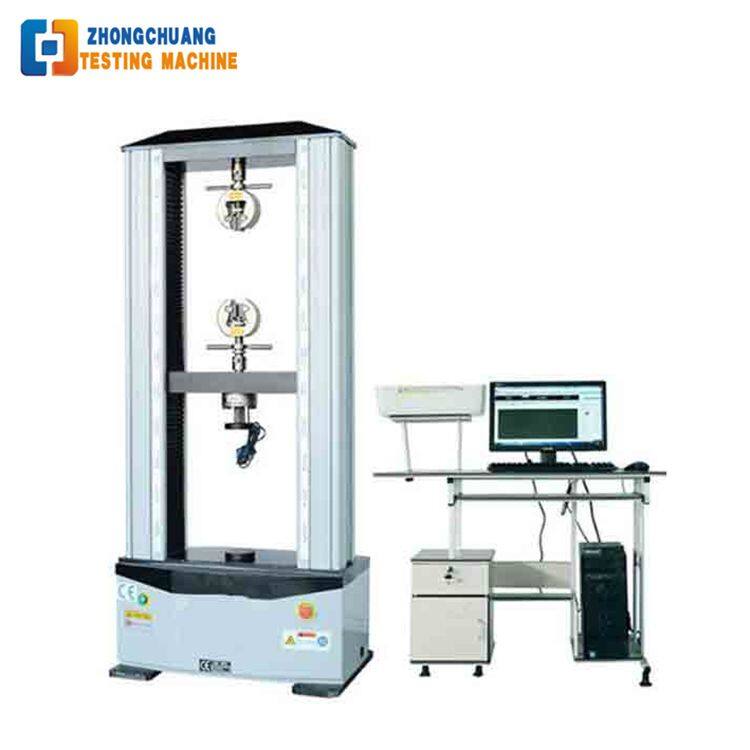

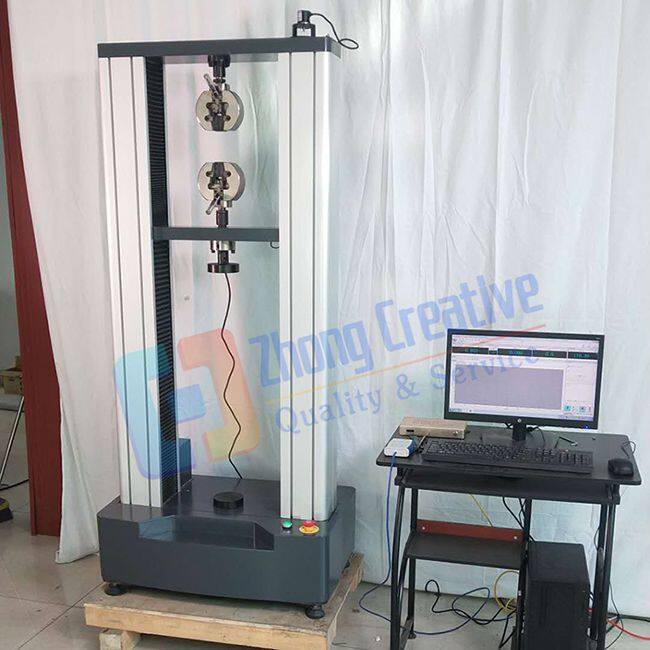

This machine is mainly suitable for the testing of mechanical properties such as tension, compression, bending, shearing, tearing, peeling, compressive and bending of metal, nonmetal and composite materials. Different test fixtures can be used for different tests, and the test fixtures are optional.

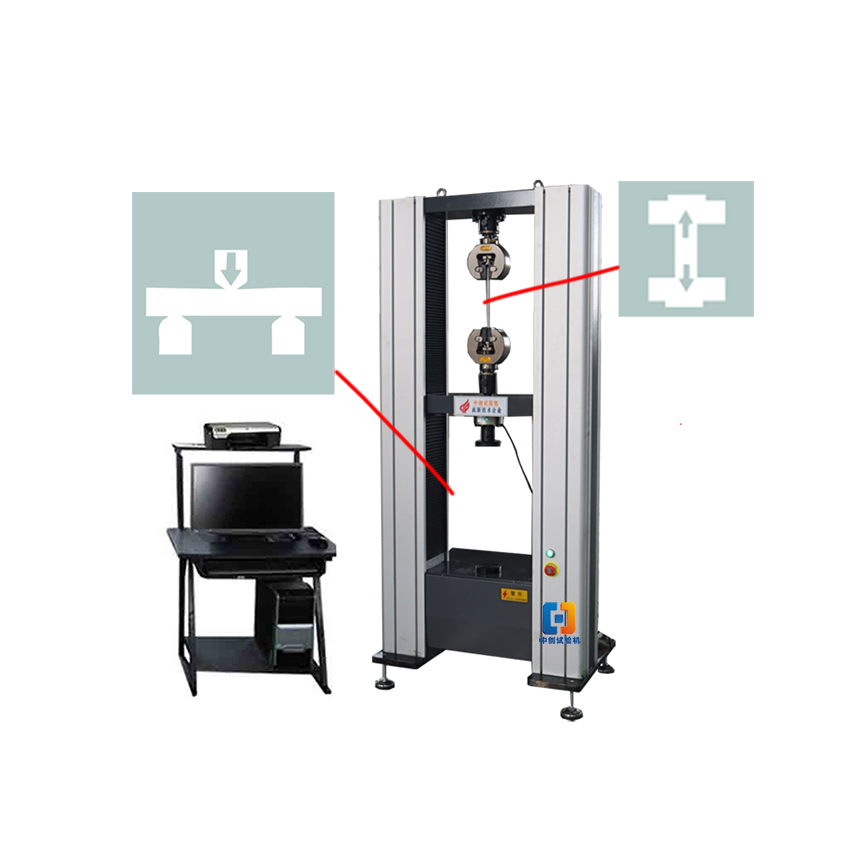

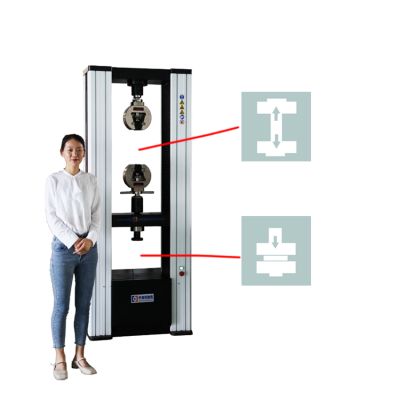

The machine adopts a double-space door structure, the upper space is stretched, and the lower space is compressed and bent. The beam is stepless lifting. The transmission part adopts circular arc synchronous toothed belt, screw pair transmission, stable transmission and low noise. The specially designed synchronous toothed belt deceleration system and precision ball screw pair drive the moving beam of the testing machine to realize a backlash-free transmission.
Structure type |
Computer control and dual-column type |
Display type |
Computer control |
Max test force |
200KN |
Measuring range |
2% ~ 100% FS |
Accuracy |
±1% |
Displacement resolution |
0.01mm |
Speed range |
0.05-300mm / min |
Test space |
600mm (Can be customized) |
Test space width |
500mm |
Dimensions |
about 916*640*2407 mm |
Weight |
about 1200 kg |
Power supply |
AC 220V±10% 50Hz |
Packing |
Standard export packing |
