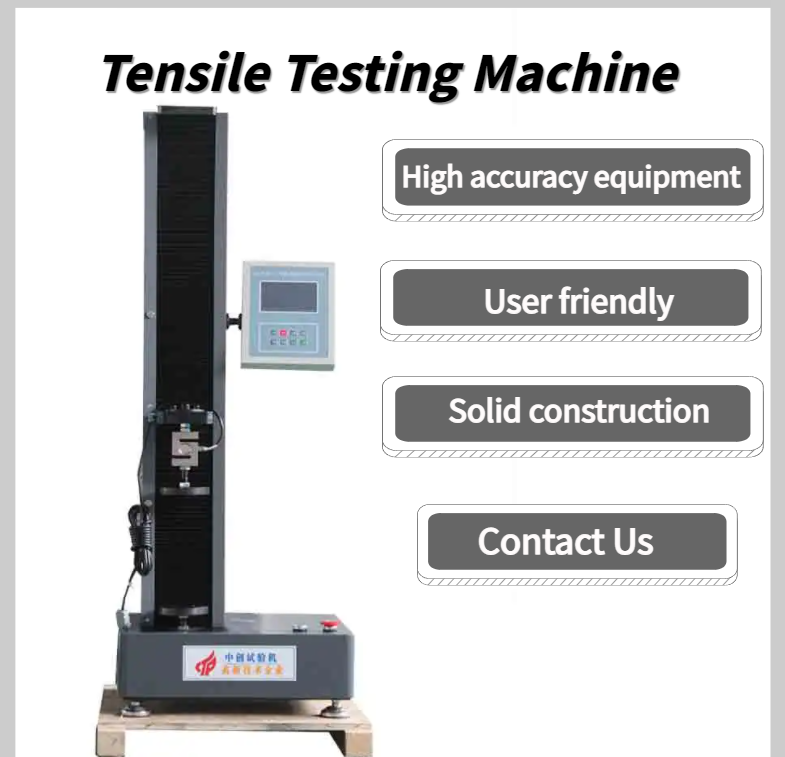

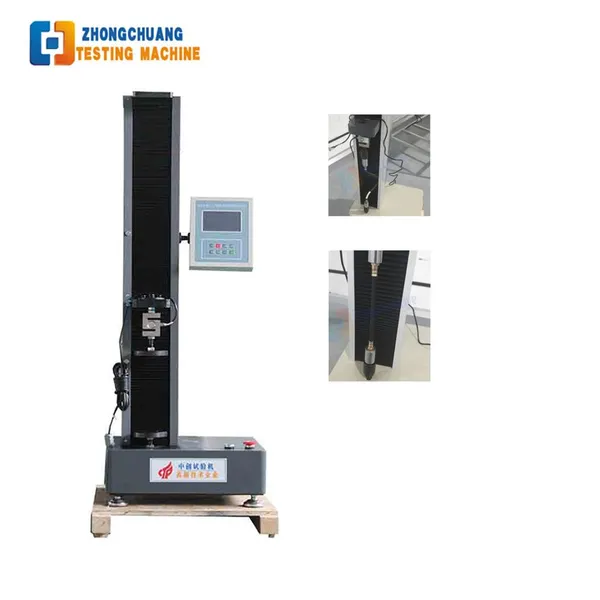

5000N Universal Material Tensile Strength Testing Machine Cloth Tensile Strength Tester Wire Tension Test Machine
Product Spotlights

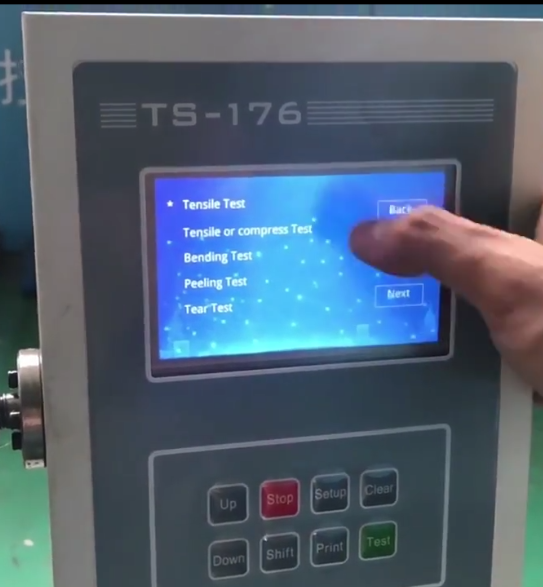

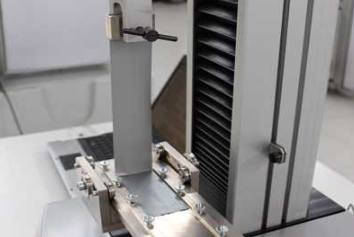

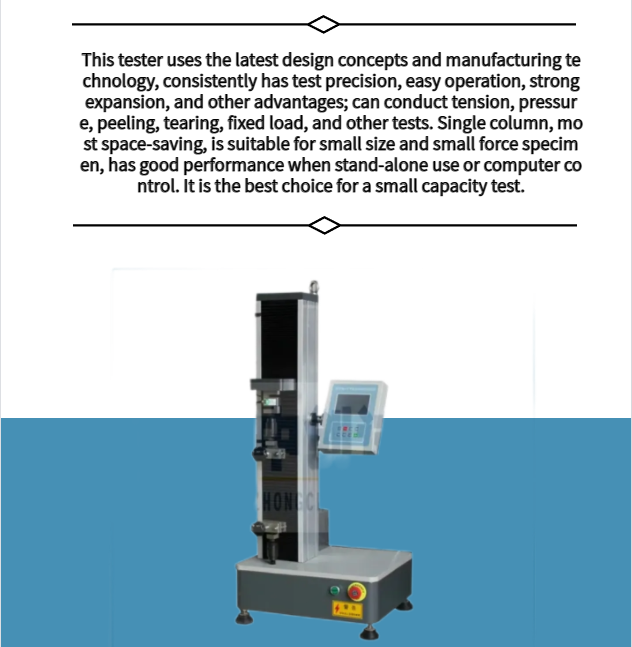

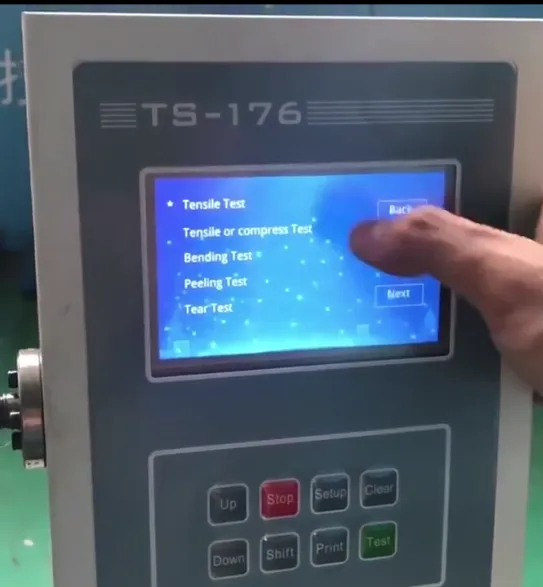

This machine is suitable for tensile, compression, bending, peeling, tearing and other tests of various materials. The LCD screen displays the test force, peak value, displacement, speed, test status, and curve in real time. The appearance is generous, easy to use and simple to operate.
US$ 1800
1 - 2 Set
US$ 1700
≥3 Set
Key Specifications
Get Latest Price
Type:
Tensile Testing Machine
Warranty:
1 year
Weight:
100-500Kg
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao，shanghai，tianjin
Delivery Detail:
25 days
Related Products
-
100KN Universal Tensile Testing Machine for Metal Steel Plate Copper Utm Universal Test Machine Tensile MachinesUS$ 4800MOQ: 1 Set -
WDW-50KN Universal Tensile & Compression Tester - 2%-100%FS RangeUS$ 3550 - 3650MOQ: 1 Set
-
Motorcycle Brake Pad Shear Strength Testing MachineUS$ 3900 - 4800MOQ: 1 Set
-
Universal Tensile/Compression Strength Testing Machine Single Column ISO/ASTM Standards Digital LCDUS$ 1750 - 1900MOQ: 1 Set
-
WDS-5000N Digital LCD Display Adhesive Tape Tearing Strength Tester & Belt Tension MachineUS$ 1750MOQ: 1 Set
Type
Tensile Testing Machine
Warranty
1 year
Weight
100-500Kg
Power Source
AC220V
After-sales Service
Online Support
Loading Method
Static Load
Display
Digital
Transport Package
wooden box
Trademark
zhongchuang
Origin
China

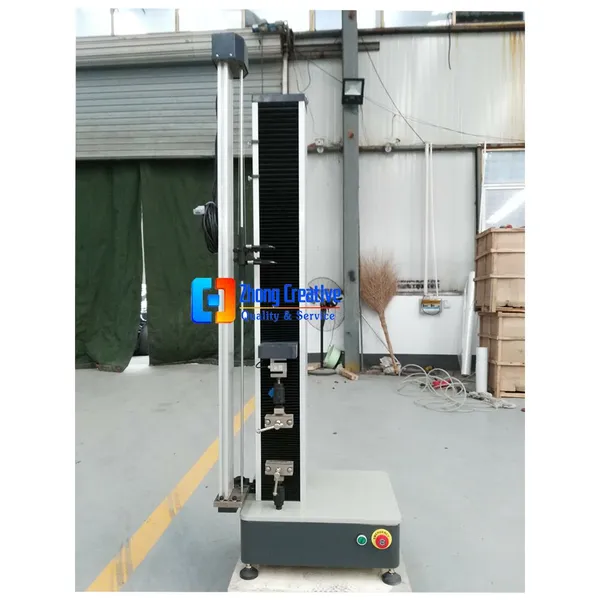

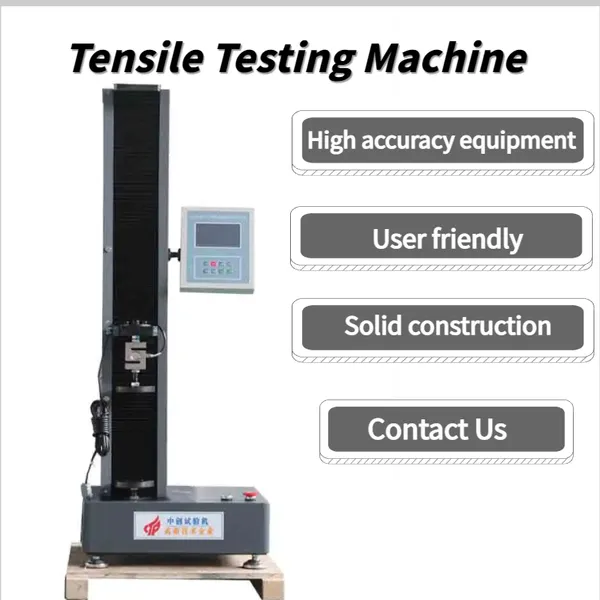

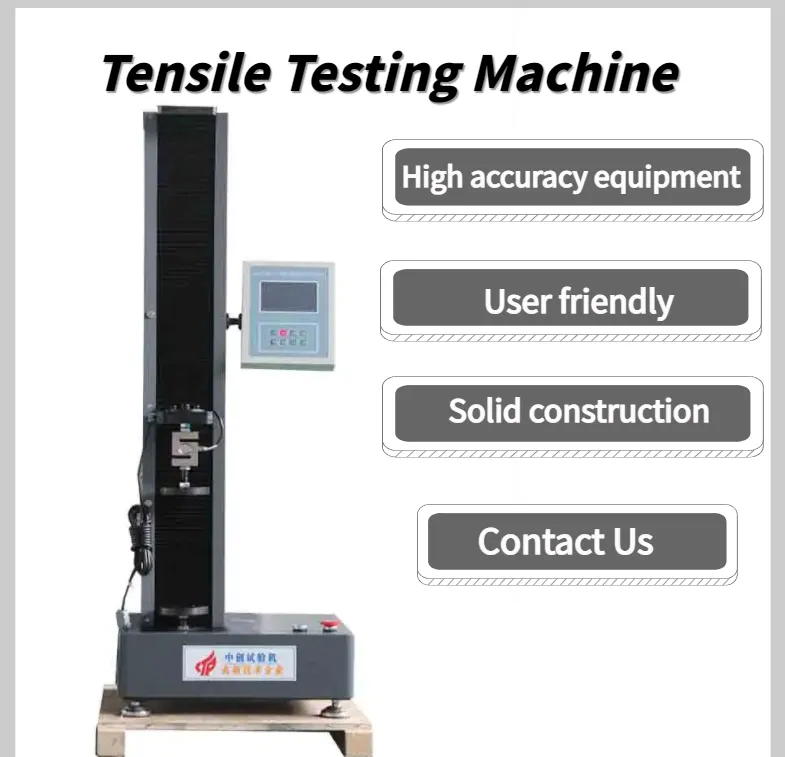

Tensile testing machine 5000N
Structure type |
Single-arm structure |
Display type |
Digital display |
Max test force |
5000N |
Measuring range |
2% ~ 100% FS |
Accuracy |
±1% |
Displacement resolution |
0.01mm |
Speed range |
0.01-500mm / min |
Test space |
600mm (Can be customized) |
Size |
about 500 * 350 * 1350 mm |
Weight: |
about 100kg |
Power supply |
AC 220V±10% 50Hz (Can be customized) |
level |
Level 1 |
Packing |
Standard export packing |
Working environment |
Room temperature 10℃~35℃, humidity 20%~80% |
