Help CenterBADGER METER ModMAG M4000 Explosion-Proof Electromagnetic Flowmeter
Product Spotlights
Related Products
-
APLISENS PEM-500 Electromagnetic Flow Meter Bidirectional Liquid Flow MonitorNegotiableMOQ: 1 Piece -
BADGER METER M4000 Modular Electromagnetic Flow MeterNegotiableMOQ: 1 Piece
-
BADGER METER M2000 Electromagnetic Flow Meter Bidirectional Liquid Flow MeterNegotiableMOQ: 1 Piece
-
BAUMER CombiFlow PF75H Magnetic Inductive Flow MeterNegotiableMOQ: 1 Piece
-
PULSAR-01 ISM 5.0 Insertion Electromagnetic Flow Meter For Conductive LiquidNegotiableMOQ: 1 Piece
Product Overview
This new amplifier, featuring a modular design, enables flow measurement in Ex Zone 1, whether installed on-site or remotely. The amplifier housing is made of powder-coated aluminum with an IP 67 rating and includes a separate connection compartment.
Performance Features
Designed for high measurement accuracy. With a measurement accuracy of ±0.20% of flow rate ±1 mm/s and a turndown ratio of 300:1, it delivers high precision, particularly in the lower range of the measurement span.
Flexible installation. The measuring unit is available in both integrated and remote display versions, with a maximum distance of 30 m.
Versatile application. The ModMAG M4000 is particularly suitable for flow measurement in the chemical industry and in wastewater treatment plants with explosion-hazard zones.
Technical Specifications
Country of Origin: United Kingdom
Sizes: 1/4…12 inches (6…300 mm)
Flow Range: 0.1…39.4 ft/s (0.03…12 m/s)
Accuracy: ±0.20% of flow rate ±1 mm/s
Repeatability: 0.1%
Power Supply: 85…240 V AC, 45…65 Hz; 24 V DC
Analog Output: 0…10 mA, 0…20 mA, 4…20 mA (programmable and scalable)
Voltage Source (18 V DC) – Isolated
Loop Resistance max. = 750 Ω
Digital Output:
(2) Open-collector, (programmable scaled pulses, flow alarm, status, or frequency output), max. 24 V DC, 0.5 W
(2) AC solid-state relays (programmable flow alarm or status), max. 24 VDC@0.5A
Frequency Output: Open-collector, full-scale flow max. = 10 kHz
Communication: RS232C serial, standard ANSI terminal-compatible data stream
Pulse Width Open-Collector: 5 ms to 1 s (programmable) or automatic 50% duty cycle
Flow Alarm: Open-collector or solid-state relay (programmable 0…100% flow)
Empty Pipe Detection Field: Adjustable for specific applications to achieve higher performance
Excitation Frequency: Programmable 3.75 Hz, 7.5 Hz, or 15 Hz
Auxiliary Input: Max. 24 V DC (programmable positive reset, external accumulator reset, or preset batch start)
Power Consumption: 20 W
Noise Suppression: 1–30 seconds (programmable)
Low Flow Shut-off: 0–100% full scale (programmable)
Zero stability: Automatic calibration
Current isolation: 500 V
Fluid conductivity: min. 5 µS/cm (softened water min. 20 µS/cm)
Ambient temperature: –4…122°F (–20…50°C)
Altitude: max. 6,500 ft (2,000 m)
Flow direction: Unidirectional or bidirectional
Product Applications
Architecture, HVAC, and plumbing
Municipal water treatment and distribution
Drinking water billing
Processing and general industry
Refining, chemical, and petrochemical

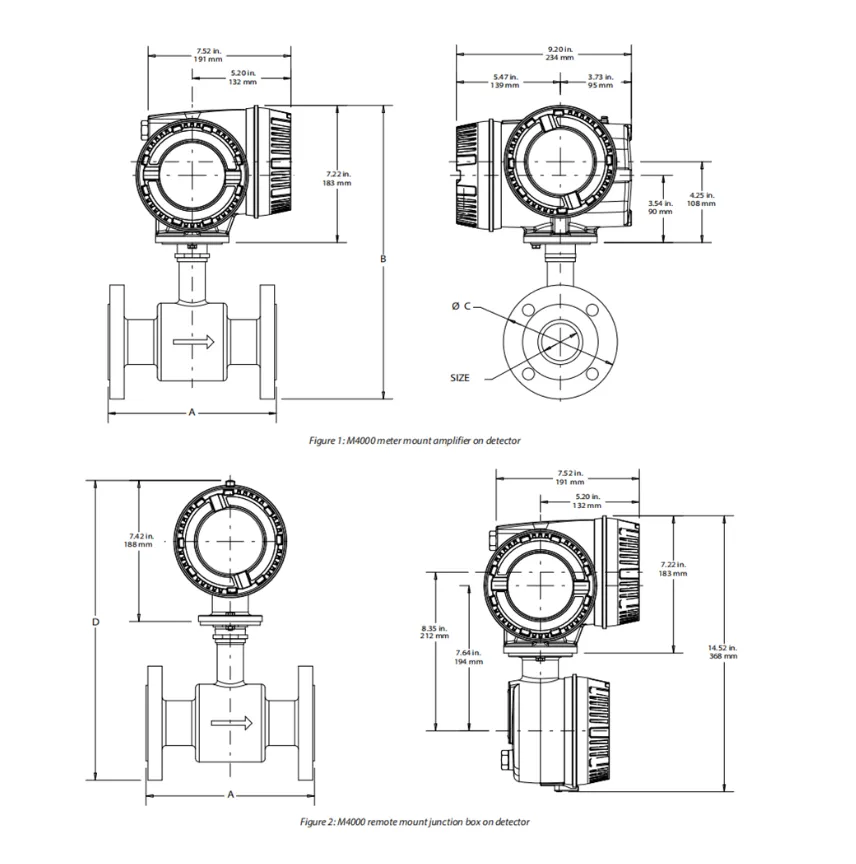

Product Dimensions
