Overview

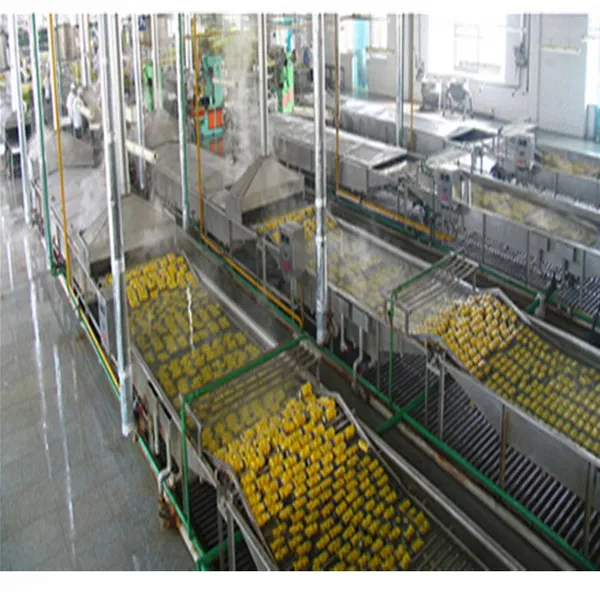

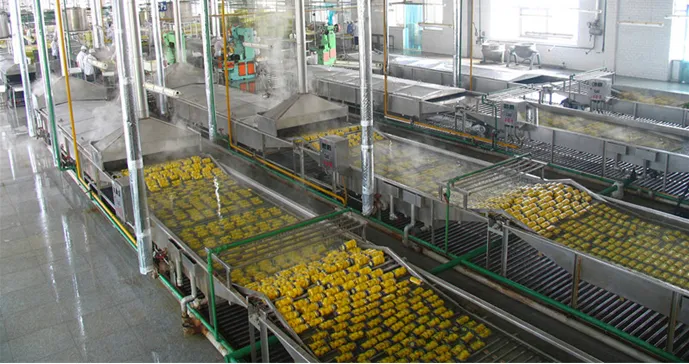

Canned Pineapple Production Line
Brief Introduction:
Canned food is a kind of food that can store for a long time after pre-processing,seasoning, filling,vacuum sealing,sterilizing.After many years’ devotion to canned fruit processing line,our company has developed advanced and mature canned fruit processing design and turnkey project.We are aimed at providing the most reasonable processing equipment for customers. The complete canned fruit production line includes pre-processing,filling,exhausting, sealing, sterilizing,cooling cedures. Different fruit has different requirements for equipments.
Main Equipments:
1. preprocessing equipments:air bubble washing machine,conveyor,pre-cooking machine, peeling machine,degassing tank,cooling tank,fruit grading machine,strip cutting machine,dicer machine,exhauster etc.
2. main filling machine:empty can washer,sugar melting machine,storage tank,milk pump,twin filter,ink-jet printer,conveyor,soup add conveyor belt,sealing machine,pasteurizer,can drier, labeling machine.All the machines are made of stainless steel.
Feature:
1.Capacity range from 2 TON to 250 TON per day.
2.High standard design,manufacturing and installation,which ensures the quality of product.
3.The whole process can be PLC automatic control,labor saving and easy operation.
4.Full-automatic CIP cleaning system.
Main Parameter:
|
Raw Material |
Apple,orange,peach,pear,apricot,mango,pineapple and other fruit and vegetable |
|
End Product |
Canned fruit and vegetable |
|
Capacity |
Fresh fruit and vegetable 2-250 Ton/Day |
|
Packaging |
aluminum alloy cans, tin cans, aseptic bag, plastic cups, glass jar etc. |
(1) Acceptance of raw mushrooms:
Fresh mushrooms processed for export of canned mushrooms must be first-class mushrooms; second- and third-level mushrooms can be processed for general canning. As a raw material for canned sheet mushrooms, the cap diameter should not exceed 4.5 cm, and as a raw material for canned mushrooms, the cap diameter should not exceed 6.0 cm.
canned mushroom factory
(2) Rinse:
Pour different grades of fresh mushrooms into 0.03% sodium metabisulfite solution, and gently flip up and down to wash away the sand, impurities, wax and lipids on the surface of the mushroom. After rinsing for 2 minutes, remove it and put it in running water for washing.
champion mushroom
(3) Pre-cooking:
First boil the prepared 0.1% citric acid solution in the pre-boiler, and then put the rinsed mushrooms, the ratio of water to mushrooms is about 3: 2. Continue to boil until cooked through, 8-10 minutes in total, then quickly cool.
(4)Grading and slicing
Classification according to the specifications of canned mushrooms. Approximately 1.5cm in diameter is a grade mushroom; about 2.5cm in diameter is a second grade mushroom; about 3.5cm in diameter is a third grade mushroom; less than 4.5cm is used to process sliced mushrooms, large mushrooms and off-handled mushrooms with a diameter of more than 4.5cm It can be used for processing pieces mushrooms.
(5) Filling:
Tin cans or glass bottles should be strictly inspected before being filled, and unqualified empty cans should be removed. Then wash it in hot water at 90 ~ 95 ℃, put it on a clean shelf and drain it for use.
(6) Add soup:
The soup formula is 2.3% to 2.5% refined salt and 0.05% citric acid. When adding soup, the soup temperature should be above 80 ℃.
(7) Pre-sealing, venting and sealing:
Exhaust in time after pre-sealing. When heating the exhaust gas, the exhaust temperature of 3000g canning is 85 ~ 90 ℃, 17min; the exhaust temperature of 284g canning is 85 ~ 90 ℃, 7min. If it is sealed with vacuum exhaust, the vacuum degree is 3432 ~ 3922Pa.
champion mushroom wholesale
(8) Sterilization and cooling:
Cans after venting and sealing should be sterilized immediately. After sterilization, back pressure cooling is performed.
(9)Inspection and packaging,then shipping
| Filling heads | 2/4/6/8/10/12 |
| capacity | 600-5000 cans/H |
| Filling volume | 10 ml- 5000 ml |
| Air consumption | 120 L/min-300 L/min |
| Power | 1-3 KW |
Cans Sealing Machine
| Capacity | 30-100 cans/min |
| Can size | D:50-400 mm H: 50-350 mm |
| Power | 1-3 KW |
Turnkey solution with after packing work flow:
canned fish Production Line
Canned meat Production Line
Canned Orange Production Line
Canned Pineapple Production Line
Strawberry Canned Production Line
Canned Corn Production Line
