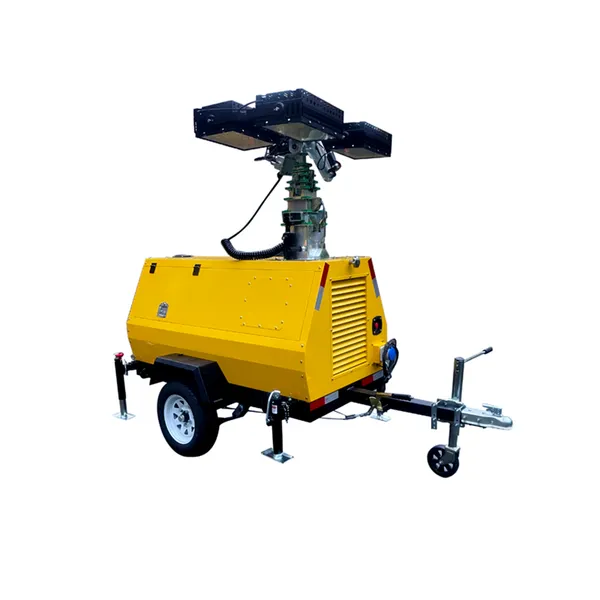

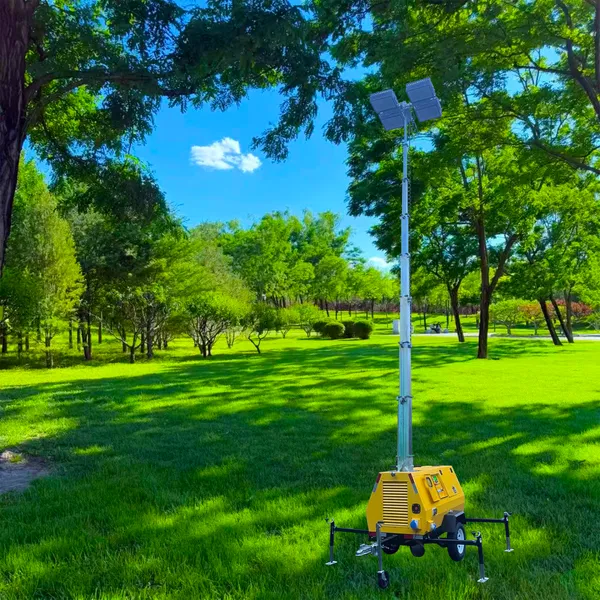

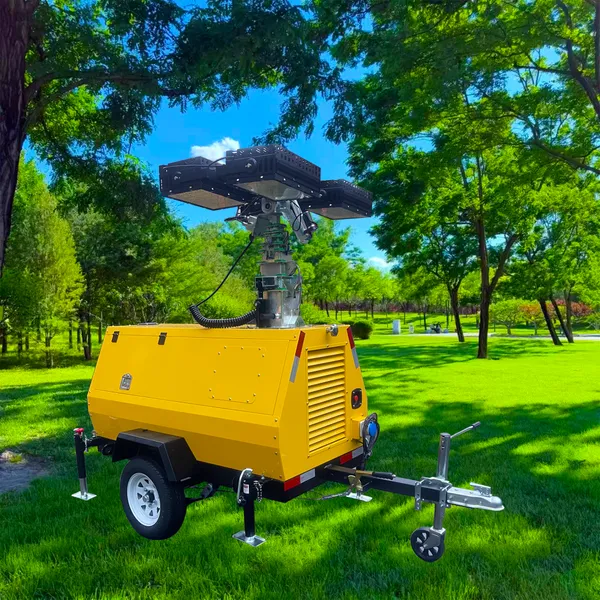

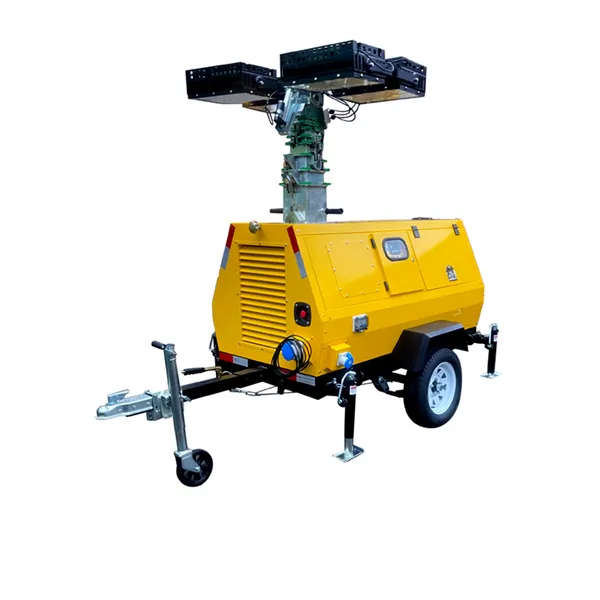

9-meter Telescopic Diesel Generator Set Lighting Beacon Tower
Product Spotlights
Full coverage highlighting: Equipped with multiple sets of high-power LED lamp heads (typically 4×300W), each lamp head has a high luminous flux. Combined with a lamp base that can rotate 360° horizontally and be adjusted at multiple angles, it can easily illuminate the entire construction si
US$ 6400
≥1 Combo
Key Specifications
Get Latest Price
Certification:
CE, ROHS
Application:
Other
Color Temperature(CCT):
Cool White
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
20 days
Related Products
-
Trailer-mounted Solar Lighting TowerUS$ 5588MOQ: 1 Combo -
Factory Direct Trailer Mounted Diesel Mobile Lighting Tower Hydraulic Telescopic Light Tower For Construction SiteUS$ 8066MOQ: 1 Combo
-
Mobile Light Tower | Portable Construction Lighting TowerUS$ 8066MOQ: 1 Combo
-
Portable Hand Crank Telescopic Mast Lighting Tower Outdoor Emergency Mobile Lighting TowerUS$ 2647MOQ: 1 Combo
-
Automatic Hydraulic Lifting Light Tower Trailer Mounted Outdoor Mobile Lighting TowerUS$ 9600MOQ: 1 Combo
Certification
CE, ROHS
Application
Other
Color Temperature(CCT)
Cool White
Projection Distance
12-18m
Average Life
8000h
IP Rating
IP65
Base Type
Other
Body Material
Other
Lighting Bulbs & Tube
Energy Saving
Transport Package
Non-pesticide-treated wooden packaging boxes
Origin
Shanghai
| Light coverage area m2 (average 20 lux) | 6000m² | 5000m² | 6000m² | 6000m² | 10000m² |
| Luminaires (total luminous flux) | LED | LED | LED | LED | LED |
| mast | Manual Vertical | Pneumatic vertical | Vertical hydraulic | Vertical hydraulic | Vertical hydraulic |
| supporting leg | Hand cranked support legs | Hand cranked support legs | Hand cranked support legs | Hand cranked support legs | hydraulic outrigger |
| performance data | |||||
| rated frequency | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| rated voltage | 110/120/230/240 | 110/120/230/240 | 110/120/230/240 | 110/120/230/240 | 110/120/230/240 |
| Sound pressure level at 7 meters (LpA) | 75 | 90 | 75 | 75 | 75 |
| engine | Yangdong 385 | Science Popularization 192f | Shangchai 3z1.1-42 | Yangma 3TN-76 | Kubota D1105 |
| RPM | 1500 RPM/1800 RPM | 3000 revolutions per minute | 1500 RPM/1800 RPM | 1500 RPM/1800 RPM | 1500 RPM/1800 RPM |
| coolant | water cooling | air cooling | water cooling | water cooling | water cooling |
| number of cylinders | 3 cylinders | single cylinder | 3 cylinders | 3 cylinders | 3 cylinders |
| alternator | 8kw | 7.2kw | 7.5kw | 8kw | 8kw |
| Insulation/shell | H | H | H | H | H |
| Fuel tank capacity | 80L | 60L | 80L | 80L | 80L |
| Fuel range (lighting only) | 40H | 30H | 40H | 40H | 40H |
| Lamp power | 4x500w | 4x400w | 4x500w | 4x500w | 4x1000w |
| power supply | LED | LED | LED | LED | LED |
| color temperature | 5000k | 5000k | 5000k | 5000k | 5000k |
| luminous flux | 320000Lm | 240000Lm | 320000Lm | 320000Lm | 600000Lm |
| mast | 9m | 8m | 10m | 10m | 10m |
| type | Hand joystick | gas spring | hydraulic rod | hydraulic rod | hydraulic rod |
| rotate | 360° | 360° | 360° | 360° | 360° |
| maximum height | 9m | 8m | 10m | 10m | 10m |
| maximum wind speed | 70km/H | 70km/H | 70km/H | 70km/H | 70km/H |
| chassis | 40km/h | 40km/h | 40km/h | 40km/h | 80km/h |
| supporting foot | 4 hand cranked support legs | 4 hand cranked support legs | 4 hand cranked support legs | 4 hand cranked support legs | 4 hydraulic support legs |
| walking wheel | 8-inch lift | 8-inch lift | 8-inch lift | 8-inch lift | 8-inch lift |
| tractor head | 2-inch European standard | 2-inch European standard | 2-inch European standard | 2-inch European standard | 2-inch European standard |
| taillight | Steering/Braking/Warning | Steering/Braking/Warning | Steering/Braking/Warning | Steering/Braking/Warning | Steering/Braking/Warning |
| tire | 165/70R13 | 165/70R13 | 165/70R13 | 165/70R13 | 185/C13 |
| type | leaf spring | leaf spring | leaf spring | leaf spring | Rubber torsion shaft |
| braking device | handbrake | handbrake | handbrake | handbrake | Hand brake and collision brake |
| Attachment | Specialized toolbox | Specialized toolbox | Specialized toolbox | Specialized toolbox | Specialized toolbox |
| size | 4200x1500x1800mm (folded and lying down) | 2800x1450x2500mm (folded) | 3200x1550x2490mm (folded and lying down) | 3200x1580x2430mm (folded and lying down) | 3200x1600x2480mm (folded and lying down) |
| weight | 950kg | 650kg | 1050kg | 1150kg | 1250kg |
| Container loading without disassembly, 20 feet/40 feet | 4/8 units | 4/8 units | 4/8 units | 4/8 units | 4/8 units |
| Container loading (dismantling) 20 feet/40 feet | 7/14 units | 7/14 units | 7/14 units | 7/14 units | 7/14 units |
Send Inquiry to This Supplier
Location
Shanghai, China
