ASNE0261CF24 Brand: DRAKA, Aeronautical Cable, Nickel-Copper, 600 Volts, AWG 24, Single Conductor

ASNE0261CF24 Brand: DRAKA, Aeronautical Cable, Nickel-Copper, 600 Volts, AWG 24, Single Conductor thumbnail-1
ASNE0261CF24 Brand: DRAKA, Aeronautical Cable, Nickel-Copper, 600 Volts, AWG 24, Single Conductor thumbnail-2
ASNE0261CF24 Brand: DRAKA, Aeronautical Cable, Nickel-Copper, 600 Volts, AWG 24, Single Conductor thumbnail-3

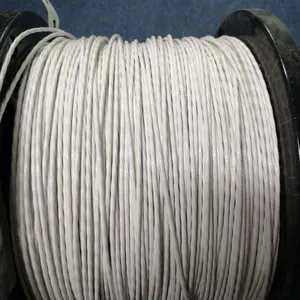

ASNE0261CF24 Brand: DRAKA, Aeronautical Cable, Nickel-Copper, 600 Volts, AWG 24, Single Conductor thumbnail-4
ASNE0261CF24 Brand: DRAKA, Aeronautical Cable, Nickel-Copper, 600 Volts, AWG 24, Single Conductor thumbnail-5
ASNE0261CF24 Brand: DRAKA, Aeronautical Cable, Nickel-Copper, 600 Volts, AWG 24, Single Conductor photo-1
ASNE0261CF24 Brand: DRAKA, Aeronautical Cable, Nickel-Copper, 600 Volts, AWG 24, Single Conductor photo-2

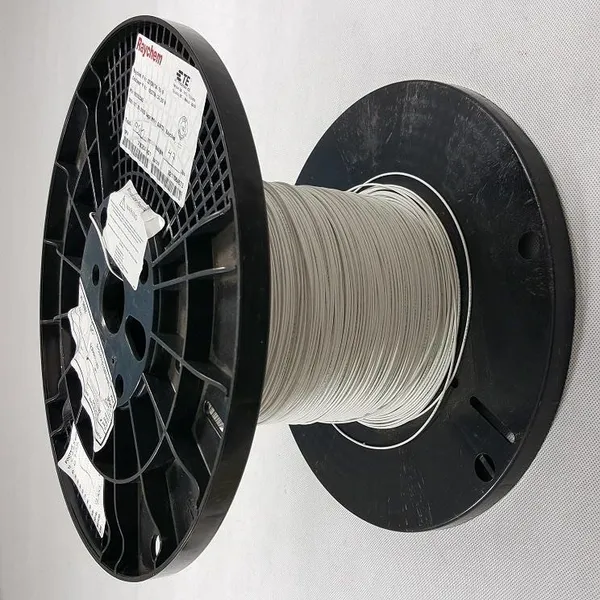

ASNE0261CF24 Brand: DRAKA, Aeronautical Cable, Nickel-Copper, 600 Volts, AWG 24, Single Conductor photo-3
ASNE0261CF24 Brand: DRAKA, Aeronautical Cable, Nickel-Copper, 600 Volts, AWG 24, Single Conductor photo-4

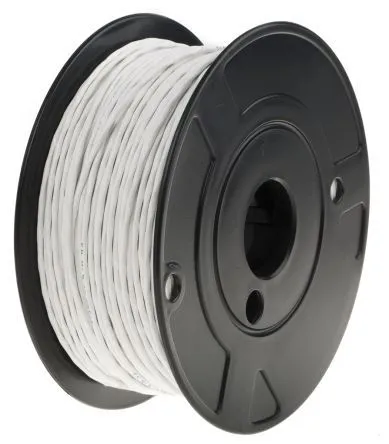

ASNE0261CF24 Brand: DRAKA, Aeronautical Cable, Nickel-Copper, 600 Volts, AWG 24, Single Conductor photo-5

Product Spotlights

ASNE0261CF24 Brand: DRAKA, Aeronautical Cable, Nickel-Copper, 600 Volts, AWG 24, Single Conductor
US$ 2.55 - 3 MOQ: 305 Meters
Key Specifications
Get Latest Price
Brand:
Other, DRAKA
Contact Supplier Request Quote Chat Now
Wekorm Electronics Co.,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Other, DRAKA

Main code ASNE0261CF24

Execute standard ASNE0261

Insulation material FEP/Polyimide/FEP

Conductor material nickel plated copper

Rated voltage 600 volts

Temperature range -55 to 200 ℃

Line gauge range 26 to 10

Core wire 1

Order Code Wire Gauge AWG Twisted Conductor Diameter DC Resistance Cable Outer Diameter mm Weight

Nb/mm mm ohm/km Min Max Kg/Km

ASNE0272TK26    26    19*0.10    0.53    164.80    0.08    1.70    1.88    2.10    7.60
ASNE0272TK24    24    19*0.12    0.62    117.50    0.08    1.90    2.08    2.30    9.60
ASNE0272TK22    22    19*0.15    0.80    61.80    0.08    2.26    2.38    2.60    12.70
ASNE0272TK20    20    19*0.20    1.04    34.20    0.10    2.74    2.90    3.15    19.90
ASNE0272TK18    18    19*0.25    1.29    21.80    0.10    3.24    3.40    3.70    27.80
ASNE0272TK16    16    19*0.30    1.53    15.00    0.12    3.74    3.90    4.20    38.50
ASNE0272TK14    14    37/0.25    1.82    10.90    0.12    4.28    4.35    4.75    50.00
ASNE0272TK12    12    37/0.32    2.28    6.80    0.12    5.16    5.25    5.65    75.00

Product Tags: ASNE0261CF24 , Brand: DRAKA
