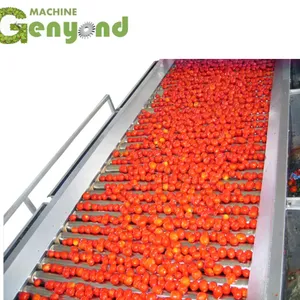

Tomato Ketchup Making Machine12 thumbnail-3
Tomato Ketchup Making Machine12 thumbnail-4
Tomato Ketchup Making Machine12 thumbnail-5
Tomato Ketchup Making Machine12 thumbnail-6
Tomato Ketchup Making Machine12 photo-1
Tomato Ketchup Making Machine12 photo-2
Tomato Ketchup Making Machine12 photo-3

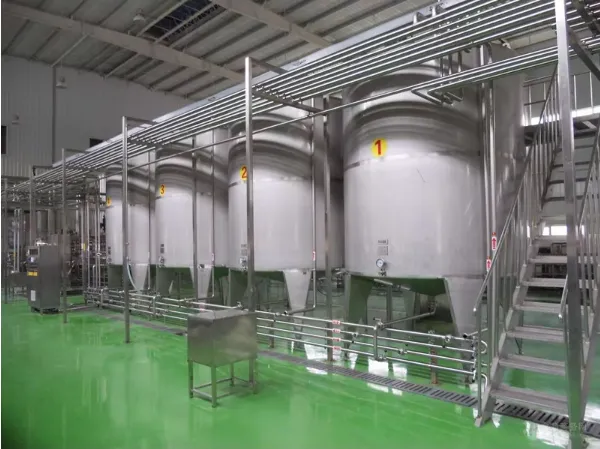

Tomato Ketchup Making Machine12 photo-4

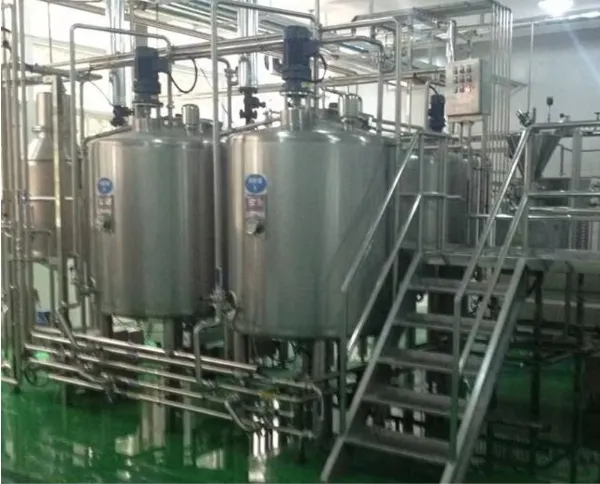

Tomato Ketchup Making Machine12 photo-5
Tomato Ketchup Making Machine12 photo-6
US$ 10000.00 ≥1 Set
Key Specifications
Get Latest Price
automatic grade:
Automatic
voltage:
380 V, 110 V, 220 V
Capacity:
100
Contact Supplier Request Quote Chat Now
Zhangjiagang Genyond Machine Co Ltd.
Gold Verified Supplier
1Yr
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
automatic grade Automatic
voltage 380 V, 110 V, 220 V
Capacity 100
key machines Fruit & Vegetable juicer machine
Weight (KG) 1000

Tomato Ketchup Making Machine12

Process flow:

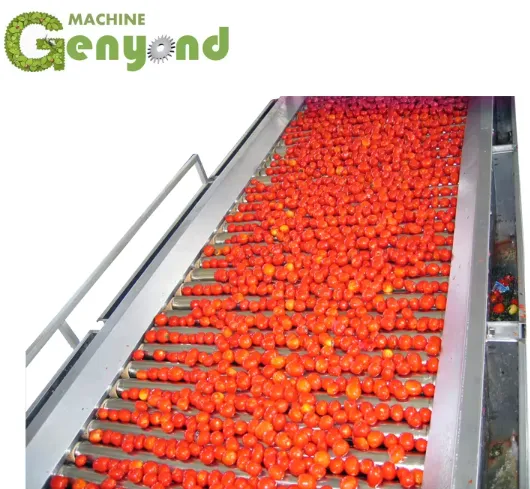

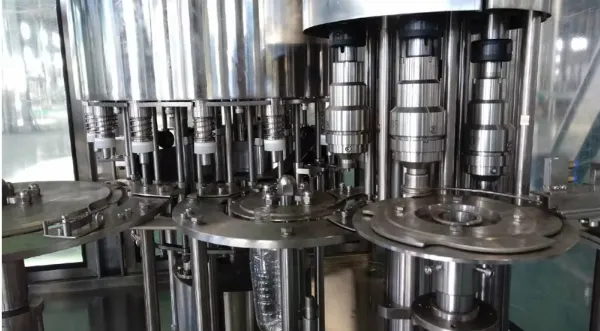

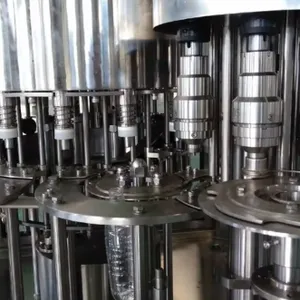

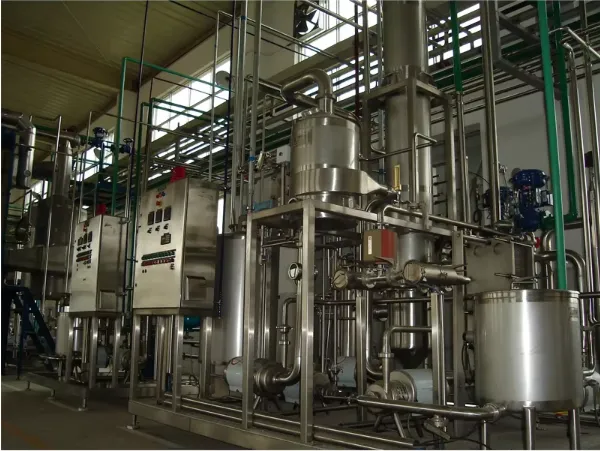

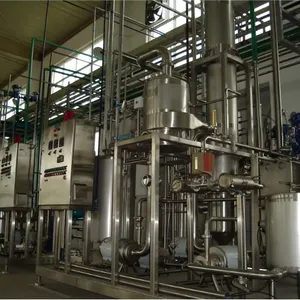

The process for tomato ketchup making machine: Fresh fruit-washing-sorting-crushing-pre-heating-refining-vacuum evaporation-sterilizing-filling-fruit paste





Supporting facilities:(take 1000kg input fresh tomato as example)

a. Tap water dosage : 10 T/H; water pressure of: ≥ 0.15 Mpa ;

b. Water drainage facility: the workshop should be equipped with enough floor drain device;

c. Re-cycle cooling water pressure: ≥0.2-0.3Mpa, temperature to be around 18℃,cooling tower: 5 t/h;

d. Compress air pressure: ≥0.6 MPa, consumption: 10 m3/h; ( 0.6 m3/min without water and oil)

e. Saturated steam pressure: ≥0.6 Mpa , boiler capacity: 1T/H;

f.  Recommended capacitance: 250 KVA;(including the whole line, the boiler, recycling water,convey system and lighting)

g. Power supply: three phase 380 V 50 HZ; Independent distribution box.
