Specifications
1.fruit juice production line
2.stainless steel
3.PLC control
4.high efficiency
Features:
This fruit juice processing plant can be used for making all kinds of fruit juice. All the equipments are made of 304 stainless steel which is durable and clean. All the standard connecting pipes are made of 304 stainless steel, customers can also choose PVC pipes. The whole system is full automatic. There is automatic electric control system. It just needs a few operators to handle the plant.
Main equipments:

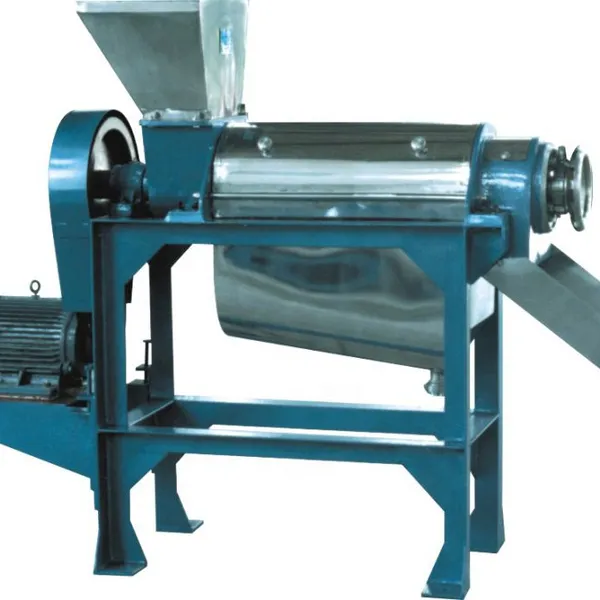

juice extractor, water treatment plant, CIP cleaning system, sterilization machine, mixing tank, filling equipment.
Characteristics:
1. it can carry out washing pulp filling, liquid juice filling and capping in one machine.
2. it is very convenient to change diverse sizes of bottles by means of advanced bottle neck clamping & bottle suspending technology.
3. Advanced programmable PLC is equipped to control the main machine. Working speed can be adjusted by frequency conversion device.
Main Technical Data: apple juice production line | ||||||||
Model |
CGF12125 |
CGF18186 |
CGF24248 |
CGF323210 |
CGF404012 |
CGF505012 |
CGF606015 |
CGF808020 |
Number of washing, filling and capping heads |
12-12-5 |
18-18-6 |
24-24-8 |
32-32-10 |
40-40-12 |
50-50-12 |
60-60-15 |
80-80-20 |
Production capacity(600ml) (B/H) |
2000-4000 |
5000-7000 |
8000-12000 |
12000-15000 |
16000-20000 |
20000-24000 |
25000-30000 |
35000-40000 |
suitable bottle specification(mm) |
φ=50-110=170 330-2250ml |
|||||||
Washing pressure(kg/cm 2 ) |
2-3 |
|||||||
Motor power(kw) |
Main motor 2.2kw |
Main motor 2.2kw |
Main motor 3kw |
Main motor 5.5kw |
Main motor 7.5kw |
Main motor 11kw |
Main motor 15kw |
Main motor 19kw |
Overall dimensions (mm) |
2400×1650 ×2500 |
2600×1920 ×2550 |
3100×2300 ×2800 |
3800×2800 ×2900 |
4600×2800 ×2900 |
5450×3300 ×2900 |
6500×4500 ×2900 |
76800×66400 ×2850 |
Weight (kg) |
2500 |
3500 |
4500 |
6500 |
8500 |
9800 |
12800 |
15000 |
