Large Capacity Industrial Vacuum Evaporator Tomato Paste Concentration Juice Concentrator Equipment

Large Capacity Industrial Vacuum Evaporator Tomato Paste Concentration Juice Concentrator Equipment photo-1
Large Capacity Industrial Vacuum Evaporator Tomato Paste Concentration Juice Concentrator Equipment photo-2
Large Capacity Industrial Vacuum Evaporator Tomato Paste Concentration Juice Concentrator Equipment photo-3

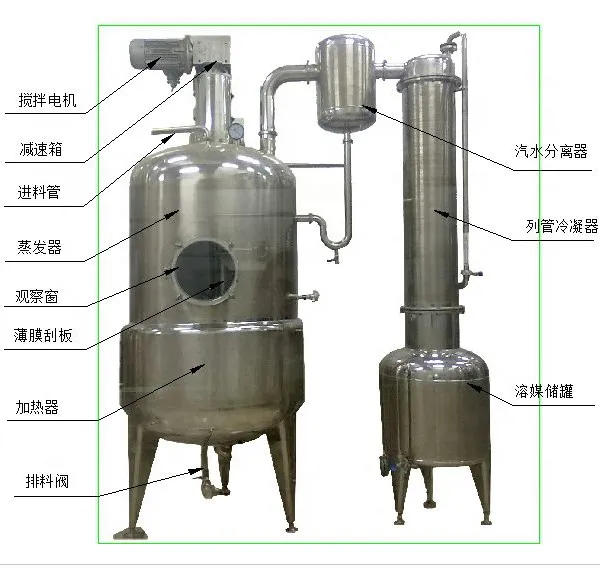

Large Capacity Industrial Vacuum Evaporator Tomato Paste Concentration Juice Concentrator Equipment photo-4
Large Capacity Industrial Vacuum Evaporator Tomato Paste Concentration Juice Concentrator Equipment photo-5

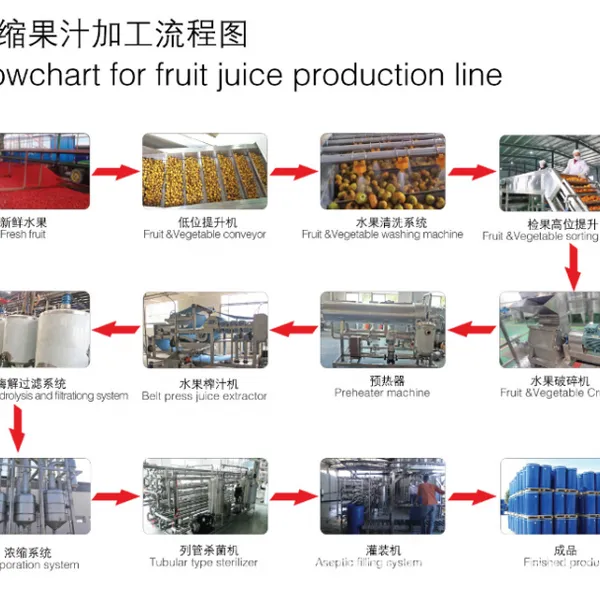

Large Capacity Industrial Vacuum Evaporator Tomato Paste Concentration Juice Concentrator Equipment photo-6
US$ 19800.00 1 - 4 Set
US$ 17700.00 ≥5 Set
Key Specifications
Get Latest Price
processing:
Concentrator
video outgoing-inspection:
Provided
machinery test report:
Provided
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
processing Concentrator
video outgoing-inspection Provided
machinery test report Provided
core components PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
place of origin Shanghai, China
brand name GENYOND
processing types Juice
voltage 220V/380V
power(w) 15KW
weight 5000 KG
dimension(l*w*h) 3800*2600*4000MM
warranty 1 Year
After-sales Service Provided Online Support
Name Concentrator Machines Concentration Equipment
Heating Method Steam Heating
Material Stainless Steel 304/316L
After Warranty Service Video Technical Support
Processing VACUUM EVAPORATOR
Capacity 10-5000 M3/d
Certification CE/ISO
Working pressure 0.3
Product Introduce

Liquid Materials Concentration Machine Vacuum Evaporator

Vacuum Evaporator is a process in which the solder with a lower melting point than the base metal is melted and the joint gap is filled by capillary action to obtain a non-detachable joint. In recent years, with the continuous development of science and technology, brazing technology occupies an increasingly important position in various industrial sectors, especially in electrical instrumentation and national defense industries, it has become an irreplaceable process method.

For example, complex-shaped heat exchangers (oil coolers, evaporators and radiators, etc.) used in large oxygen generators, automobiles and ships, complex-shaped honeycomb structures, electrical parts, and precision mechanical parts in jet engines must be Brazing is used. In recent years,the brazing process has developed very rapidly. The brazing technology has been developed from the original application in the
national defense industry such as aircraft and nuclear energy to ordinary metals and practical components.
Product Specification
Model
JM-3
JM-5
JM-10
JM-20
Water evaporation(kg/h)
3000
5000
10000
20000
Steam Consumption(t/h)
0.9~1.2
1.5~2
3~4
6~8
Steam pressure(MPa)
0.4~0.8
Water evaporation(tons)
2.5~3.33
Vacuum degree 1st effect(MPa)
-0.1~0.18
Vacuum degree 3st effect(MPa)
-0.085
Evaporation temperature 1st effect(℃)
70~115
Evaporation temperature 3st effect(℃)
45~55
OVERVIEW
Shanghai Genyond Machinery
Genyond machinery industrial group has been in the design and production of equipments on dairy production for more than 20 years.
We have 6 factories in Mainland China now.
We offer turnkey project on the production and packing of pasteurized milk, UHT milk, yogurt, cheese, cream, butter, ghee, ice cream jelly pudding,etc.
