Product Description
Product Introduction
The material information
Plant leaves and flowers: roses, osmanthus,chrysanthemum,lavender,
sagebrush, rosemary, wintersweet, sophora japonica, mint, thyme,etc.
Plant roots: aloes, ginger, aloe, clove,etc.
Plant fruit, passion fruit, castor, aniseed, grape seeds, etc.
Technical Parameters:
| Model |
Capacity (L/3-4hr) |
Power (KW/H) |
Supply Power | Dimension(mm) | |||
| Voltage | Phase | Length | Width | Height | |||
| EO-10 | 10 | 4.5 | 380/220 | 3 | 1300 | 550 | 1800 |
| EO-20 | 20 | 5.5 | 380/220 | 3 | 1200 | 700 | 1700 |
| EO-30 | 30 | 6 | 380/220 | 3 | 1300 | 800 | 1700 |
| EO-40 | 40 | 7.3 | 380/220 | 3 | 1400 | 700 | 1800 |
| EO-50 | 50 | 7.5 | 380/220 | 3 | 1600 | 850 | 1800 |
| EO-60 | 60 | 8 | 380/220 | 3 | 1600 | 850 | 1850 |
| EO-80 | 80 | 9 | 380/220 | 3 | 1700 | 850 | 1900 |
| EO-100 | 100 | 12 | 380/220 | 3 | 1700 | 900 | 2100 |
| EO-150 | 150 | 18 | 380/220 | 3 | 1800 | 900 | 2100 |
| EO-200 | 200 | 25 | 380/220 | 3 | 1800 | 1000 | 2100 |
| EO-300 | 300 | 38 | 380/220 | 3 | 1900 | 1000 | 2100 |
|
Note: Besides the above model, we also have 500L,1000L,1500L,2000L 3000L and above. |
|||||||

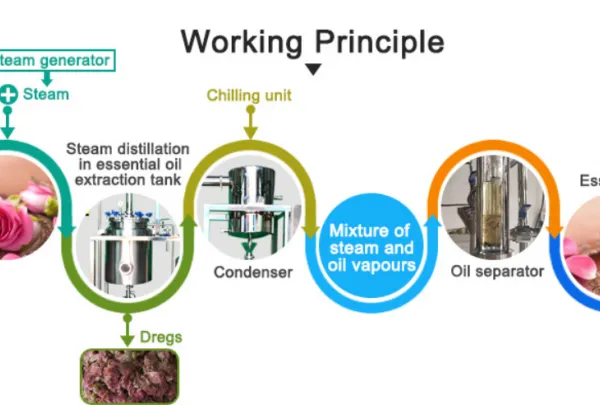

1. This equipment is to use steam distillation method was carried out on the material lie between water distillation extraction.
2. The equipment is my company according to the essential oil extraction process, combined with advanced automation control system, developed by subminiature steam distillation extraction equipment. Reasonable structure design, superior performance. Simple and flexible operation, one can easily finish the experiments and production.
3. Use indirect heat conduction oil heating equipment, in ensuring clean, safe, under the condition of normal pressure can reach 100 °C high temperature quickly.Under the condition of the process allows, close vacuum pump, guide steam quickly through the condenser, the volatile oil quickly gather in the oil-water separator.
4. Vacuum cryogenic distillation, can has a better recovery of volatile substances.
5. Grade oil/water separation using laboratory glass pipe design, glass pipe diameter at 20 mm, facilitate oil separation and collection.
6. Distillation device built-in type multilayer blue, open structure, placed flowers and plants, all cleaning equipment is very convenient.
