Industrial Fruit Juice Processing Machine Cold Press Juice Extractor
US$ 15500.00
≥1 Set
Key Specifications
Get Latest Price
video outgoing-inspection:
Provided
machinery test report:
Provided
core components:
Engine, Bearing, Gearbox, Motor, Gear
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Genyond Fruit Juice Pressing Machine Cold Press Juice ExtractorUS$ 15500.00MOQ: 1 Set -
Mobile Fruit Juice Processing Machine for Juice ExtractorUS$ 15500.00MOQ: 1 Set
-
High Quality 200ml 500ml Aseptic Bricks Filling and Packing Machine for Juice BeveragesUS$ 122500.00MOQ: 1 Set
-
Automatic 200ml Carton Bricks Aseptic Filling and Packing MachineUS$ 122500.00MOQ: 1 Set
-
Jacketed Mixing Pot for Cooking Steam or Gas Heating for Dairy Processing MachinesUS$ 85000.00MOQ: 1 Set
video outgoing-inspection
Provided
machinery test report
Provided
core components
Engine, Bearing, Gearbox, Motor, Gear
place of origin
Shanghai, China
brand name
genyond
type
fruit juicer
voltage
380v/220v
power(w)
1.5kw
weight
500 KG
dimension(l*w*h)
2000*900*1500mm
warranty
1 Year
Application
Fruit Processing
Function
juice extracting
Material
304 Stainless Steel
Capacity
500kg/h
Feature
High Efficiency Easy Operate
MOQ
1 Set
Suitable for
Apple,pear,pineapple
Applicable Industries
Food & Beverage Factory, Food & Beverage Shops
Showroom Location
None
Marketing Type
Ordinary Product
Warranty of core components
1 Year
Condition
New
Year
2022
Product Description
Cold press juice extracting machine
Fresh juice extractor
Fruit juice processing machine
It is widely used in solid and liquid separation process of the half end product in VC project,alcohol project and brewing, starch, and feed stuff, and industrial polluted water and salted dished salt removing projects. It works automatically and continuously. The aerocyst controls inflating bags, revision, And adding pressure. The cleaning water is filtered by an angle net sterilizer and can be recirculated.
Product Name |
Cold press juice extractor |
Style |
belt press |
Brand |
Genyond |
Power |
1.5 -7.5kw |
Material |
SUS304 |
Application |
Apple/pear/pineapple/carrot...... |
Capacity |
0.5- 10t/h |
Packing |
Packed in one wood case |
Size |
200*90*150 CM |
1.Industrial jucing machine, high juicing rate(78%), Good test.
2. Stainless steel, sutiable for food hygienic standards.
3. Accessories are all the famous brand.
4. Easy to operate, toch screen control, simple, effective.
5. Full auto CIP cleaning system, no need person to operate.
ntinuous automatic working, the airbag control filter belt correction, pressure,variable frequency speed regulation.
2. Stainless steel, sutiable for food hygienic standards.
3. Accessories are all the famous brand.
4. Easy to operate, toch screen control, simple, effective.
5. Full auto CIP cleaning system, no need person to operate.
ntinuous automatic working, the airbag control filter belt correction, pressure,variable frequency speed regulation.

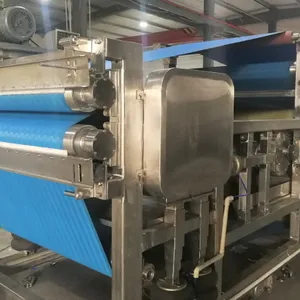

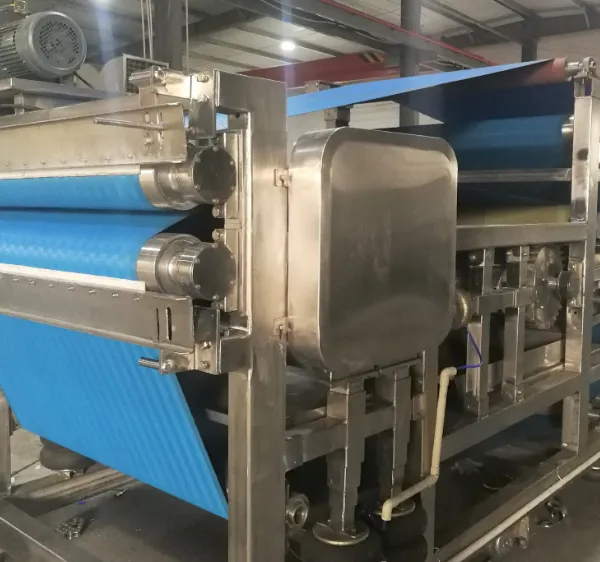

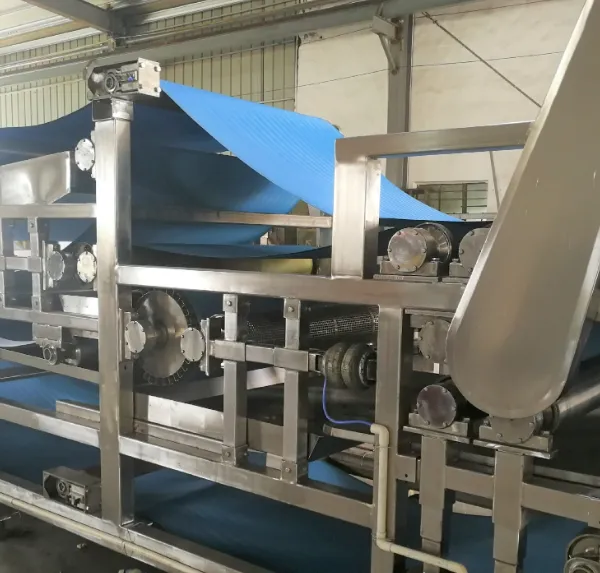

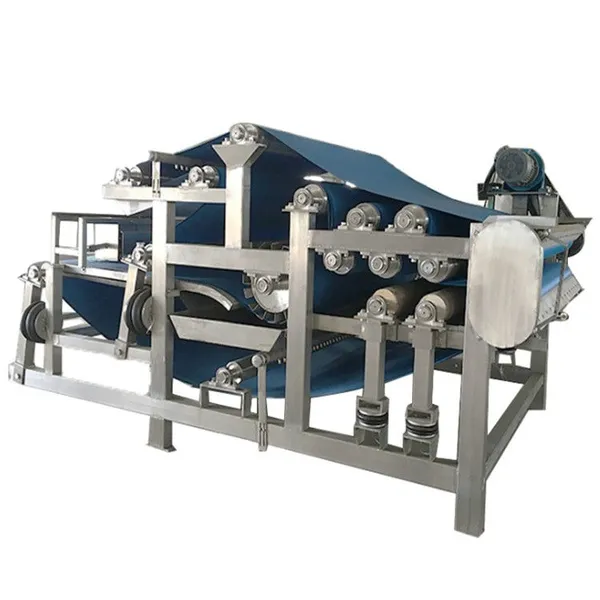

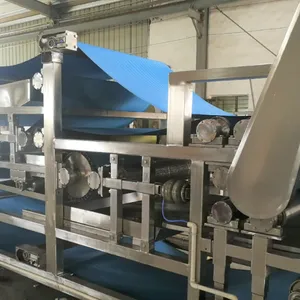

Detail Pictures
Characteristics:
1. The machine is used in fruit and vegetable pressing with high juicing rate.
2. Widely used in VC project,engineering,and brewing of alcohol,starch,feed and others semi-finished products of solid liquid separation mining,but can also used in industrial wastewater treatment,water desalination mustard and other working conditions;
3. All stainless steel,in line with food hygiene standards;
4. Accessory devices are used mainly foreign brand-name products,stable and reliable;
5. Continuous automatic working,airbag control up with,correction,pressure,frequency control;
6. Fully automatic CIP cleaning system,without manual operation,convinent;
7. Control system with touch screen operation,intuitive interface,simple and efficient;
8. Energy saving,to recycle clean water from the arc network with filters.
9. Depending on operating conditions,there are three kinds of cleaning pumps available,vertical multi-stage pump,single screw pump and centrifugal pump.
1. The machine is used in fruit and vegetable pressing with high juicing rate.
2. Widely used in VC project,engineering,and brewing of alcohol,starch,feed and others semi-finished products of solid liquid separation mining,but can also used in industrial wastewater treatment,water desalination mustard and other working conditions;
3. All stainless steel,in line with food hygiene standards;
4. Accessory devices are used mainly foreign brand-name products,stable and reliable;
5. Continuous automatic working,airbag control up with,correction,pressure,frequency control;
6. Fully automatic CIP cleaning system,without manual operation,convinent;
7. Control system with touch screen operation,intuitive interface,simple and efficient;
8. Energy saving,to recycle clean water from the arc network with filters.
9. Depending on operating conditions,there are three kinds of cleaning pumps available,vertical multi-stage pump,single screw pump and centrifugal pump.
No. |
Item |
Specification |
1 |
Active reduction motor |
Power: 0.75KW Voltage: 380V Reduction ratio: 200 |
2 |
Clean reduction motor |
Power: 0.18KW Voltage: 380V Reduction ratio: 40 |
3 |
Cylinder |
ACP100*60B |
4 |
Mechanical valve |
TH-5-1/4B |
5 |
Bearing |
UCFC206 |
6 |
Airbag cylinder |
M31102 |
7 |
Air cleaner |
GFR30008AJC3 |
Equipment scope:
This type of belt squeeze extractor is based on advanced foreign technology.Developed by many technical experts of the domestic industry.This dewater equipment posses the 90’s advanced international level,which is mainly used for fruit juice
extraction,particularly applicable to berry,kernel fruit and vegetable juicing.The product capacity reaches 20 ton per hour.The advantages are high juice rate,low energy and simple operation.It is one of the most ideal squeezing machine for large and medium-sized fruit juice factory.
The machine is a new efficient and continuous operation of solid-liquid separation equipment.
In addition to the fruit juice industry,it is also used in the city sewage treatment plant, water plant, paper, leather, printing
and dyeing, slaughter, petrochemical, pharmaceutical, metallurgical materials, brewing,food and other industry wastewater sludge dewatering.
This type of belt squeeze extractor is based on advanced foreign technology.Developed by many technical experts of the domestic industry.This dewater equipment posses the 90’s advanced international level,which is mainly used for fruit juice
extraction,particularly applicable to berry,kernel fruit and vegetable juicing.The product capacity reaches 20 ton per hour.The advantages are high juice rate,low energy and simple operation.It is one of the most ideal squeezing machine for large and medium-sized fruit juice factory.
The machine is a new efficient and continuous operation of solid-liquid separation equipment.
In addition to the fruit juice industry,it is also used in the city sewage treatment plant, water plant, paper, leather, printing
and dyeing, slaughter, petrochemical, pharmaceutical, metallurgical materials, brewing,food and other industry wastewater sludge dewatering.
