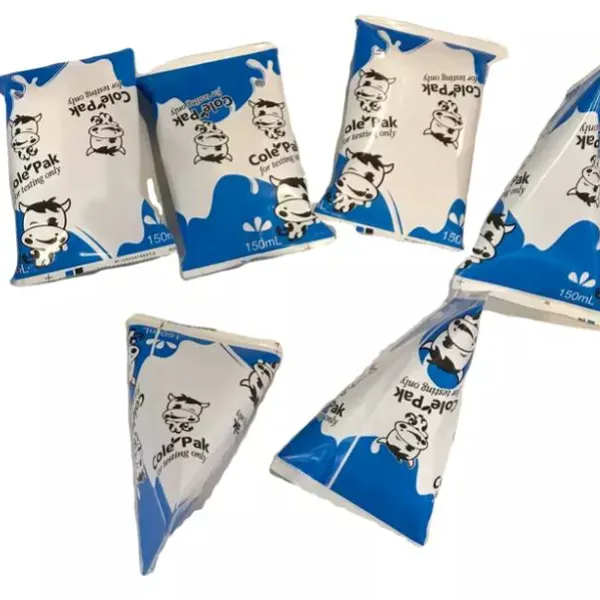

Triangle Carton and Fino Pouch Combined Aseptic Neutral Liquid Filling and Packing Machine for Milk, Juice
US$ 122500.00
≥1 Set
Key Specifications
Get Latest Price
application:
Food, Beverage
packaging type:
Cartons
packaging material:
Paper
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Frozen French Fries Processing Machine Plant Price for SaleUS$ 135000.00MOQ: 1 Set -
Automatic Commercial Potato Carrot Steam Peeling Machine Auto Industrial Tomato Sweet Tomato Steam Peeler Cheap Price for SaleUS$ 29500.00MOQ: 1 Set
-
Automatic Frozen Fruit & Vegetable Processing LineUS$ 6000.00MOQ: 1 Set
-
Orange Juice Lemon Juice Concentrate Production Line Processing Equipment Turn-key ProjectUS$ 5000.00MOQ: 1 Set
-
Turn-key Engineering Coconut Water Milk Extractor Extraction Processing Machinery and Equipment for Coconut Oil Production LineUS$ 50000.00MOQ: 1 Set
application
Food, Beverage
packaging type
Cartons
packaging material
Paper
automatic grade
Automatic
driven type
Electric
Voltage
380V
place of origin
Shanghai, China
brand name
GENYOND
dimension(l*w*h)
400MM*145MM*290MM
warranty
2 Years
key selling points
Easy To Operate
filling material
Milk, Water, Oil, Juice
filling accuracy
99.9
machinery test report
Provided
video outgoing-inspection
Provided
core components
PLC, Gear, Bearing, Gearbox
After-sales Service Provided
Field installation, commissioning and training
Function
Automatic Filler
Suitable for
Milk juice etc.
Capacity
2000-24000bph
Material
Stainless Steel 304/316
Feature
High Precision Filling Level
Filling volume
100ml-1000ml
Advantage
Long Life Service
Weight
2000 KG
Product Description

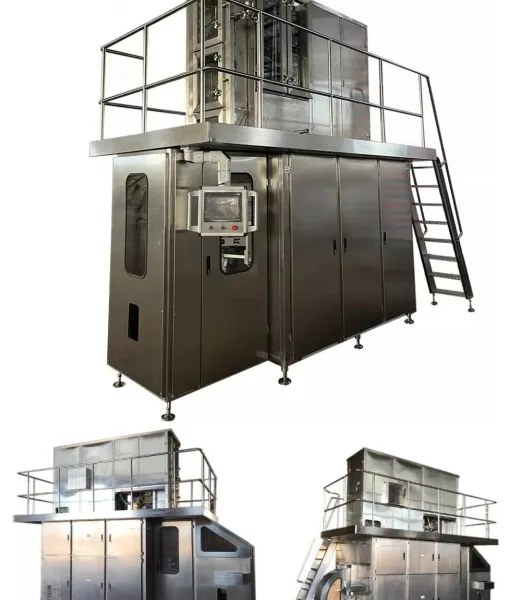

This machine is used for filling milk, fruit and vegetable juice plant protein etc. Liquid beverage by Paper aluminum plastic composite packaging carton.
This machine is responsible for sterilizing the carton package and machine inside filling environment is aseptic, so that can make the UHT beverage after filling is aseptic, which can make the beverage shelf life is 6-12 months.
This machine is responsible for sterilizing the carton package and machine inside filling environment is aseptic, so that can make the UHT beverage after filling is aseptic, which can make the beverage shelf life is 6-12 months.
Product Name |
Aseptic carton filling machine |
Material |
SUS304/316L |
Brand |
Genyond |
Power |
15-25kw |
Application |
Juice/ Milk/ beverages.. |
Dimension |
4000x2500x2400mm |
Filling range |
100-1000ml.. |
Weight |
2000-4000kg |
Filling speed |
2000-7500BPH |
After sale service |
1. The machine Automatic Form- Feed –sterilize –filling –shaping –
2. The machine's PLC, photoelectric correction, frequency conversion speed regulation. Pneumatic, solenoid valve, vacuum system, liquid level control, intelligent electronic temperature control adjustment. Automatic fault alarm system. Aseptic room, etc., all adopt German, Japanese and other brands, and the whole machine All are made of stainless steel, with exquisite appearance and easy operation.
3. It adopts mass weighing system control to realize quantitative filling, and the filling is more accurate.
4. Mirror welding technology is used to ensure the smooth and flat welding seam, leaving no sanitary corners.
5. Use programmable controller to realize automatic operation of equipment.
6. Incorporating new technologies of modern optical-mechanical-electrical integration, integrated design, and precision manufacturing. The use of closed-loop control technology to control tension, photoelectric detection, PLC calculation control, touch-type man-machine interface operation, monitoring, radiant heat and high-frequency induction power supply clever application, so that the strip and vertical and horizontal sealing are firmer and more reliable.
7. The main drive is mechanical, and the auxiliary drive is pneumatic. Scientific and reasonable use makes the machine run more freely and stably.
8. Specially equipped with non-stop roll changing device, so that the machine can easily change rolls and docking paper heads without stopping the machine.
2. The machine's PLC, photoelectric correction, frequency conversion speed regulation. Pneumatic, solenoid valve, vacuum system, liquid level control, intelligent electronic temperature control adjustment. Automatic fault alarm system. Aseptic room, etc., all adopt German, Japanese and other brands, and the whole machine All are made of stainless steel, with exquisite appearance and easy operation.
3. It adopts mass weighing system control to realize quantitative filling, and the filling is more accurate.
4. Mirror welding technology is used to ensure the smooth and flat welding seam, leaving no sanitary corners.
5. Use programmable controller to realize automatic operation of equipment.
6. Incorporating new technologies of modern optical-mechanical-electrical integration, integrated design, and precision manufacturing. The use of closed-loop control technology to control tension, photoelectric detection, PLC calculation control, touch-type man-machine interface operation, monitoring, radiant heat and high-frequency induction power supply clever application, so that the strip and vertical and horizontal sealing are firmer and more reliable.
7. The main drive is mechanical, and the auxiliary drive is pneumatic. Scientific and reasonable use makes the machine run more freely and stably.
8. Specially equipped with non-stop roll changing device, so that the machine can easily change rolls and docking paper heads without stopping the machine.
Productivity |
2000BPH for 500-1000ml |
Package shape |
Brick based shaped ,brick slim shaped |
Packing material |
PE/PAPER/PE/AL/PE/PE 6layer aseptic packaging material roll |
Electric power |
24kw (mechanical transmission:4kw,electric heating power:30kw) |
Rated voltage |
220V/380V |
Power frequency |
50Hz/60Hz |
Compressed air |
0.4-0.6Mpa,1.0m3/min |
Technological process |
Feed paper---print date---sterilize---filling---shaping |
Operation model |
PLC control,man-machine interface operation |
Shelf life |
In 20-30℃,juice 12month ,milk 6 month |
Outside measurement |
L x W x H=4500x1600x4000(mm) |
Production Area |
100-140sq.m |
Production personal |
1-2per shift |
Final product |
Drinking Milk ,Yoghurt, Juice |
Detailed Images
PLC control Small size /small capacity milk /yogurt /fruit juice production line,
Small size /small capacity milk /yogurt /fruit juice production line adopts the most advanced technology, including a combination
of 200L and 500 l/H, filling machine and fermentation tank and freezers, the 200L and 500 l/H unit, including water treatment,
mixing tank, fermentation tank, canning, plate sterilizer, homogenizer, boiler, air compressor, pipelines, valves, etc.
suitable for small production production of pasteurized milk, yogurt and fruit juice.All electrical appliances and accessories
with international famous brand products, production line for high quality stainless steel structure.
Small size /small capacity milk /yogurt /fruit juice production line adopts the most advanced technology, including a combination
of 200L and 500 l/H, filling machine and fermentation tank and freezers, the 200L and 500 l/H unit, including water treatment,
mixing tank, fermentation tank, canning, plate sterilizer, homogenizer, boiler, air compressor, pipelines, valves, etc.
suitable for small production production of pasteurized milk, yogurt and fruit juice.All electrical appliances and accessories
with international famous brand products, production line for high quality stainless steel structure.
Compare with other big brand in the world, our machines have less power, which saves more electricity. They use high power
heater to sterilize the wind which is blowed inside machine (approx 60-70kw).
But our machine uses a triple ultra-fine particle filtration system to filter impurities and most bacteria in the air. And then
inside the machine, we designed hydrogen peroxide atomization and ozone generator for further sterilization treatment. Finally, UV
ultraviolet rays are used for deep sterilization to create a aseptic filling environment.
The total power we control it within 25kw. Which can save 75% electricity.
heater to sterilize the wind which is blowed inside machine (approx 60-70kw).
But our machine uses a triple ultra-fine particle filtration system to filter impurities and most bacteria in the air. And then
inside the machine, we designed hydrogen peroxide atomization and ozone generator for further sterilization treatment. Finally, UV
ultraviolet rays are used for deep sterilization to create a aseptic filling environment.
The total power we control it within 25kw. Which can save 75% electricity.
Related Products
$25000 - $ 40000 Pieces
100 Pieces (MOQ)
$18000 - $ 22000 Pieces
100 Pieces (MOQ)
$7500 - $ 9800 Pieces
100 Pieces (MOQ)
Packing&Shipping
GENYOND MACHINERY INDUSTRIAL GROUP
It has 6 factories in China for food machine and packing machine.
Shanghai Genyond Technology Co Ltd; Zhangjiagang Genyond Machinery Co Ltd
Shanghai Jou Yu industrial Co Ltd; Shanghai Keyfood Machinery Co Ltd
Sino topone machinery; Nantong Yihai Machinery; Kunshan Kpack Machinery
Our products have been exported to more than 160 countries with Annual sales reaching 80 millions in 2022 and it raises by yearly average 10% above.
Shanghai Genyond Technology Co Ltd; Zhangjiagang Genyond Machinery Co Ltd
Shanghai Jou Yu industrial Co Ltd; Shanghai Keyfood Machinery Co Ltd
Sino topone machinery; Nantong Yihai Machinery; Kunshan Kpack Machinery
Our products have been exported to more than 160 countries with Annual sales reaching 80 millions in 2022 and it raises by yearly average 10% above.
Genyond machine has more than 100 engineers for the installation of oversea projects.
You just need to give us your idea on final product to be made, processing capacity, way of packing, we will make the proposals for your checking. You can also give us your budget, we can also design a line to meet your budget accordingly. A satisfying project will be given; A long-term cooperation will come.
You just need to give us your idea on final product to be made, processing capacity, way of packing, we will make the proposals for your checking. You can also give us your budget, we can also design a line to meet your budget accordingly. A satisfying project will be given; A long-term cooperation will come.
