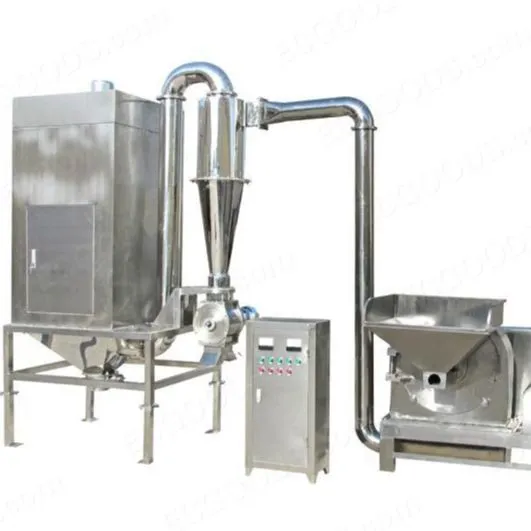

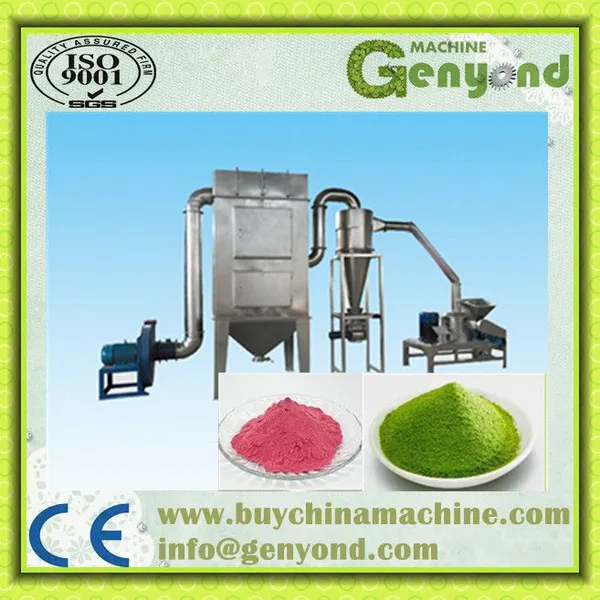

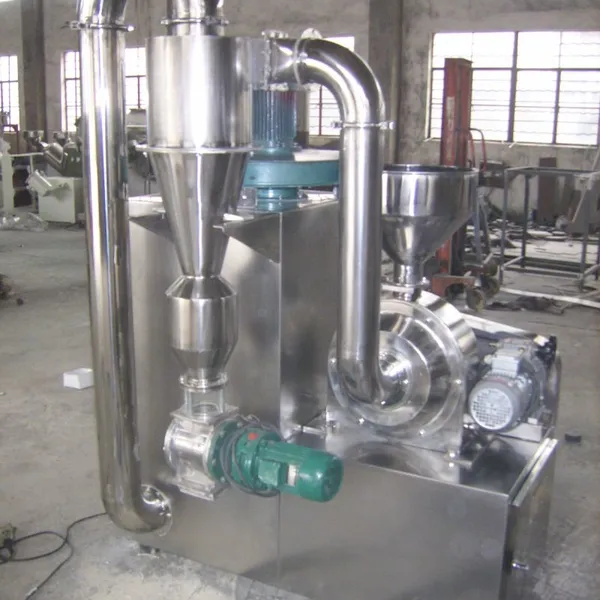

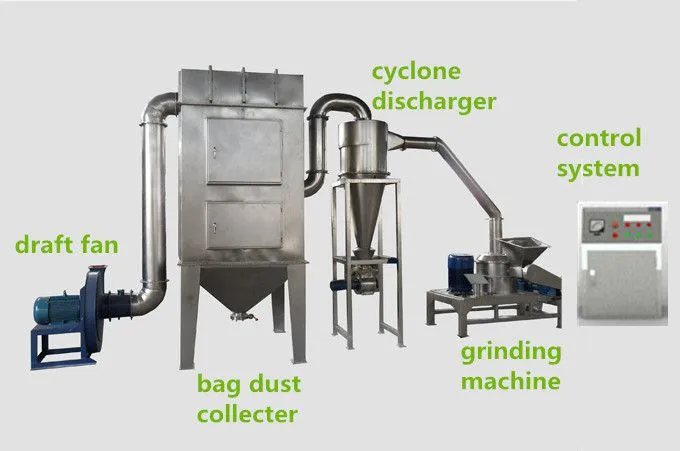

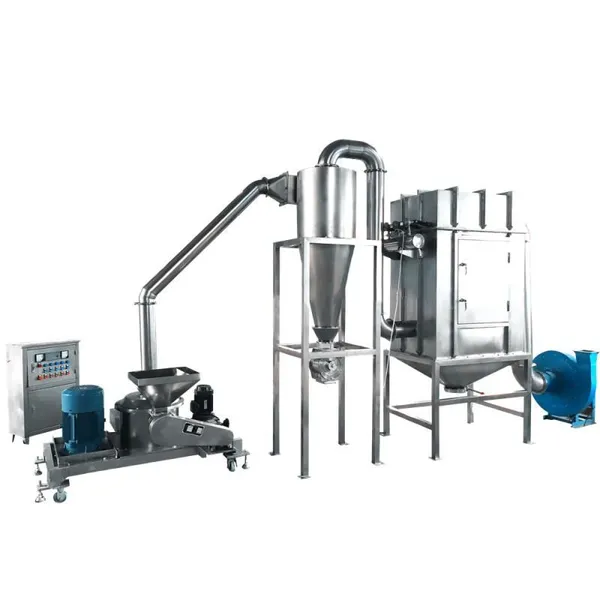

Dry stainless steel ultra fine grinder mill for making ultra fine powder
Features of ultra fine grinder:
1) The machine's structure is sturdy, it has smooth operation.
2) There is grading device, grinding and grading can be completed in one time.
3) No screen in the machine, you can control the grinding fineness by switching the button.
4) The materials can be crushed quickly and uniformly, then makes sure a good effect.
5) The machine is all made of 304 stainless steel, the crushing is very clean and healthy.
6) Through precision machining, machine's cogging achieves a smooth surface, so the machine is easy to be cleaned up after crushing materials, and changes the the phenomenon of build up powder in inner wall of machine.
Applications of ultra fine grinder:
This grinder can be mainly used for grinding hard and brittle materials, various grains of low oil content, various spices, herbalscontaining roots and branches, chemical materials, and some other dry materials.
Such as: grains,spices,herbs,salt,sugar,pepper,walnut shells,cocoa bean,seed,coal,etc.After grinding, ultra fine powder can be made.
Main technical specification of ultra fine grinder:
|
Model |
GY30-15 |
GY30-18 |
GY30-36 |
|
Material |
304 stainless steel |
304 stainless steel |
304 stainless steel |
|
Capacity(kg/h) |
10-200 |
20-450 |
60-1000 |
|
Size of feed(mm) |
<10 |
<12 |
<15 |
|
Fineness(mesh) |
80-320 |
80-450 |
80-450 |
|
Total power(kw) |
13.7 |
19.07 |
38.85 |
|
Voltage(v) |
380 |
380 |
380 |
|
Main speed(r/min) |
4500 |
4480 |
4000 |
|
Overall dimensions(cm) |
541*166*250 |
550*180*310 |
900*220*400 |
Any voltage of ultra fine grinder can be customized according to client's requirement.
GENYOND MACHINERY INDUSTRIAL GROUP
It has 6 factories in China for food machine and packing machine.
Shanghai Genyond Technology Co Ltd; Zhangjiagang Genyond Machinery Co Ltd
Shanghai Jou Yu industrial Co Ltd; Shanghai Keyfood Machinery Co Ltd
Sino topone machinery; Nantong Yihai Machinery; Kunshan Kpack Machinery
Our products have been exported to more than 160 countries with Annual sales reaching 80 millions in 2022 and it raises by yearly average 10% above.
Genyond machine has more than 100 engineers for the installation of oversea projects.
You just need to give us your idea on final product to be made, processing capacity, way of packing, we will make the proposals for your checking. You can also give us your budget, we can also design a line to meet your budget accordingly.
A satisfying project will be given; A long-term cooperation will come.
