US$ 15000 - 50000 MOQ: 1 Set
Key Specifications
Get Latest Price
video outgoing-inspection:
Provided
machinery test report:
Provided
core components:
Motor
Contact Supplier Request Quote Chat Now
Zhangjiagang Genyond Machine Co Ltd.
Gold Verified Supplier
1Yr
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
video outgoing-inspection Provided
machinery test report Provided
core components Motor
place of origin Shanghai, China
brand name Genyond
type Extractor
voltage 380/440v
power(w) 5.65kw
weight 2000
dimension(l*w*h) 4.3*3.4*2.4M
warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas
After Warranty Service Video technical support
Certification CE
Application
It's using in extracting juice for tomato pineapple apple orange, watermelons, grapes, strawberries pears, apples, lemons, oranges, oranges, tomatoes, papaya, carrot, ginger and other fruit and vegetables.
It is widely used in solid and liquid separation process of the half end product in VC project, alcohol project and brewing, starch, and feedstuff, and industrial polluted water and salted dished salt removing projects. It works automatically and continuously. The aerocyst controls inflating bags, revision, And adding pressure. The cleaning water is filtered by an angle net sterilizer and can be recirculated.

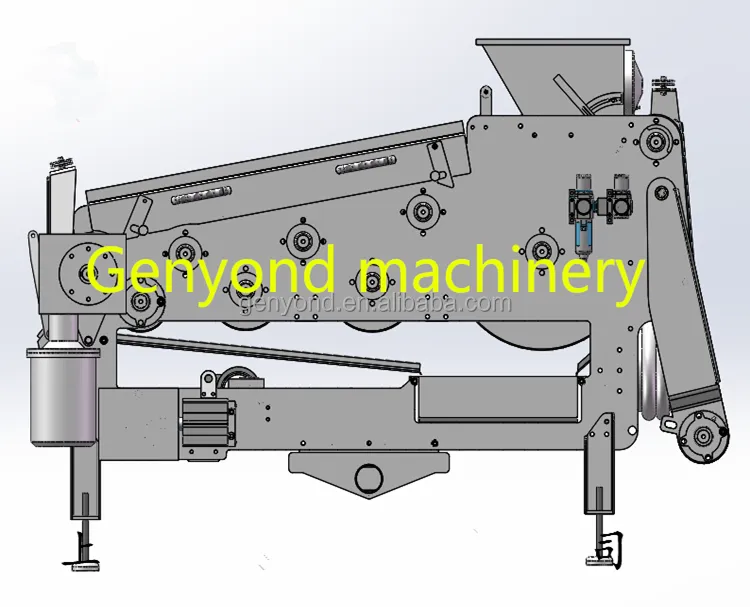

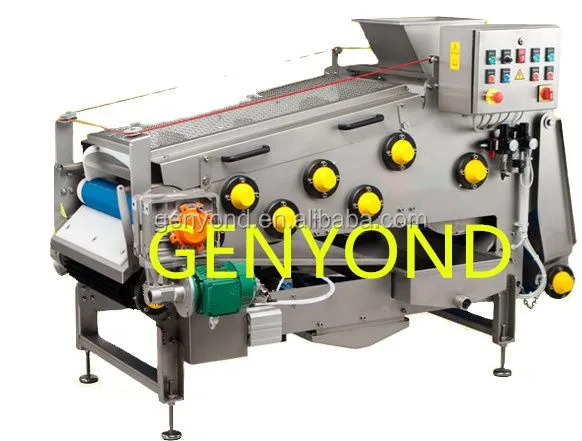

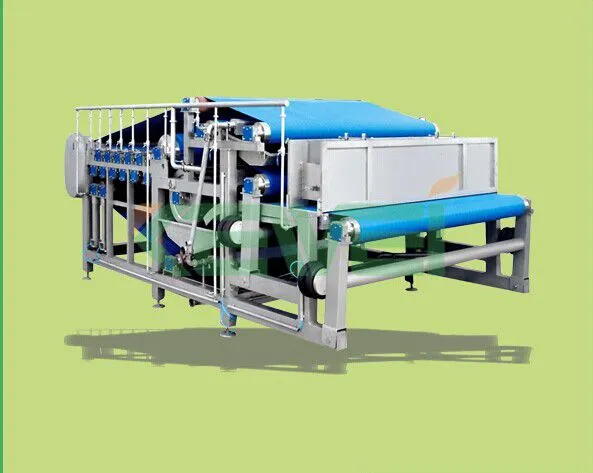

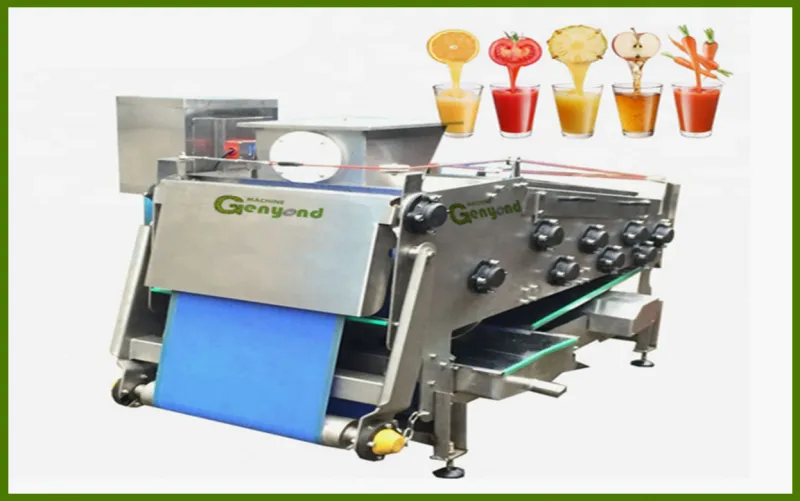

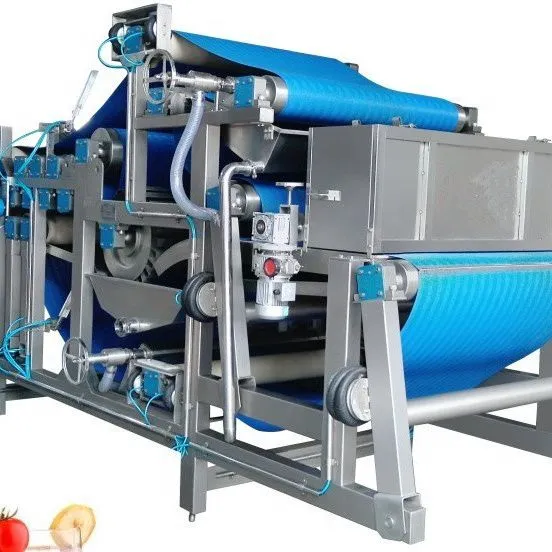

The belt juicer is used to use two looped mesh belt to clamp the fruit paste and bypass the multistage diameter, and rely on the tension of the mesh belt to make the outer mesh belt around the press roll to produce pressure on the fruit paste sandwiche between the two mesh belts and squeeze out the juice. In order to overcome the shortcoming of low pressing force produced only by the tension of the mesh belt, a linear pressure roller is often added to the end of the roller and the pressure roller is combined. The fruit paste sandwiched in the middle of the two mesh belt is subjected to double pressure from the outer mesh belt and the pressure roller when the squeezing roller meshes with the pressure roller, which is more than the pressure only produced by the mesh tension. The strength of the press is several times higher.

The juicer technology of the Genyond Juicer fully embodies the characteristics of the combined press rolling and pressing, that is, the rolling press with pressure, the pressing force to win the wide adaptability, the high yield of the juice and the low
water content of the fruit residue.

Detail Pictures
Detail Pictures
Large Industrial Machinery Food 304 Stainless Steel Fruit and Vegetable Filter Press Coconut Belt Juicer
Large Industrial Machinery Food 304 Stainless Steel Fruit and Vegetable Filter Press Coconut Belt Juicer
Large Industrial Machinery Food 304 Stainless Steel Fruit and Vegetable Filter Press Coconut Belt JuicerLarge Industrial Machinery Food 304 Stainless Steel Fruit and Vegetable Filter Press Coconut Belt Juicer

Capacity
500KG/H
Power
3.5kw 380v 50hz
Size
2200*900*1600mm
Juice yield
75-83%
Product name
industria belt type sugar cane sugarcane apple lemon orange fruit vegetable radish juice extractor with high rate 75-83%
Big capacity from 1T to 20T per hour
Model
GYDY-800
GYDY-1200
GYDY-1750
GYDY-2500LR
GYDY-2500HK
Output(T/H)
1~3
4~7
8~12
18~22
18~22
Belt Length (MM)
92000
14100
14500
14500
17200
Belt width(MM)
800
1200
1750
2500
2500
Press rate (Apple Juice)
≥75%
≥75%
≥75%
≥75%
≥78%

 Large Industrial Machinery Food 304 Stainless Steel Fruit and Vegetable Filter Press Coconut Belt JuicerLarge Industrial Machinery Food 304 Stainless Steel Fruit and Vegetable Filter Press Coconut Belt JuicerLarge Industrial Machinery Food 304 Stainless Steel Fruit and Vegetable Filter Press Coconut Belt Juicer
