Commercial Canned Sardine in Tomato Sauce Processing Line
US$ 255000.00
≥1 Set
Key Specifications
Get Latest Price
video outgoing-inspection:
Provided
machinery test report:
Provided
core components:
PLC, Motor, Pump
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Industrial Canned Fish in Oil Production LineUS$ 255000.00MOQ: 1 Set -
Industrial Cold Press Belt Type Apple Juice Extraction Machine Juicer MachineUS$ 18600.00MOQ: 1 Set
-
Cold Press NFC Orange Juice Production Plant Making MachinesUS$ 237000.00 - 250000.00MOQ: 1 Set
-
Factory 1000kgs Per Hour NFC Mangoes Juice Extraction Sterilization Filling Production Line Making Machines Processing PlantUS$ 48000.00MOQ: 1 Set
-
1000kgs Per Hour NFC Orange Juice Production Line Making MachinesUS$ 230000.00 - 250000.00MOQ: 1 Set
video outgoing-inspection
Provided
machinery test report
Provided
core components
PLC, Motor, Pump
type
fish canning
automatic grade
Semi-Automatic
production capacity
90%
place of origin
China
brand name
Genyond
voltage
380V 50Hz
power(w)
100-150kw
dimension(l*w*h)
as per capacity
weight
8000 KG
warranty
2 Years
Function
Multifunctional
Application
Fish Processing Industries
Usage
Commercial Usage
Material
SUS304 Stainless Steel
Capacity
1 Ton-200 Ton
Feature
High Efficiency Large Capacity
Suitable for
Salmon Tilapia Pollack
After-sales Service Provided
Field installation, commissioning and training
Certification
ISO CE
Applicable Industries
Manufacturing Plant, Food & Beverage Factory, Restaurant, Food Shop, Food & Beverage Shops
Showroom Location
None
Marketing Type
Ordinary Product
Warranty of core components
1 Year
Condition
New
Product Description

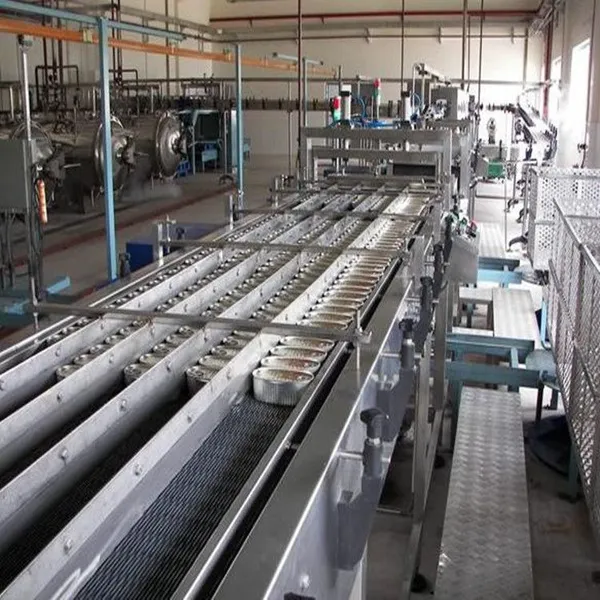

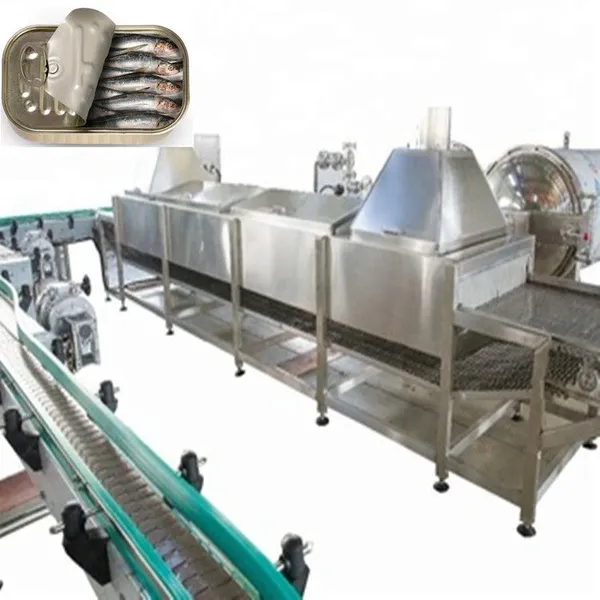

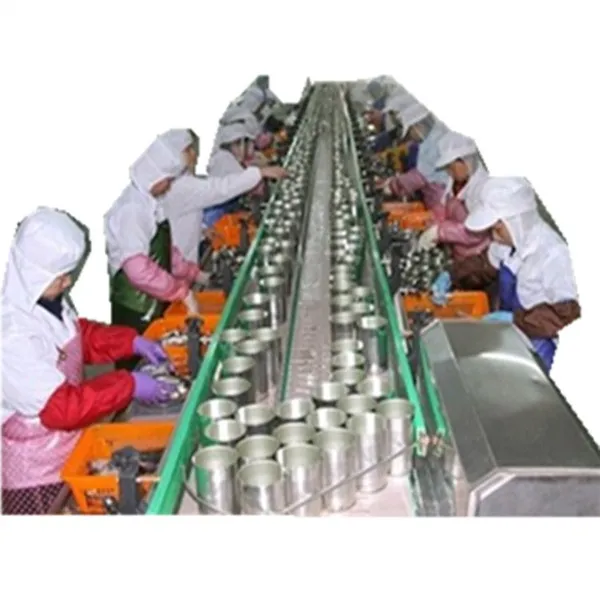

Complete processing line for the ellaboration of canned sardine in 1/4 club format.
This line is complete, since the reception of fresh fish /frozen fish until the packaging and cartooning of cans. The main machines of this line would be:
- Sardine heading, gutting and packing machine.
- Sardine heading and gutting machine.

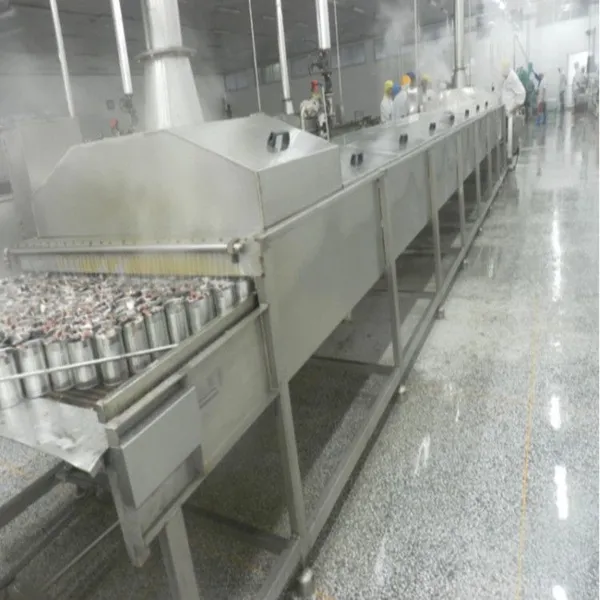

- Automatic cooker for sardine.
- Automatic cooker for sardine.
- Automatic can seaming machines for 1/4 club formats.
- Automatic autoclave.
- Washer
- Cartooning machine
- Inkjet coder, etc.
Raw maetrail |
sardines or similar fish, other seafish |
Product |
fish canning |
Capacity |
to be customized from 1t/h to 10t/h |
Package |
metal cans |
Material |
SUS304 |
Voltage |
380V 50Hz |
Direction for use

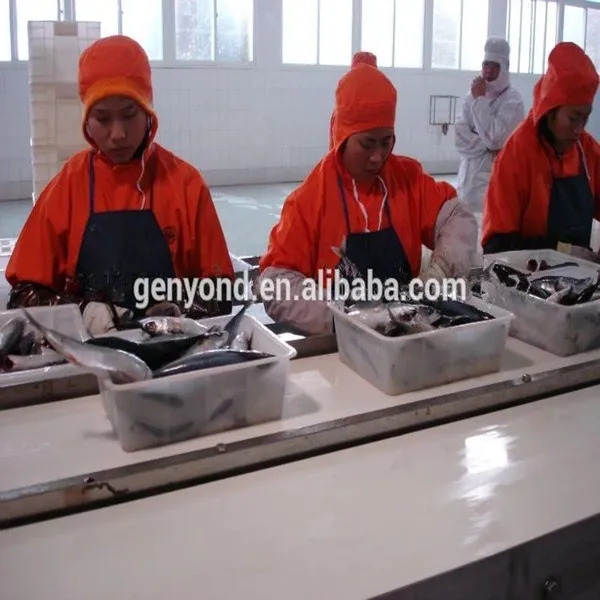

(1) Fresh fish should be washed with clean water, frozen fish should be hydrolyzed by flow, and thawed until the fish body is separated or semi-frozen.
(2) Remove the fish head, tail, fins and internal organs, scrape the fish scales, wash the mucus and impurities on the surface of the fish body with flowing water, and wash the black membrane, blood stains and internal organs in the abdominal cavity. The water temperature must not exceed 25 ° C.
(3) During the process, raw materials that do not meet the quality requirements such as deterioration and mechanical damage should be removed.
Description of application effect
(1) Adopt No. 603 and No. 604 tank type anti-sulfur full-paint tinplate cans conforming to QB221 regulations.
(2) The empty tank must be clean and free of rust spots, and the tank body should not be deformed such as corners, dents, etc., and no paint falling off.
(3) The empty tank should be washed, disinfected with hot water or steam above 82 ℃, and drained upside down for use.
(4) After the salted fish pieces are drained, they can be weighed and filled. The loading capacity of No.603 and No.604 tanks are: 360-370 grams and 210-220 grams respectively. When the raw material is frozen fish, 10 grams less than fresh fish.
(5) After filling the fish cans, fill it with clean water with a concentration of 1 Baume.
Detailed Images
Size Information
Capacity to be customized
Capacity |
1t/h |
2t/h |
4t/h |
6t/h |
8t/h |
Power consumption |
70kw |
90kw |
120kw |
150kw |
170kw |
Production area |
600sqm |
800sqm |
800sqm |
1000sqm |
1000sqm |
Packing&Shipping
After Sales Service
Company Introduction
Genyond Machinery Industrial Group Limited , which is a professional manufacturer and for over 15 years we have been engaged in the research, development, production, sale and service of food processing machinery for dairy products , fruits & vegetables, and also pharmaceutical equipment such as extraction, separation and evaporation etc. We are located in Zhangjiagang, jiangsu Province, with convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment including CO2 super critical extraction, essential oil distillation and .......... In addition, we have obtained certificates ISO9001 ......., Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as USA, Span, Russia, New Zealand, Japan, Israel, Uzbekistan,Brazil, Indonesia, Malaysia, Philippine, Thailand etc . We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements
