Jacketed kettle is mainly used for food, candy, soup, meat, milk, porridge, pharmacy and chemical industry cooking and boiling.
We can add the mixer, edge & bottom scraper, cover according to your need.

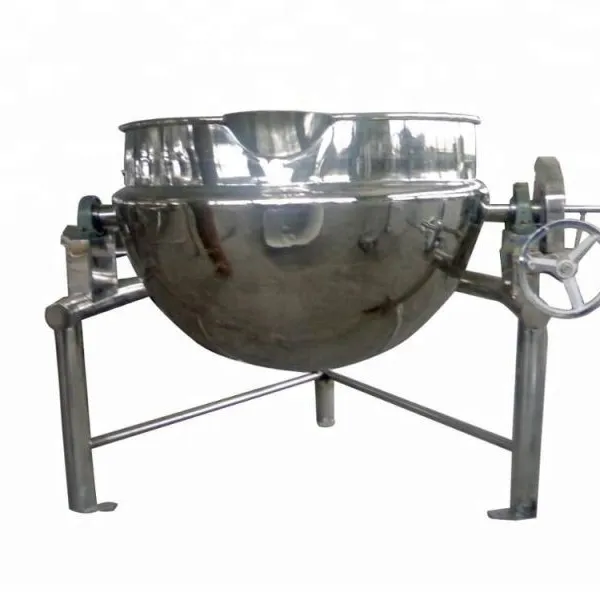

The kettle has tilting type and stationary type. The steam jacketed kettle can be heat by gas, steam(boiler) or electricGenerally, the bigger model can choose stationary type and by steam heating.
Jacketed kettle with pressure gauge, safety valve and electric control box.
Both inside and outside of the bowl are made of stainless steel, which is resistant to corrosion and in accordance
with GMP standard.
Features:
1. Material: stainless steel 304; |
2. Nominal capacity: 50-1000L; |
3. Large heating area, evenly heating; |
4. High thermal efficiency, short boiling time |
5. Heating temperature is easy to control; |
6. Nice appearance; |
7. Easy to install and operate; |
8. Safe and reliable. |
Technical parameters
| Model | GY-50 | GY -100 | GY-200 | GY-300 | GY-400 | GY-500 | GY-600 | GY-800 | GY-1000 |
| Capacity | 50L | 100L | 200L | 300L | 400L | 500L | 600L | 800L | 1000L |
| Open Diameter(mm) | 560 | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1300 | 1400 |
| Depth | 400 | 450 | 530 | 630 | 680 | 730 | 780 | 830 | 900 |
| Heating area(m2) | 0.40 | 0.58 | 1.12 | 1.42 | 1.75 | 2 | 2.3 | 3.2 | 3.9 |
| Heaing pipe power | 1kw*3 | 3kw*3 | 5kw*3 | 6kw*3 | 6kw*3 | 8kw*3 | 8kw*3 | 9kw*3 | 10kw*3 |
| Conduction oil | 25L | 36L | 45L | 60L | 70L | 80L | 100L | 200L | 250L |
| Working pressure | Equal and less than 0.09Mpa | ||||||||
| Mixing speed | 36r/min | ||||||||
| Mixer power | 0.3kw | 0.55 | 0.75 | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 |
Q: Are you are trading company or manufacturer?
A: We are manufacturer, specializing in the design and produce the food processing line, like fruits, meat, vegetables, beverages, dairy machinery, essential oil refining equipment, filling and packaging euipmen etc.
Q: How can I get your quote?
A: Please do not hesitate to contact us, tell us your production plan, and we will make the best proposal for you regarding to your requiement.
Q: Can I visit your factory?
A: Of cousre, we are very welcome you visit us and discuss the every detail face by face. Please inform us the trip plan before you coming.
1. Provide top quality OEM/ODM service.
2. Customized deign by our technical team.
3. Good quality control with competitive price.
4. Our machine with low consumption and high efficiency
5. We aim to offer fast delivery, professional sales service and best after-sale services.
6. We promise your any inquiries will get prompt attention
