Automatic Mango Peeling and Pietting Machine

Automatic Mango Peeling and Pietting Machine thumbnail-1
Automatic Mango Peeling and Pietting Machine thumbnail-2
Automatic Mango Peeling and Pietting Machine thumbnail-3
Automatic Mango Peeling and Pietting Machine thumbnail-4
Automatic Mango Peeling and Pietting Machine thumbnail-5
Automatic Mango Peeling and Pietting Machine thumbnail-6
Automatic Mango Peeling and Pietting Machine photo-1
Automatic Mango Peeling and Pietting Machine photo-2
Automatic Mango Peeling and Pietting Machine photo-3
Automatic Mango Peeling and Pietting Machine photo-4
Automatic Mango Peeling and Pietting Machine photo-5
Automatic Mango Peeling and Pietting Machine photo-6
US$ 22000.00 1 Set
US$ 21000.00 ≥2 Set
Key Specifications
Get Latest Price
Type:
Cutter
core components:
Pressure Vessel, Gear, Engine
place of origin:
Shanghai, China
Contact Supplier Request Quote Chat Now
Zhangjiagang Genyond Machine Co Ltd.
Gold Verified Supplier
1Yr
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Cutter
core components Pressure Vessel, Gear, Engine
place of origin Shanghai, China
brand name Genyond
voltage 220V/380V
power(w) 0.75kw
weight 100
dimension(l*w*h) 1560*450*1340mm
warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Material SUS304/SUS316
Name Peeling Machine
Application fruit and vegetable processing machine
Function Multifunctional
Product name fruit and vegetable peeling machine
Usage Industrial Usage
Capacity 500kg/h
Item Automatic peeling machine

Product Description
Product Description

Product Introduction



Machine Introduction
The device absorbs the experience of many customers and digestion and absorption of Italy advanced equipment,well-developed on the basis of the original imported equipment,is a highly efficient physics steam peeling device,has the features of refined rate, stable performance, long life, low noise, easy operation and maintenance, etc. Can greatly reduce production costs,improve the economic efficiency of enterprises.

Using Scope
This steam peeling machine applies to peeling potatoes, sweet potatoes, carrots and other tubers materials,skin little loss, easy to operate, wide range of uses. Using high-pressure steam for rapid heating, instantaneous release explosion skin. With high peeling rate, low loss, large capacity, peeled material surface is smooth, no pollution and other advantages.

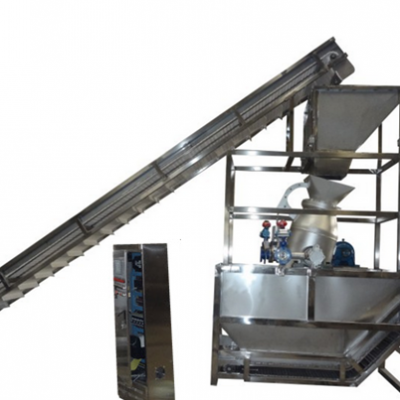

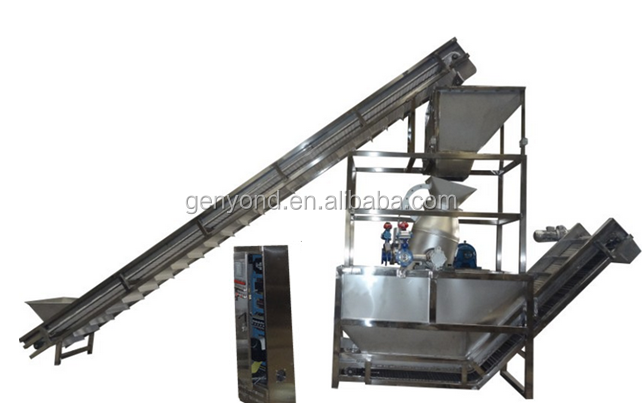

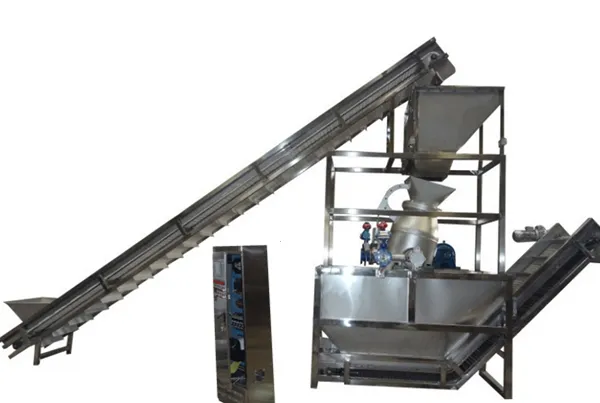

Main parts:
1. Weighing hopper 2. Frame 3. Pressure tank 4. Aggregate elevators
5.Pneumatic components 6. Steam Components 7. Discharge tank
8.Electrical box

Working Principle
Plate hoist the bulk material into the weight hopper,weighing instruments according to process requirements can be arbitrarily set 60-250kg weighing range,weighing sensor control silo stop or start feeding elevators,starting pressure tank gear reducer and touchscreen set 3-8r/min arbitrarily,when pressure tank cylinder door by sensors positioned upward cylinder doors and feed hopper door opens automatically,when weighing hopper is zero weight, close the hopper door to start the feed elevators,while closing pressure tank into the discharge cylinder door,open the steam valve,close the steam exhaust valve,starting pressure tank rotation,when the touch screen set rotation time,by the sensor is positioned into the discharge cylinder door,close the steam valve,open the steam exhaust valve,opened the cylinder door discharge to the next out-feed conveyor feed hopper,transported to the next process hair brush Paper Machine.

Machine Features
1, Use for potatoes, taro, ginger,sweet potato,carrot,etc. peeling.
2, Automatic weighing by electronic scale,Pneumatic door open pan feeding.
3. Discharge: pneumatic transport emissions until next door open pan in the elevator.
4. Has a heat recovery steam emission device.
5. PLC and touch screen control set.
6. With low steam consumption and high efficiency, high peeling rate, low material loss rate, etc

7. Peeling rate more than 93%.

Technical parameters
Model: GY1
Production capacity: 1t / h
Peel loss rate: ≤8%
Pressure tank volume: 0.3m3
per batch capacity: 20 ~ 40kg
Steam pressure: 1.2 ~ 1.6Mpa
Steam consumption: 200 ~ 500kg / h
Host Power: 2.0KW
Hoist Power: 0.75KW (mechanical speed)
Batch Time: 30-60S (depending on steam pressure)
Pressure tank speed: 3-8r / min frequency control (depending on per batch material's weight)
Required compressed air: Pressure ≤0.7Mpa, consumption 0.1m3 / min (by user)
Discharge tank volume: 1 m3
Overall dimensions: 1200*1600*1500mm
Note: This equipment need to connect feeding hoist and brush washing machine.


Certifications
Certifications

Our Company
Our Company

Our Adcantage
Our Adcantage

Packing & Delivery
Packing & Delivery

PACKAGE

Standard export carton or wooden cases packing.

DELIVERY TIME:

7-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.


FAQ
FAQ
Questions/Answer
1,What is the voltage/phase for this machine ?
220V 50Hz/single phase ,380V 50Hz/three phase , 110V 60Hz/single phase also can made as the clients’ need
2,What is the Mode of transportation ?
LCL and FCL by ship ,By Express (DHL,TNT, Fedex etc) ,By air
3,How long can we get the goods?
We usually delivery in 3-5 working days, we will inform you shipping time based on your seaport.
4,How long is the guarantee?
we promise guarantee as one year for non-human damage factor.
5,How should I do if meet some trouble while using?
we can supply English manual book and also take a video for showing how to resolve the problems or dispatch our worker to your factory.
6,What about Payment term?
T/T(Telegraphic Transfer )-30% as prepayment by T/T, after seen the copy of the B/L sent by fax,
the balance of 70% should be effected . Western Union ,L/C ,Trade Assurance,Etc.
7,What’s your MOQ
1 set
8, How can i contact with you ?
You can send inquiry to me .
Aslo can contact with me by Cellphone/Wechat / Whatsapp /Viber: +86 18217693506
QQ: 2098224196
