We can provide the pineapple processing machines and pineapple tin/pulp/juice processing line.
Brief Introduction:

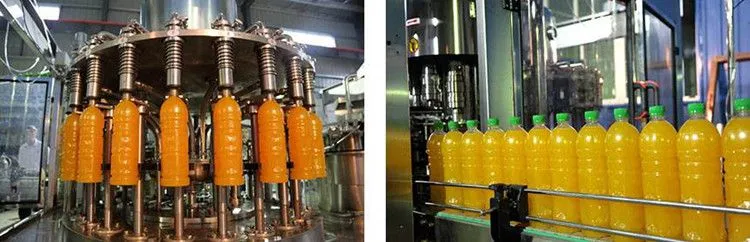

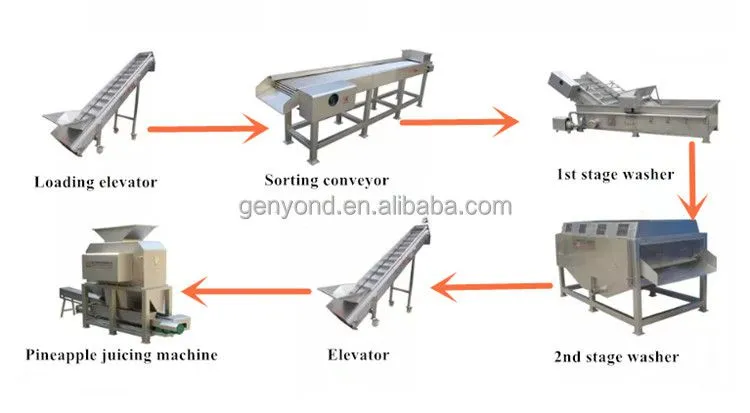

The Complete pineapple juice processing line includes washing & peeling part ,filling part,and sealing part,all of the process is automatic.
1 Capacity:1000 ~ 6000bottles/hour pineapple juice processing line (adjustable)
2.Product specification:Using the pineapple pulp as raw material to making pineapple juice, no adding preservative. Package is the Pet bottle. Volume can be made according to requests of the customer. Shelf time is 12months under the normal temperature.
3.Raw Material:Pineapple, other fruits
Technology Parameters
|
Model |
RXGF8-8-3 |
RXGF12-12-5 |
RXGF16-12-6 |
RXGF-18-18-6 |
|
Production capacity (500ml)(b/h) |
1500-2000 |
2000-2500 |
3000-4000 |
4000-6000 |
|
Filling precision |
2mm(Liquid Level) |
|||
|
Polyester bottle standard(mm) |
(Bottle Diameter):50-100(Height):150-310 |
|||
|
Suitable cap shape |
Plastic Screw Cap |
|||
|
Water pressure of washing bottle(MPa) |
0.2-0.25(Mpa) |
|||
|
Wash bottle consumption water (kg/h) |
600 |
700 |
800 |
1200 |
|
Spraying position |
5 |
5 |
5 |
5 |
|
Dripping bottle position |
3 |
3 |
3 |
3 |
|
Gas source pressure(Mpa) |
0.6 |
0.6 |
0.6 |
0.6 |
|
Gas consumption(M3/min) |
0.1 |
0.1 |
0.1 |
0.1 |
|
Power(kw) |
2.2 |
2.2 |
4.4 |
4.4 |
|
Weight(kg) |
2000 |
2100 |
2200 |
2800 |
|
Dimensions(LWH)(mm) |
2000*1600*2200 |
2100*1650*2200 |
2230*1630*2250 |
2360*1830*2250 |
About Factory
20 years’ experience in Complete fruits juice and jam processing line
About Quality
brand-new equipments with latest design and suitable material made.
About After Sale Service
One year warranty period and life time technical support.
