Specifications
Plate pasteurizer for milk
1.Milk plate pasteurizer
2.capacity:1t/h
3.PLC control
4.Touch screen

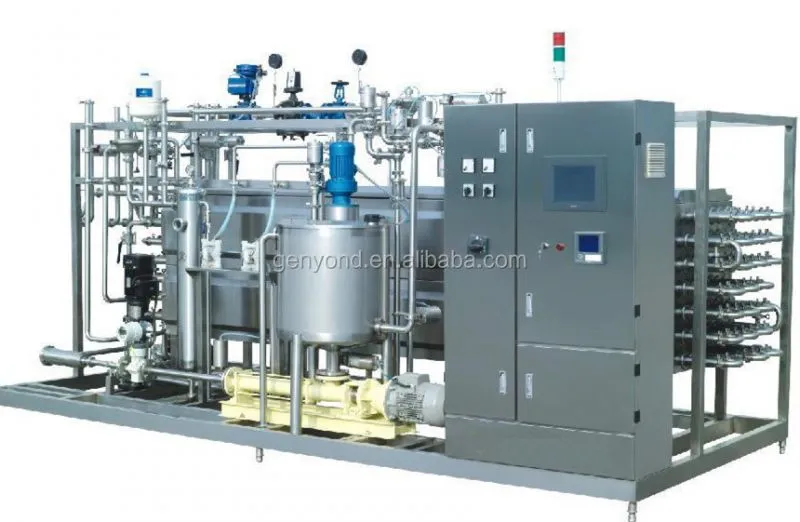

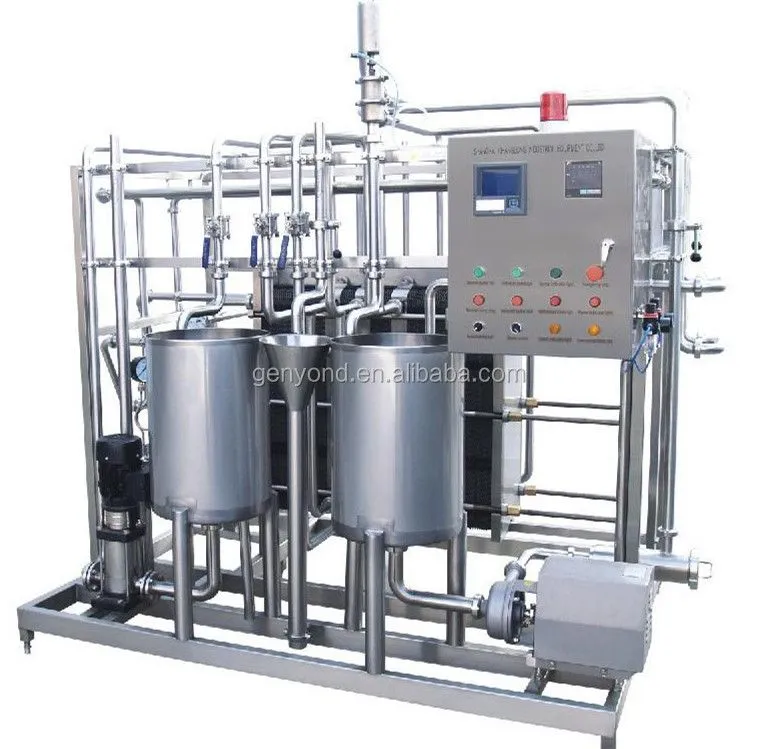

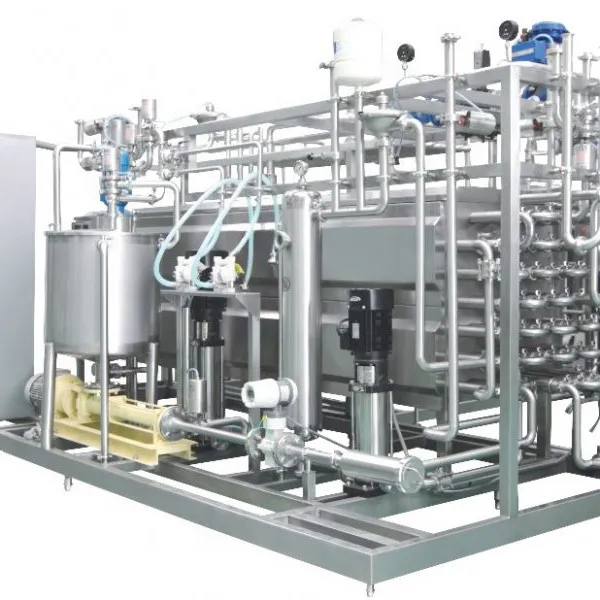

Description of Plate milk pasteurizer
Field of application: In dairy and other liquid food industries. The plate heat exchanger unit is designed for pasteurizing and cooling of milk and juice. The pasteurization temperature is typically 72 – 120C for 12-30s seconds holding.
Standard design: The unit is pre-assembled and tested before it leaves the factory. The installation on site only require connection to external service such as product inlet and outlet, water, steam, air and electricity.
The unit comprises:
- Frame work
- Set of plate heat exchangers with
Regenerating section
Pasteurization section
Hot water section
Cooling section
- Balance tank
- Product pump
- Holding tube
- Hot water pump
- Control panel with:
PLC controller
Color HMI interface
Alarm for high and low temperature
Alarm for high temperature and low flow in hot water section
Start/stop buttons for pumps
Indicator and record for control of pasteurizing temperature
- Set of internal pipes, valves and fittings
The unit is designed for CIP via recirculation over the balance tank and dosing of chemicals automatically.
Features & Advantages
1.Modular system for complete flexibility
2. Pre-assembled and factory-tested
3. Automatic control
4. Less product loss
5. Integration with existing control system
6. Skid-mounted for flexible relocation
Parameters
Temperature profile: 4°C→65°C→85°C / 15S→10°C→4°C
|
Model |
Capacity |
Heat exchange area(m²) |
Power(kw) |
Steam consumption (kg/h) |
dimension(L×W×H) mm |
Weight (kg) |
|
GY006-BS-0.5 |
0.5t/h |
5 |
5.2 |
52 |
1200×1200×1500 |
790 |
|
GY006-BS-1 |
1 t/h |
8 |
5.2 |
60 |
1500×1500×1800 |
880 |
|
GY006-BS-2 |
2 t/h |
13 |
6 |
104 |
1800×2000×1800 |
980 |
|
GY006-BS-3 |
3 t/h |
20 |
6 |
156 |
2000×2000×2200 |
1080 |
|
GY006-BS-4-5 |
4-5 t/h |
30-45 |
8 |
260 |
2250×2000×2200 |
1250 |
|
GY006-BS-6-8 |
6-8 t/h |
35-50 |
8 |
400 |
2250×2000×2200 |
1250 |
|
GY006-BS-10 |
10 t/h |
60 |
11 |
520 |
2800×2000×2200 |
1650 |
|
GY006-BS-15 |
15 t/h |
75 |
11 |
780 |
3000×2200×2200 |
2150 |
|
GY006 |
20 t/h |
80 |
11 |
945 |
3300×2200×2200 |
