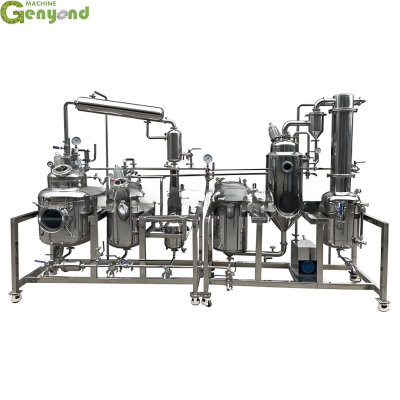

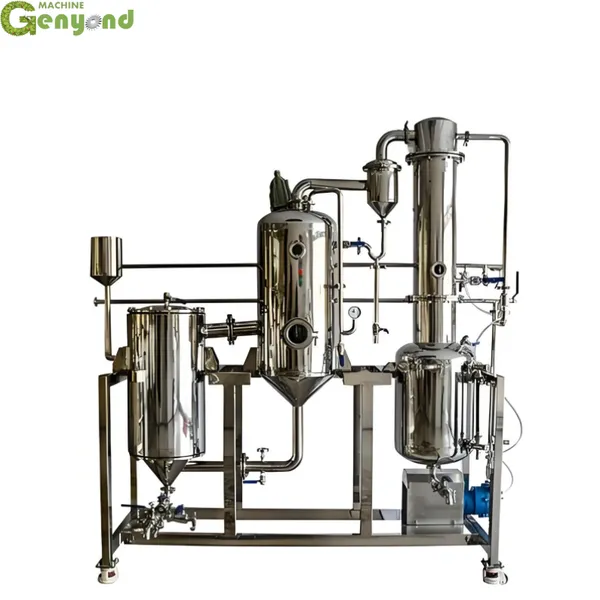

Genyond Black Carrot Extraction and Concentrate Machine for the Instant Powder Processing
US$ 10000.00
≥1 Set
Key Specifications
Get Latest Price
Type:
Extraction
Voltage:
220V/380V
Power:
5kw
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Pomegranate Extraction and Concentrate Machine for Instant Powder ProcessingUS$ 8500.00MOQ: 1 Set -
Ultrasonic of Plant Oil Extraction Machine Extractor and ConcentratorUS$ 9000.00MOQ: 1 Set
-
Shanghai Genyond Ultrasonic Extraction Concentration Equipment Good PriceUS$ 7090.00MOQ: 1 Set
-
Factory Genyond Plant & Vegetable Ultrasonic Solvent Countercurrent Cycle Extractor Machine Extraction EquipmentUS$ 8900.00MOQ: 1 Set
-
Ultrasonic Countercurrent Cycle Extraction MachineUS$ 9500.00MOQ: 1 Set
video outgoing-inspection
Provided
machinery test report
Provided
core components
Motor, Gear, Gearbox
place of origin
Shanghai, China
brand name
Genyond
type
Automatic
power(w)
5KW
weight
500 KG
dimension(l*w*h)
2000*1800*2300
warranty
1 Year
Name
Extraction and Concentration machine
Processing capacity
100L~5000L/H
Material
Stainless Steel SUS304/316
After-sales Service Provided
Online Service Support
Advantage
Low Consumption High Efficiency
Suitable for
Vegetable Fruit Plant Processing
Certificate
ISO CE
Product Paramenters
Introduction:
Countercurrent circulation ultrasonic extraction unit is widely used in a variety of volatile or non-volatile solvent extraction of natural products active ingredients, suit for food, plant, cosmetics and other laboratories and production.
Features:
1)This countercurrent circulation ultrasonic extraction unit uses Ultrasonic countercurrent cycle extraction and extract Vacuum evaporated a variety of plant as one. Automatic operation, PLC automatic control inverter, touch screen dynamically displays the whole workflow. Test data can be external PC Print Save.
2)Countercurrent circulation ultrasonic extraction unit adaptability: it’s do not limited to ingredients polarity and molecular size for extract plant. countercurrent circulation ultrasonic extraction unit is applies to the extract of vast majority of plant extracts and various ingredients
3)Equipment selectable frequency range: 15KHz,20KHz,28 KHz,30 KHz,35 KHz,40 KHz,50 KHz,60 KHz,80KHz.
4)The countercurrent circulation ultrasonic extraction unit is dynamic extraction cycle, do repeated ultrasound, repeated extraction to the material. The extraction rate of this countercurrent circulation ultrasonic extraction unit higher than the average ultrasonic extraction.
5)Countercurrent circulation ultrasonic extraction unit using frame structure, compact structure, convenient operation, comes with cleaning function.
6)The countercurrent circulation ultrasonic extraction unit with different filter systems according to the different materials of customer.
7)Countercurrent circulation ultrasonic extraction unit, use high-power of shaped ultrasonic generator. The ultrasonic power can be adjust, the ultrasonic electronic control is touch screen dynamic display control system.
Production Specification
Model |
Capacity |
Ultrasonic |
Voltage |
Power |
GY-EC100 |
100L |
300W~3000W |
220V/380V |
7kw |
GY-EC200 |
200L |
300W~3000W |
220V/380V |
9kw |
GY-EC300 |
300L |
300W~3000W |
220V/380V |
12kw |
