As a trusted manufacturer based in Shanghai, China, Shanghai Quanbao Electronic Materials Technology Co., Ltd. specializes in delivering high-quality industrial components like our High Pressure 316L Double Ferrule Compression Fitting. Engineered for demanding gas and liquid line applications, this fitting ensures leak-proof performance and durability, backed by our commitment to precision engineering. With years of expertise in electronic materials, we provide reliable solutions that enhance operational efficiency and safety. Choose our product for its robust design and cost-effective maintenance in critical systems.

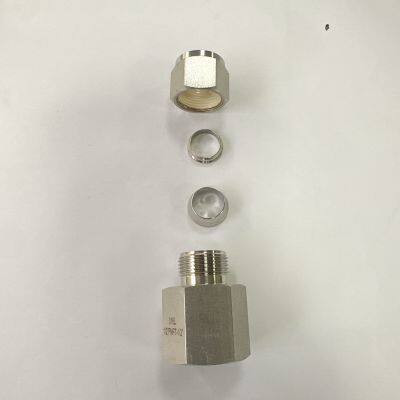

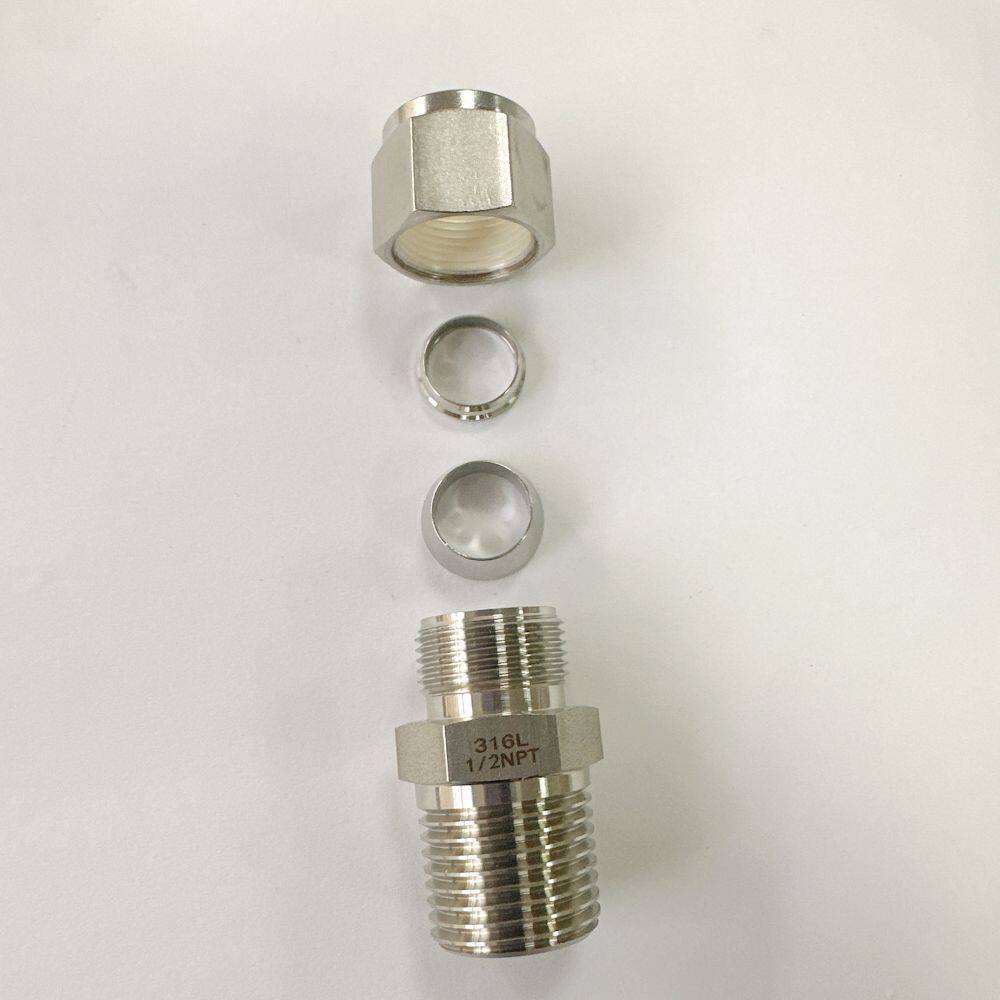

This compression fitting features a double ferrule design, which provides superior sealing compared to single ferrule alternatives. The 316L stainless steel construction offers excellent corrosion resistance, making it ideal for harsh environments involving chemicals or high-pressure fluids. Key advantages include:
- Enhanced Leak Prevention: The dual ferrule system creates a tight, reliable seal that minimizes the risk of leaks, even under extreme pressure fluctuations.
- Durability and Longevity: Made from 316L stainless steel, it withstands corrosion, abrasion, and high temperatures, extending service life and reducing replacement costs.
- Easy Installation: Designed for quick assembly without specialized tools, it saves time during maintenance or system upgrades.
- Versatile Applications: Perfect for industries such as oil and gas, chemical processing, and HVAC, where secure fluid handling is critical.
Technical specifications are detailed in the table below, covering common configurations. Note that custom sizes and pressure ratings are available upon request to meet specific project needs.
| Size (Inches) | Pressure Rating (PSI) | Material Grade | Typical Use Case |
|---|---|---|---|
| 1/8" | 10,000 | 316L SS | Laboratory gas lines |
| 1/4" | 8,000 | 316L SS | Industrial liquid transfer |
| 1/2" | 6,000 | 316L SS | Chemical processing systems |
| 1" | 5,000 | 316L SS | High-volume fluid transport |
Beyond these specs, the fitting's ergonomic design allows for repeated use without degradation, and its compatibility with various tubing materials adds flexibility. Clients benefit from reduced downtime and lower total cost of ownership due to its maintenance-friendly nature.
Shanghai Quanbao Electronic Materials Technology Co., Ltd., operating from Shanghai, leverages extensive experience to ensure every fitting meets rigorous quality standards, providing peace of mind for global buyers. Our product's reliability in high-stress environments makes it a smart investment for enhancing system integrity. Reach out to us for personalized quotes or technical support to optimize your fluid handling solutions. Trust in our expertise for dependable performance and responsive customer service.
Frequently Asked Questions (FAQ)
-
Q: What is a double ferrule compression fitting?
A: It uses two ferrules (metal rings) that compress onto the tubing for a secure, leak-resistant seal, ideal for high-pressure applications. -
Q: Why choose 316L stainless steel for this fitting?
A: 316L offers superior corrosion resistance, especially against chlorides and acids, ensuring longevity in harsh gas and liquid environments. -
Q: Can this fitting handle both gas and liquid lines?
A: Yes, it's designed for versatile use in both gas transmission and liquid handling systems, with a pressure rating customizable to specific needs. -
Q: What pressure levels can it withstand?
A: Standard ratings range from 5,000 to 10,000 PSI, depending on size; higher pressures are available upon request. -
Q: Is installation complicated?
A: No, it's user-friendly with simple compression assembly—no special tools required, reducing setup time and errors. -
Q: Are custom sizes or materials available?
A: Absolutely, we offer customizable options for sizes, finishes, and other specifications to match unique project requirements. -
Q: How does it perform in high-temperature conditions?
A: With a temperature range of -20°C to 200°C, it maintains integrity in most industrial settings without degradation. -
Q: What industries commonly use this fitting?
A: It's popular in oil and gas, chemical processing, HVAC, and water treatment for reliable fluid control.
