China RP HP UHP Grade Carbon Electrode Graphite Electrode And Nipple Manufacture Price For Arc Furnaces
Product Spotlights
UHP/HP/RP
US$ 1200
≥100 Pieces
Key Specifications
Get Latest Price
Shape:
Ball
Application Area:
Electrolysis
Manufacturing Technique:
CNC automatic forming
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin port
Delivery Detail:
12 days
Related Products
-
Extruded Graphite Graphite Electrodes Electrode Block Featuring Resistivity 5 To 8 μΩ·m Suitable for Steel Industry and Electric Arc FurnaceUS$ 1200MOQ: 100 Pieces -
Flexural Strength Greater Than Or Equal To 20 MPa Carbon Graphite Plates Utilizing Petroleum Coke And Needle Coke Engineered For IndustrialUS$ 1200MOQ: 100 Pieces
-
Carbon Graphite Electrode With Nipples RP HP UHP 750mm 700mm 650mm 600mm 550mm 500mm 450mm 400mmCustomized Dia 800-1400mmUS$ 1200MOQ: 100 Pieces
-
Carbon Graphite /graphite Electrode for EafUS$ 1200MOQ: 25 Pieces
-
Graphite Carbon Black/graphite Factory/manufacturerUS$ 1200MOQ: 25 Pieces
Shape
Ball
Application Area
Electrolysis
Manufacturing Technique
CNC automatic forming
Ampere Density
13-18A/cm�

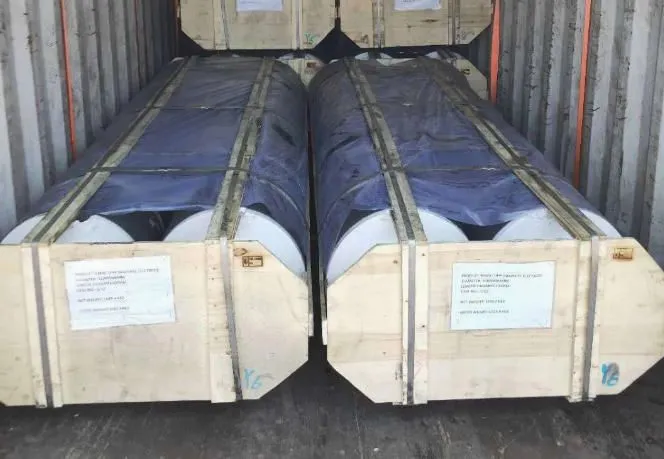

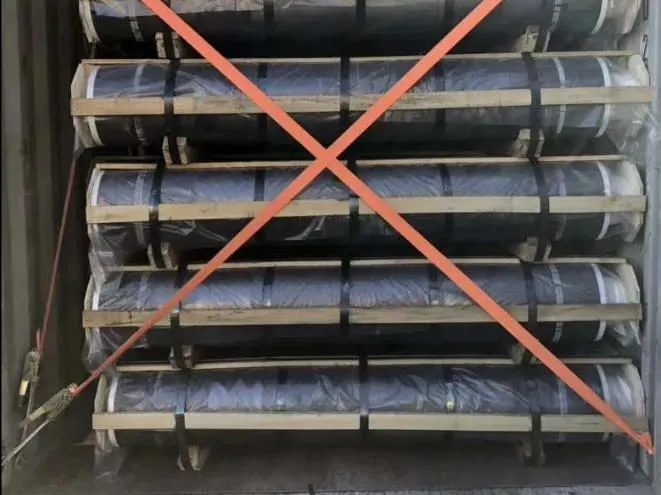

Transport Package
Bulk
Specification
500mm diameter
Trademark
chaoyo
Origin
China
China RP HP UHP Grade Carbon Electrode Graphite Electrode And Nipple Manufacture Price For Arc Furnaces
Did you know that there are two ways to make iron? The blast furnace method and the electric arc furnace method. The electric arc furnace method recycles used iron scrap by melting it in an electric arc furnace. It is the graphite electrodes inside the furnace that actually melt the iron. Graphite Electrode has high thermal conductivity and is very resistant to heat and impact. It also has low electrical resistance, which means it can conduct the large electrical currents needed to melt iron.
The graphite electrode for arc furnaces and ladle refining furnaces for steel industries/steel plant in steel making.
Graphite Electrodes Diameter Tolerance Unit: mm
| Norminal Diameter | Actual Diameter | Norminal Length | Length Tolerance | ||
| Inches | mm | Max | Min | ||
| 8'' | 200 | 205 | 201 | 1600/1800 | +/-100 |
| 10'' | 250 | 256 | 251 | 1600/1800 | +/-100 |
| 12'' | 300 | 307 | 302 | 1600/1800/1900/2000 | +/-100 |
| 14'' | 350 | 357 | 352 | 1600/1800/1900/2000/2200 | +/-100 |
| 16'' | 400 | 409 | 403 | 1600/1800/1900/2000/2200/2400 | +/-100 |
| 18'' | 450 | 460 | 454 | 1600/1800/1900/2000/2200/2400 | +/-100 |
| 20'' | 500 | 511 | 505 | 1800/1900/2000/2200/2400 | +/-100 |
| 22'' | 550 | 562 | 556 | 1800/2000/2200/2400 | +/-100 |
| 24'' | 600 | 613 | 607 | 2000/2200/2400/2700 | +/-100 |
| 28'' | 700 | 714 | 708 | 2400/2700/3000 | +/-100 |
Properties
| Item | Unit | Norminal Diameter | |||||
| UHP | HP | RP | |||||
| ≤Φ400 | ≥Φ450 | ≤Φ400 | ≥Φ450 | ≤Φ300 | ≥Φ350 | ||
| Resistance | E | μΩ.m | ≤5.5 | ≤6.5 | ≤8.5 | ||
| N | ≤4.5 | ≤5.5 | ≤6.5 | ||||
|
Bending Strength |
E | MPa | ≥13.0 | ≥10.5 | ≥9.8 | ≥8.5 | ≥7.0 |
| N | ≥20.0 | ≥16.0 | ≥15.0 | ||||
|
Elastic Modulus |
E | Gpa | ≤14.0 | ≤12.0 | ≤9.3 | ||
| N | ≤18.0 | ≤16.0 | ≤14.0 | ||||
| Bulk Density | E | g/cm³ | ≥1.70 | ≥1.65 | ≥1.55 | ||
| N | ≥1.78 | ≥1.73 | ≥1.69 | ||||
|
CTE. (100-600℃) |
E | 10-6/℃ | ≤1.5 | ≤2.4 | ≤2.9 | ||
| N | ≤1.4 | ≤2.2 | ≤2.8 | ||||
| Ash | % | ≤0.3 | ≤0.3 | ≤0.5 |
