Product Description:
Graphite Electrodes are essential components used extensively in the steelmaking industry, particularly in Electric Arc Furnace Graphite Electrodes applications. These electrodes are manufactured from high-quality Carbon Graphite Material, ensuring superior electrical conductivity and thermal resistance, which makes them ideal for withstanding the extreme conditions of electric arc furnaces. The product line includes three distinct grades: Regular Power, High Power, and Ultra High Power, each designed to meet varying operational requirements and deliver optimal performance in different industrial scenarios.
The Regular Power grade graphite electrodes are designed for standard electric arc furnace operations, offering reliable performance with excellent electrical conductivity. High Power electrodes provide enhanced current carrying capacity and improved thermal shock resistance, making them suitable for more demanding furnace conditions. The Ultra High Power (UHP) grade, exemplified by the Model No: UHP600, is engineered to withstand the highest electrical currents and temperatures, up to 3000°C, ensuring maximum efficiency and durability in the most challenging environments.
One of the critical features of these graphite electrodes is their ability to operate at extremely high temperatures, with an operating temperature threshold of up to 3000°C. This capability is vital for the efficient melting and refining of steel in electric arc furnaces, where temperatures can reach intense levels. The electrodes are fabricated using advanced Carbon Graphite Sheets, which contribute to their high strength and thermal stability, thereby enhancing the overall longevity and performance of the electrodes during continuous furnace operations.
The surface treatment of these graphite electrodes is another vital aspect that influences their functionality. Customers can choose between coated or uncoated surface options based on their specific application needs. Coated electrodes typically feature a protective layer that minimizes oxidation and reduces electrical resistance, thereby extending the electrode's service life. On the other hand, uncoated electrodes may be preferred in applications where coating is not necessary or where cost considerations are paramount.
In terms of mechanical properties, these graphite electrodes exhibit an impressive modulus of rupture ranging from 10 to 14 MPa. This measure of flexural strength ensures that the electrodes can withstand mechanical stresses during handling, installation, and furnace operation without cracking or breaking. The robust mechanical properties, combined with excellent thermal and electrical characteristics, make these electrodes a reliable choice for steel manufacturers seeking consistent performance and reduced downtime.
The Model No: UHP600 represents the pinnacle of Ultra High Power graphite electrode technology. It is specifically designed to deliver exceptional performance in electric arc furnace applications requiring the highest levels of electrical current and thermal endurance. This model is highly favored in modern steel production facilities where efficiency, quality, and sustainability are critical objectives.
Overall, the Graphite Electrodes product line offers a comprehensive solution for electric arc furnace operations, leveraging the superior qualities of Carbon Graphite Material and advanced manufacturing techniques. Whether utilizing the Regular Power, High Power, or Ultra High Power grade electrodes, customers can expect high reliability, excellent electrical conductivity, and outstanding resistance to thermal and mechanical stresses. The availability of coated or uncoated surface treatments further allows customization to specific operational requirements, ensuring optimal performance and cost-effectiveness.
In summary, these Electric Arc Furnace Graphite Electrodes made from premium Carbon Graphite Sheets and material provide a perfect balance of strength, durability, and conductivity. Their ability to operate at temperatures up to 3000°C and their high modulus of rupture make them indispensable in the steelmaking industry. With the advanced UHP600 model and a range of grades to choose from, this product range meets the diverse needs of modern metallurgical processes, contributing significantly to efficient and sustainable steel production.
Features:
Product Name: Graphite Electrodes

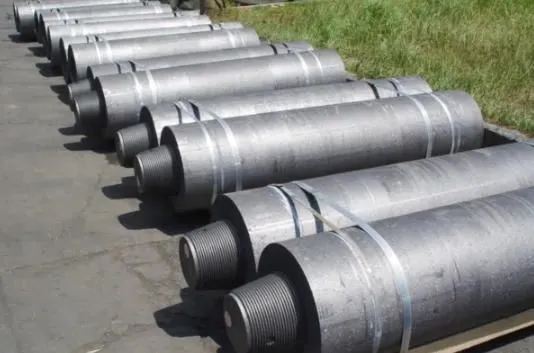

Connection Type: Threaded (Pin and Nipple)
Function: Suitable for ARC Furnaces and Steel Making
Surface Treatment: Available in Coated or Uncoated options
Modulus of Rupture: 10-14 MPa
Length: Up to 2400mm
Made with high-quality Carbon Graphite Sheets for superior performance
Designed as High Power Graphite Electrodes for efficient conductivity
Utilizes advanced Carbon Graphite Sheets to ensure durability and reliability
Technical Parameters:
| Forming Way | Extruded Graphite |
| Shape | Cylinder |
| Model No | UHP600 |
| Function | ARC Furnaces, Steel Making |
| Length | Up To 2400mm |
| Operating Temperature | Up To 3000°C |
| Connect | 4TPI |
| Resistivity | 5 To 8 μΩ·m |
| Modulus Of Rupture | 10-14 MPa |
| Type | Electrode Block |
