NanoRFE VNA6000-B Portable Vector Network Analyzer (50kHz to 6GHz)
Product Introduction

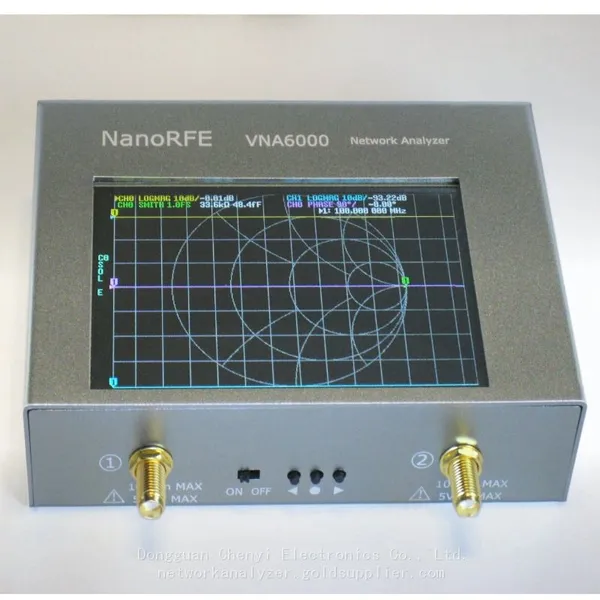

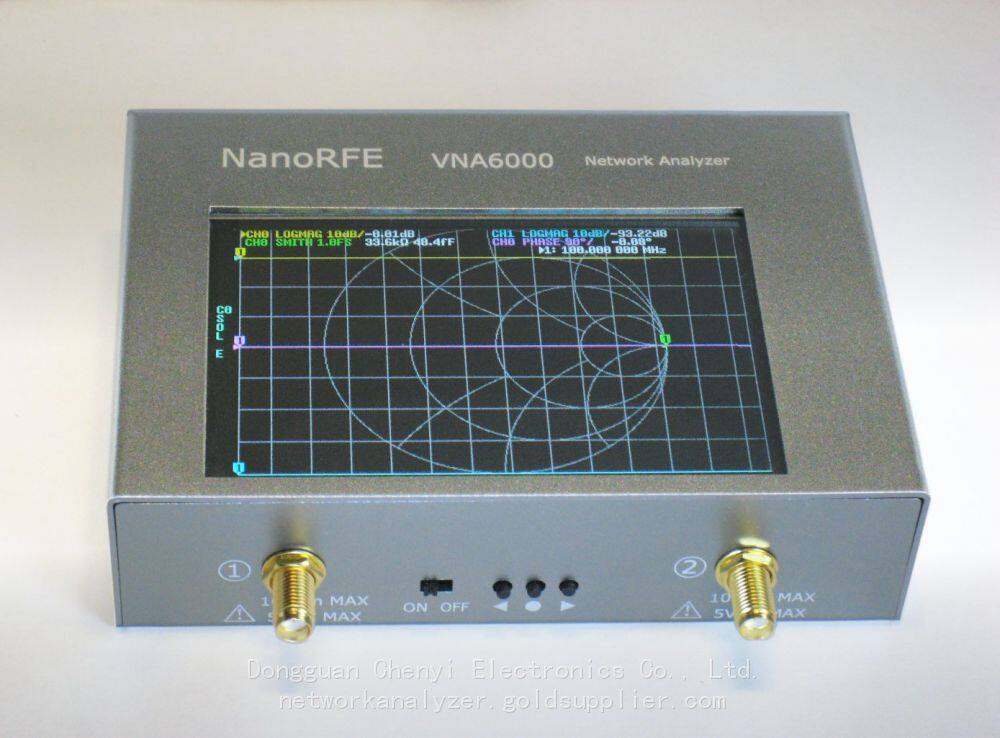

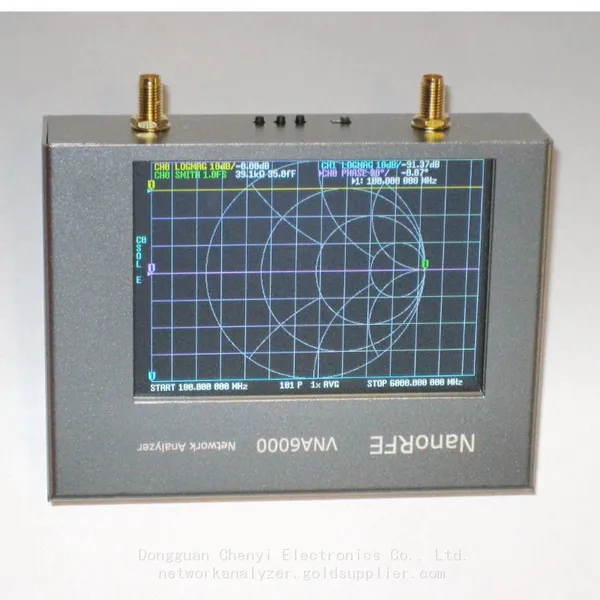

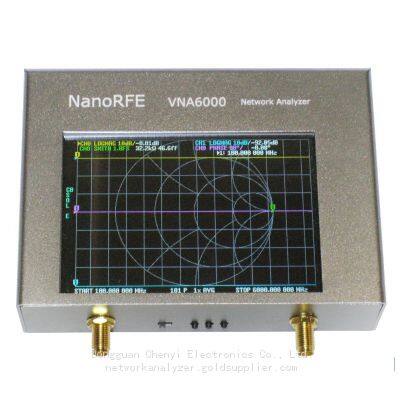

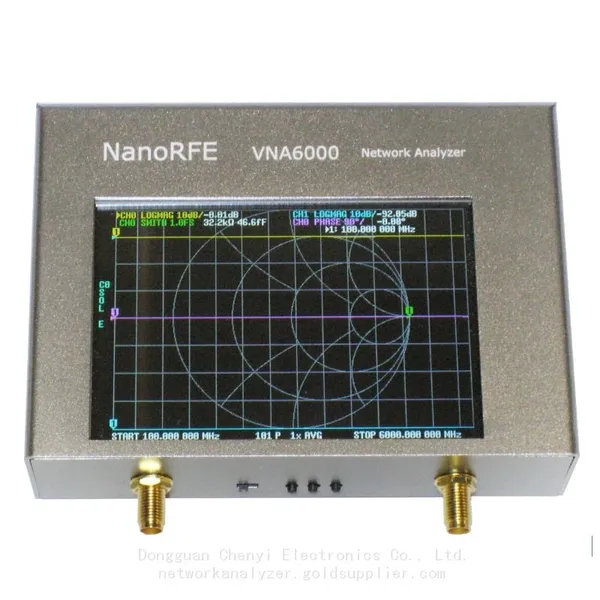

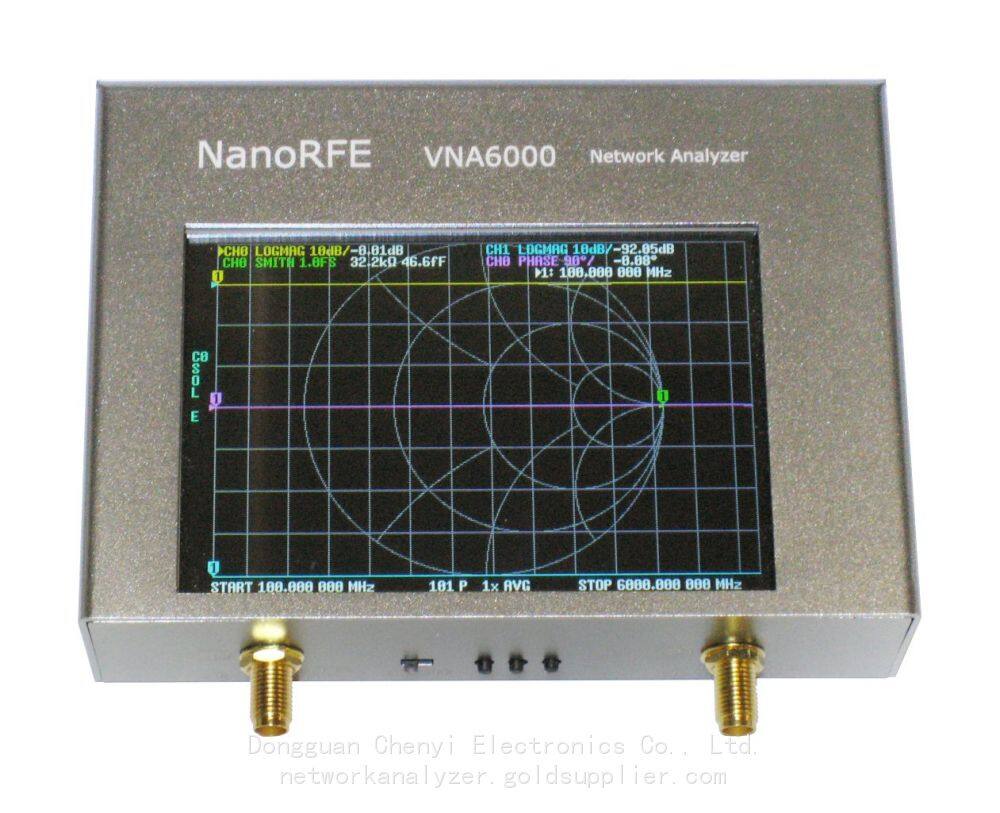

The NanoRFE VNA6000-B (formerly NanoVNA V3) is the high-performance flagship model of the portable 2-port vector network analyzer series, delivering laboratory-grade precision from 50 kHz to 6 GHz in an ultra-compact, handheld design. Engineered for demanding RF applications, it offers a 110 dB dynamic range—a significant upgrade over the VNA6000-A—making it ideal for testing high-attenuation components, narrowband filters, and low-level signals in R&D, manufacturing, and field service.

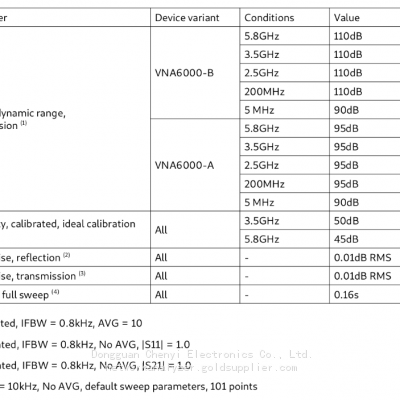

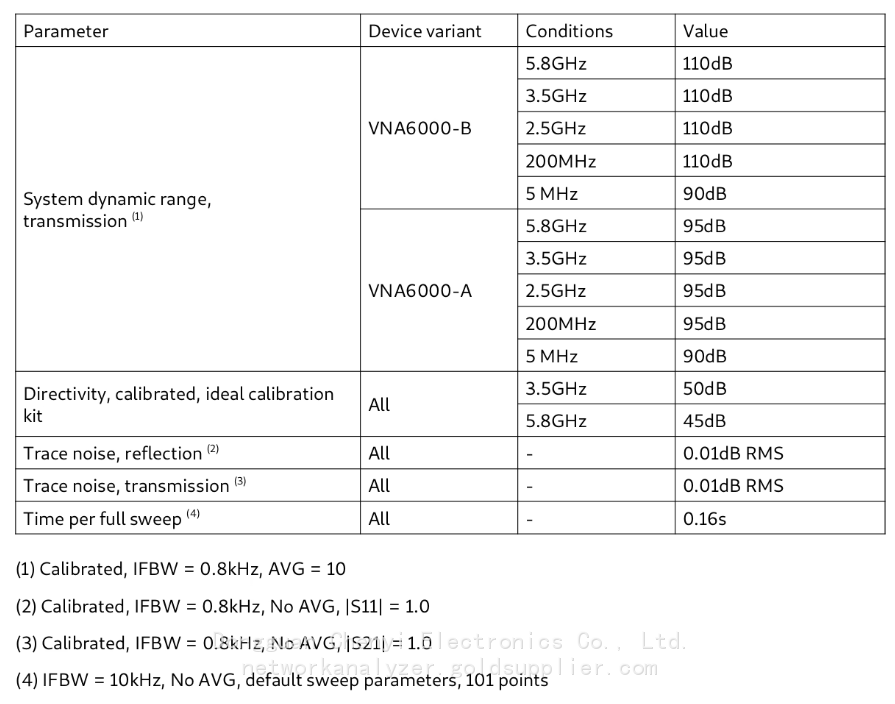

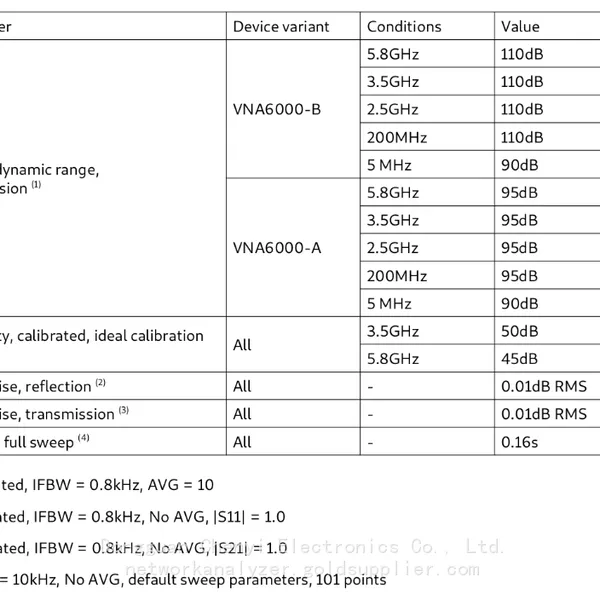

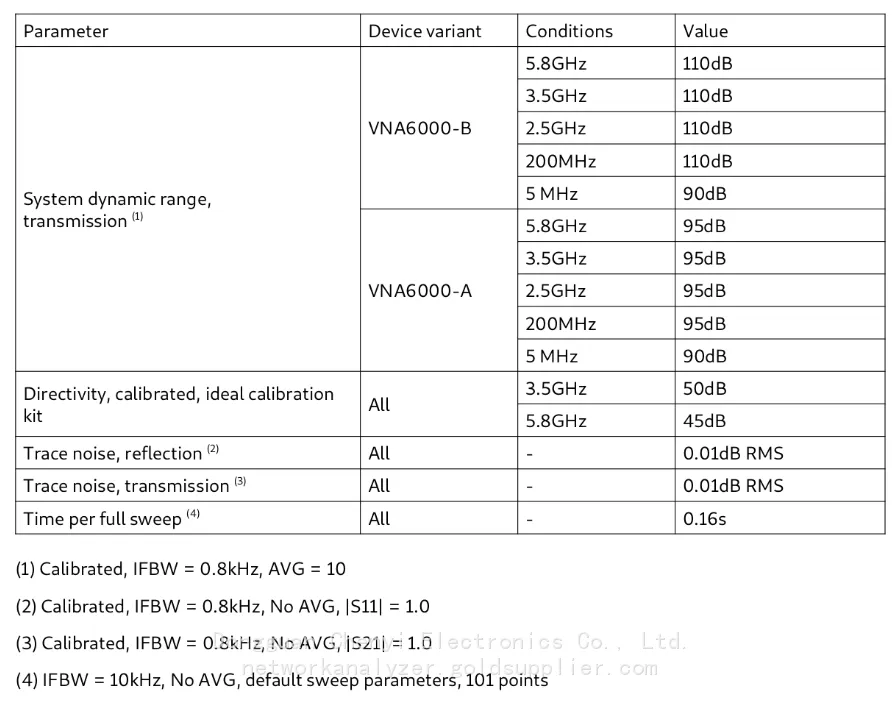

Parameter |
VNA6000-B Specification |
Frequency Range |
50 kHz – 6 GHz (full coverage)NanoVNA |
Dynamic Range |
110 dB @ 5.8 GHz (transmission)NanoVNA |
Trace Noise |
0.01 dB RMS (typical) |
Measurement Repeatability |
(typical)NanoRFE |
Output Power |
-10 dBm (typical)NanoVNA |
Impedance |
50 ΩNanoVNA |
Connectors |
SMA Female (2 Ports)NanoVNA |
Display |
4-inch Color Touchscreen (320x480)NanoVNA |
IF Bandwidth |
Adjustable (0.8 kHz – 10 kHz)NanoVNA |
Sweep Points |
10 to 4096 (up to 65536 via PC)NanoVNA |
Measured S-Parameters |
S11, S21 (S22, S12 via DUT reversal)NanoVNA |
Weight |
300 g (ultra-lightweight)NanoRFE |
Power |
USB-C / Internal 18650 Battery (3200 mAh) |
Enclosure |
Full CNC Aluminum (EMI-shielded) |
Key Features
· Flagship Dynamic Range: 110 dB at 6 GHz enables accurate measurement of high-isolation filters, attenuators, and long cables with extremely low insertion loss.
· Adjustable IF Bandwidth: Optimize speed vs. noise for narrowband component testing (e.g., SAW/BAW filters) and high-resolution sweeps.NanoRFE
· Ultra-Low Drift: Precision temperature-compensated OCXO ensures exceptional stability in varying environmental conditions.NanoRFE

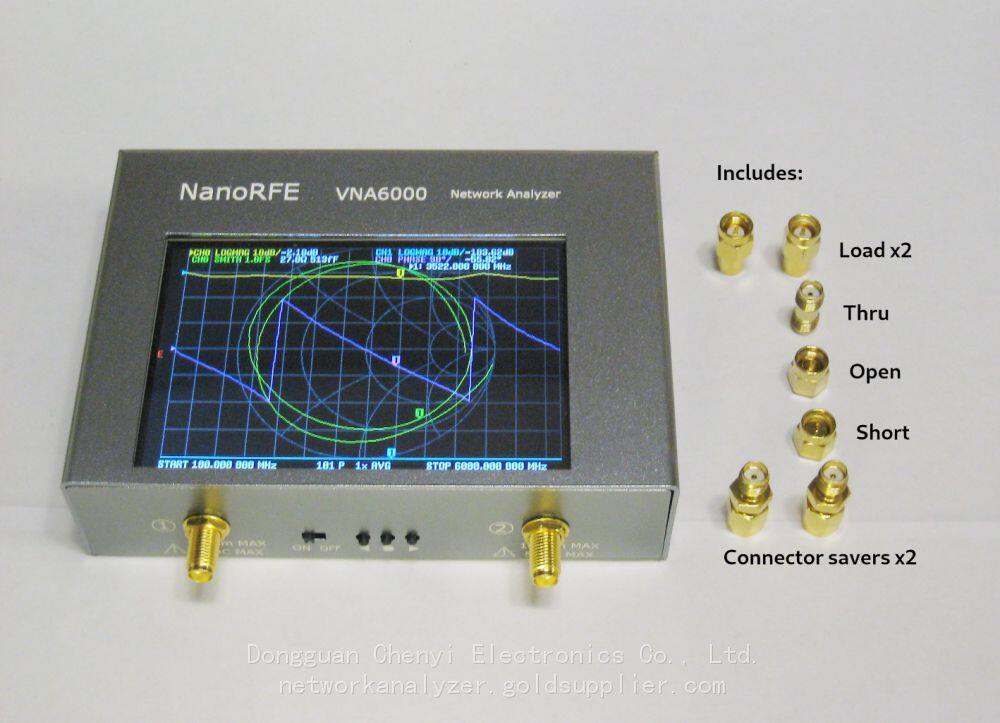

· Advanced Calibration: Full SOLT, OSL, and TRL calibration support with custom kit definitions for maximum accuracy.

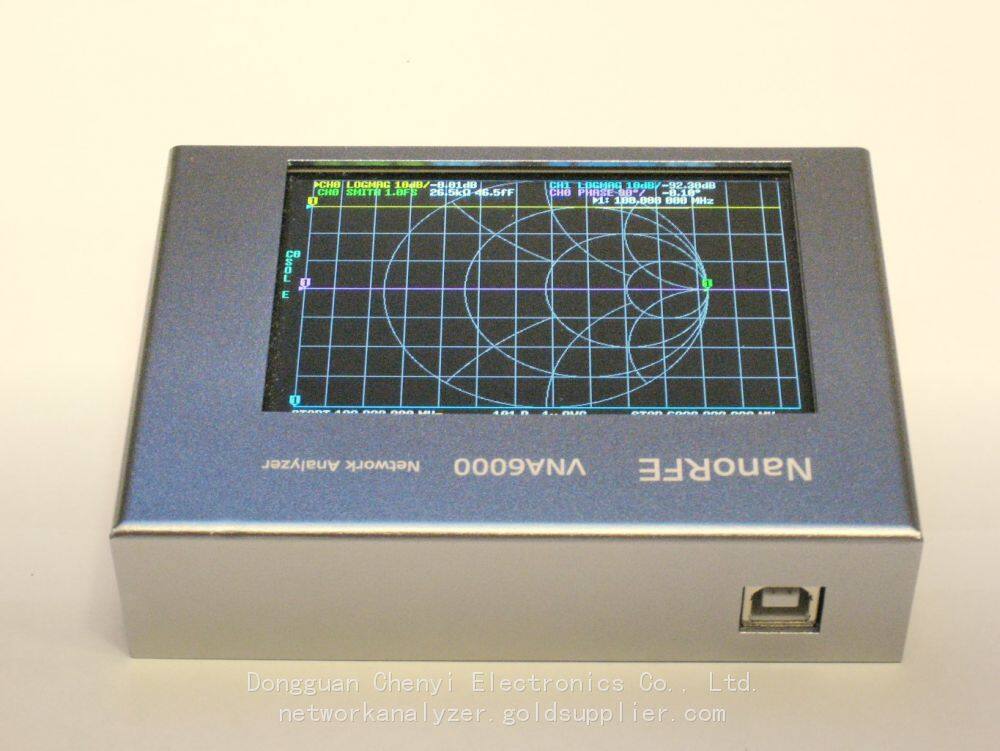

· High-Speed PC Control: Full remote operation via USB-C; advanced analysis with NanoVNA-QT software (Windows/Linux/Mac).NanoRFE
· Integrated TDR: Time Domain Reflectometry with millimeter-level resolution for precise cable fault location and impedance profiling.
· Multi-Format Display: Smith Chart, Polar, Cartesian, SWR, Return Loss, Group Delay, and Complex Impedance views.
· Data Export: Touchstone (S2P), CSV, PNG, PDF for seamless lab integration and reporting.
Typical Applications
· High-Performance RF Filter Testing: SAW/BAW, cavity, and lumped-element filters with high rejection ratios.
· Aerospace & Defense: Radar components, avionics, and military communications testing.
· 5G/4G Infrastructure: Base station filters, diplexers, and RF front-end modules.
· Precision Cable & Connector Test: Measuring insertion loss, return loss, and length of high-frequency RF cables.
· Laboratory R&D: Characterizing low-noise amplifiers (LNAs), mixers, and high-frequency passive components.
· Field Maintenance: On-site verification of critical RF links and high-value avionics.
Why Choose the VNA6000-B?
· Professional Bench Performance: Matches the specs of benchtop VNAs costing 5–10x more.
· Unmatched Portability: 300g, pocket-sized design for true on-the-go precision.NanoRFE
· Future-Proof: Regular firmware updates expand capabilities and support new standards.
· Complete Solution: All-in-one tool for VNA, impedance analyzer, SWR meter, and TDR.
