NanoRFE VNA6000-A Portable Vector Network Analyzer (50kHz to 6GHz)
Product Introduction
The NanoRFE VNA6000-A (formerly NanoVNA V3) is a cutting-edge, ultra-portable 2-port vector network analyzer that delivers professional-grade RF measurement performance from 50 kHz to 6 GHz in a compact, handheld form factorNanoRFE. Designed for field service, R&D, and ham radio applications, it combines exceptional dynamic range, precision, and versatility—all at a fraction of the size and cost of traditional benchtop VNAs.
Parameter |
Specification |
Frequency Range |
50 kHz – 6 GHzNanoVNA |
Dynamic Range |
95 dB @ 5.8 GHz |
Trace Noise |
0.01 dB RMS (Typical)NanoVNA |
Measurement Repeatability |
|
Output Power |
-10 dBm (Typical)NanoVNA |
Impedance |
50 ΩNanoVNA |

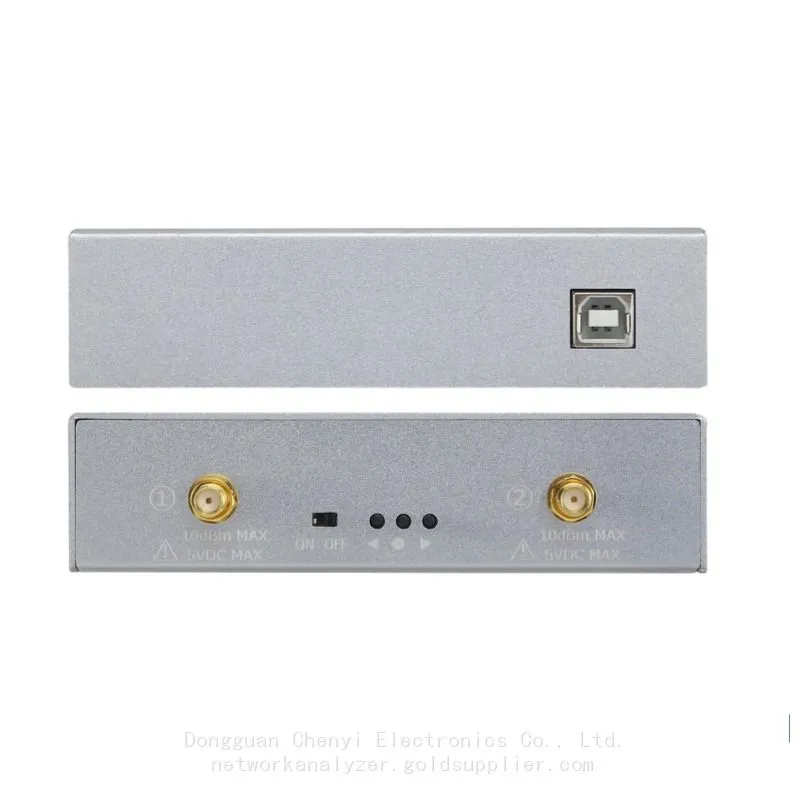

Connectors |
SMA Female (2 Ports)NanoVNA |
Display |
4-inch Color TouchscreenNanoRFE |
Weight |
300 g (Ultra-lightweight)NanoRFE |
Power |
USB Powered / Internal 3200 mAh Battery |
Sweep Points |
10 to 4096 (Up to 65536 via PC)NanoVNA |
Measured S-Parameters |
S11, S21 (S22, S12 via DUT reversal)NanoVNA |
PC Software |
NanoVNA-QT (Windows, Linux, MacOS) |
Data Export |
Touchstone, CSV, PNG, PDF |
ore Features
· Ultra-Wide Frequency Coverage: Spans 50 kHz to 6 GHz, ideal for testing antennas, filters, cables, amplifiers, and RF modules across all major wireless bands.
· Professional Performance: 95 dB dynamic range and 0.01 dB trace noise deliver lab-quality accuracy for insertion loss, return loss, VSWR, and phase measurementsNanoVNA.

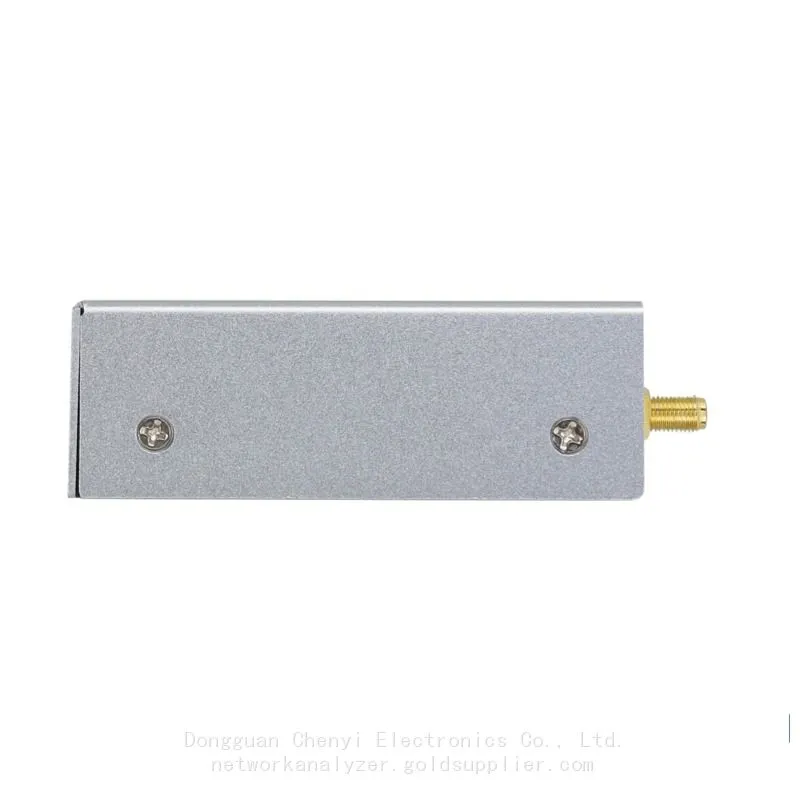

· Portable & Rugged: Full aluminum CNC enclosure for superior EMI shielding; weighs only 300g, fits in a pocket—perfect for field and on-site testing.
· Low Drift Stability: Built-in temperature compensation ensures measurement stability and minimizes drift in varying environmental conditionsNanoRFE.
· Advanced Calibration: Supports full SOLT (Short, Open, Load, Through) calibration for maximum accuracy.

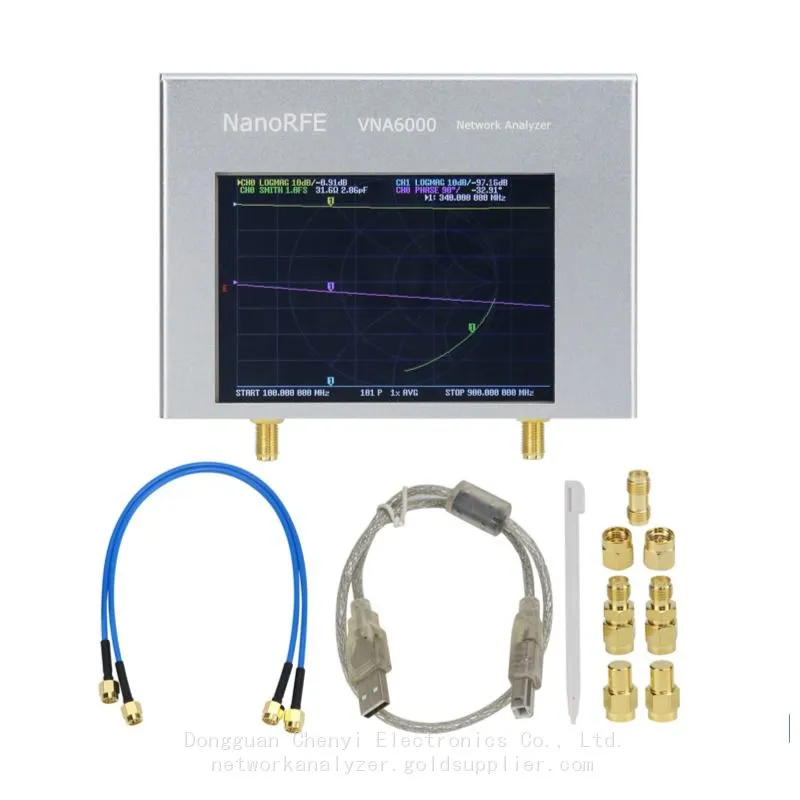

· Intuitive Operation: 4-inch responsive touchscreen with built-in Smith Chart, polar, and Cartesian displaysNanoRFE.
· PC Connectivity: Full remote control via USB; advanced analysis, data logging, and automated testing with NanoVNA-QT software.
· TDR Functionality: Integrated Time Domain Reflectometry with millimeter-level resolution for cable fault locationNanoRFE.
Typical Applications
· Antenna Testing & Tuning: Measure VSWR, return loss, and impedance for HF, VHF, UHF, Wi-Fi, and cellular antennas.
· RF Component Characterization: Evaluate filters, duplexers, attenuators, splitters, couplers, and low-noise amplifiers (LNAs)NanoRFE.
· Cable & Transmission Line Analysis: Measure insertion loss, cable loss, length, and detect faults (TDR)NanoRFE.
· Field Service & Maintenance: On-site troubleshooting for base stations, broadcast systems, and avionics.
· Ham Radio & Hobbyist: High-performance tool for amateur radio projects and RF experimentation.
· Education & R&D: Compact, affordable solution for engineering labs and product prototypingNanoRFE.
Why Choose the VNA6000-A?
· Unmatched Portability: Professional 6 GHz performance in a smartphone-sized packageNanoRFE.
· Cost-Effective: Access high-end RF test capabilities without the premium price tagNanoRFE.
· Future-Proof: Regular firmware and software updates expand functionality.
· All-in-One Tool: Combines VNA, SWR meter, impedance analyzer, and TDR in one device.
