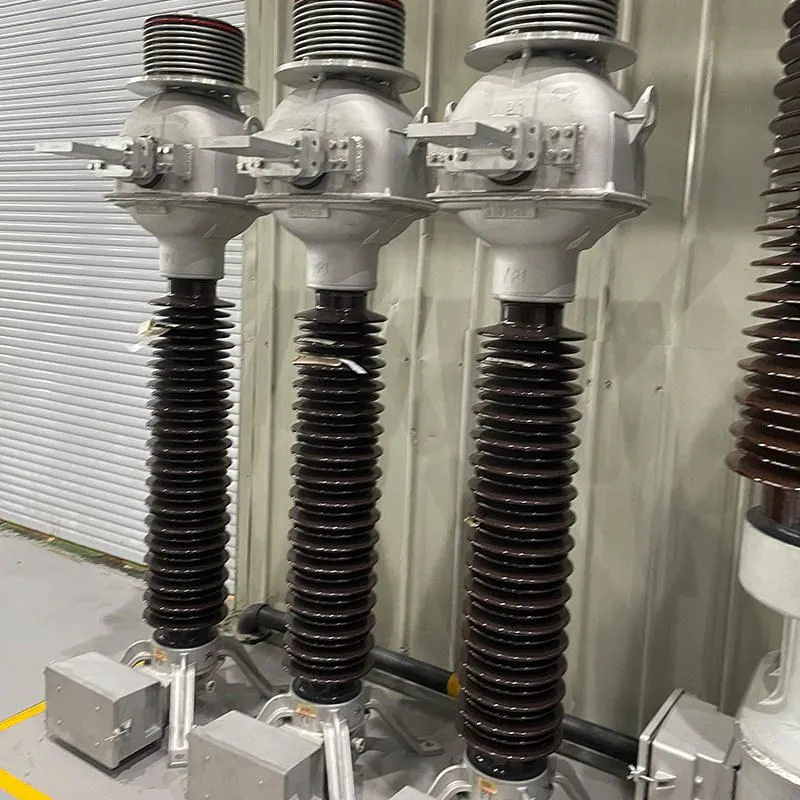

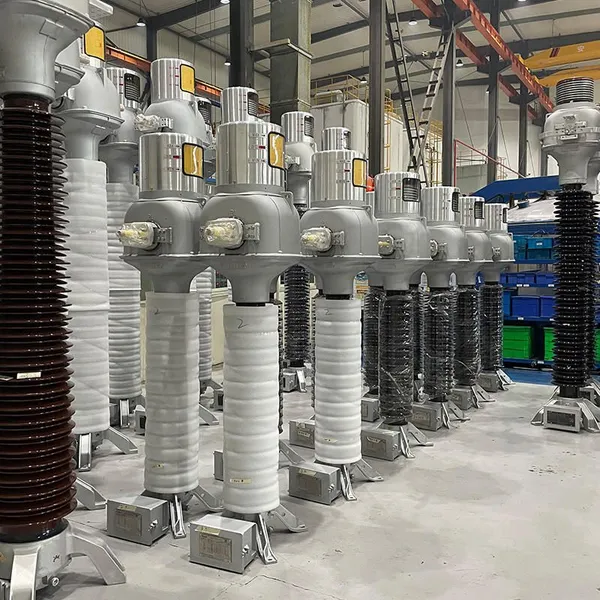

Help CenterOutdoor High Voltage Current Transformer 110kV 126kV CTMVHV 2*50/5 2*100/5 Ratio
Product Spotlights
Related Products
-
LMZC-10KV Through-hole Current Transformer, Aluminum Alloy HousingUS$ 30MOQ: 10 Units -
10KV LMZC Through-hole Current Transformer, 1 Year Warranty IncludedUS$ 30MOQ: 10 Units
-
LMZC-10KV Through-core CT With Technical Support and Installation GuideUS$ 30MOQ: 10 Units
-
Through-hole Current Transformer LMZC-10KV, RoHS Compliant DesignUS$ 30MOQ: 10 Units
-
LMZC-10KV Through-hole CT for Substation and Power Plant ApplicationsUS$ 30MOQ: 10 Units
As Jinhua Dika Electrical Equipment Co., Ltd., a dedicated manufacturer with ISO9001 certification and over a decade of industry experience, we proudly introduce our Outdoor High Voltage Current Transformer designed for exceptional reliability in demanding power systems. With annual exports valued at US$1 million to US$1.5 million and a global footprint spanning North America, South America, Europe, Asia, Africa, and Oceania, our products are trusted by clients worldwide for their precision and durability. This CTMVHV series transformer delivers accurate current measurement and robust protection, ensuring operational efficiency and safety in high-voltage environments. Built to withstand harsh outdoor conditions, it represents our commitment to quality and innovation in electrical equipment manufacturing.
Our Outdoor High Voltage Current Transformer excels in critical applications, offering features that enhance system performance and reduce maintenance costs. Key advantages include:
- Robust Construction: Featuring high-grade porcelain insulators, this transformer is engineered for outdoor use, resisting extreme weather, UV exposure, and pollution to ensure long-term reliability without frequent replacements.
- Precision Measurement: With multiple ratio options like 2*50/5 and 2*100/5, it provides accurate current data for metering and protection, supporting error rates as low as 0.2% for critical power monitoring in substations and transmission lines.
- Versatile Compatibility: Designed for 110kV and 126kV systems, it integrates seamlessly with existing high-voltage infrastructure, offering easy installation and compatibility with various protective relays and meters.
- Enhanced Safety: Incorporates advanced insulation and thermal management to prevent failures, reducing risks of electrical faults and improving overall grid stability for industrial and utility clients.
Technical specifications are detailed in the table below, highlighting core parameters that define the product's performance. These ensure optimal functionality across diverse settings, from urban power grids to remote industrial sites.
| Parameter | Value |
|---|---|
| Voltage Rating | 110kV / 126kV |
| Ratio Options | 2x(50/5), 2x(100/5) |
| Accuracy Class | 0.2 / 0.5 (metering/protection) |
| Insulation Level | LI 550kV / AC 230kV |
| Operating Temperature | -40°C to +70°C |
| Weight | Approx. 150 kg |
Clients benefit from reduced downtime and lower operational costs, as the transformer's durable design minimizes maintenance needs while providing consistent performance. For instance, its high accuracy supports efficient energy management, helping utilities avoid revenue losses from measurement errors. Additionally, the outdoor-ready build allows for flexible deployment in challenging environments, enhancing system resilience without costly enclosures.
Backed by our ISO9001-certified manufacturing processes and a proven track record of exporting to over 15 global markets, including Eastern Europe, Southeast Asia, and North America, we assure uncompromising quality and reliability. With a dedicated team of 11-50 professionals in Jinhua, China, and shipments facilitated through major ports like Shanghai and Tianjin, we deliver timely solutions tailored to diverse regional requirements. Invest in our Outdoor High Voltage Current Transformer for dependable power system protection and contact us today to discuss how it can optimize your operations—experience the Dika Electrical difference in every installation.
Frequently Asked Questions (FAQ):
-
Q: What is the typical lifespan of this current transformer?
A: With proper installation, it can last 20-30 years due to its robust porcelain insulation and weather-resistant design, reducing replacement frequency. -
Q: Can I request custom ratios beyond 2*50/5 and 2*100/5?
A: Yes, other ratios are customizable upon request to match specific system requirements, ensuring flexibility for unique applications. -
Q: How does the ISO9001 certification benefit the product quality?
A: It ensures consistent manufacturing standards, rigorous testing, and traceability, leading to reliable performance and compliance with international quality norms. -
Q: Is this transformer suitable for coastal or high-humidity areas?
A: Absolutely, its outdoor design includes corrosion-resistant features, making it ideal for coastal, tropical, or humid environments without degradation. -
Q: What support is available for installation and troubleshooting?
A: We provide detailed installation manuals and access to technical support via email or phone, helping resolve issues quickly for minimal downtime. -
Q: Are there options for different mounting configurations?
A: Mounting can be adapted based on site needs; options like pole-mount or pad-mount are available upon request for easy integration. -
Q: How long is the lead time for standard orders?
A: Lead times typically range from 4-6 weeks, depending on order volume and specifications, with expedited options possible. -
Q: Do you offer warranties for this product?
A: Yes, a standard warranty covers defects in materials and workmanship, with terms provided upon purchase to ensure customer confidence.
