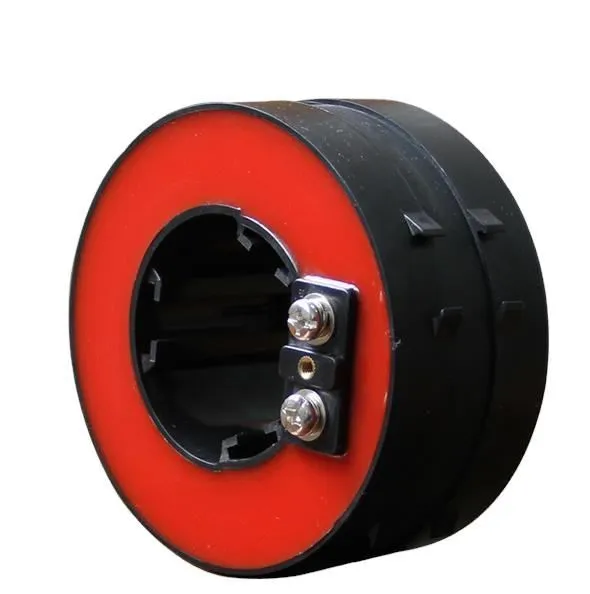

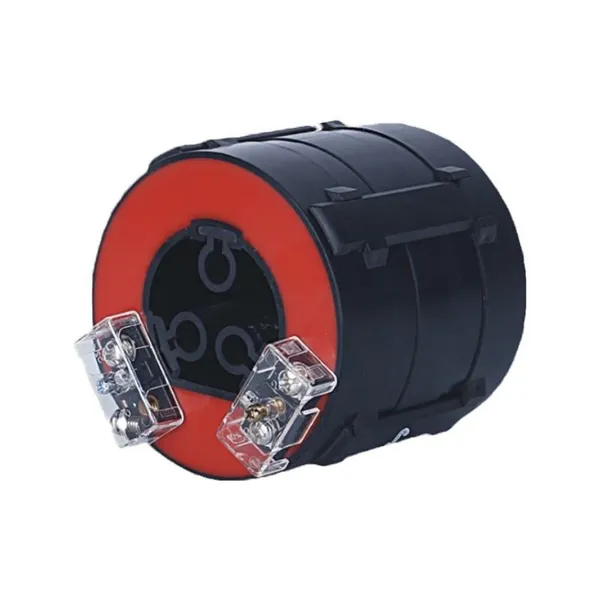

Help CenterOpen Type LMZK-10 Transformer, Standard Compliant for Industrial Use
Product Spotlights
Related Products
-
10kV LMZK-10 Open Type Transformer for Busbar Mounting, 1000/5AUS$ 30MOQ: 3 Units -
Open Type Current Transformer LMZK-10 for 10kV System, 150/5A RatioUS$ 30MOQ: 3 Units
-
10kV High Voltage LMZK-10 Open Type Transformer for Switchgear ApplicationsUS$ 30MOQ: 3 Units
-
LMZK-10 Open Type 10kV Current Transformer With 0.5S Accuracy ClassUS$ 30MOQ: 3 Units
-
LMZK-10 10kV Current Transformer With IP20 Protection DegreeUS$ 30MOQ: 3 Units
As a dedicated manufacturer, Jinhua Dika Electrical Equipment Co., Ltd. is proud to introduce our Open Type LMZK-10 Transformer, engineered for robust and reliable performance in demanding industrial environments. With over a decade of experience in the electrical equipment sector and a commitment to quality underscored by our comprehensive management system certifications, we deliver products that power critical operations worldwide. This transformer is designed to meet the stringent requirements of industrial applications, offering a dependable solution for voltage transformation and power distribution. Our focus on precision engineering and adherence to industrial standards ensures that the LMZK-10 provides the stability and efficiency your systems demand.
Our Open Type LMZK-10 Transformer is built for durability and optimal heat dissipation. The open-type construction allows for natural air cooling, making it suitable for installations where space and ventilation are adequate. This design choice contributes to a longer operational lifespan and consistent performance under load. Key features include:
- Robust Core Construction: Utilizes high-grade silicon steel laminations to minimize core losses and ensure efficient magnetic flux transfer.
- Precision-Wound Coils: Windings are made from high-conductivity copper or aluminum, insulated with Class H or higher materials to withstand high temperatures.
- Industrial-Grade Insulation: The entire assembly employs insulation systems designed for harsh industrial atmospheres, resisting moisture, dust, and chemical vapors.
- Flexible Configuration: Available in various voltage ratios and power ratings to match specific application needs.
- Safety-Oriented Design: Includes features for secure installation and operation, contributing to overall plant safety.
The technical specifications of the LMZK-10 transformer are detailed below to help you evaluate its suitability for your project:
| Parameter | Specification / Value |
|---|---|
| Model | LMZK-10 |
| Type | Open, Dry-Type |
| Primary Voltage (Input) | Customizable (e.g., 11kV, 6.6kV) |
| Secondary Voltage (Output) | Customizable (e.g., 400V, 690V) |
| Rated Power (kVA) | Available upon request |
| Frequency | 50Hz / 60Hz |
| Insulation Class | Class H (180°C) or as specified |
| Cooling Method | AN (Air Natural) |
| Standards Compliance | IEC, ANSI, or other relevant industrial standards |
| Terminations | Busbar or cable connections as required |
Choosing the LMZK-10 Transformer offers distinct advantages for your industrial facility. Its open design simplifies maintenance and inspection, while its construction ensures high efficiency, leading to reduced energy costs over its lifetime. The transformer's reliability minimizes unplanned downtime, protecting your production schedule. Furthermore, its compliance with recognized industrial standards guarantees interoperability and safety within your electrical infrastructure.
Jinhua Dika Electrical Equipment stands behind every LMZK-10 Transformer with the solid foundation of a manufacturer that exports to a global clientele across North America, South America, Europe, Asia, Africa, and Oceania. Our annual export value reflects the trust international partners place in our products. We operate from a strategic location in Zhejiang, China, with access to major ports like Shanghai, Tianjin, Guangzhou, and Ningbo for efficient logistics. Our operational ethos is guided by a framework of internationally recognized management system standards, which informs our manufacturing processes and quality control. This commitment to systematic excellence ensures that when you choose our Open Type LMZK-10 Transformer, you are selecting a component built for performance, durability, and seamless integration into your industrial power system. Contact us today to discuss your specific requirements and experience the Dika difference.
Frequently Asked Questions (FAQ)
-
What does "Open Type" mean for this transformer?
"Open Type" refers to a dry-type transformer design that is not enclosed in a sealed tank. It relies on ambient air for cooling and is typically used in well-ventilated, indoor environments. This design facilitates easier heat dissipation and accessibility for maintenance. -
Is the LMZK-10 suitable for outdoor installation?
The open-type design is primarily intended for indoor use or in protected outdoor enclosures that shield it from direct rain, snow, and excessive contamination. For fully exposed outdoor locations, an alternative enclosure type may be recommended. -
Can you provide custom voltage and power ratings?
Yes, as a manufacturer, we specialize in providing customizable solutions. The primary and secondary voltages, as well as the rated power (kVA), can be tailored to match your specific project specifications. -
What are the main industrial applications for this transformer?
The LMZK-10 is commonly used in factory power distribution networks, machine tool power supplies, industrial control panels, mining operations, and as a step-down transformer for large motors and drives. -
How does the open design impact maintenance?
The open construction allows for visual inspection of windings and connections without dismantling a casing. This can simplify routine checks, thermal monitoring, and cleaning procedures. -
What standards does this transformer comply with?
The transformer is designed to be compliant with standard industrial requirements. It can be manufactured to meet relevant international standards such as IEC or ANSI, based on customer needs and the target market. -
What is the typical lead time for an order?
Lead times vary based on order quantity, customization level, and current production schedule. We provide accurate timelines upon receipt of your detailed inquiry to ensure reliable delivery planning. -
Do you offer technical support after installation?
Yes, we provide comprehensive technical documentation and are available for consultation regarding installation, commissioning, and operational guidance to ensure optimal performance.
