Product Overview

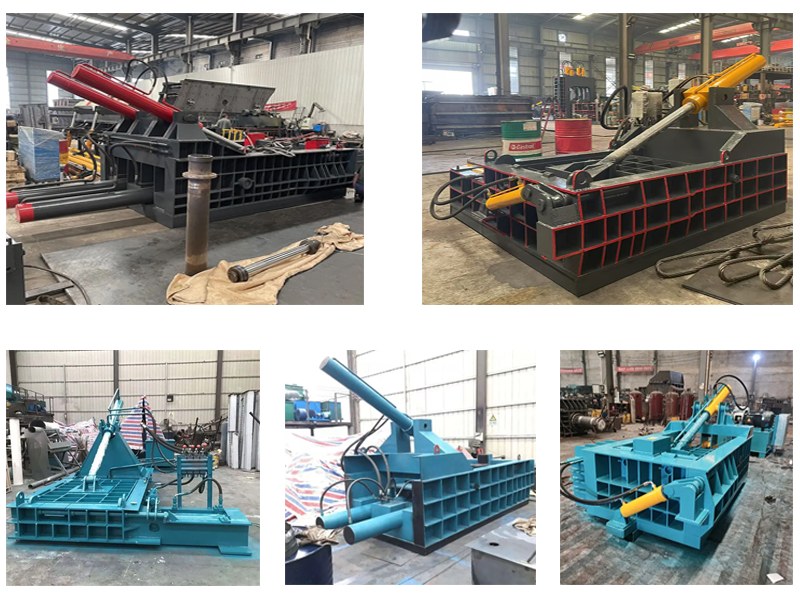

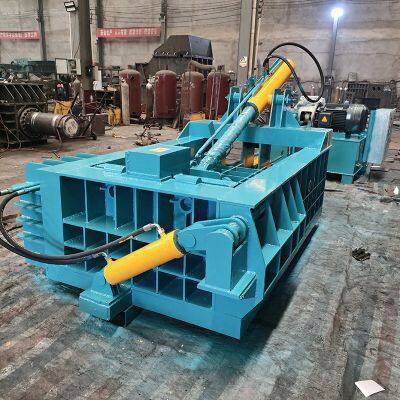

Y81-200T Horizontal Hydraulic Scrap Metal Baler
The Y81-200T hydraulic metal baler is a heavy-duty recycling equipment designed for metal recycling stations, steel mills, auto dismantling plants and metal processing factories.
With a maximum thrust of 2000KN, it can compress all kinds of loose scrap metal into high-density, neat square bales, greatly reducing storage space and transportation costs, and maximizing the value of recycled materials.
Key Technical Parameters
| Parameter Category | Item | Specification |
| Model | Equipment Model | Y81-200T |
| Cylinder Configuration | Rear Push Cylinder | YG299/250-950, 1600KN, 950mm Stroke, 1 Unit |
| Side Pressure Cylinder | YG351/280-400, 2000KN, 400mm Stroke, 1 Unit | |
| Door Cover Cylinder | YG194/160-1300, 800KN, 1300mm Stroke, 1 Unit | |
| Bale Ejecting Cylinder | YG110/80-300, 100KN, 300mm Stroke, 1 Unit | |
| Structure & Size | Chamber Size (L×W×H) | 1400×900×700mm (Lined with 6mm Wear-resistant Plate) |
| Bale Size (L×W×H) | 300×300×(400-700)mm (Square Bale, Adjustable Length) | |
| Overall Dimension (L×W×H) | Customized according to actual configuration | |
| Hydraulic & Performance | Working Pressure | 16-25MPa |
| Bale Density | Approx. 1000-1600 kg/m³ | |
| No-load Single Cycle Time | Approx. 130s | |
| Power & Control | Power Supply | 380V/50Hz (3-phase Industrial Power) |
| Total Power | 30kW | |
| Main Motor | Y180L-4, 30kW, 1480r/min, 1 Unit | |
| Operation Mode | Manual Control, Forward Bale Ejecting |
(Note: We support customized bale size and automation configuration. We can provide a free exclusive selection plan according to your daily processing capacity, site size and budget.)
Core Advantages & Features
✅ High Thrust & Stable Performance

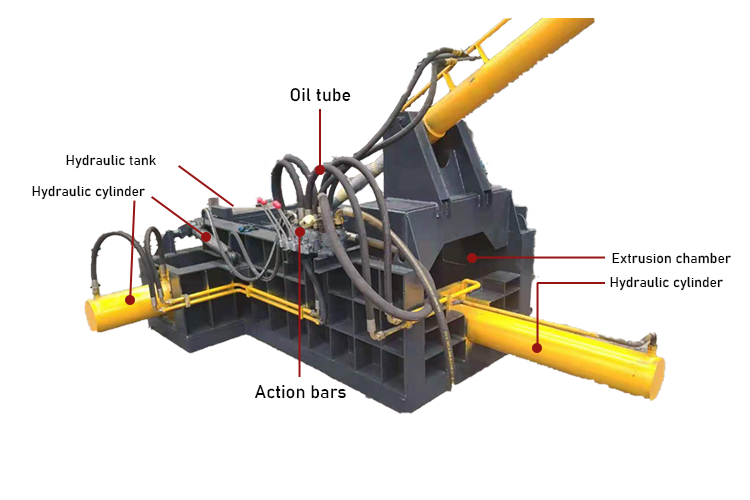

• Dual Main Cylinders: Equipped with YG299/250 and YG351/280 hydraulic cylinders providing a total pushing force of 2000KN. This ensures the bales are tight, compact, and non-loose.
• Heavy-Duty Build: The feeding box is lined with 6mm thick wear-resistant steel, extending the machine's lifespan and reducing maintenance costs.
✅ Energy Saving & Efficient

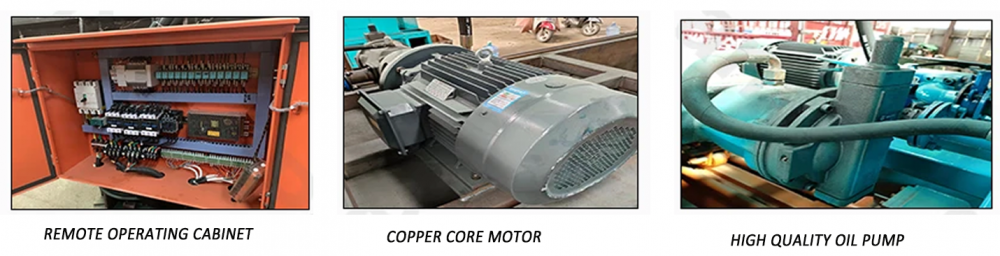

• 30kW High-Efficiency Motor: The Y180L-4 motor ensures stable operation while keeping energy consumption low.
• High-Density Output: Compresses metal scrap to 1000-1600 kg/m³, maximizing load capacity for transportation.
✅ Easy Operation & Maintenance
• User-Friendly Design: Simple button control panel, easy to learn and operate. No need for highly skilled workers.
• Forward Dumping: The forward bale ejection mechanism (controlled by YG110/80 cylinder) ensures safe and quick bale removal.
✅Application Scenarios
• Widely used in metal recycling industry, metallurgical industry, manufacturing plant and steelmaking industry

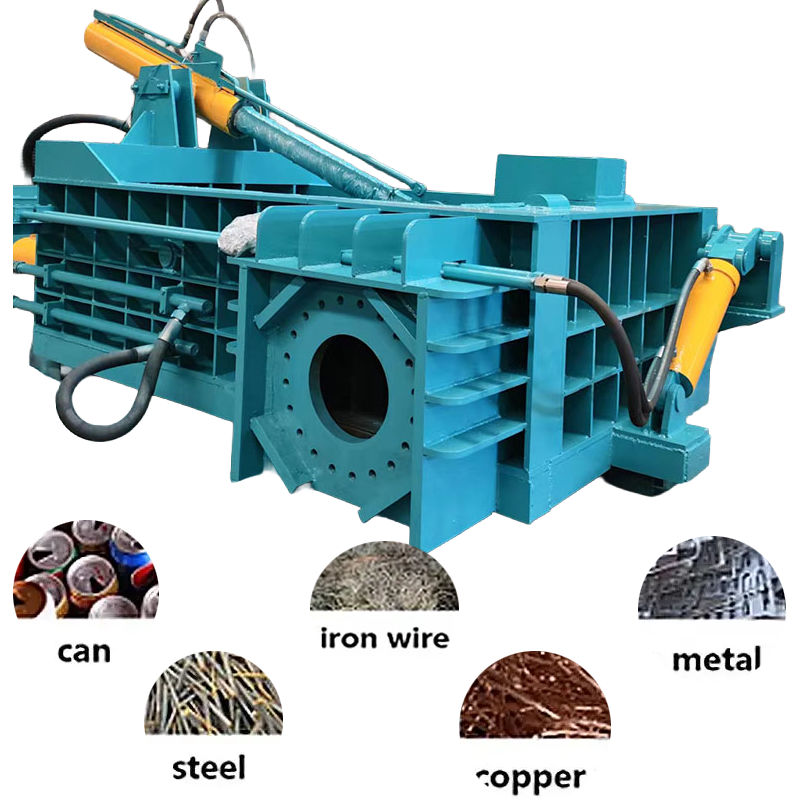

Applicable Raw Materials
This metal baler is designed for all kinds of scrap metal baling, capable of efficiently compressing various recyclable metal materials including cans, steel scraps, iron wire, copper wire, iron sheets, and mixed scrap metal, making it an ideal solution for metal recycling operations.
Suitable for:
• Ferrous Metals: Scrap steel, steel shavings, car bodies, steel pipes.
• Non-Ferrous Metals: Aluminum profiles, copper wires, beverage cans.

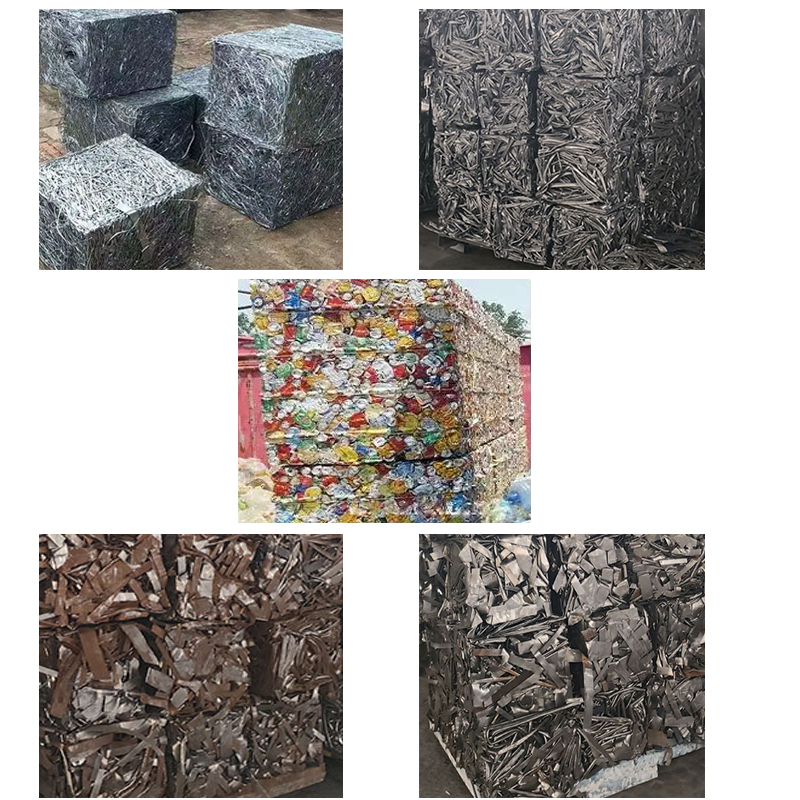

Effects After Use
This image displays the briquetting effect of our metal baler. It shows various high-density, compact metal bales made from different scrap metals, proving the machine's ability to compress waste into neat, space-saving blocks for efficient recycling and transportation.
After-Sales Service & Support
• Warranty: 12-month warranty for the whole machine.
• Technical Support: 24/7 online guidance for installation, operation, and maintenance.
• Customization: We can customize the box size, bale weight, and configuration according to your specific on-site needs.
• Spare Parts: Long-term supply of original spare parts at a competitive price.
