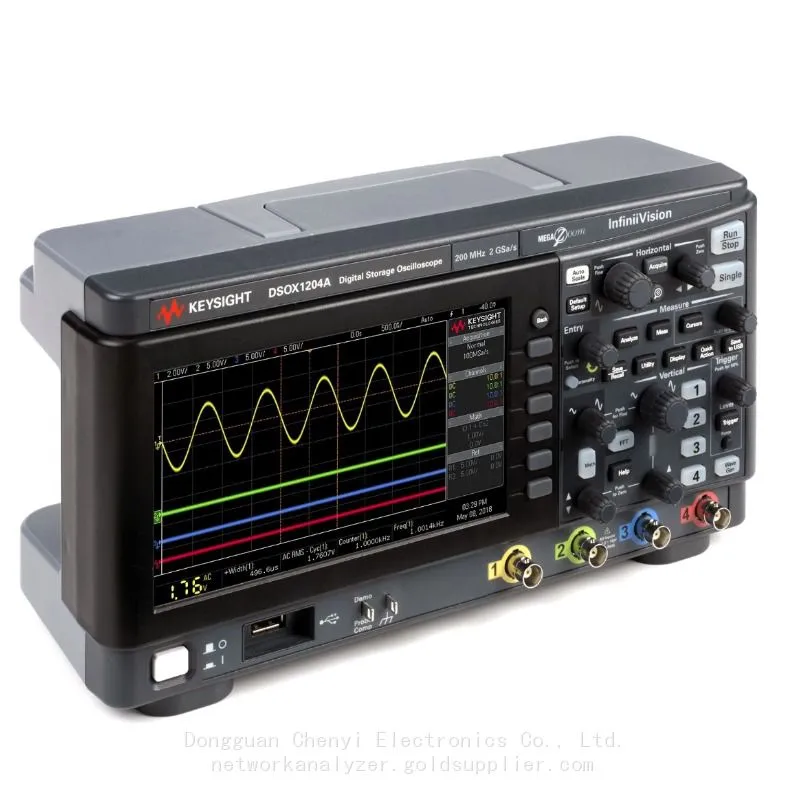

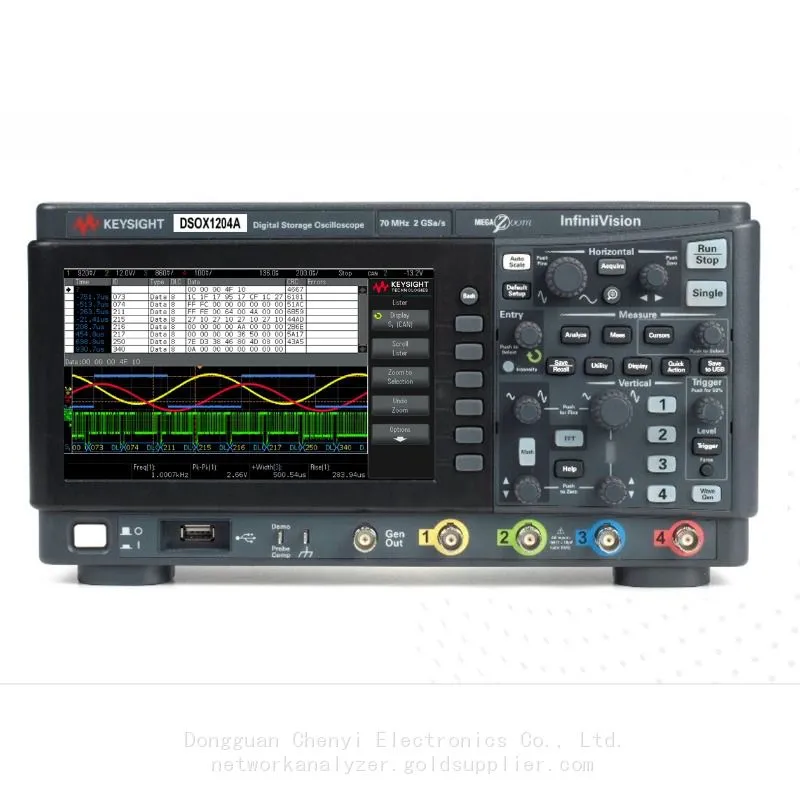

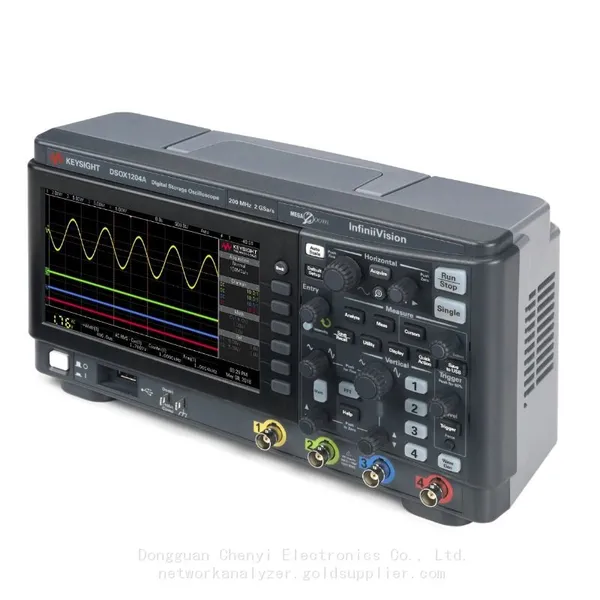

Keysight DSOX1204A Oscilloscope 70 100 200 MHz, 4 Analog Channels
4 channel model of the InfiniiVision 1000 X-Series entry-level oscilloscopes that can be
upgraded from 70 MHz to 100 MHz or 200 MHz
DSOX1204A：70 MHz，4 channels
DSOX1204A-D1200BW1A：100 MHz，4 channels
DSOX1204A-D1200BW2A：200 MHz，4 channels
HIGHLIGHTS
• 70/100/200 MHz (100 and 200 MHz require additional option)
• 2 GSa/s sample rate
• 2 M points of memory
• Make professional measurements, including, mask testing, math, FFT, and serial protocol
analysis,all standard
• Quickly learn how to use with built-in help and training signals
• See more signal detail at 200,000 waveforms/sec update rate
What's included:
• Standard 3-year warranty (90 days for unserialized accessories)
• Standard secure erase
• Four N2140A 200 MHz 10:1/1:1 switchable passive probes
• Built-in help language support for English, Simplified Chinese, Traditional Chinese, Japanese,
Korean, German, French, Spanish, Russian, Portuguese, Thai, Polish, and Italian
• Certificate of calibration
• Interface language support GUI: English, Simplified Chinese, Traditional Chinese, Japanese, Korean,
German, French, Spanish, Russian, Portuguese, Thai, Polish, Italian, Czech, and Turkish
• Localized power cord
• Download BenchVue Basic app for free to control your instruments

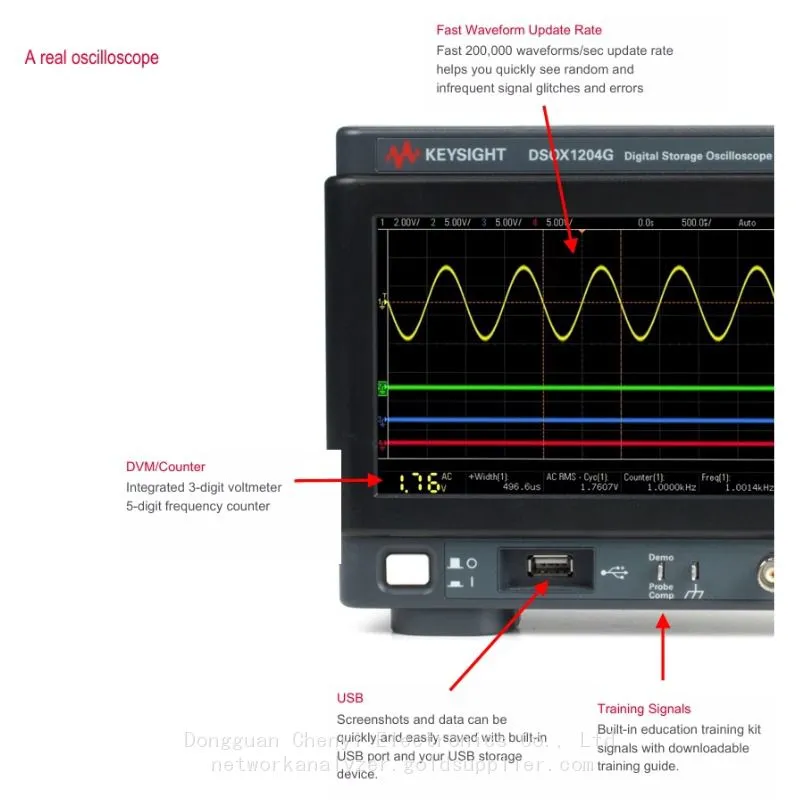

The 1000 X-Series has an integrated 3-digit voltmeter (DVM) inside each oscilloscope. The voltmeter
operates through probes connected to the oscilloscope channels, but its measurement is decoupled
from the oscilloscope triggering system so both the DVM and triggered oscilloscope measurements
can be made with the same connection. You can quickly measure AC RMS, DC, and DC RMS without
configuring the oscilloscope capture. The voltmeter results are always displayed, keeping these quick characterization measurements at your fingertips. The built-in DVM comes standard in 1000 X-Series oscilloscopes.
There is an integrated 5-digit frequency counter inside each oscilloscope. The frequency counter
operates through probes connected to the oscilloscope channels so that both the counter and
triggered oscilloscope measurements can be made with the same connection. You can quickly
measure frequency without configuring the oscilloscope capture. The high-resolution frequency measurement results are always displayed, keeping these quick characterization measurements at
your fingertips.

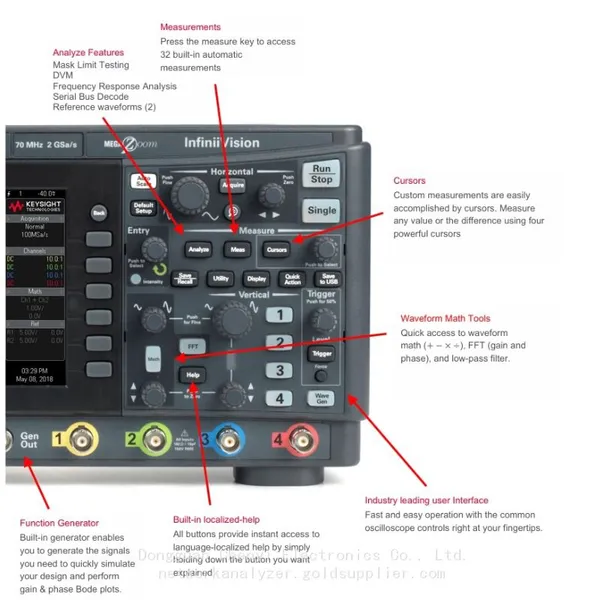

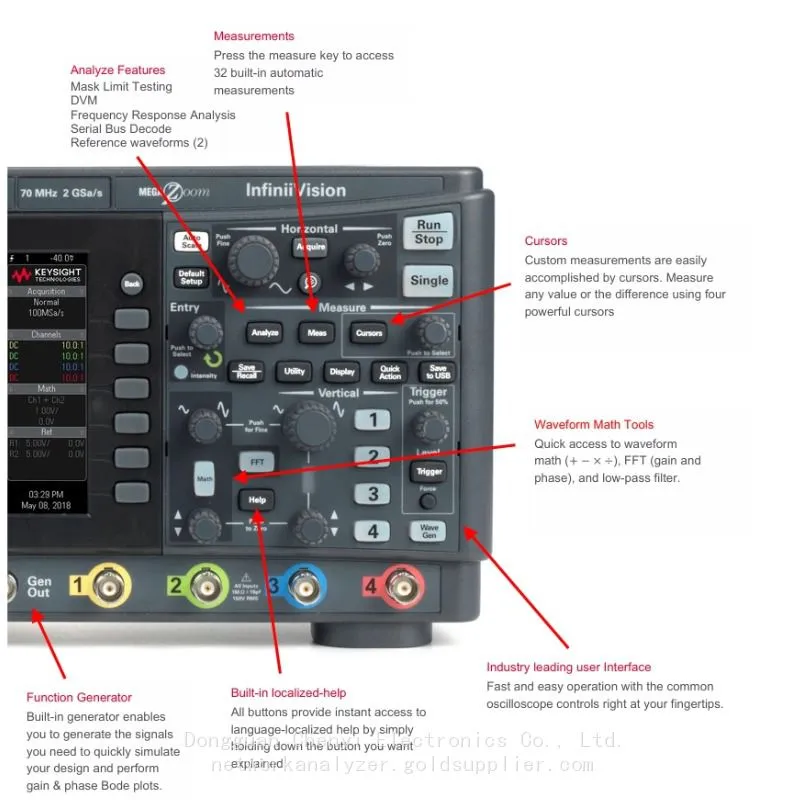

Operate the oscilloscope in the language most familiar to you. The graphical user interface (GUI),
built-in help system, front panel overlays, and user’s manual are available in English, Simplified
Chinese, Traditional Chinese, Japanese, Korean, French, German, Italian, Portuguese, Russian and
Spanish. The GUI and front panel overlay are also available in Polish, Thai, and Czech, and the built-in
help is also available in Polish and Thai during operation. Access the built-in help system by simply
pressing and holding any button.
Get the most out of your 1000 X-Series oscilloscope by using the right probes and accessories for
your application. Keysight offers a complete family of innovative probes and accessories for the
InfiniiVision 1000 X-Series. InfiniiVision 1000 XSeries oscilloscopes come standard with switchable
1:1/10:1 high-impedance passive probes for each channel of the oscilloscope
