Help CenterKeysight DSOX2004A Oscilloscope 70 MHz, 4 Analog Channels
Product Spotlights
• 70 MHz
• 4 analog channels
• Easily view your signals on the 8.5-inch WVGA display
• Capture more data with up to 1 Mpts memory
• See more signal detail with 200,000 wfms/s update rate
Related Products
-
Keysight DSOX2012A Oscilloscope 100 MHz, 2 Analog ChannelsNegotiableMOQ: 1 Unit -

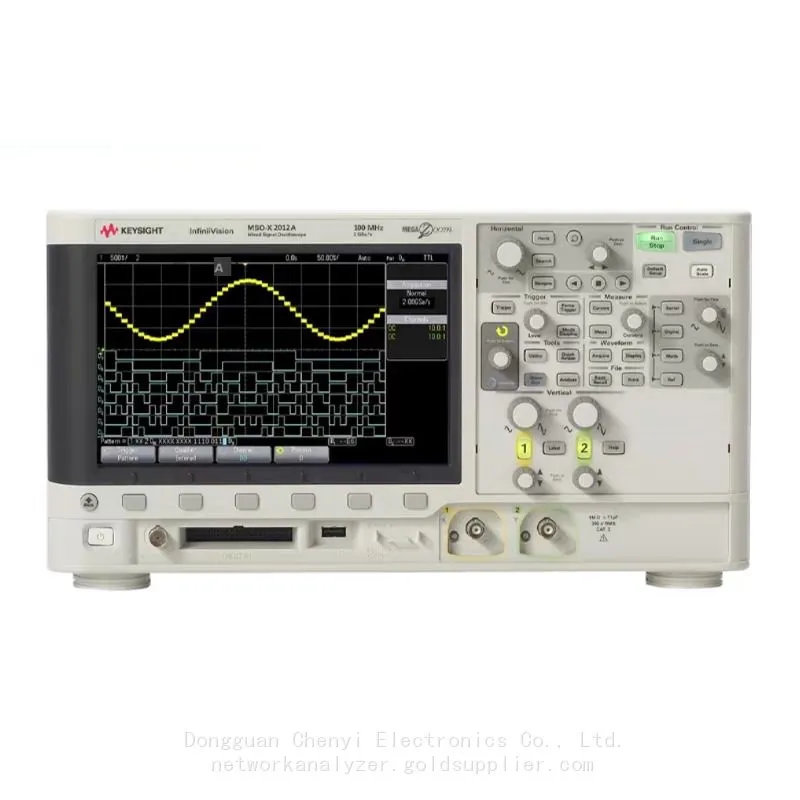

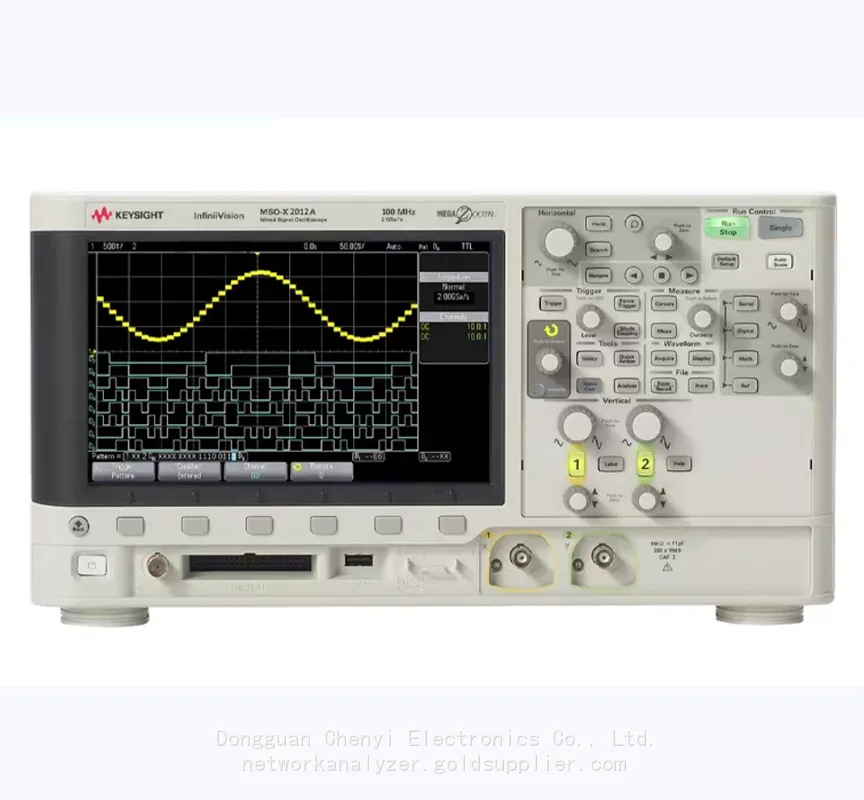

Keysight MSOX2012A Oscilloscope 100 MHz, 2 Analog ChannelsNegotiableMOQ: 1 Unit
-
Keysight MSOX2004A Oscilloscope 70 MHz, 4 Analog ChannelsNegotiableMOQ: 1 Unit
-
Keysight MSOX2002A Oscilloscope 70 MHz, 2 Analog ChannelsNegotiableMOQ: 1 Unit
-
Keysight DSOX2014A Oscilloscope 100 MHz, 4 Analog ChannelsNegotiableMOQ: 1 Unit
Keysight DSOX2004A MSOX2004A Oscilloscope: 70 MHz, 4 Analog Channels
DSOX2002A / MSOX2002A ： 70 MHz ，2 channels
DSOX2004A / MSOX2004A ：100 MHz ，4 channels
DSOX2012A / MSOX2012A ：100 MHz ，2 channels
DSOX2014A / MSOX2014A ：100 MHz ，4 channels
DSOX2022A / MSOX2022A ： 200 MHz ，2 channels
DSOX2024A / MSOX2024A ： 200 MHz ，4 channels
InfiniiVision 2000 X-Series 70 MHz oscilloscope provides 4 analog channels, 100 kpts memory, and 200,000 waveforms/sec update rate
HIGHLIGHTS
• 70 MHz
• 4 analog channels
• Easily view your signals on the 8.5-inch WVGA display
• Capture more data with up to 1 Mpts memory
• See more signal detail with 200,000 wfms/s update rate
• Expand your measurement capabilities with full upgradability: Add digital channels, 20 MHz function
generator, 3-digit voltmeter, serial trigger and analysis, segmented memory & mask testing at any time
• Easily set up teaching labs with our free Educator’s Resource Kit
What's included:
• Standard 5-year warranty (90 days for unserialized accessories)
• Standard secure erase

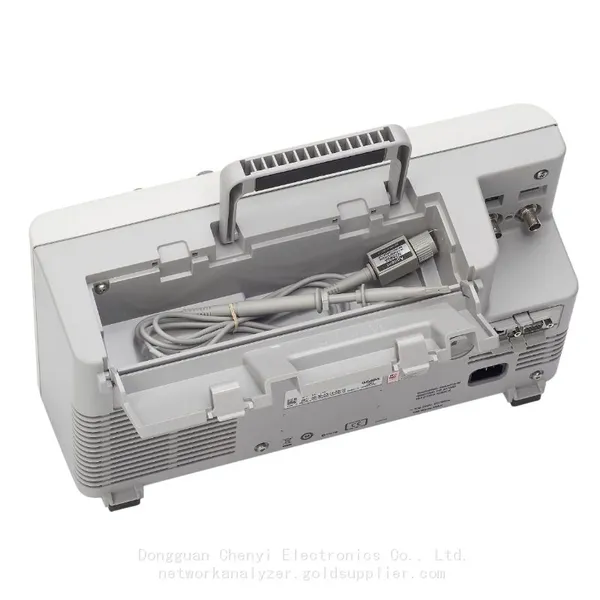

• One N2862B 150 MHz 10:1 passive probe per channel
• Built-in help language support for English, Japanese, simplified Chinese, traditional Chinese, Korean,
German, French, Spanish, Russian, Portuguese and Italian
• Certificate of Calibration
• Documentation CD
• Interface language support GUI menus: English, Japanese, simplified Chinese, traditional Chinese, Korean, German, • • French, Spanish, Russian, Portuguese, Thai, Polish and Italian
• Localized power cord
• Download BenchVue Basic app for free to control your instruments
Best-in-class oscilloscope
The InfiniiVision 2000 X-Series features Keysight’s patented MegaZoom IV smart memory technology that is always enabled and always responsive providing the industry’s fastest update rate at up to 200,000 waveforms per second, with no compromise if you turn on measurements or add digital channels. In addition, the 2000 XSeries offers 25 automated measurements such as voltage, time, and frequency as well as 18 waveform math functions including add, subtract, multiply, divide, and FFT.
Industry’s first economy-class mixed signal oscilloscope (MSO)
The 2000 X-Series is the first instrument in its class to offer an integrated logic timing analyzer. Digital content is everywhere in today’s designs and with an additional 8 integrated digital timing channels, you now have up to 12 channels of time-correlated triggering, acquisition and viewing on the same instrument. Buy a 2
or 4 channel DSO and at any time, upgrade it yourself to a MSO with a license to turn on those integrated 8 digital timing channels.
Industry’s first WaveGen built-in 20 MHz function generator with a modulation capability
An industry first, the 2000 X-Series offers an integrated 20 MHz function generator, now available with the signal modulation capability. Ideal for educational or design labs where bench space and budget are at a premium, the integrated function generator provides stimulus output of sine, square, ramp, pulse, DC and noise waveforms to your device under test. No need to buy a separate function generator when you can get one integrated in your new oscilloscope. Turn on WaveGen at any time by ordering the DSOX2WAVEGEN option and install the license yourself.
Hardware-based serial protocol decode and triggering
• Embedded serial triggering and analysis (I²C, SPI, UART/RS232/422/485))
• Automotive and industrial serial triggering and analysis (CAN, LIN)
WhatsApp：+85268839563
WeChat ：13728300615
Send Inquiry to This Supplier
You May Also Like
-
Keysight MSOX2014A Oscilloscope 100 MHz, 4 Analog ChannelsNegotiableMOQ: 1 Unit
-
Keysight DSOX2022A Oscilloscope: 200 MHz, 2 Analog ChannelsNegotiableMOQ: 1 Unit
-
Keysight MSOX2022A Oscilloscope: 200 MHz, 2 Analog ChannelsNegotiableMOQ: 1 Unit
-
Keysight DSOX2024A Oscilloscope: 200 MHz, 4 Analog ChannelsNegotiableMOQ: 1 Unit
-

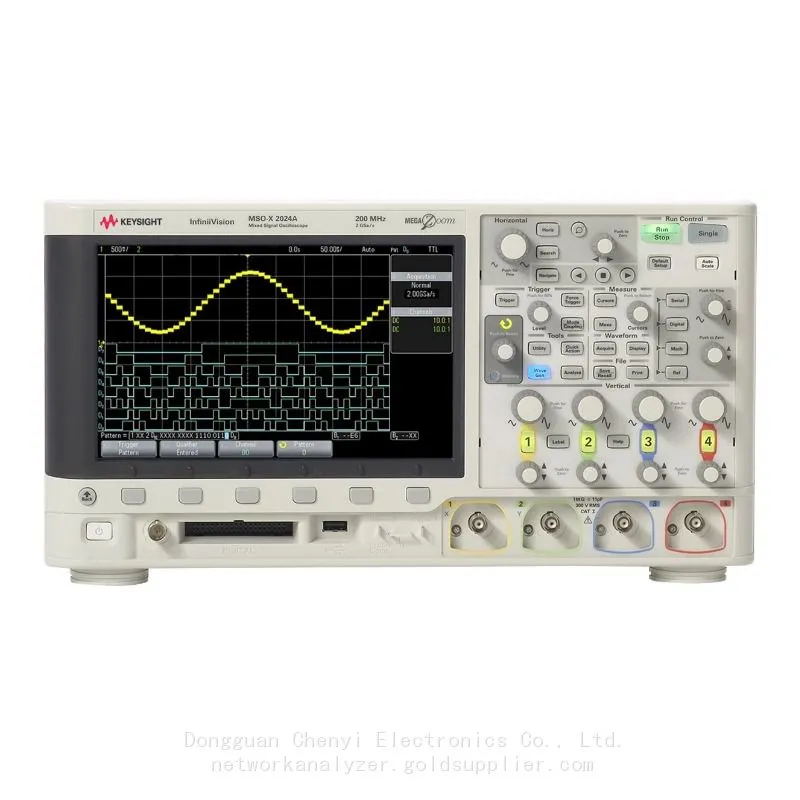

Keysight MSOX2024A Oscilloscope: 200 MHz, 4 Analog ChannelsNegotiableMOQ: 1 Unit
-
Keysight DSOX6002A Oscilloscope: 1 GHz - 6 GHz, 2 Analog ChannelsNegotiableMOQ: 1 Unit
-
Keysight DSOX1202A Oscilloscope 70 100 200 MHz, 2 Analog ChannelsNegotiableMOQ: 1 Unit
-

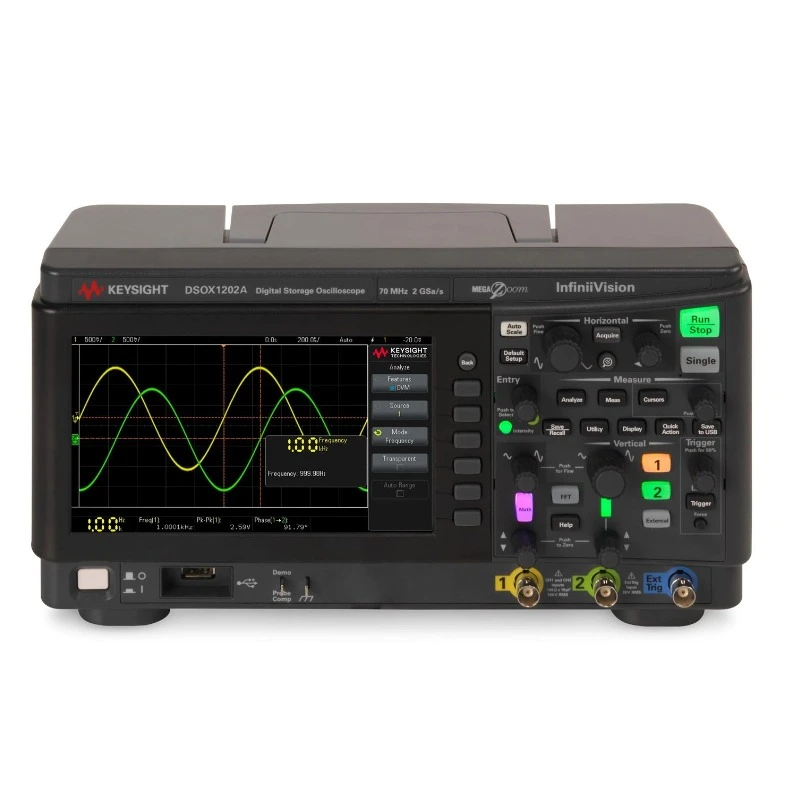

Keysight DSOX1202A Oscilloscope DSOX1202A：70 MHz，2 ChannelsNegotiableMOQ: 1 Unit
-
