ESP Cable Manufacturer Oil Electric Submersible Pump Cable Oilfield Power Cable Supplier

ESP Cable Manufacturer Oil Electric Submersible Pump Cable Oilfield Power Cable Supplier thumbnail-3

ESP Cable Manufacturer Oil Electric Submersible Pump Cable Oilfield Power Cable Supplier thumbnail-4

ESP Cable Manufacturer Oil Electric Submersible Pump Cable Oilfield Power Cable Supplier thumbnail-5

ESP Cable Manufacturer Oil Electric Submersible Pump Cable Oilfield Power Cable Supplier photo-1

ESP Cable Manufacturer Oil Electric Submersible Pump Cable Oilfield Power Cable Supplier photo-2

ESP Cable Manufacturer Oil Electric Submersible Pump Cable Oilfield Power Cable Supplier photo-3

ESP Cable Manufacturer Oil Electric Submersible Pump Cable Oilfield Power Cable Supplier photo-4

ESP Cable Manufacturer Oil Electric Submersible Pump Cable Oilfield Power Cable Supplier photo-5

Product Spotlights

Direct manufacturer supply with strict quality control, competitive pricing, and fast delivery for global EPC and oilfield projects.

US$ 5 - 100 MOQ: 100 Meters

Key Specifications

Get Latest Price

Certification:

ISO9001, CE, CCC, ROHS, Other, IEC EAC

Application:

Underground

Insulation Material:

PVC

Contact Supplier Request Quote Chat Now

Shandong Huaning Electric Heating Technology Co.,Ltd

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao port

Delivery Detail:

15 days

Product Details
Company Profile
Contact Us

Certification ISO9001, CE, CCC, ROHS, Other, IEC EAC

Application Underground

Insulation Material PVC

Conductor Material Copper

Conductor Type Solid

Brand Other, Huaning

Sheath Material Other, Nitrile Rubber

Material Shape Flat Wire

Range of Application Other, Supporting Power Supply for Oil Submersible Pump

Usage Characteristics Good Oil Resistance, Heat Resistance,

Voltage Range 3kv 4kv 5kv 6kv

Transport Package Steel Corrugated Box

Specification 16 mm2

Trademark Huaning

Origin China

Product Description

Purpose

This product is suitable for supporting power supply for oil submersible pump units with rated voltage less than 3KV or less than 6KV.

Usage Characteristics

Conductor long-term working temperature is 232°C, with good oil resistance, heat resistance, and corrosion resistance.

Model

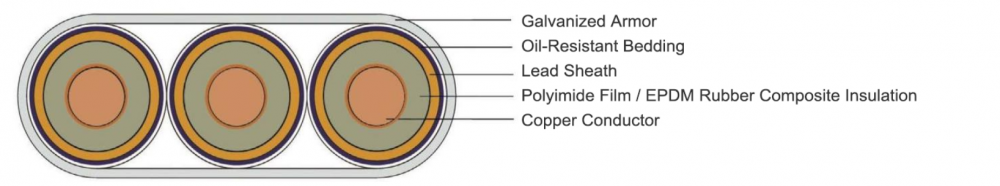

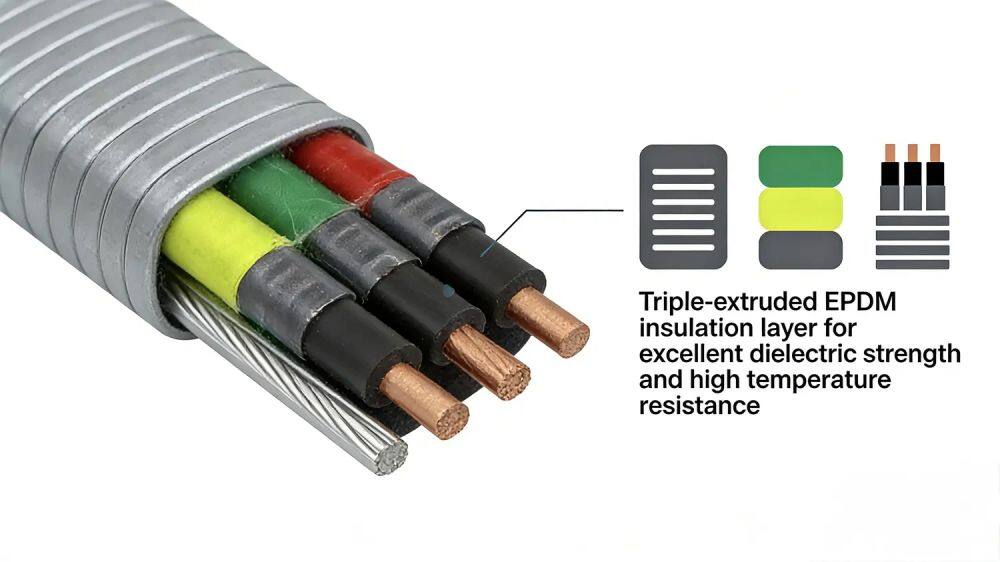

Polyimide - F46 composite film sintering / fluoropolymer combined insulation, fluoropolymer sheath, fiber tape winding, galvanized (stainless steel, Monel) steel tape armored flat submersible pump power cable.

Production Range

Voltage: 3KV, 4KV, 5KV, 6KV

Temperature: 232°C

Execution Standard: GB/T16750-2015, API RP 11S6

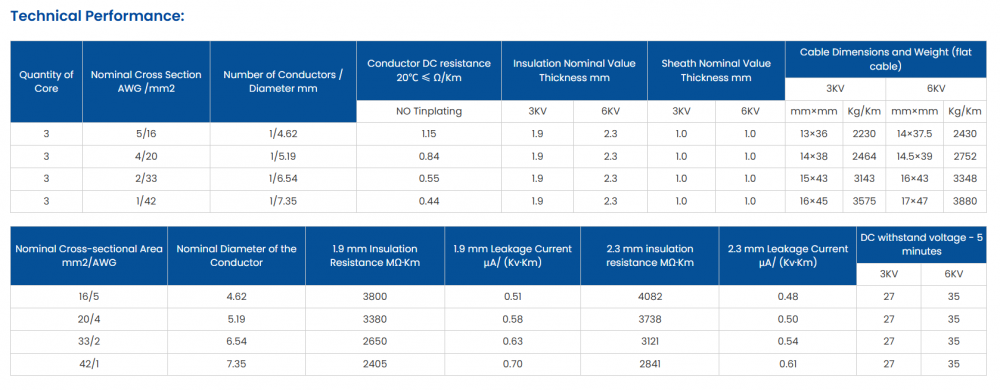

Technical Performance:

Company Profile

Shandong Huaning Electric Heating Technology Co., Ltd.

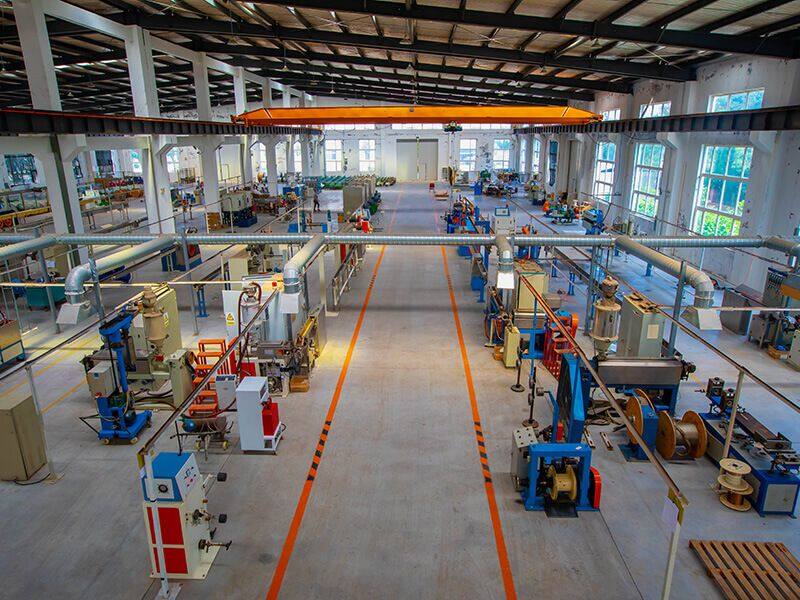

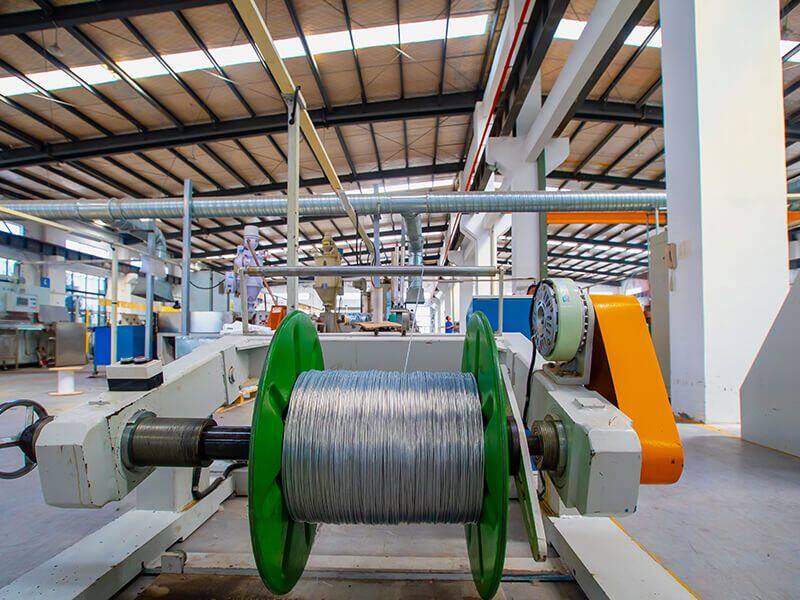

It is located in the famous Spring City — Jinan. It is a comprehensive high-tech manufacturing enterprise integrating research and development, design, sales, system integration, and operation & maintenance services for electric heating, heating, and integrated control. The company has obtained qualifications in building electromechanical installation and waterproof, anti-corrosion, and thermal insulation engineering. As a leader in the domestic Electric Heating field, our company has long been committed to providing complete electric heating solutions for industrial, commercial, and civil markets.

Certifications

Our Customers

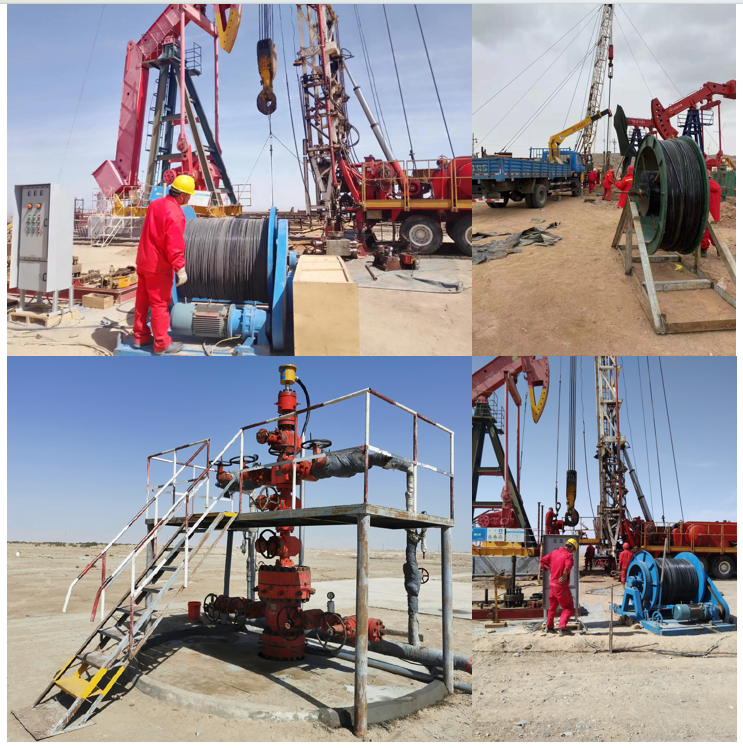

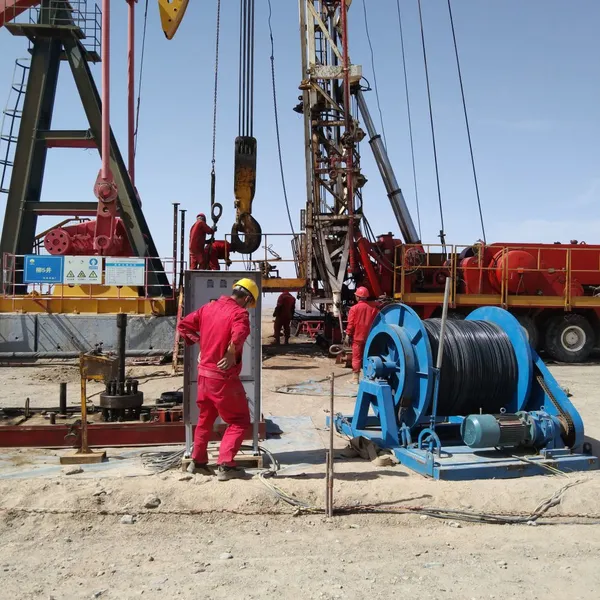

Application

FAQ

Q: What is the typical operational lifespan of an ESP cable, and what factors most affect it?
A: The typical lifespan is 3-5 years, but it heavily depends on downhole conditions (temperature, H2S, installation quality) and electrical stress. Proper sizing and operation are key

Q: What are the temperature and pressure ratings for your cable models, and how are they tested?
A: Ratings vary by model. Standard cables operate up to 205°C (400°F) and 5000 psi. All ratings are validated through testing per API 11S5 or equivalent standards.

Q: What are the critical do's and don'ts during cable installation and handling to prevent damage?
A: DO use proper handling equipment and follow bend radius rules. DON'T drag the cable, crush it, or make sharp bends. Always follow the manufacturer's specific installation guide.

Q: What international standards and certifications (e.g., API, ATEX) do your cables comply with?
A: Our cables comply with API 11S5, ATEX/IECEx for hazardous areas, and RoHS. Specific certifications (e.g., UL, CSA) are available per customer requirements and regional standards.

Q:What is the standard lead time for orders, and do you offer expedited support for urgent field failures?
A: Standard lead time is 4-6 weeks. We offer expedited production and maintain regional stock for critical failure situations to support urgent field operations.
