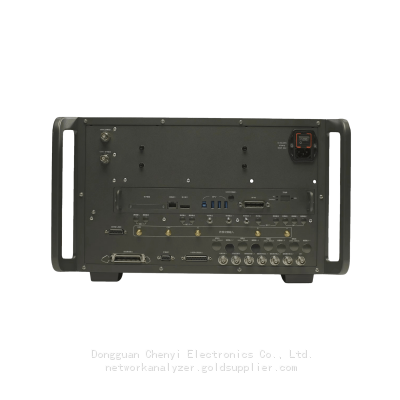

Ceyear 3674C Vector Network Analyzer，10 MHz to 14 GHz
Vector Network Analyzer 3674B ：10 MHz to 9 GHz
Vector Network Analyzer 3674C ：10 MHz to 14 GHz
Vector Network Analyzer 3674D： 10 MHz to 20 GHz
Vector Network Analyzer 3674E ： 10MHz to 26.5GHz
Vector Network Analyzer 3674F ： 10 MHz to 32 GHz
Vector Network Analyzer 3674G ：10 MHz to 44 GHz
Vector Network Analyzer 3674H ：10 MHz to 50 GHz
Vector Network Analyzer 3674K ：10 MHz to 53 GHz
Vector Network Analyzer 3674L ： 10 MHz to 67 GHz
Vector Network Analyzer 3674N ：10 MHz to 90 GHz
Vector Network Analyzer 3674P ：10 MHz to 110 GHz
Main Features
• 500Hz~110GHz broad band coaxial coverage
• 30 MHz IF bandwidth, measurement points 200001
• Ultra-fast scanning speed, 140dB large dynamic range
• It has 21 functions, such as pulse S-parameter measurement, frequency Conversion device
measurement, gain compression measurement, noise coefficient measurement, frequency spectrum
measurement, signal integrity measurement, total harmonic distortion measurement, active
intermodulation distortion measurement, and automatic fixture removal
• SCPI instruction synchronization record, script generated with one key

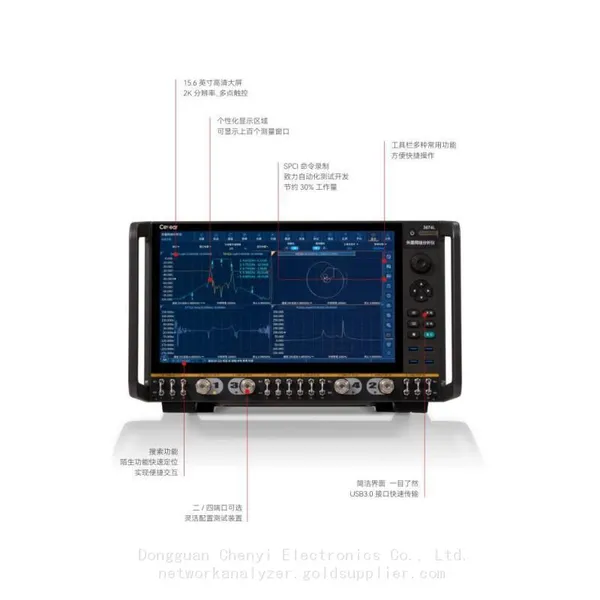

• A 15.6-inch multi-parameter display on the same screen, with multi-touch operation
Product Overview
Ceyear 3674 Series vector network analyzer is the peak of technological innovation, which can easily deal with the severe challenges brought by semiconductor chip testing, material testing, antenna testing, high-speed cable testing, and microwave component testing and so on. Excellent RF characteristics, flexible hardware configuration and rich software functions complement each other; only one connection can be completed in a variety of measurement tasks. Innovative human-computer interaction design can help you complete the required measurement Settings quickly and conveniently, and the large touch screen brings you a flexible and efficient operation experience.
Features
Ultra Wide Band Vector Network Analyzer
From 500 Hz to 110 GHz for coaxial coverage
Ultra-wide frequency coverage, which low frequency expansion to 500Hz, and the highest test
frequency up to 110GHz.
Excellent performance
• Faster measurement speed, improve the production efficiency
• Higher measurement accuracy, to meet the measurement requirements of higher specification products
• Up to 30 MHz IF bandwidth, can achieve fast test and narrow pulse test
• The maximum number of 200001 measurement points can bring more refined measurement results
• Using ultra-wide band base wave mixing technology and source output power improvement
technology, we greatly improve the dynamic range, and the optimal dynamic range can
reach 140dB, providing more accurate and reliable measurement results for the test of
large dynamic devices such as filters
Rich Features
With pulse S-parameter measurement, frequency conversion device measurement, gain
compression measurement, noise coefficient measurement, spectrum measurement, signal
integrity measurement, total harmonic distortion measurement, active intermodulation distortion
measurement, automatic fixture removal of 21 kinds of function, combined with the specific
application form system level test solution, accurate joint user needs of different industries.
Pulse S-parameter Measurement
Built-in pulse modulation, the test is fast and simple
Built-in 4-way pulse generator for internal source modulation, IF gate control, and output from
the rear panel, The pulse width and time delay of each pulse generator can be set
independently.
Source modulation sources include multiple states such as rear panel input, internal pulse
generator, normally open and normally closed. The source of the vector network analyzer can
be modulated by external pulses or modulated by an external modulator and measured by
triggering the synchronization mode. The pulse S parameter measurement function provides
strong support for the test of radar T / R components and antenna signal and transceiver module.
Excellent pulse test capability
• Pulse period of up to 70s
• The pulse resolution was as low as 8.3ns
• Broadband synchronous pulse test pulse width
• Internal pulse synchronization or external pulse synchronization mode
• 7 source modulation modes, such as external and internal pulses
• 4 pulse generators with pulse width and independent delay
• Automatic broadband synchronous measurement and narrow-band asynchronous measurement function
• Adaptive narrow-band filter to improve the narrow-pulse test capability
• 3 for triggering input and output modules to provide flexible system coordination function
• Functions of sweeping pulse S parameter test, pulse envelope test and pulse point test
Typical Application
Built-in pulse modulation, the test is fast and simple
Built-in 4-way pulse generator for internal source modulation, IF gate control, and output from the rear panel, The pulse width and time delay of each pulse generator can be set independently.
Source modulation sources include multiple states such as rear panel input, internal pulse generator, normally open and normally closed. The source of the vector network analyzer can be modulated by external pulses or modulated by an external modulator and measured by triggering the synchronization mode. The pulse S parameter measurement function provides strong support for the test of radar T / R components and antenna signal and transceiver module.
Comprehensive Mixer/Converter Characteristic measurement
Provide comprehensive measurement setting of Mixer/Converter characteristics, support double-order primary vibration and external primary vibration source input; support multiple scanning types such as linear sweep, power sweep and segment sweep; simple setting can automatically complete the complex mixer RF, double LO, IF frequency doubling and frequency distribution; support the setting of source port power, local vibration port power, attenuation and power sweep characteristics.
Simple and efficient frequency conversion loss amplitude response characteristic test and analysis
Provide the most direct and accurate mixer / Converter frequency conversion loss amplitude response measurement function. Enhance power calibration by power meter to complete the RF and IF full band calibration.
Independent dual-power calibration method realizes the test and analysis of non-inserted frequency conversion device
Support dual independent source power and receiver calibration, provides the solution of non-insertion connection mode through port separation mode, instead of connector de-embedding, power meter de-embedding and other ways, to provide a more accurate calibration mode for non-insertion measured parts.
A single instrument simultaneously completes the amplitude response and the absolute phase timely delay response test analysis
Provide complete mixer / frequency converter amplitude response, absolute phase and absolute delay response measurement ability, a single connection can complete the mixer / frequency converter complex characteristic measurement, high amplitude and phase measurement accuracy.
Characterization of the mixer / Converter characteristics
The vector measurement analysis of mixer / Converter can complete the characterization of the mixer, which is used to determine the characteristics of the mixer and obtain the characteristics of the Converter.
The feature characterization function serves as an independent function, and the generated mixer characterization data files can be automatically called in the vector measurement analysis.
Power calibration, guide calibration to obtain high precision measurement
Power calibration and receiver calibration can obtain accurate compression point input power and output power values. The exact gain measurement and input / output matching values can be obtained.

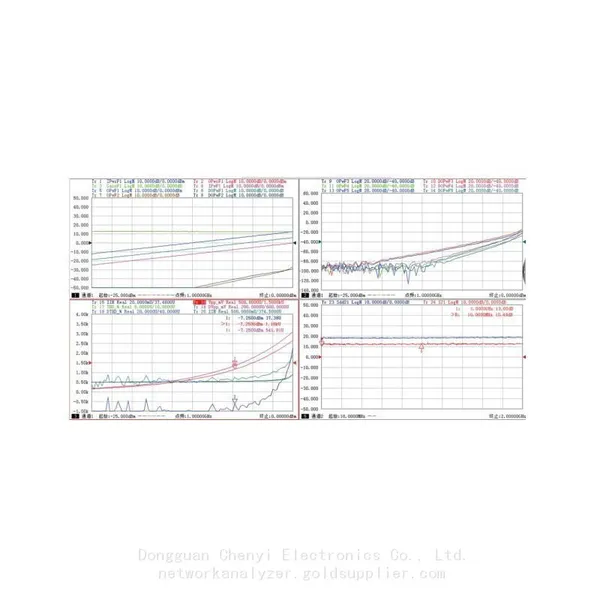

Various scanning methods and compression methods should deal with different measurement scenarios
Intelligent scanning can quickly and accurately get compression points, provide the power scanning of each frequency point and the frequency scanning mode of each power point, obtain complete measurement data, provide from linear gain compression, from the maximum gain compression, from the fallback point compression, X/Y compression, saturated state compression, users can choose different compression methods according to the type of test and different measurement scenarios.
3D view drawing, visually show the characteristics of the tested parts
Provide 3D view function to better show the performance of the tested device under the excitation state; it can also show the frequency profile and power profile to visually show the characteristics of the measured device at each frequency point and each power point.
