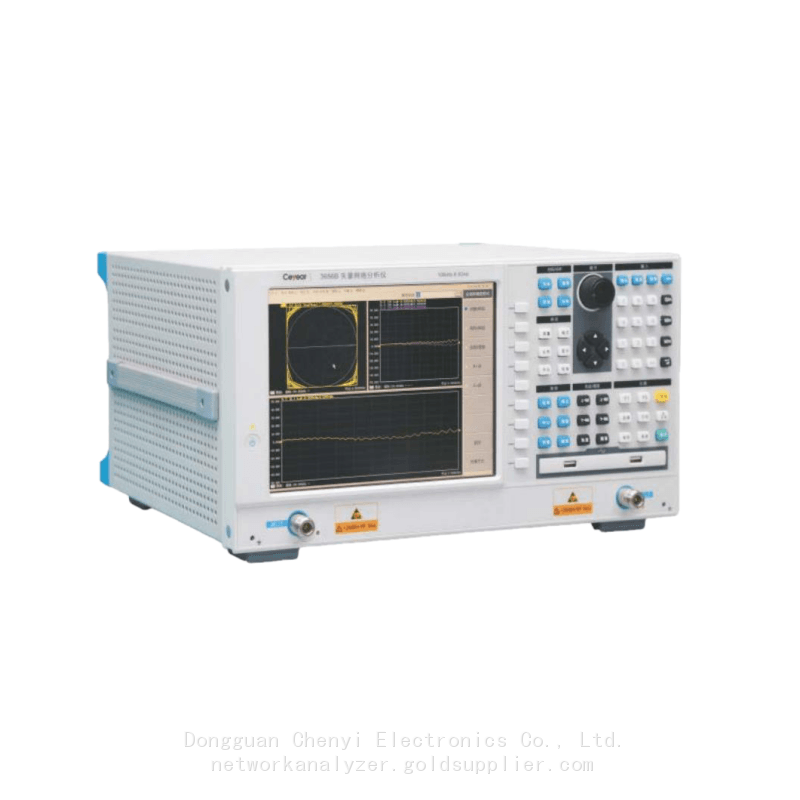

Ceyear 3656A Vector Network Analyzer ，100KHZ to 3GHZ
Vector Network Analyzer 3656A ：100KHZ to 3GHZ
Vector Network Analyzer 3656B ：100KHZ to 8.5GHZ
Vector Network Analyzer 3656D ：300KHZ to 20GHZ
Main Features
• Dynamic range up to 125dB; accurate measurement on high rejection ratio devices
• 75Ω test port impedance option of 3656A for cable TV components measurement
• 3656D provide 4-port option which can accomplish all 16 S parameters test of 4-port net by a
single connection
• Ultra-low trace noise which provide higher test accuracy
• Up to 64 independent measuring channels that can implement complex testing schemes rapidly
• Powerful data analysis functions, such as ripple test, bandwidth test and limit test, convenient
for user to judge the conformity and improves the test efficiency
• Time domain analysis function as the standard configuration
• Fixture simulator can simulate various R&D situations to rapidly get the real-time test results
• LAN and GPIB interface, capable of remote control and system interconnection, 4 USB interfaces
Product Overview
3656A/BA/B/D vector network analyzer is applicable to fields of radio communications, cable TV, teaching and automotive electronics etc. It can be used for performance measurement of RF components such as filter, amplifier, antenna, cable, and cable television sub connectors etc. It adopts Windows operating system, and has functions of error calibration, time domain and fixture simulator; It supports multiple display formats such as logarithmic amplitude, linear amplitude, standing wave, phase, group delay, Smith chart and polar coordinates etc.; It provides multiple calibration types including frequency response, single port, response isolation, enhanced response and full dual-port, rapid SOLT calibration and electrical calibration; It is capable of multi-channel and multi-window display; It is designed with USB interface, LAN interface, GPIB interface and VGA interface. It can rapidly and accurately measure the amplitude, phase and group delay characteristics of the DUT S-parameter, with efficient and powerful error correction capability.
Features
Wide dynamic range
With dynamic range up to 125dB (IFBW=10Hz), 3656 is capable of accurate measurement on devices
with high rejection ratio.
Ultra -low trace noise

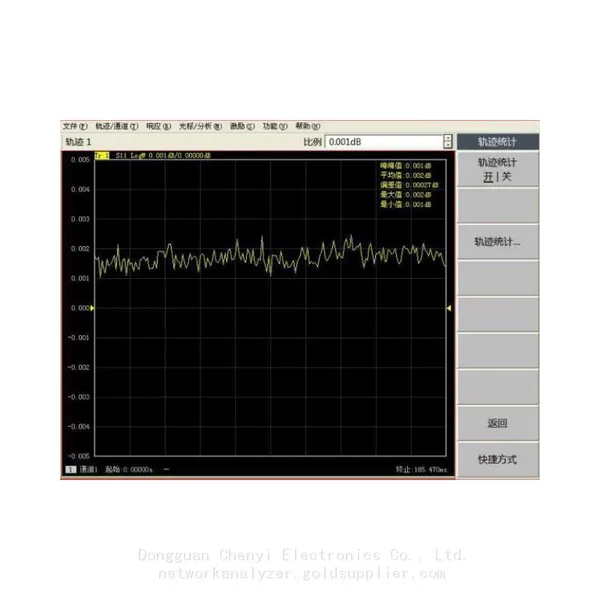

Trace noise of 3656 is ultra-low, which minimizes measurement error.
Time-domain analysis function

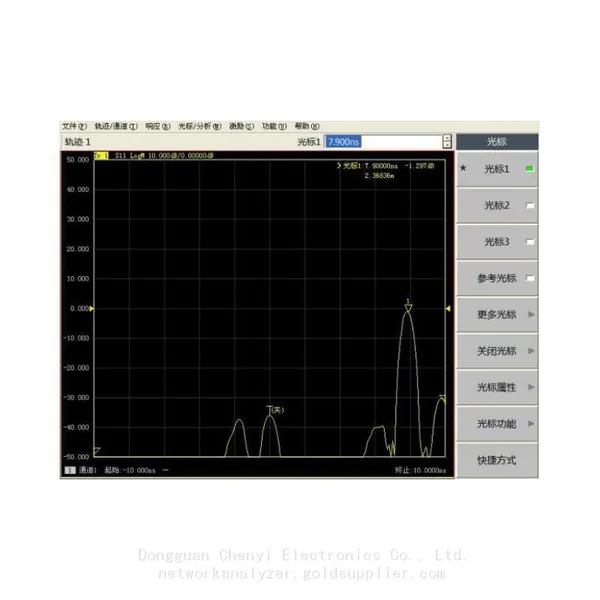

The analyzer can conduct time-domain measurement on DUT via time-domain software so as to comprehensively test the performance indicators of DUT, such as cable fault location and length measurement.
Powerful data analysis function

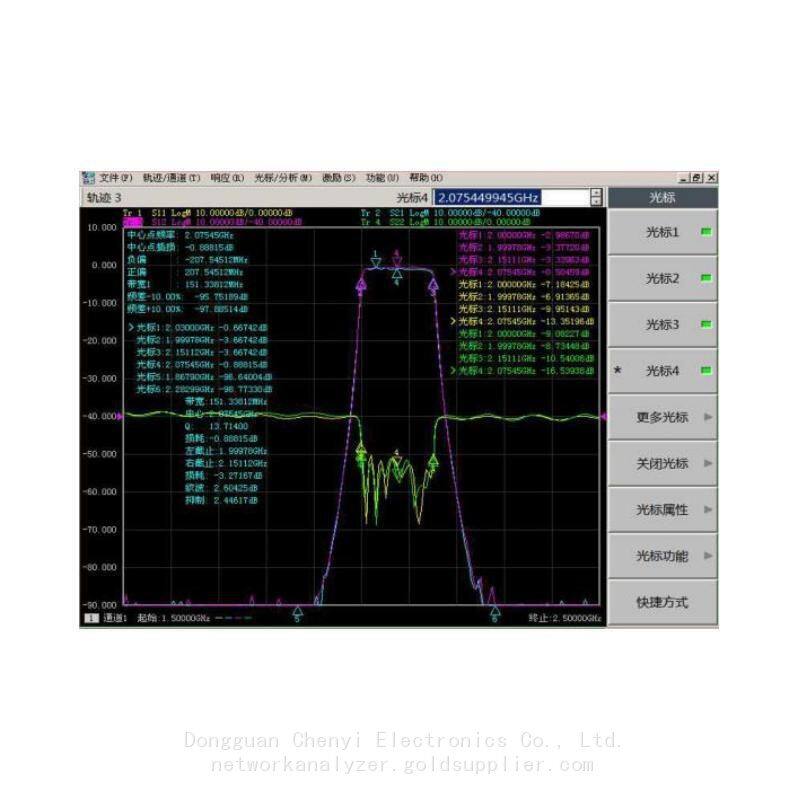

It has analysis functions such as limit test, ripple test and bandwidth test, filter automatic statistics etc., which can clearly test the loss, ripple and rejection and help for conduct hopping filter debugging.
Typical Applications

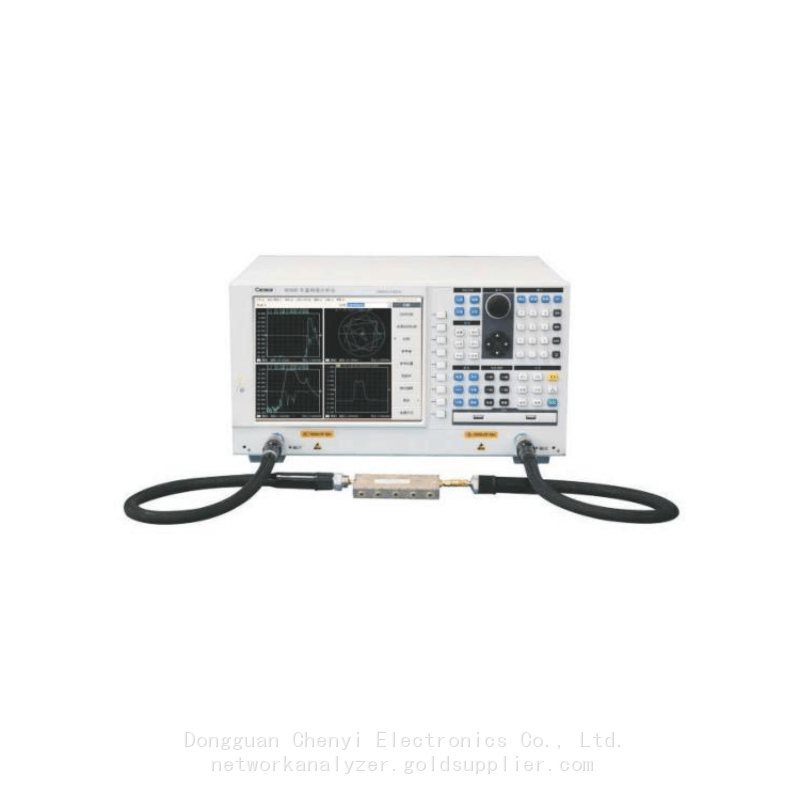

Production test of mobile communication products
The frequency range of 3656 series vector network analyzer can meet the demand of production
test on mobile communication products. It has advantages of high sweep speed, wide dynamic
range and compact size which is very suitable for the test of mass production in factories. 3656
can be applied to the test of RF components such as filter, amplifier, antenna and cables. The 75Ω
test assembly of 3656A is also available for performance test of CATV devices.

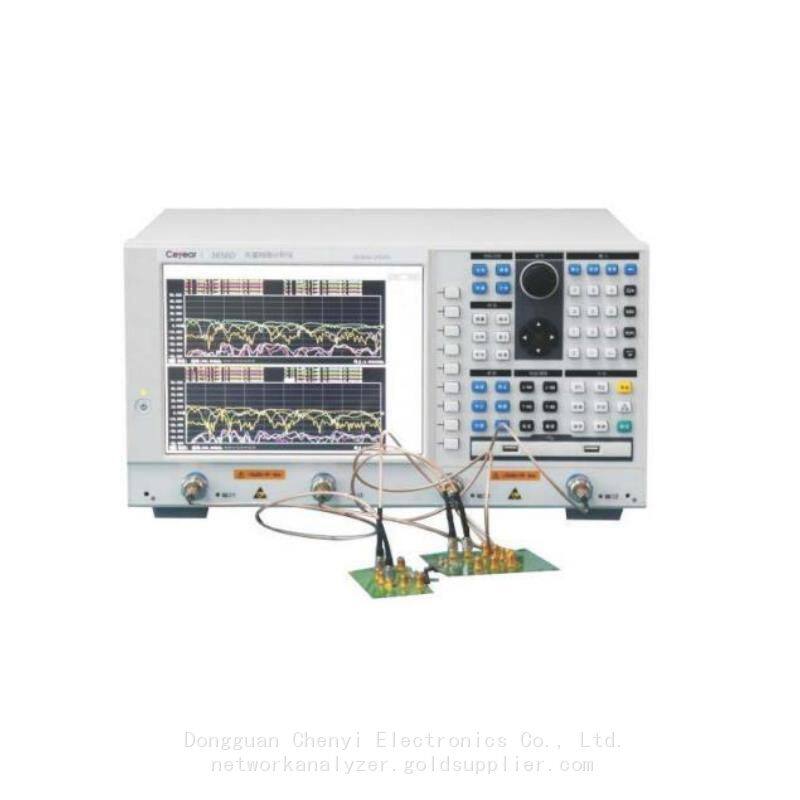

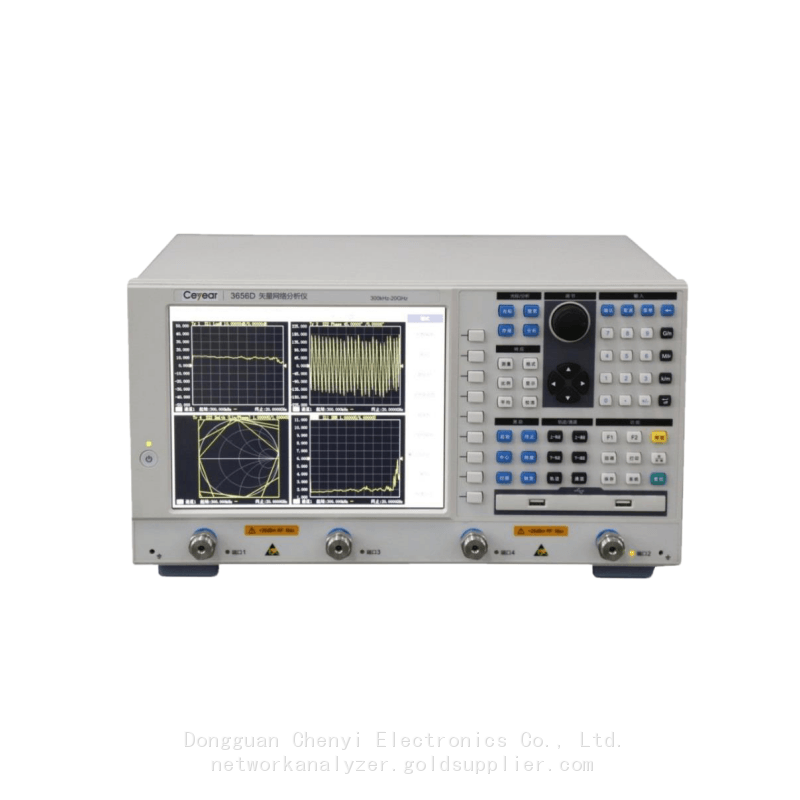

3656D VNA provide 4-port test function . It can test the whole 16 S parameters of 4-port network
via one single connection, thus is very suitable for the mass production test of multi-port devices
in factories. It has balanced parameter test function: after the full 3-port or full 4-port calibration
using 3 or 4 test ports, choose the corresponding operation mode (single port-balanced network,
single port-single port-balanced network, balanced-balanced network), then you can gain the
mixed S-parameters of balanced devices.
