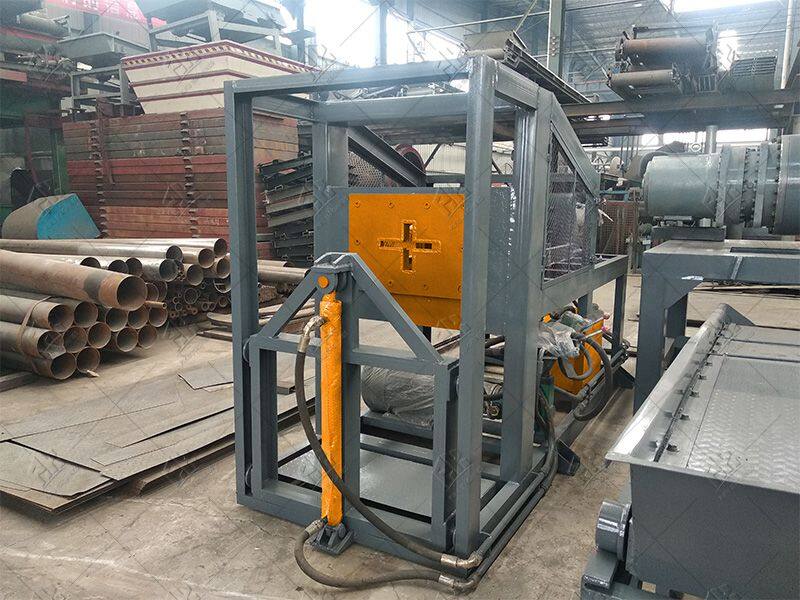

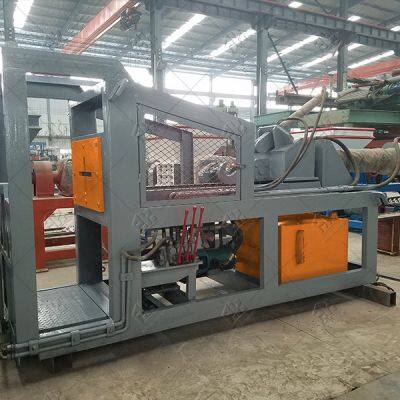

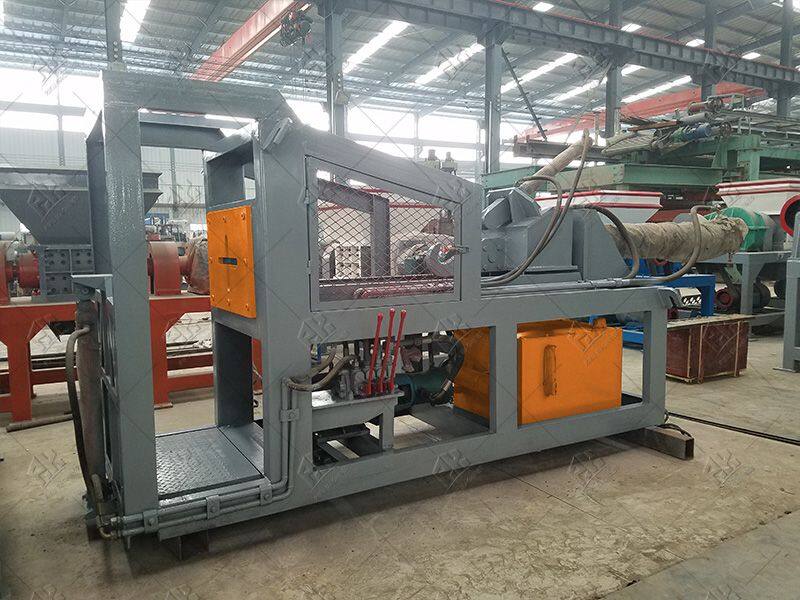

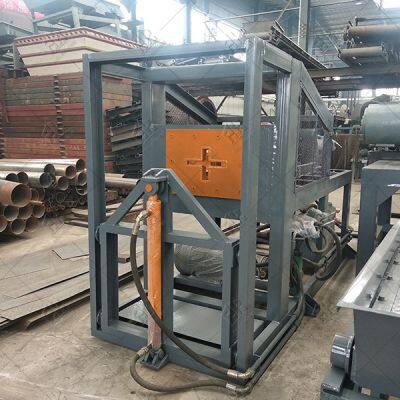

Help CenterTire Steel Wire Drawing Machine Tire Debeader Machine
Product Spotlights
2. There is equipped with the outside rotary screen to control outcomes
3. The cutter is detachable with durable materials H13 or DC53
4. The hydraulic type
Related Products
-
Tire Wire Drawing Machine Tire Steel Wire ExtractorUS$ 9800 - 18500MOQ: 1 Set -
Used Tire Debeading Equipment Tire Wire Drawing MachineUS$ 9800 - 18500MOQ: 1 Set
-
Scrap Tire Shredding Equipment Waste Tire Shredder MachineUS$ 65000 - 88000MOQ: 1 Set
-
Scrap Tire Shredding Chips Machine Waste Car Tire Shredder MachineUS$ 65000 - 88000MOQ: 1 Set
-
Waste Truck Tire Shredder Tire Recycling MachineUS$ 65000 - 88000MOQ: 1 Set
A Tire Wire Drawing Machine, also known as a Tire Bead Wire Extractor or Tire Steel Wire Separator, is a specialized piece of equipment used in the tire recycling industry. Its primary function is to automatically and efficiently separate the high-tensile steel wires embedded within the bead and belt areas of scrap tires.
Key Functions:
-
Bead Ring Processing: It cuts and pulls out the steel bead rings, which are the rigid, circular wires that seal the tire against the wheel rim.
-
Steel Belt Separation: For steel-belted radial tires, it slices the tire carcass and extracts the mesh of steel belts from the rubber compound.
Technical parameters
Model RK-1200 Capacity 60~80pcs/hour Type of Tires ≤1200mm Power 11Kw Pull 13Ton Working pressure 15Mpa Weight 1400Kg Dimension 3700x750x1400mm
Standard Working Process:
-
Feeding: A pre-processed scrap tire (usually sidewall-removed) is loaded onto the machine.
-
Cutting/Slitting: Specialized cutting tools slit the tire bead or carcass to expose the steel wires.
-
Gripping & Pulling: Hydraulic or mechanical clamps grip the exposed steel wire.
-
Drawing/Extraction: The machine powerfully and steadily pulls the entire steel wire mesh or bead ring out in one continuous piece.
-

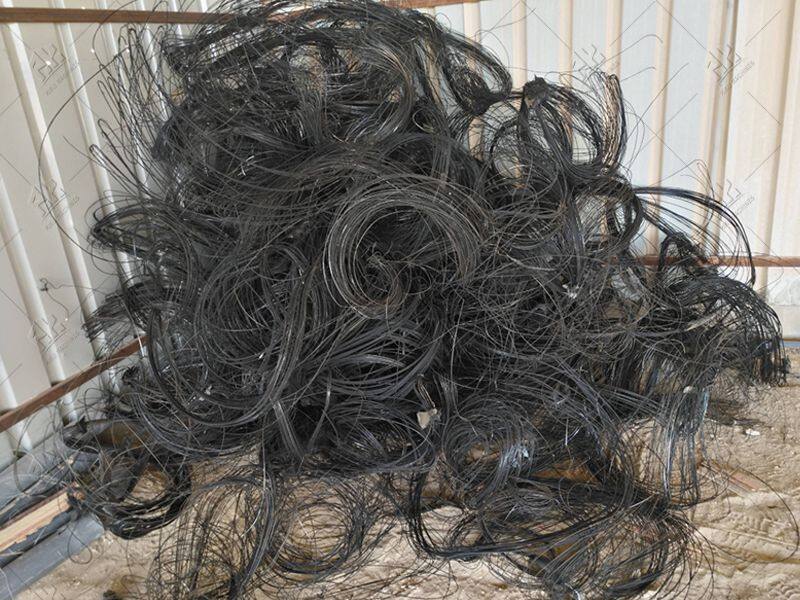

Discharge: The extracted steel coils are collected for recycling, while the de-wired rubber (crumb rubber) proceeds to the next granulation stage.
Applications & Importance:
This machine is a critical component in a modern tire recycling plant. It enables:
-
Material Separation: Produces clean, high-value steel scrap for the steel industry.
-
Rubber Purification: Improves the quality of the crumb rubber by removing metal contaminants, making it suitable for higher-value applications like artificial turf, playground surfaces, and rubber-modified asphalt.
-
Resource Recovery & Environmental Protection: Maximizes the recovery of valuable materials from end-of-life tires, supporting the circular economy and reducing landfill waste.
-
