waste tire recycling machine is used to different kind of the rubber product, plastic scrap, the blade is made of high strength alloy steels, has the characteristics of strong wear resistance and high strength, and runs in the same direction between the two shafts, and has the functions of tearing, extrusion and occlusion.The electrical part adopts delixi electric component programming control, which has the function of automatic detection and overload protection. Different models depend on different capacity and sizes of shredding different materials, it is suitable for the refinement of all kinds of materials with large volume and difficult to break, and has the advantages of uniform discharge and controllable size, such as tearing the automobile shell, tire, plastic barrel, plastic frame, plastic bottle, metal tank, metal barrel, woven bag, circuit board, paper, carboard and carton, etc. High efficiency, low speed, high torque, low noise.
waste car tire 2. Nylon tire 3. Steel tire 4. Radial Tyre

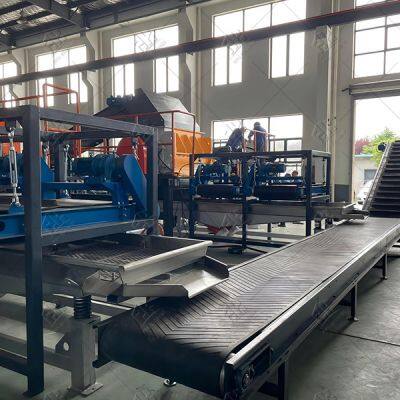

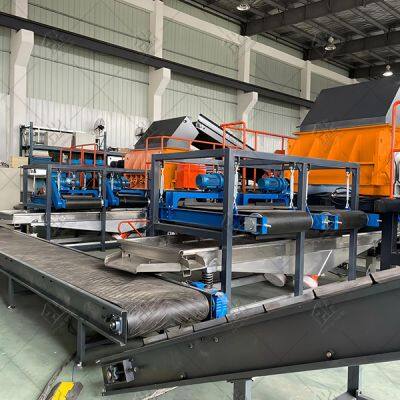

The processing flow as below:
if the tire is bigger, so that the tire steel wire drawing machine is necessary to put in fron of the whole system to remove the bigger diameter of the steel wire. its not only to protect the cutter, but also improve the efficiency.
2. Waste tire shredder
| Type | power | Cutter Qty PCS | reducer | chamber mm | feeding port | overall size mm | weight T | capacity (T/h) | |
| RK-800 | 15kw*2 | 30 | 400 | 600*388 | 1000*766 | 1820*800*1930 | 2.1 | 0.5-0.8 | |
| RK-1000 | 22kw*2 | 20 | 500 | 640*588 | 1170*990 | 3260*1300*2370 | 3.5 | 1-1.5 | |
| RK-1200 | 37kw*2 | 30 | 355 | 1200*788 | 1600*1200 | 4700*2000*2700 | 8 | 2.5-3 | |
| RK-1500 | 55kw*2 | 30 | 400 | 1500*1188 | 1900*1450 | 5000*2200*2900 | 18 | 8-10. | |
| RK-1800 | 75KW*2 | 36 | 400 | 1800*1188 | 2300*1450 | 5300*2150*3000 | 20 | 12-15. | |
| RK-2000 | 90kw*2 | 24 | 450 | 2000*1188 | 2300*1500 | 5400*2150*3000 | 25 | 20-25. | |
| RK-2200 | 110kw*2 | 28 | 240 | 2200*1578 | 3100*2500 | 6200*2700*3500 | 33 | 26-30 | |
| RK-2400 | 132kw*2 | 24 | 240 | 2400*1678 | 3200*2600 | 7300*2800*3800 | 38 | 30-35. | |
| RK-2800 | 185kw*2 | 28 | 260 | 2800*2000 | 3700*3000 | 7800*2800*3800 | 45 | 35-40 |
3. The tire steel rasper machine
Its to reduce the tire rubber into chips (10-18mm). The steel will be removed by the two stage magnetic separator machine .
The tire rubber rasper assembled wtih the dust collector to catch the dust.
| Model | RSM-800 | RSM-1000 | RSM-1200 | RSM-1500 |
| Main motor | 90kw | 110kw | 132kw | 160kw |
| Feed particle size | ≤50mm | ≤50mm | ≤50mm | ≤50mm |
| Mesh size | Φ10-Φ15mm | Φ10-Φ15mm | Φ10-Φ15mm | Φ10-Φ15mm |
| End product size | 10-15mm | 10-15mm | 10-15mm | 10-15mm |
| Working capacity | 500-750kg/hour | 750-1000kg/hour | 1000-1250kg/hour | 1250-1500kg/hour |
| Moving knife quantity | 36 | 48 | 36 | 48 |
| Dead knife quantity | 12 | 16 | 12 | 16 |
| Dimension(L*W*H) | 1650*1700*2300mm | 2000*1750*2300mm | 2300*1770*2300mm | 2750*1800*2300mm |
| Weight | 4800kg | 5200kg | 5600kg | 6000kg |
| Feed conveyor (LxW) | 8000x650mm,4kw | 8000x800mm,4kw | 8000x1000mm,4kw | 8000x1200mm,4kw |
4 . rubber granulator machine
To grind the raw materials of the rubber 1-9mm.
Technical parameters of Double shaft shredder
| Model | FS-800 | FS-1000 | FS-1200 | FS-1500 |
| Main motor | 55kw | 75kw | 90kw | 110kw |
| Rotor diameter | 600mm | 600mm | 700mm | 700mm |
| blade | Made of H13, solid blade | |||
| Hydraulic station | 2.2kw | 2.2kw | 3kw | 3kw |
| Self-discharge belt conveyor | 2.2kw | 2.2kw | 3kw | 3kw |
| Screen hole size | Dia.3-7mm | |||
| Dimensions | 3.35*1.65*2.95m | 3.25*1.85*2.95m | 2.7*2.05*3.45m | 2.7*2.4*3.45m |
Characters:
1. Motor and reducer connected by gearbox, speed decreasing smoothly to protect motor and reducer.
2. Drive system adopts coupling units, good to adjust reverse force and total structure stability.
3. Cutter thickness and design could be changed accordingly for different material condition.
4. Electrical system adopts Siemens PLC for easy, reliable and safe control.
5. Detachable cutter head fixed on the cutting plate, which is change without taking out the shaft.
6. The material size is controlled by the outside fence
7. Chamber is modular type, which is easy and convenient to repair or maintain
8. Hydraulic autoamtic lubricating system to avoid break off the machine.
