Of course. Here are the technical parameters and a description for the Honeywell Enraf series, specifically the S0762970 level transmitter, in English with paragraph formatting.
***

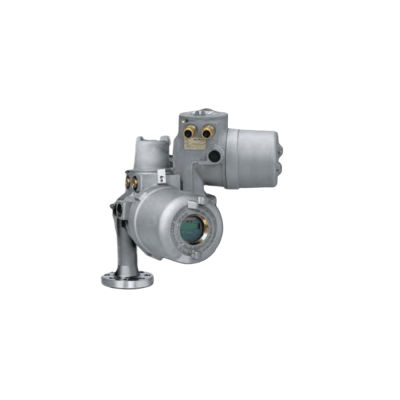

The Honeywell Enraf S0762970 is a highly advanced and reliable servo-powered level transmitter, part of the renowned Enraf series 854 ATG (Automatic Tank Gauging) system. It is engineered for precision level measurement of liquids in storage tanks, particularly in demanding applications within the petrochemical, oil and gas, and refining industries. This device is designed to provide exceptional accuracy for custody transfer and inventory management, where even the smallest measurement discrepancy can have significant financial implications.
This transmitter operates on the proven displacer principle. A finely balanced displacer is suspended in the liquid from a measuring wire wound around a drum. A sophisticated servo system continuously adjusts the drum's position to maintain the displacer at a null buoyancy point. The precise rotation of the drum is directly correlated to the liquid level, which is converted into a highly accurate digital signal. The S0762970 is capable of measuring interface level (the boundary between two immiscible liquids of different densities, such as oil and water) as well as average product density, providing critical data for inventory calculations.
**Key Technical Parameters:**
* **Model:** S0762970
* **Product Line:** Honeywell Enraf Series 854 ATG
* **Measurement Principle:** Servo-operated / Displacer
* **Accuracy:** Extremely high, typically within ±0.4 mm (±0.016 in) for level measurement and ±0.1 kg/m³ (±0.1 lb/ft³) for density measurement.
* **Output Signal:** Digital communication via Enraf-Bisync protocol or Modbus, integrated into the tank gauging system.
* **Power Supply:** Typically 24 VDC, supplied through the connected tank gauging junction box or interface module.
* **Measuring Range:** Dependent on the specific instrument configuration and length of the measuring wire.
* **Process Connection:** Typically flange-mounted (e.g., DN80, DN100, or 3" ANSI) to the tank nozzle.
* **Process Pressure:** Suitable for a wide range, from vacuum to high pressures, depending on the flange rating.
* **Process Temperature:** Standard versions are suitable for temperatures from -40 °C to +200 °C (-40 °F to +392 °F
