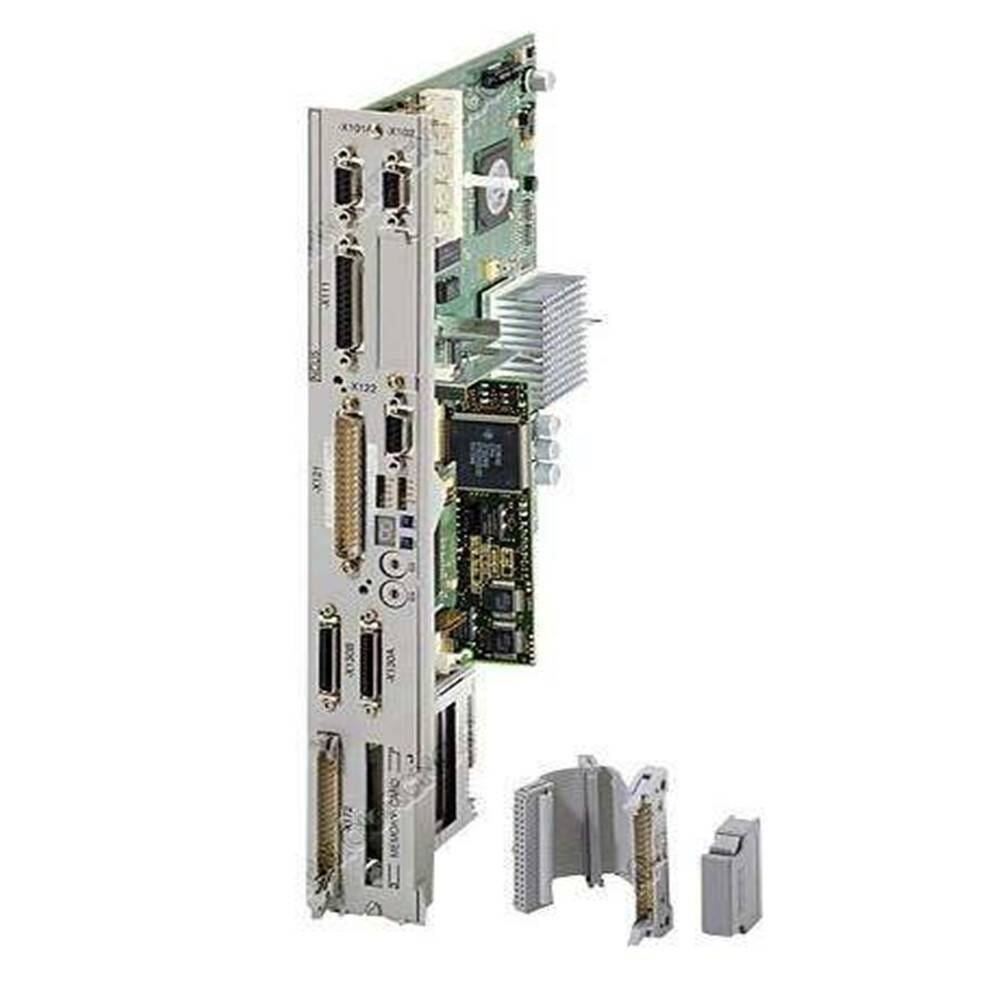

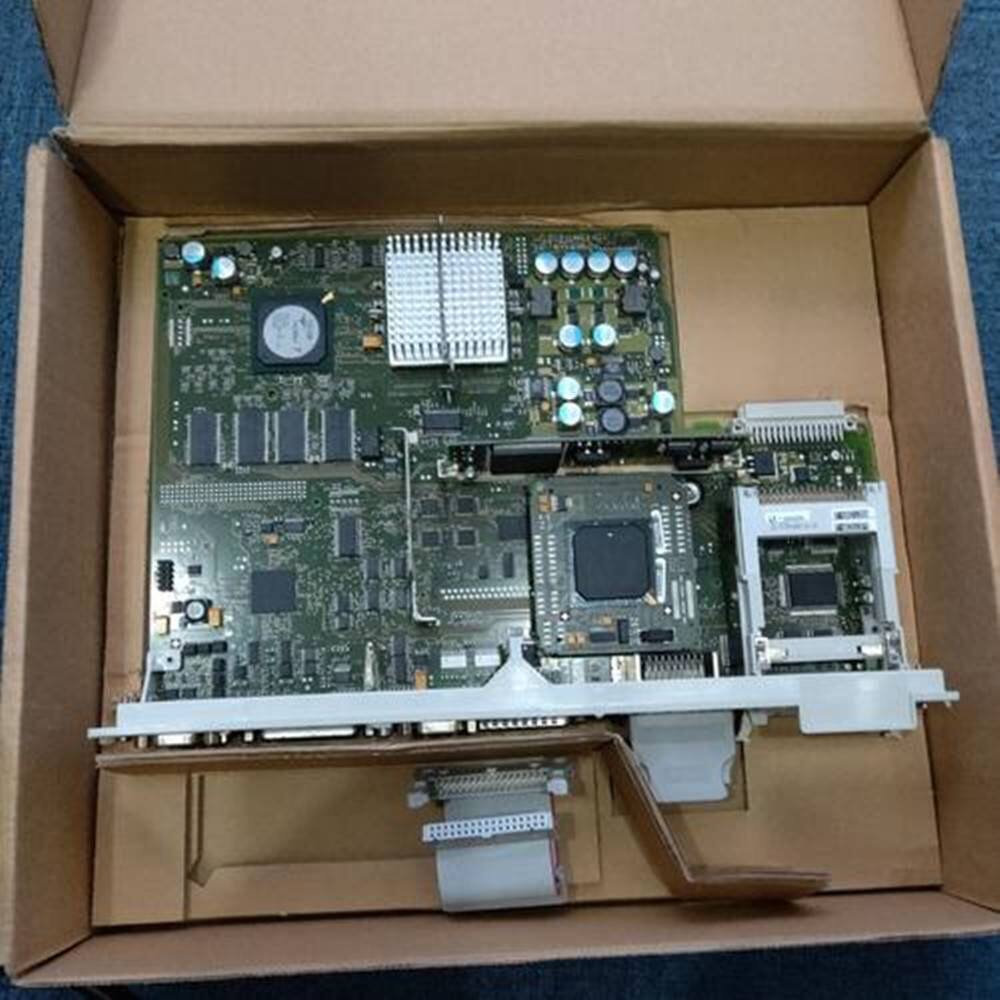

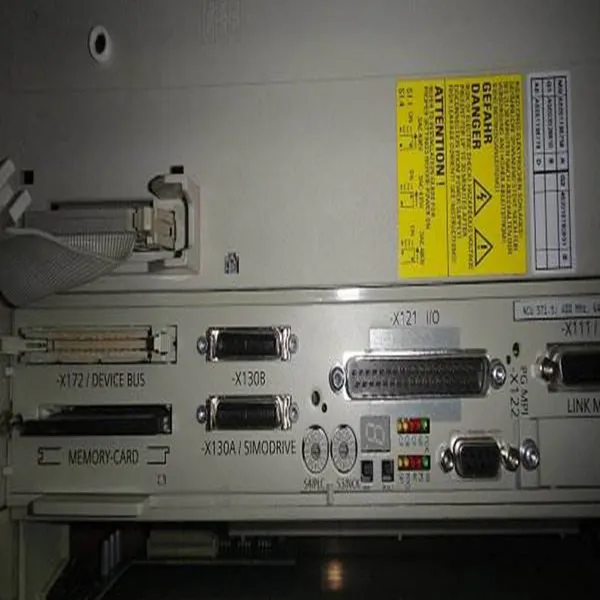

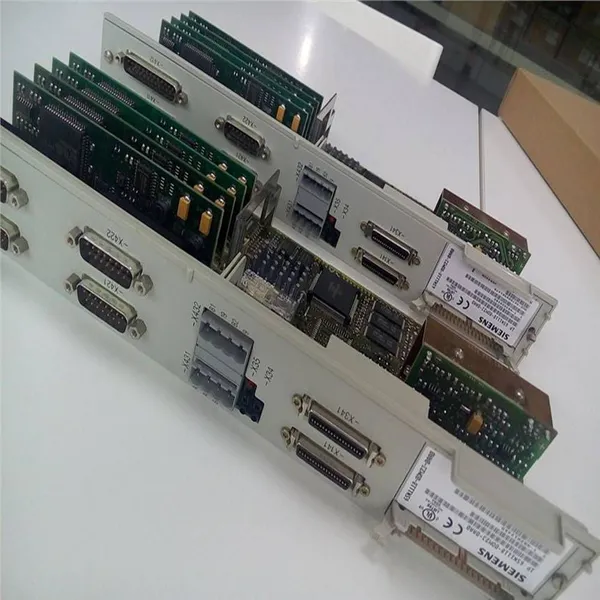

Help CenterSiemens | Siemens | 840d Mainboard Ncu573.4
Related Products
-
Siemens | Siemens | Ccu3 Control Motherboard (810d Cnc System)US$ 1538.46 - 1709.38MOQ: 1 Piece -
Siemens | Siemens Ncu572.4 Circuit BoardUS$ 1538.46 - 1709.38MOQ: 1 Piece
-
Siemens | Siemens | 840d Cnc System Main Board Ncu572.3US$ 1538.46 - 1709.38MOQ: 1 Piece
-
Siemens Ccu3US$ 1538.46 - 1709.38MOQ: 1 Piece
-
Siemens Ncu572.2 MotherboardUS$ 1538.46 - 1709.38MOQ: 1 Piece
The company's main business:
SIEMENS Programmable Controllers
1. SIMATIC S7 Series PLC: S7 - 200, S7 - 1200, S7 - 300, S7 - 400, ET - 200
2. Logic Control Module LOGO! 230RC, 230RCO, 230RCL, 24RC, 24RCL, etc.
3. SITOP DC Power Supply 24V DC 1.3A, 2.5A, 3A, 5A, 10A, 20A, 40A can be connected in parallel.
4. HMI Touch Screen TD200 TD400C K - TP OP177 TP177, MP277 MP377,
SIEMENS AC and DC Drives
1. AC Inverters MICROMASTER Series: MM420, MM430, MM440, G110, G120. MIDASTER Series: MDV
2. All - digital DC Speed Control Devices 6RA23, 6RA24, 6RA28, 6RA70, 6SE70 Series
SIEMENS CNC and Servo
1. SINUMERIK: 801, 802S, 802D, 802D SL, 810D, 840D, 611U, S120
2. Systems and servo motors, torque motors, linear motors, servo drive spare parts, etc. The main products or services: Siemens PLC, Siemens inverter, Siemens CNC system, Siemens servo motor, Siemens HMI, Siemens soft starter, Siemens touch screen, Siemens industrial Ethernet, Siemens LOGO!, Siemens SITOP power supply, Siemens software, Siemens cables, etc.!
Siemens NCU571.4 CNC MainboardSiemens NCU571.4 CNC Main Board
The specific methods are as follows: Use a multimeter to detect the characteristics of the rectifier bridge in the rectifier section. Use the ohm range X100 of the multimeter. Connect the red test lead to the "P" terminal of the frequency converter, and use the black test lead to connect to the input "R", "S", "T" respectively. The meter needle should swing at 2/3. If it exceeds 2/3 or is lower than 1/2, it is considered abnormal. Swap the black and red test leads and measure again. The meter needle should not swing. If it swings, it is abnormal. Use the ohm range X100 of the multimeter. Connect the red test lead to the "N" terminal of the frequency converter, and use the black test lead to connect to the input "R", "S", "T" respectively. The meter needle should swing at 2/3. If it exceeds 2/3 or is lower than 1/2, it is considered abnormal. Swap the black and red test leads and measure again. The meter needle should not swing. Otherwise, it is abnormal. Check the inverter section in the same way. Replace "R", "S", "T" with "U", "V", "W". Because there is also rectifier bridge characteristics between the source and drain of the IG in the inverter in the off state. Insulation test. Conduct high-voltage insulation detection for the input and output terminals and the ground (shell). Connect the black test lead of the 500v megger to the grounding mark of the frequency converter. Connect the red test lead to "R", "S", "T", "U", "V", "W" respectively. Shake the megger at a uniform speed. The measured insulation resistance should be above 5M. Detection of capacitors. The main circuit is mainly composed of three-phase or single-phase rectifier bridges, smoothing capacitors, filter capacitors, IPM inverter bridges, current-limiting resistors, contactors and other components. Among them, the smoothing aluminum electrolytic capacitor has the greatest impact on the service life of the frequency converter. Its service life is mainly determined by the DC voltage applied to its two ends and the internal temperature. The model of the capacitor has been selected according to the power supply voltage during the main circuit design. Therefore, the internal temperature plays a decisive role in the service life of the electrolytic capacitor [Youlun Thesis].
How to manually set the frequency of the Siemens frequency converter?
1. Parameter 700 is the start signal. 1 means start by the panel buttons, 2 means start by an external signal;
2. Parameter 1000 is the frequency setting value. 1 means change the frequency by the up and down symbol buttons on the panel, 2 means change by an external analog signal.
3. Set the start signal by yourself, then change parameter 1000 to 1 to enable the panel to set the frequency, and then set parameter 1031 to 1 to enable it to automatically save the changed frequency value.
A frequency converter is a power control device that applies frequency conversion technology and microelectronics technology to control AC motors by changing the frequency of the motor's working power supply. The frequency converter is mainly composed of rectification (AC to DC), filtering, inversion (DC to AC), braking unit, drive unit, detection unit, microprocessing unit, etc. The frequency converter adjusts the voltage and frequency of the output power supply by the on-off of the internal IG, and provides the required power supply voltage according to the actual needs of the motor, thereby achieving the purpose of energy saving and speed regulation. In addition, the frequency converter also has many protection functions, such as overcurrent, overvoltage, overload protection, etc. With the continuous improvement of industrial automation, frequency converters have also been widely used.
Siemens frequency converters were first used in the steel industry in the market. However, at that time, DC speed regulation was still the main method for motor speed regulation, and the application of frequency converters was still an emerging market. But with the continuous development of electronic components and the continuous maturity of control theory, variable frequency speed regulation has gradually replaced DC speed regulation and become the mainstream of drive products. Siemens frequency converters have achieved super - scale development in this huge market due to their strong brand effect. The leading development of Siemens in the frequency converter market should be said to be the perfect combination of the Siemens brand and technology. The early Siemens frequency converters we can encounter in the market mainly include the current - source SIMOVERT A and the voltage - source SIMOVERT P.
Siemens|SIEMENS|840D motherboard NCU573.4
