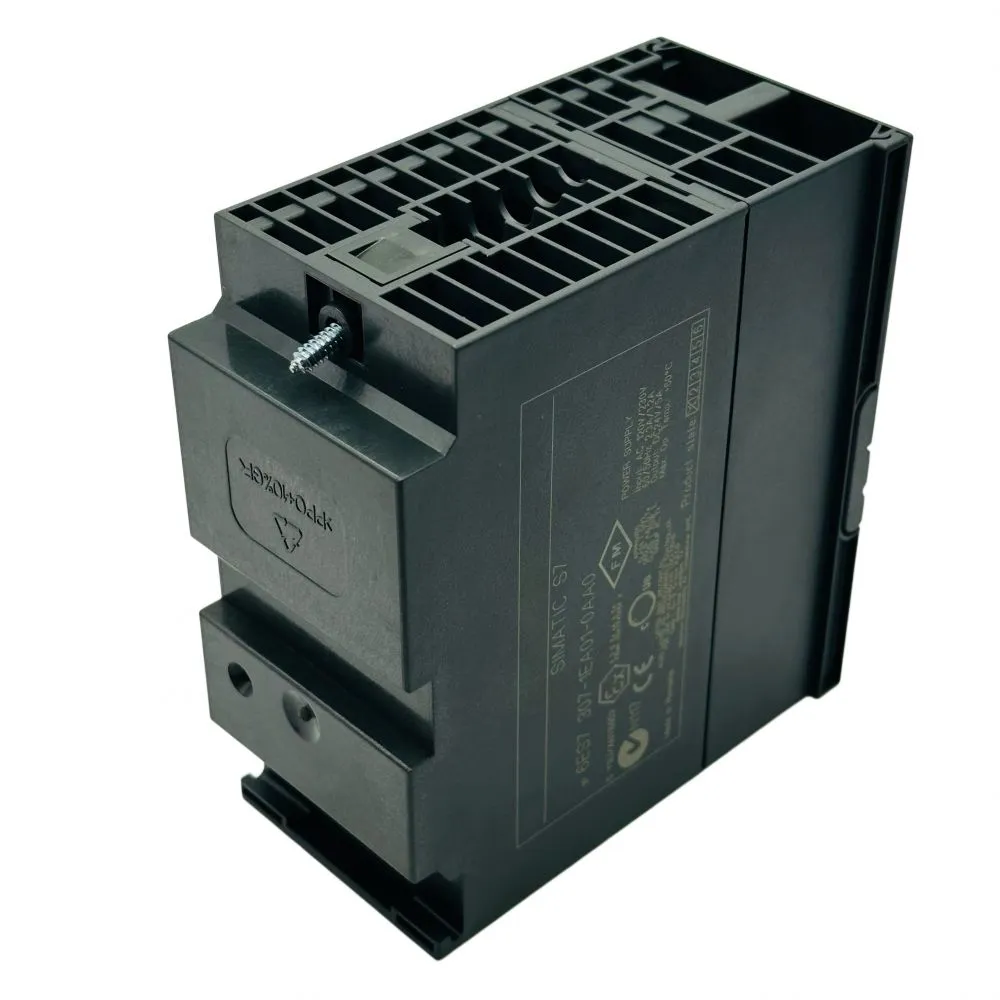

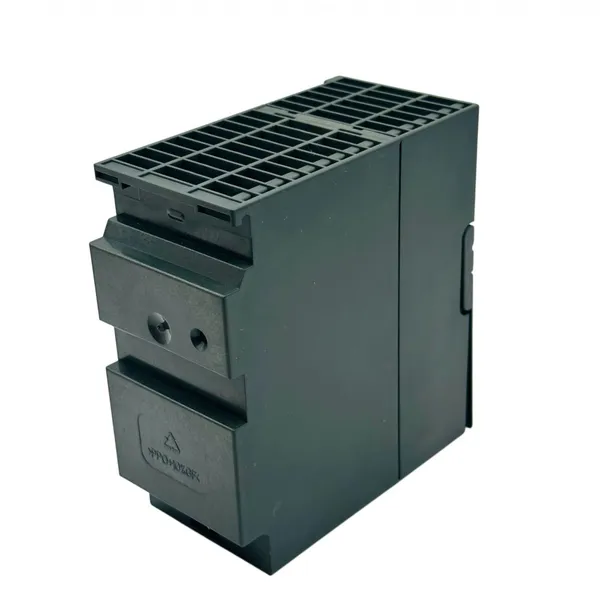

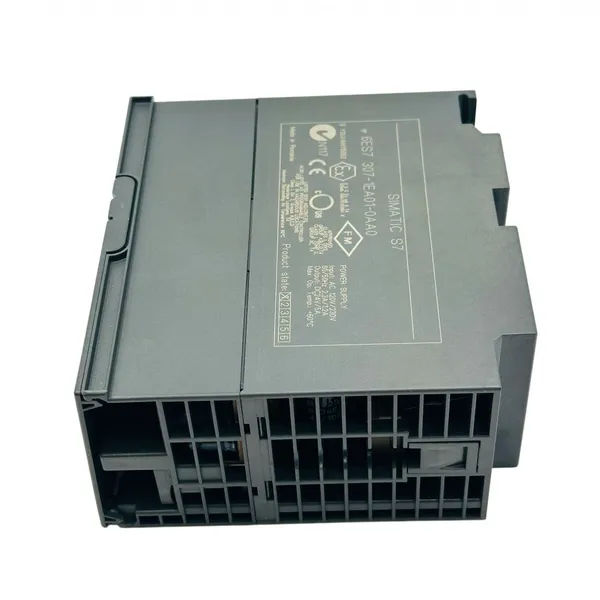

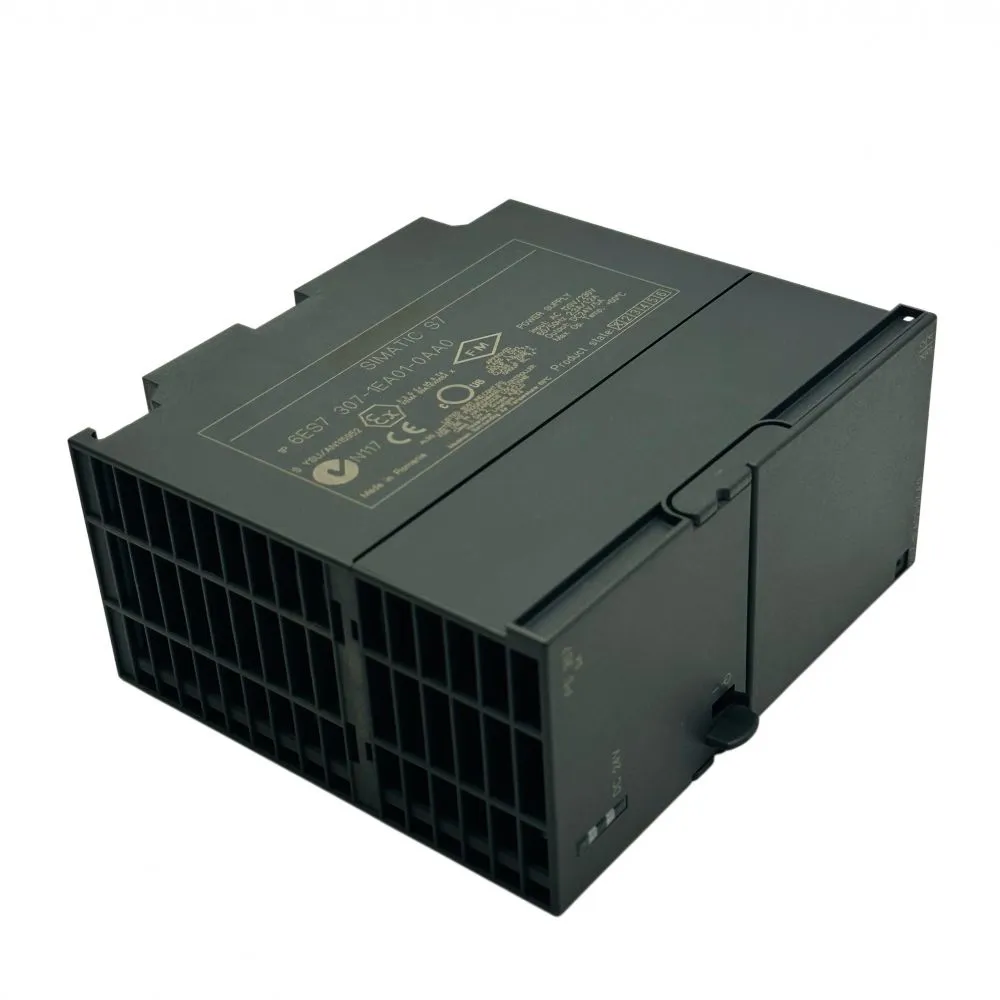

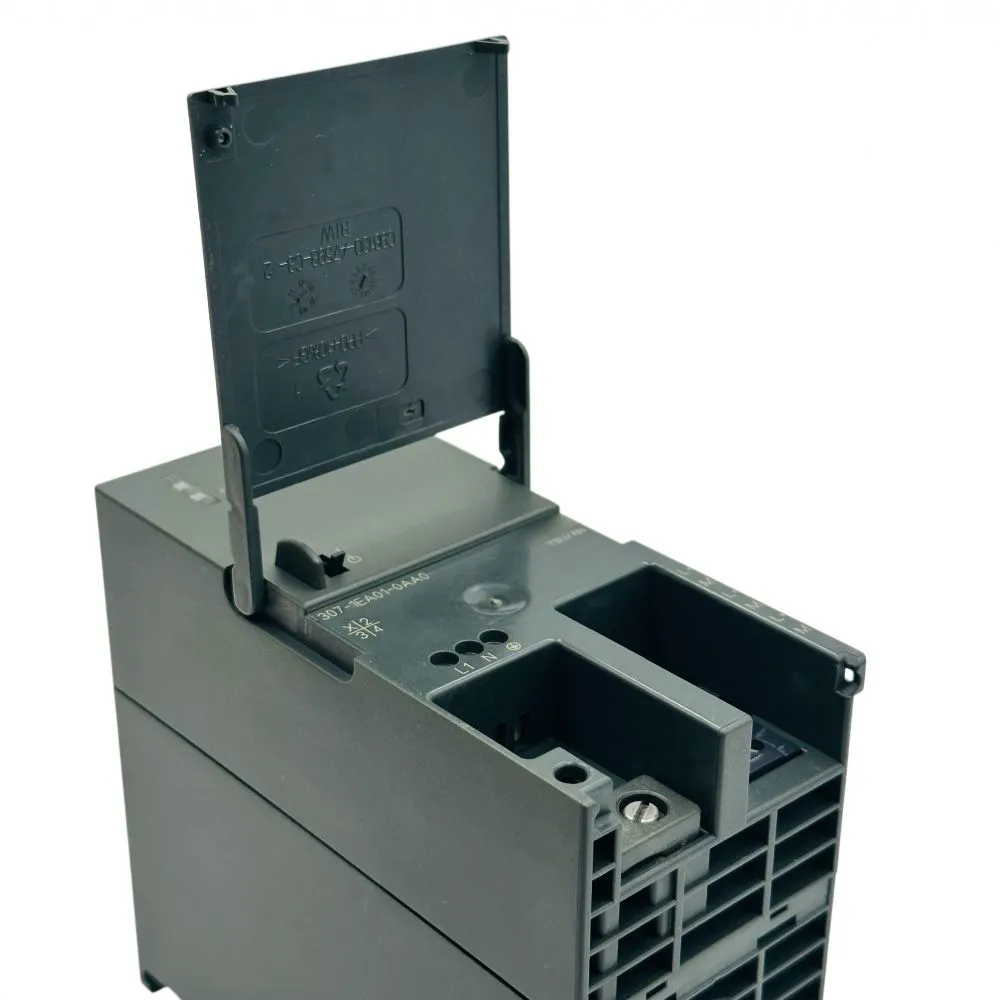

Help Center6ES7307-1EA01-0AA0 Siemens 24V PS307 Power Supply Module, Made in Germany
Related Products
-
Siemens S7-300 Communication Processor 6GK7343-1EX30-0XE0 CP343-1, 1-year Warranty, in StockUS$ 390 - 400MOQ: 1 Piece -
SIEMENS S7-300 6ES7331-7KF02-0AB0In Stock, One-year WarrantyUS$ 215 - 220MOQ: 1 Piece
-
Siemens 6ES7315-2EH14-0AB0 CPU315-2DP/PNUS$ 1538.46 - 1709.38MOQ: 1 Piece
-
Siemens Plc 6es7421-7dh00-0ab0 Digital Input Module Sm421US$ 461.54 - 492.31MOQ: 1 Unit
-
Siemens Cnc Mainboard Ncu572.3US$ 1538.46 - 1709.38MOQ: 1 Piece
Activité principale de l'entreprise :
Automates programmables SIEMENS
1. Automates de la série SIMATIC S7 : S7-200, S7-1200, S7-300, S7-400, ET-200
2. Modules de commande logique LOGO! 230RC, 230RCO, 230RCL, 24RC, 24RCL, etc.
3. Alimentations CC SITOP 24 V CC 1,3 A, 2,5 A, 3 A, 5 A, 10 A, 20 A, 40 A, pouvant être connectées en parallèle.
4. Écrans tactiles IHM TD200, TD400C, K-TP, OP177, TP177, MP277, MP377.
Variateurs CA et CC SIEMENS
1. Variateurs CA série MICROMASTER : MM420, MM430, MM440, G110, G120. Série MIDASTER : MDV
2. Dispositifs de régulation de vitesse CC entièrement numériques séries 6RA23, 6RA24, 6RA28, 6RA70, 6SE70
CNC et servomoteurs SIEMENS
1. SINUMERIK : 801, 802S, 802D, 802D SL, 810D, 840D, 611U, S120
2. Systèmes et servomoteurs, moteurs couple, moteurs linéaires, pièces de rechange pour servomoteurs, etc. Principaux produits ou services : automates programmables Siemens, variateurs Siemens, systèmes CNC Siemens, servomoteurs Siemens, interfaces homme-machine Siemens, démarreurs progressifs Siemens, écrans tactiles Siemens, Ethernet industriel Siemens, Siemens LOGO!, alimentations Siemens SITOP, logiciels Siemens, câbles Siemens, etc. !
*** Translated with /Translator (free version) ***
Siemens NCU571.4 CNC Main BoardSiemens NCU571.4 CNC Main Board
The specific method is as follows: Use a multimeter to detect the characteristics of the rectifier bridge in the rectifier part. Set the multimeter to the ohm range X100. Connect the red test lead to the "P" terminal of the frequency converter, and use the black test lead to connect to the input "R", "S", "T" respectively. The meter needle should swing at 2/3. If it exceeds 2/3 or is lower than 1/2, it is regarded as abnormal. Swap the black and red test leads and measure again. The meter needle should not swing. If it swings, it is abnormal. Set the multimeter to the ohm range X100. Connect the red test lead to the "N" terminal of the frequency converter, and use the black test lead to connect to the input "R", "S", "T" respectively. The meter needle should swing at 2/3. If it exceeds 2/3 or is lower than 1/2, it is regarded as abnormal. Swap the black and red test leads and measure again. The meter needle should not swing. Otherwise, it is abnormal. Check the inverter part in the same way, replacing "R", "S", "T" with "U", "V", "W", because there is also a rectifier bridge characteristic between the source and drain of the inverter's IG in the off state. Insulation test. Conduct high-voltage insulation detection on the input and output terminals and the ground (shell). Connect the black test lead of the 500V megger to the grounding mark of the frequency converter. Connect the red test lead to "R", "S", "T", "U", "V", "W" respectively. Shake the megger at a uniform speed. The measured insulation resistance should be above 5M. Detection of capacitors. The main circuit is mainly composed of three-phase or single-phase rectifier bridges, smoothing capacitors, filter capacitors, IPM inverter bridges, current-limiting resistors, contactors and other components. Among them, the smoothing aluminum electrolytic capacitor has the greatest impact on the service life of the frequency converter. Its service life is mainly determined by the DC voltage applied to its two ends and the internal temperature. When designing the main circuit, the capacitor model has been selected according to the power supply voltage, so the internal temperature plays a decisive role in the service life of the electrolytic capacitor [Youlun Thesis].
How to manually set the frequency of a Siemens frequency converter?
1. Parameter 700 is the start signal. 1 means starting with the panel buttons, and 2 means starting with an external signal;
2. Parameter 1000 is the frequency setting value. 1 means changing the frequency with the up and down symbol buttons on the panel, and 2 means changing it with an external analog signal.
3. Set the start signal by yourself, then change parameter 1000 to 1 to set the frequency on the panel, and then set parameter 1031 to 1 to automatically save the changed frequency value.
A frequency converter is a power control device that applies frequency conversion technology and microelectronics technology to control AC motors by changing the frequency of the motor's working power supply. A frequency converter is mainly composed of rectification (AC to DC), filtering, inversion (DC to AC), a braking unit, a drive unit, a detection unit, a microprocessing unit, etc. The frequency converter adjusts the voltage and frequency of the output power supply by turning on and off the internal IG, and provides the required power supply voltage according to the actual needs of the motor, thereby achieving the purpose of energy saving and speed regulation. In addition, the frequency converter also has many protection functions, such as overcurrent, overvoltage, and overload protection, etc. With the continuous improvement of industrial automation, frequency converters have also been very widely used.
Siemens frequency converters were first used in the market in the steel industry. However, at that time, DC speed regulation was still the main method for motor speed regulation, and the application of frequency converters was still an emerging market. But with the continuous development of electronic components and the continuous maturity of control theory, variable frequency speed regulation has gradually replaced DC speed regulation and become the mainstream of drive products. Siemens frequency converters have achieved super-scale development in this huge market due to their strong brand effect. The leading development of Siemens in the frequency converter market should be said to be the perfect combination of the Siemens brand and technology. The early Siemens frequency converters we can encounter in the market mainly include the current source SIMOVERT A and the voltage source SIMOVERT P.
SIEMENS|Siemens 840D NCU571.2 CNC mainboard
