Ceyear 4024CA Handheld Spectrum Analyzer Wide frequency range from 9kHz to 9GHz
4024CA ： 9kHz to 9GHz
Product Overview

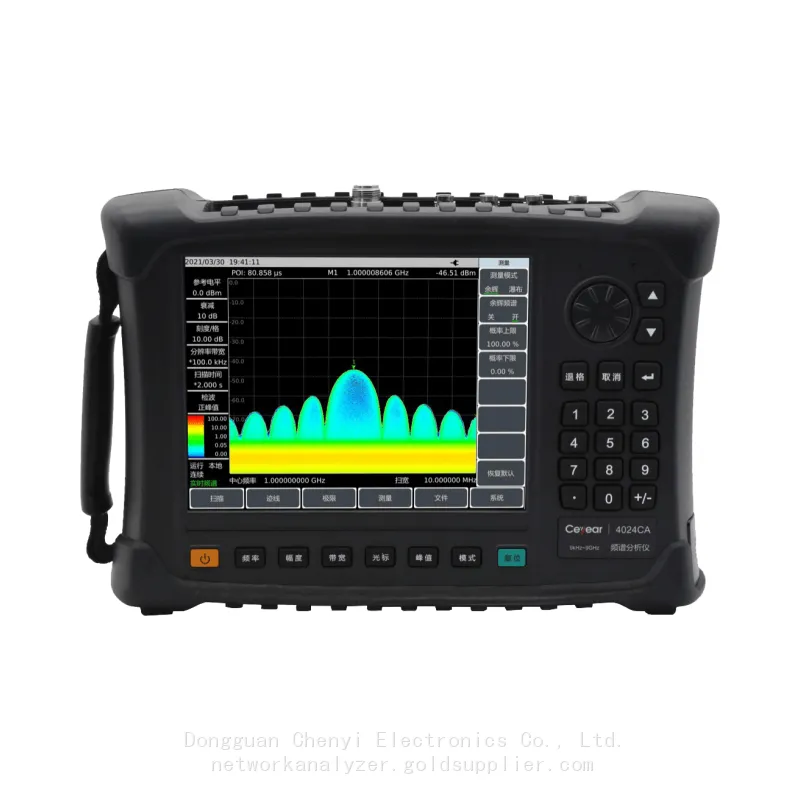

The 4024CA spectrum analyzer is a broadband handheld real-time spectrum analyzer designed for field testing. The maximum real-time analysis bandwidth reaches 120MHz. It has real-time spectrum analysis, 5G NR demodulation analysis, LTE FDD/TDD demodulation analysis, GSM/ EDGE demodulation analysis, directional analysis and other measurement function modes, as well as field strength measurement, channel power, occupied bandwidth, adjacent channel power, audio demodulation, harmonic distortion, spectral emission mask/spurious emission mask, indoor/outdoor map measurement It adopts 8.4-inch large-screen LCD and capacitive touch screen integrated design to facilitate user operation. The structure adopts a handheld chassis, which is small in size, light in weight, flexible in power supply, easy to maneuver, and is extremely suitable for on-site use.
The 4024CA spectrum analyzer can be used for on-site debugging and installation and maintenance of mobile communications, wireless communications, radar, satellite communications and other equipment, wireless communication signal demodulation analysis, interference source direction finding and map positioning, broadband modulation or transient signal test analysis In other fields, it can provide a relatively complete solution for the user's external field spectrum test.
•Wide frequency range: from 9kHz to 9GHz
•Full-band preamplifiers configuration
•Low displayed average noise level: -163dBm@1Hz RBW(typical)
•Excellent RF specification performance:
•Phase noise performance: -115dBc/Hz@100kHz frequency offset@1GHz carrier
•Input TOI point: +13dBm (Typical)
•Amplitude accuracy: ±1.3dB
•Real-time spectrum analysis function
•Support persistence spectrum and waterfall display mode
•Maximum real-time analysis bandwidth: 120MHz
•RTSA with 5.8us POI
•Resolution bandwidth: 1Hz～10MHz(1/3 step), 20MHz
•512MHz IQ waveform capture

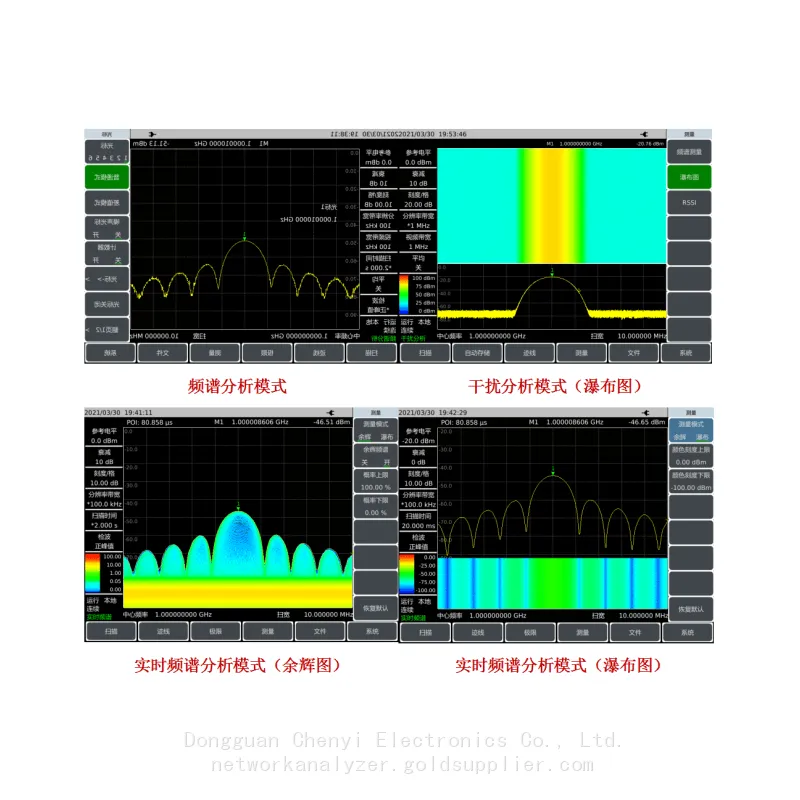

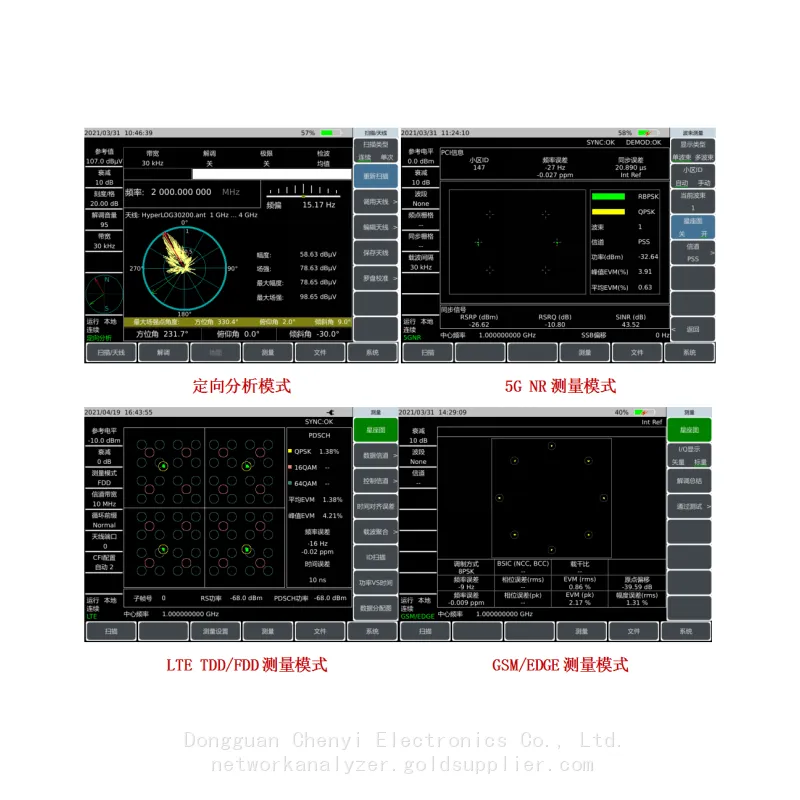

•Various measurement functions: spectrum analyzer, interference analyzer (spectrogram, RSSI), RTSA, 5G NR
demodulation, LTE FDD/TDD demodulation, GSM/EDGE demodulation function etc.

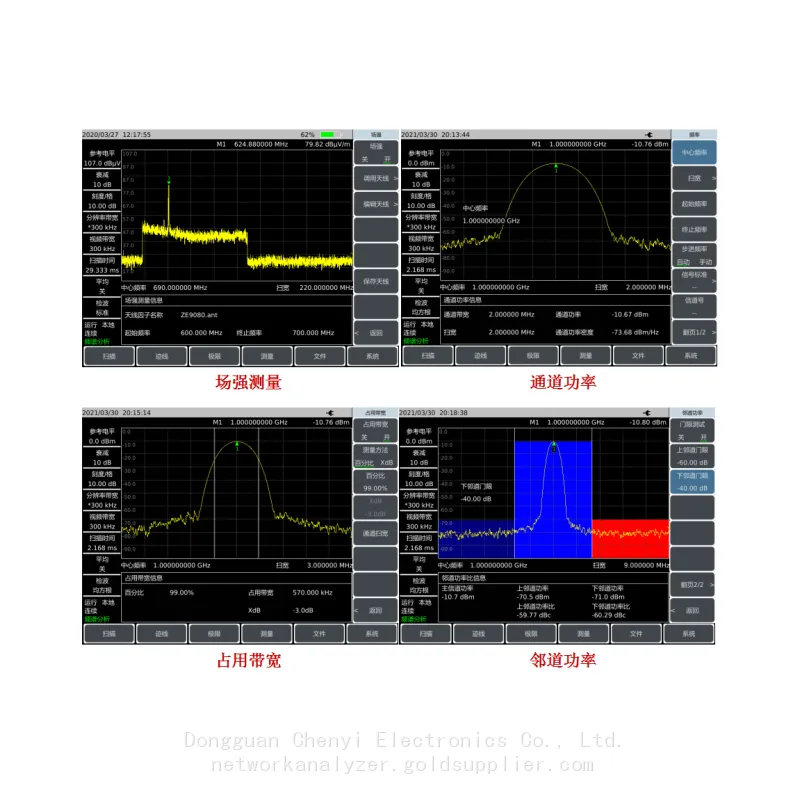

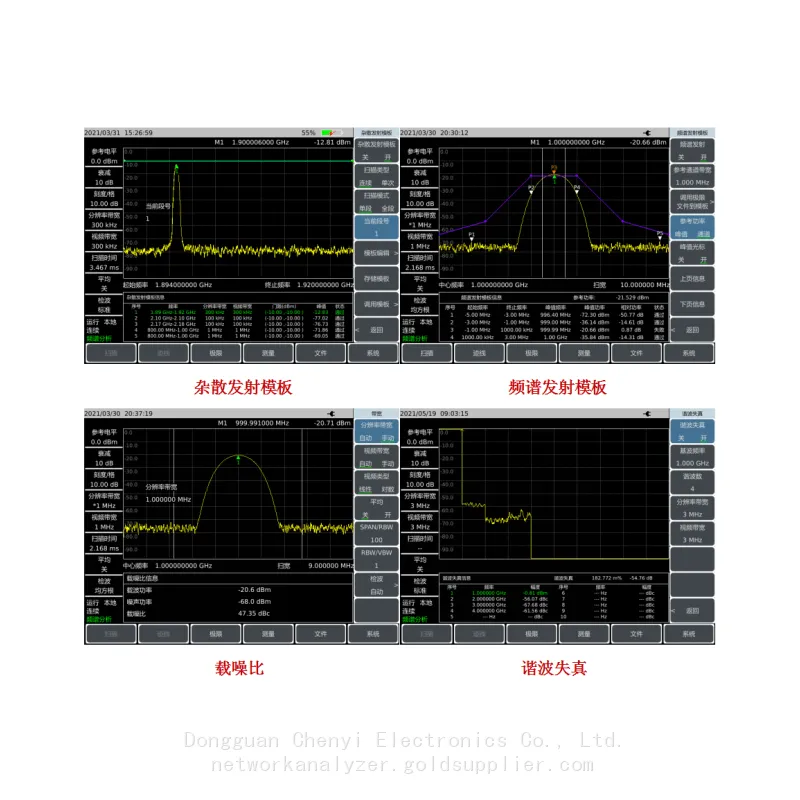

•Various intelligent measurement functions: field strength measurement, channel power, occupied
bandwidth, adjacent-channel power ratio, tune & listen, carrier-to-noise ratio, emission mask,
indoor/outdoor map measurement, Support GPS/BEIDOU positioning and frequency taming calibration
function of the crystal oscillator in the machine
•Various auxiliary test interface: 10MHz reference input/output interface, GPS antenna interface, zero span IF
output interface, external triggering input interface etc.
•Easy & convenient user operation: 8.4 inch high definition LCD and large font display, convenient capacitive
touch screen operation, combination of LCD and touch screen, various display modes etc.
•Working temperature range: -10℃～+50℃
•Power supplied by battery or AC
Easy & Convenient User Operation
• One-click quick measurement
• Storage and recall of state and data
• Combination of 8.4 inch LCD and capacitive touchscreen, smaller light refraction and clearer display
• Convenient capacitive touchscreen operation
• Various display modes, better experience under outdoor light and night vision
• Backlight keys enable easy viewing in darkness
Typical Application
Connected with external directive antenna, 4024CA spectrum analyzer can be used for electromagnetic environment detection, radio interference analysis, electromagnetic environment background assessment, spectrum monitoring and illegal channel interference signal recognition.
4024CA spectrum analyzer has 5G NR, LTE FDD/TDD, GSM/EDGE and other wireless communication signal demodulation analysis and 120MHz bandwidth real-time spectrum analysis function, adopts a handheld structure, small size, light weight, battery-powered , Can be applied to the field installation and commissioning of wireless communication base stations and maintenance support.
4024CA spectrum analyzer has various measurement function modes like spectrum analyzer, interference analyzer, Real-time spectrum analyzer, etc., as well as various intelligent measurement functions such as indoor/outdoor map measurement, channel power, occupied bandwidth, adjacent-channel power ratio, carrier-to-noise ratio, field strength measurement, emission mask etc.. It can provide comprehensive spectrum analysis and diagnosis service for the field test of transmitter and receiver.
