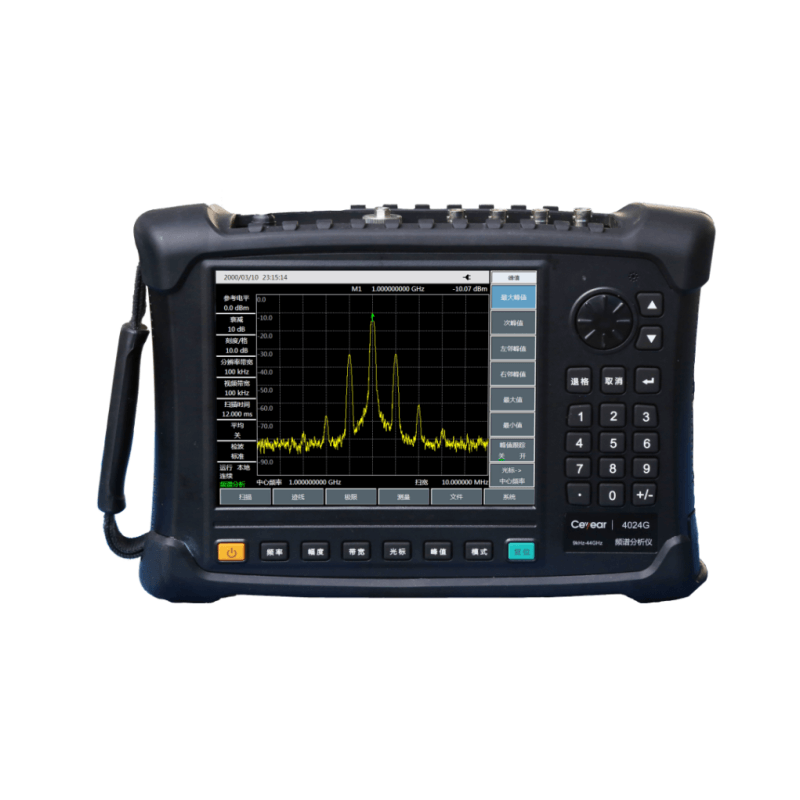

Ceyear 4024A Handheld Spectrum Analyzer，9KHZ to 4GHZ
Handheld Spectrum Analyzer 4024A ：9KHZ to 4GHZ
Handheld Spectrum Analyzer 4024B ：9KHZ to 6.5GHZ
Handheld Spectrum Analyzer 4024C ：9KHZ to 9GHZ
Handheld Spectrum Analyzer 4024D ：9KHZ to 20GHZ
Handheld Spectrum Analyzer 4024E ：9KHZ to 26.5GHZ
Handheld Spectrum Analyzer 4024F ：9KHZ to 32GHZ
Handheld Spectrum Analyzer 4024G ：9KHZ to 44GHZ
Handheld Spectrum Analyzer 4024H ：9KHZ to 50GHZ
Handheld Spectrum Analyzer 4024L ： 9KHZ to 67GHZ
Main Features
Wide frequency range: from 9kHz to 67GHz, 9 models
Low displayed average noise level: -163dBm@1Hz RBW(typical)
Excellent phase noise performance: -112dBc/Hz@100kHz frequency offset@1GHz carrier
(4024A/B/C) -106dBc/Hz@100kHz frequency offset@1GHz carrier (4024D/E/F/G/H/L)
High sweep speed: for 1GHz span, shortest sweep time
Resolution bandwidth: 1Hz～10MHz
Full-band pre-amplifier: standard configuration

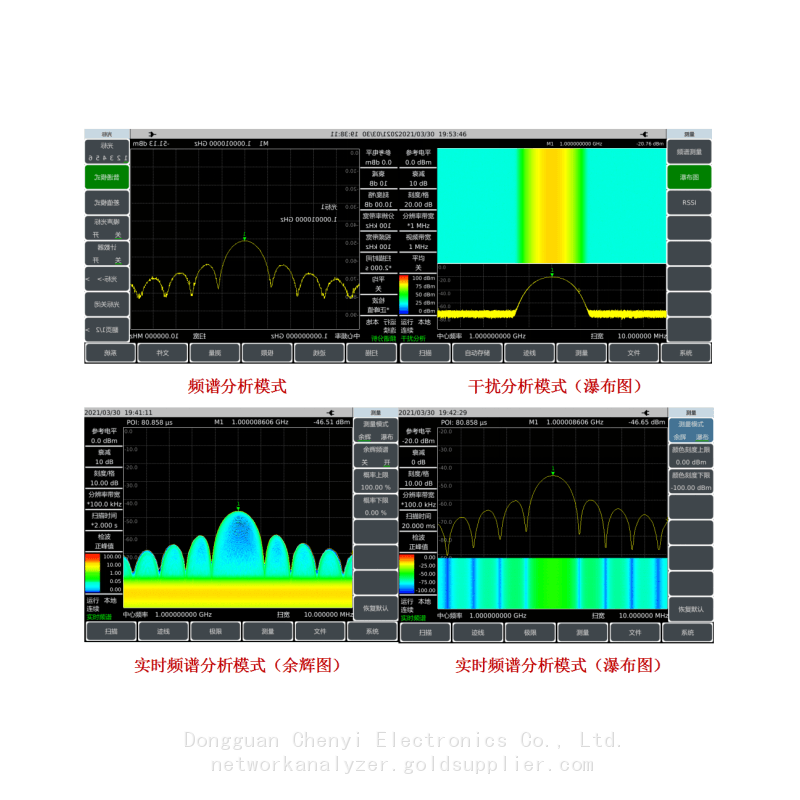

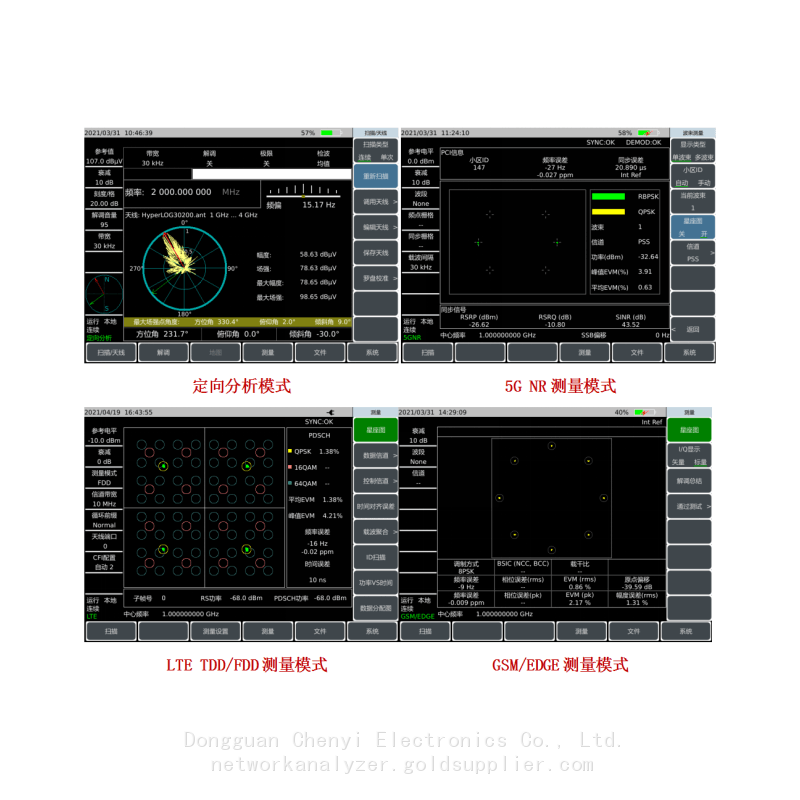

Various measurement functions: spectrum analyzer, interference analyzer (spectrogram, RSSI),
AM/FM/PM analyzer, channel scanner, high accuracy power meter, signal analyzer etc.

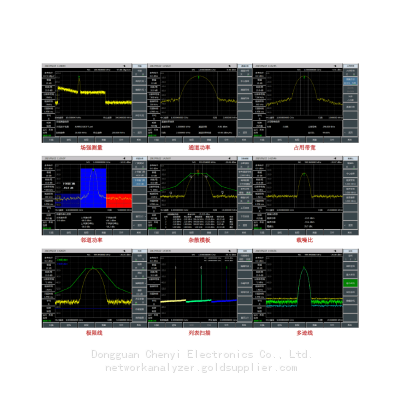

Various intelligent measurement functions: field strength measurement, channel power, occupied
bandwidth, adjacent-channel power ratio, tune&listen, carrier-to-noise ratio, emission mask

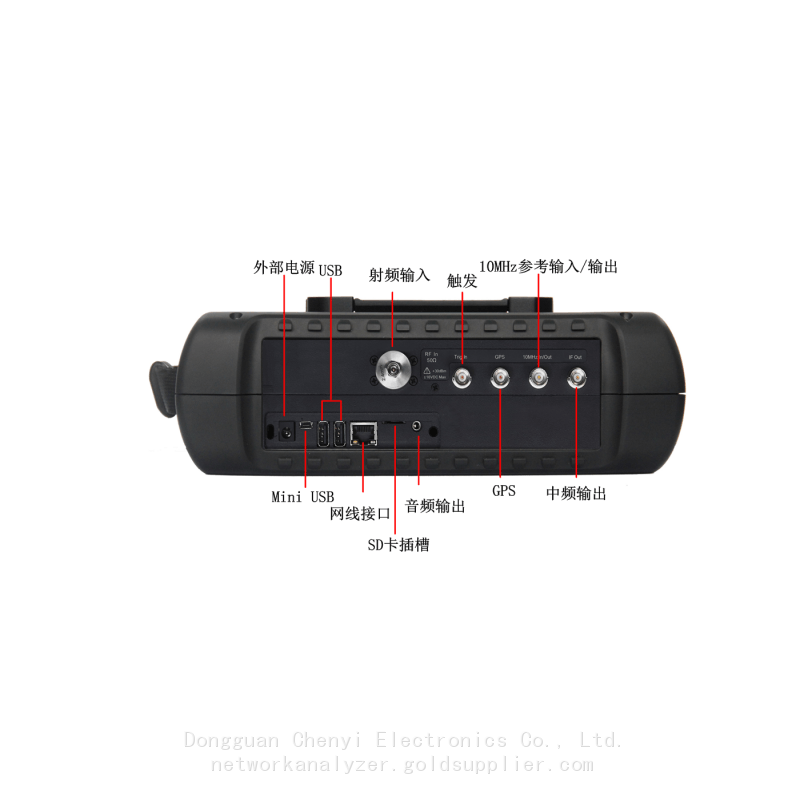

Various auxiliary test interface: 10MHz reference input/output interface, GPS antenna interface,
zero span IF output interface, external triggering input interface etc.

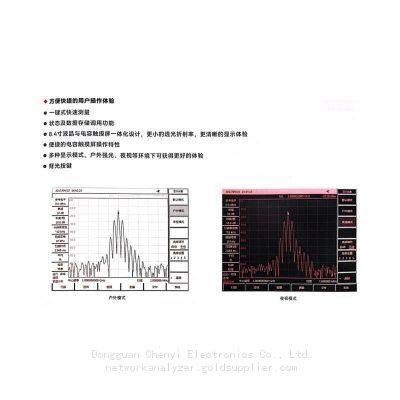

Easy & convenient user operation: 8.4 inch high definition LCD and large font display, convenient
capacitive touch screen operation, combination of LCD and touch screen, various display modes etc.
Working temperature range: -10℃～50℃, Power supplied by battery or adapter
Product Overview
4024 series spectrum analyzer possesses many advantages: wide frequency range, high performance, high sweep speed, various functions, and easy operation. In terms of performance index, it has advantages of excellent displayed average noise level, low phase noise, and high sweep speed. In terms of measurement functions, it has measurement functions of spectrum analyzer, interference analyzer, AM/FM/PM analyzer, power meter, channel scanner etc., as well as intelligent measurement functions of channel power, occupied bandwidth, adjacent-channel power, tune & listen, emission mask, and carrier-to-noise ratio etc. 4024 adopts the integrated design of 8.4 inch LCD and capacitive touch screen, which improves the display definition and operation convenient. It is handheld, compact and light, with flexible power supply, which is very suitable for field work.
4024 can be used for signal and equipment test in the fields of aerospace, microwave & satellite communication, radio communication, radar monitoring, electronic countermeasures & reconnaissance, and precision guidance.
Typical Application
4024 series spectrum analyzer has advantages of wide frequency range, high performance index, high sweep speed, multiple test functions, and easy operation. It is handheld, compact and light, which can be power supplied by battery. It can be used for the field installation & calibration, repair & maintenance of electronic weapon equipment in fields of communication.
4024 serious spectrum analyzers have various measurement function modes like spectrum analyzer, interference analyzer, AM/FM/PM analyzer, power meter, channel scanner etc., as well as various intelligent measurement functions such as channel power, occupied bandwidth, adjacent-channel power ratio, carrier-to-noise ratio, field strength measurement, emission mask etc.. It can provide comprehensive spectrum analysis and diagnosis service for the field test of transmitter and receiver.
Connected with external directive antenna, 4024 series spectrum analyzer can be used for electromagnetic environment detection, radio interference analysis, electromagnetic environment background assessment, spectrum monitoring and illegal channel interference signal recognition.
