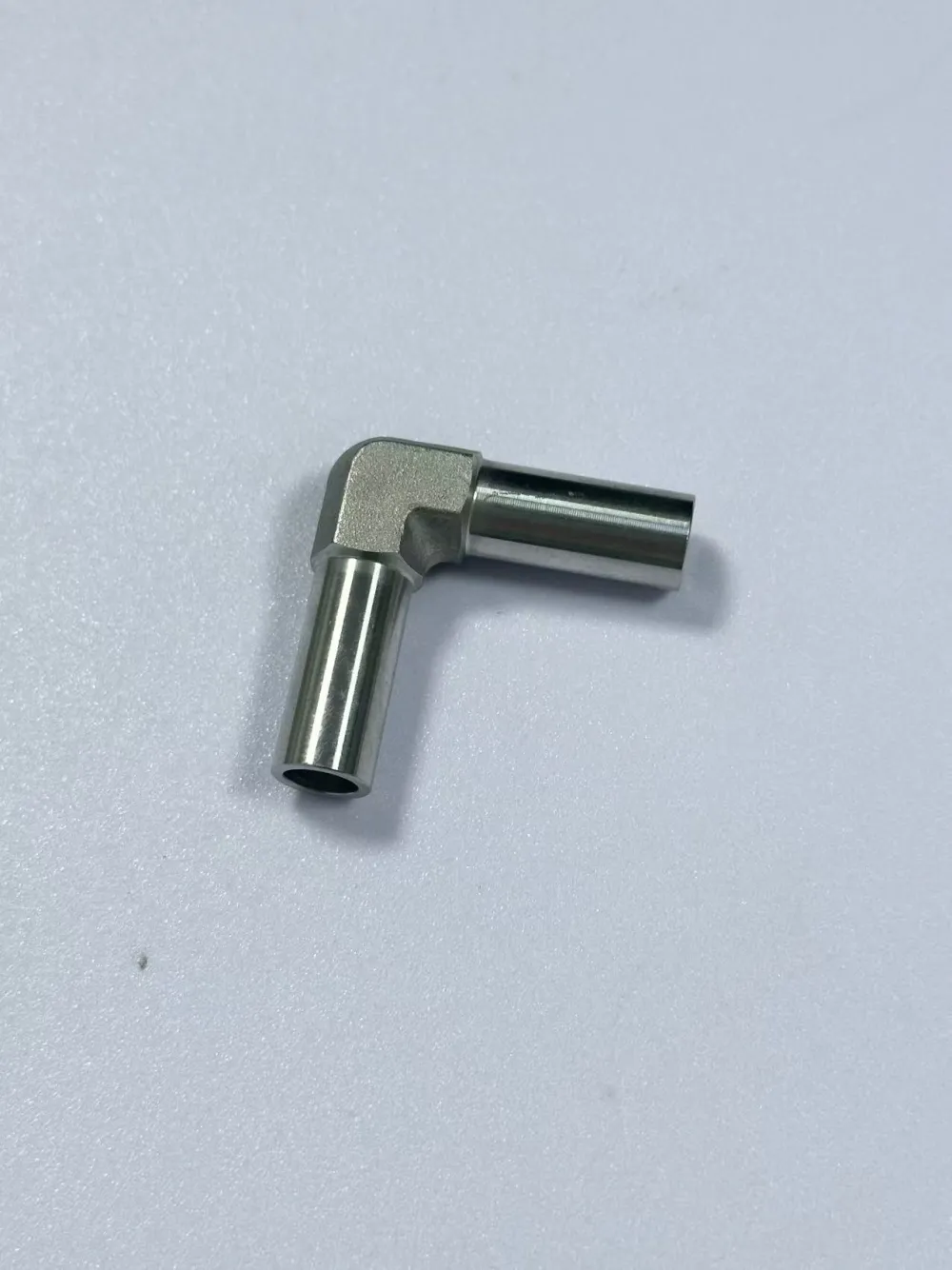

Help CenterPrecision CNC-Machined Weld Elbow for Hydraulic System Integration
Product Spotlights
Related Products
-
Industrial Weld Elbow 90 Degree Butt Weld Fitting for Hydraulic and Pneumatic SystemsNegotiableMOQ: 1000 Pieces -
Weld Elbow 90 Degree Tube Welding Fitting for Semiconductor Gas LinesNegotiableMOQ: 1000 Pieces
-
High Pressure Carbon Steel Weld Elbow 90 Degree Long Radius Butt Weld BendNegotiableMOQ: 1000 Pieces
-
DN15-DN600 Butt Weld Elbow for High-Pressure Steam ApplicationsNegotiableMOQ: 1000 Pieces
-
316L Stainless Steel Long Radius Welding Elbow Sch 40 With Electropolished SurfaceNegotiableMOQ: 1000 Pieces
As Shanghai Quanbao Electronic Materials Technology Co., Ltd., based in the industrial hub of Shanghai, China, we specialize in delivering high-quality components for demanding applications. Our Precision CNC-Machined Weld Elbow is engineered for seamless integration into hydraulic systems, ensuring exceptional accuracy and reliability. This product minimizes leaks and downtime, enhancing overall system efficiency. With our focus on precision manufacturing, we provide solutions that meet rigorous industrial standards, helping clients achieve optimal performance in their operations.
This weld elbow features advanced CNC machining for tight tolerances, guaranteeing a perfect fit in hydraulic setups. Key characteristics include:
- High Durability: Constructed from corrosion-resistant materials like stainless steel or carbon steel, it withstands harsh environments and high pressures, extending service life.
- Precision Engineering: CNC machining ensures consistent dimensions and smooth surfaces, reducing friction and improving fluid flow for better hydraulic efficiency.
- Easy Integration: Designed as a weld-on fitting, it simplifies installation into existing systems, saving time and labor costs during assembly.
- Versatile Applications: Ideal for hydraulic and pneumatic systems in industries such as manufacturing, automotive, and construction, where reliable fluid transfer is critical.
Technical specifications are detailed in the table below, highlighting core parameters:
| Parameter | Value |
|---|---|
| Material Options | Stainless Steel 304/316, Carbon Steel |
| Standard Size Range | 1/2" to 2" (custom sizes available) |
| Angle Configuration | 90° (other angles customizable) |
| Maximum Pressure | 5000 PSI |
| Surface Treatment | Machined finish for reduced wear |
Benefits for customers include reduced maintenance costs due to leak-proof connections, improved system safety by preventing fluid loss, and enhanced productivity through reliable performance. Customization options allow tailoring to specific hydraulic requirements, ensuring compatibility with diverse setups. For instance, the precision fit minimizes vibration and wear, leading to longer component lifespans and lower replacement frequencies.
Shanghai Quanbao leverages its strategic location in Shanghai to maintain stringent quality control and rapid response times. Our weld elbows are trusted by global industries for their robustness and precision, backed by years of manufacturing expertise. Partner with us to elevate your hydraulic systems—contact our team for tailored solutions and prompt support to meet your project needs.
Frequently Asked Questions (FAQ):
-
Q: What materials are used in these weld elbows?
A: We primarily use stainless steel or carbon steel, both offering excellent corrosion resistance and strength; specific grades are customizable upon request. -
Q: Are custom sizes available for unique hydraulic setups?
A: Yes, sizes can be tailored from 1/2" to 2" or beyond, ensuring a perfect fit for your system integration needs. -
Q: How does the CNC machining improve performance?
A: CNC machining provides precise tolerances and smooth surfaces, reducing leaks and enhancing fluid flow efficiency in high-pressure environments. -
Q: What is the standard pressure rating, and can it handle higher demands?
A: The standard rating is up to 5000 PSI, but we can customize for higher pressures based on your application requirements. -
Q: Is installation complicated for weld-on fittings?
A: No, our elbows are designed for straightforward welding integration, with detailed guidelines provided to ensure easy and secure assembly. -
Q: Can I get different angles besides 90 degrees?
A: Absolutely, angles like 45° or 180° are optional and can be produced to match your hydraulic layout specifications. -
Q: What industries commonly use this product?
A: It's widely applied in hydraulic systems for manufacturing, automotive, aerospace, and construction sectors, where reliable fluid control is essential. -
Q: How long does delivery take for custom orders?
A: Standard items ship quickly, while custom orders typically take 2-4 weeks; exact timelines are confirmed upon inquiry to ensure timely fulfillment.
