1. Product Overview

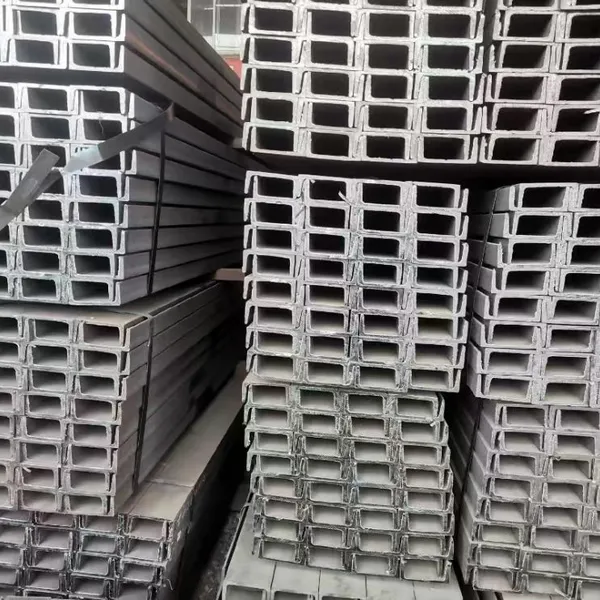

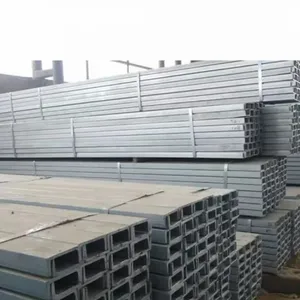

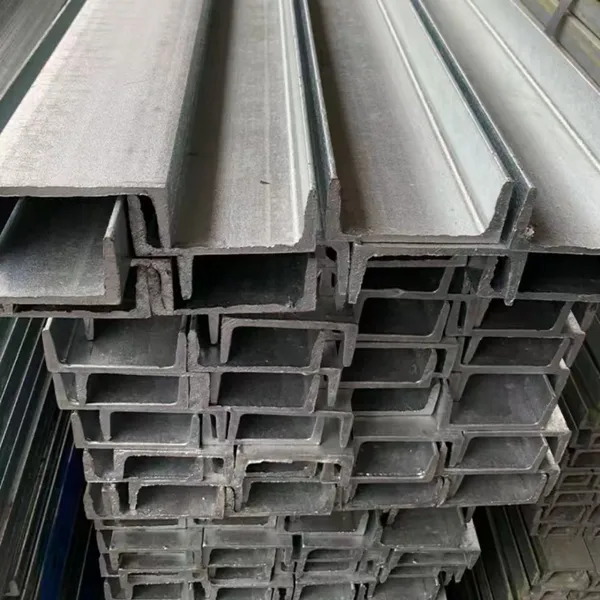

Channel steel is a long steel bar with a grooved (C-shaped) cross-section, categorized as complex section section steel. It is mainly applied in construction structures, machinery manufacturing, vehicles, curtain walls, brackets, etc., featuring excellent bending resistance, weldability and riveting performance.
2. Product Classification
By Production Process
Hot-rolled Common Channel Steel: Manufactured via high-temperature rolling, specifications ranging from 5# to 40#, with high strength and the widest application.
Cold-formed Light Channel Steel: Formed by cold bending, characterized by thin wall, light weight and high precision, suitable for light-duty structures.
By Specification Model
Expressed as waist height(h) × leg width(b) × waist thickness(d) (mm), e.g. 100×48×5.3 (10# channel steel).For products with the same waist height but different leg widths and waist thicknesses, marked with a/b/c (such as 25#a, 25#b, 25#c).
By Surface Treatment
Black Channel Steel (Raw Finish): Untreated, for indoor use or low anti-corrosion requirements.

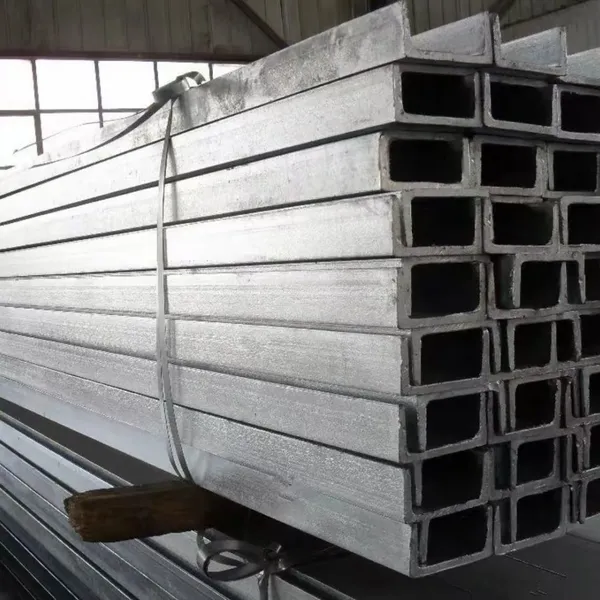

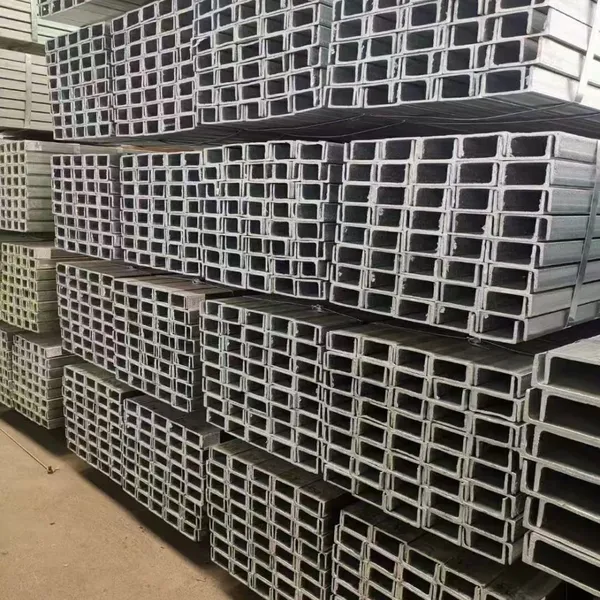

Hot-dip Galvanized Channel Steel: Anti-corrosion galvanization, ideal for outdoor and acid-alkali resistant environments.
3. Material & Execution Standard
Common Materials
Q235B: Yield strength ≥ 235MPa, superior plasticity and weldability, universal type.
Q355B (formerly Q345B): Yield strength ≥ 355MPa, high strength for heavy-load applications.
Execution Standards
National Standard: GB/T 706-2016 (Dimensions, deviations and weight of hot-rolled section steel)Material Standards: GB/T 700 (Carbon structural steels), GB/T 1591 (High-strength low-alloy structural steels)
4. Core Specification Parameters (Partial Common Models)
10# Channel Steel: h=100mm, b=48mm, d=5.3mm, theoretical weight 10.007 kg/m
12# Channel Steel: h=120mm, b=53mm, d=5.5mm, theoretical weight 12.059 kg/m
14#A Channel Steel: h=140mm, b=60mm, d=6.0mm, theoretical weight 14.535 kg/m
16#A Channel Steel: h=160mm, b=63mm, d=6.5mm, theoretical weight 17.24 kg/m
18#A Channel Steel: h=180mm, b=68mm, d=7.0mm, theoretical weight 20.174 kg/m
20#A Channel Steel: h=200mm, b=73mm, d=7.0mm, theoretical weight 22.637 kg/m
25#A Channel Steel: h=250mm, b=78mm, d=7.0mm, theoretical weight 27.41 kg/m
5. Main Applications
Construction Structures: Factory buildings, skyscrapers, bridges, beams and columns, support frames
Curtain Wall Engineering: Glass curtain walls, aluminum veneer curtain wall keels, support skeletons
Machinery & Equipment: Mechanical bases, brackets, conveyors, cable trays
Vehicle Manufacturing: Skeletons of automobiles, trailers and rail vehicles
Warehousing & Logistics: Shelves, stereo garages, platforms, stair walkways
Electric Power & Telecommunications: Iron towers, brackets, pipeline supports
6. Product Advantages
Excellent cross-section mechanical properties: high bending strength, stable structure and great torsion resistance
Easy processing and installation: superior performance in welding, cutting, drilling and riveting
Complete specifications: full coverage from 5# to 40#, adapting to various loads
Cost-effective: mature hot-rolling process, low cost and high universality
7. Delivery & Service
Length: Normally 6m, 9m, 12m, customized cutting available
Surface: Black finish / Hot-dip galvanized (customizable)
Delivery Time: 5–7 days (spot goods / regular orders)
Quality: Conforms to national standards, equipped with material certificates and qualification certificates
