Product Overview

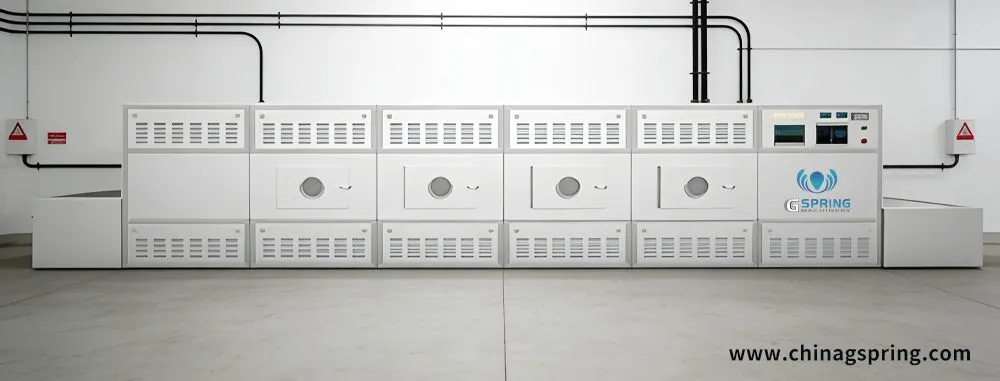

The Industrial Microwave Oven for Chemical Processing is designed for efficient drying of chemical powders, granules, and raw materials.
It provides fast, uniform, and energy-efficient drying, making it an ideal solution for modern chemical production lines.
Key Advantages
Cost-Effective Operation
Microwave heating directly acts on the material, reducing energy loss and lowering operating costs compared to traditional drying systems.
Large Capacity Production
Designed for continuous industrial use, the system supports large-scale processing, improving productivity and throughput.
Uniform Heating
Microwave penetration ensures even heating throughout the material, preventing overheating or uneven drying.
Fast Drying Speed
Significantly reduces drying time, increasing efficiency and reducing production cycle costs.
Energy Saving & Eco-Friendly
No need for additional heat transfer media → lower energy consumption and environmentally friendly operation.
Microwave Application in Chemical Industry
1. Microwave-Assisted Synthesis: Microwaves are being used to accelerate organic chemical reactions, leading to more efficient synthetic routes. Such as glass fiber drying,
The water inside and outside the glass fiber is evenly drained, which enhances the bonding strength between the coating (silicone) and the glass fiber surface, except that,
still have cellulose, graphite
2. Energy Efficiency: Microwave heating is more energy-efficient than conventional heating methods, as it directly converts electromagnetic energy into heat within
certain materials. Such as quartz sand, Iron ore, copper ore, aluminum ore etc.
3. Process Intensification: The use of microwaves can lead to more sustainable industrial processes by reducing energy consumption, process time, and environmental
remediation associated with industrial processing, such as chemical powder, silicon carbide drying，Magnesium Carbonate, Silicon dioxide, lithium hydroxide etc. it can
achieve safe, energy-saving & friend environmentally.
4. Material Processing: Microwaves are used in the processing of various materials, including polymers, nanomaterials, and biomaterials. Such as drying of pigments,
dyes and pre forming of paste material.
We are the manufactuer of Industrial Microwave Dryer, we can supply different kinds of microwave drying machine, like batch microwave oven for lab use or for small
capacity industrial use, industrial automatic tunnel mircrowave dryer, vaccum dryer specially for food & pharma industry etc. We have more than 10 years experience
on export, export to all over the world, like USA, Canada, Russia, India, Sri Lanka, Turkey, Vietnam, Indonesia, Pakistan,Philippines, Brazil, Egypt, Czech, Singapore,
Armenia, Iraq, Iran, Malaysia, Bangladesh, Mexico, Peru, Algeria, Poland, Thailand, Nepal, Azerbaijan etc.
Technical Specifications
Machine Model |
GS-20HMV |
GS-40HMV |
GS-60HMV |
GS-100HMV |
GS-200HMV |
Work Frequency |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
Rated Apparent Power |
≤25KW |
≤50KW |
≤75KW |
≤120KW |
≤240KW |
Output Power |
≥20KW |
≥40KW |
≥60KW |
≥100KW |
≥200KW |
Dehydration Capacity |
16-20kg/hour |
30-40kg/hour |
48-60kg/hour |
80-100kg/hour |
160-200kg/hour |
Work Process Temperature |
70-200℃ |
70-200℃ |
70-200℃ |
70-200℃ |
70-200℃ |
Cooling Type |
Water Cool/Air Cool |
Water Cool/Air Cool | Water Cool/Air Cool | Water Cool/Air Cool | Water Cool/Air Cool |
Work Time |
24h Continuously Work |
24h Continuously Work | 24h Continuously Work | 24h Continuously Work | 24h Continuously Work |
Operation |
PLC & Touch Screen |
PLC & Touch Screen | PLC & Touch Screen | PLC & Touch Screen | PLC & Touch Screen |
Feeding Inlet Height |
40-100mm |
40-100mm | 40-100mm | 40-100mm | 40-100mm |
Belt Height |
60-1000mm |
60-1000mm | 60-1000mm | 60-1000mm | 60-1000mm |
Belt Running Speed |
0-4.5m/min or Customized |
0-4.5m/min or Customized | 0-4.5m/min or Customized | 0-4.5m/min or Customized | 0-4.5m/min or Customized |
Belt Width |
500±100mm |
800±100mm |
800±100mm |
1000±100mm |
1200±100mm |
Belt Material |
Teflon Material or Customized |
Teflon Material or Customized | Teflon Material or Customized | Teflon Material or Customized | Teflon Material or Customized |
Size |
8640×1220×2200mm |
10960×1500×2200mm |
13200×1500×2200mm |
15600×1700×2200mm |
22560×1900×2200mm |
Remark: Above parameter is for reference. All microwave dryer specific parameter need to be designed based on customer’s specific industrial request
China Gspring Machine are the manufactuer of Industrial Microwave Dryer, we can supply different kinds of microwave drying machine, like batch microwave oven for lab use
or for small capacity industrial use, industrial automatic tunnel mircrowave dryer, vaccum dryer specially for food & pharma industry etc. We have more than 10 years
experience on export, export to all over the world, like USA, Canada, Russia, India, Sri Lanka, Turkey, Vietnam, Indonesia, Pakistan,Philippines, Brazil, Egypt, Czech, Singapore, Armenia, Iraq, Iran, Malaysia, Bangladesh, Mexico, Peru, Algeria, Poland, Thailand, Nepal, Azerbaijan etc.
