High Strength Galvanized Anti-Climb Welded Barbed Razor Wire mesh Fence

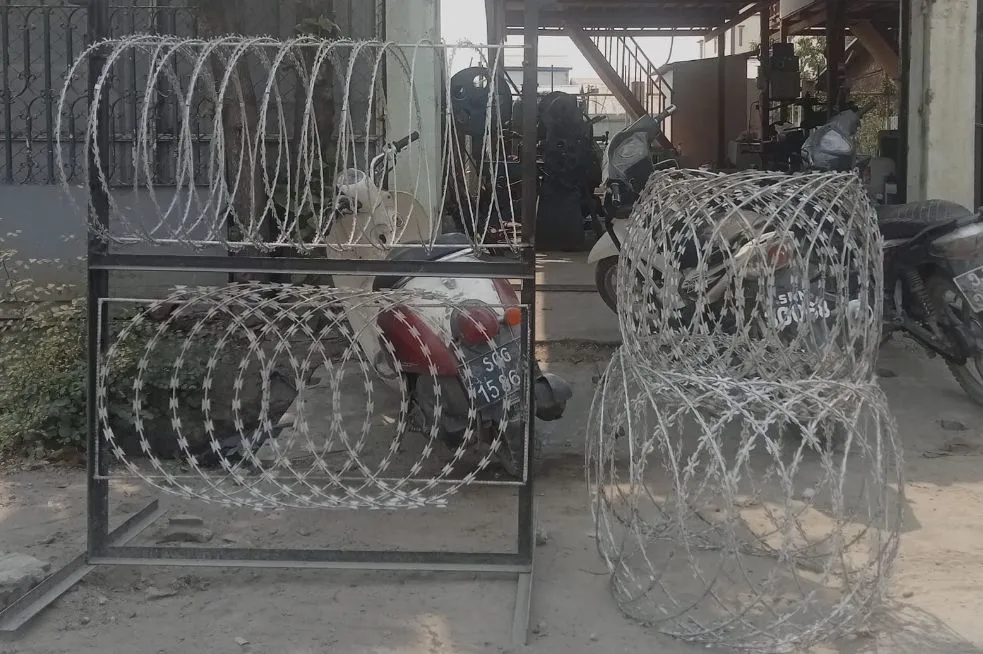

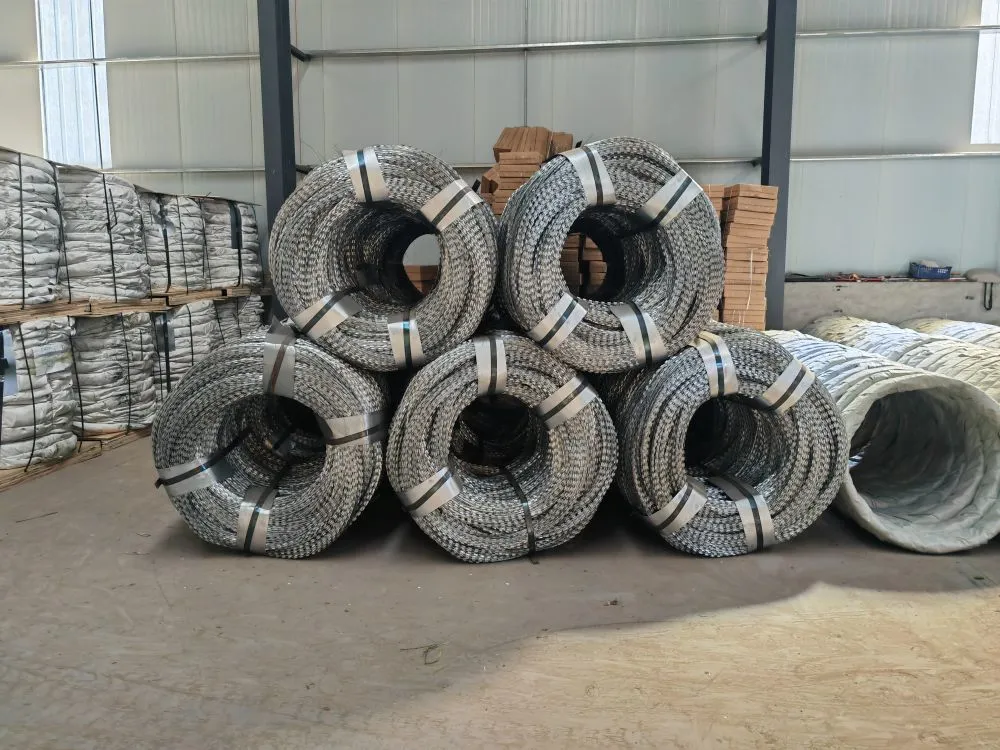

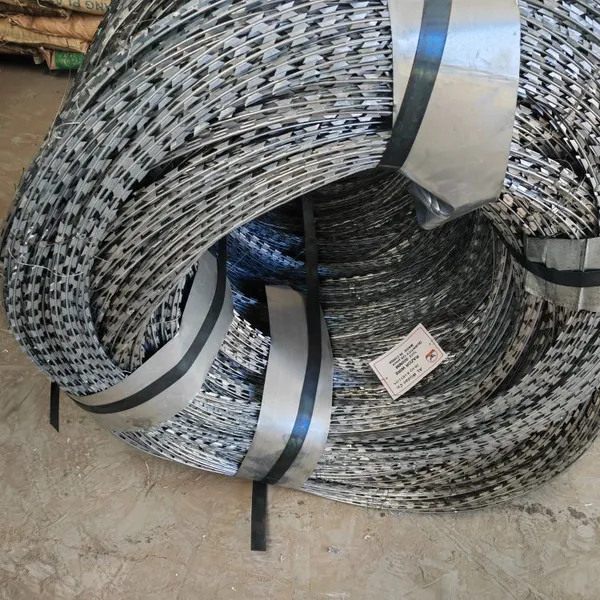

Razor wire is also named Razor Barbed Wire,Concertina Wire or Barbed Tape Wire.
Razor wire is a kind of blocking material, which is composed of blades made of galvanized steel or stainless steel plate with punching a sharp knife flake and a high tension galvanized core wire or stainless steel core wire. With its unique appearence and security, razor barbed wire can achieve excellent protection and screen effect. The mainly material of razor barbed wire are galvanized steel and stainless steel plate.
We can supply different types of razor wire:
flat wrap razor wire, single loop razor wire and cross type razor wire.
Covering length can be 7m,8m,10m,12m,15m or as customer's requests.
Outter roll diameter can be 450mm,500mm,600mm,730mm,900mm,1meter, or as customers' specific request.
Blade type:BTO-10,12,18,20,22,30,CBT-60,CBT-65
| Reference Number | Thickness | Wire Dia | Barb Length | Barb Width | Barb spacing |
| BTO-10 | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 26±1 |
| BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
| BTO-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
| BTO-28 | 0.5±0.05 | 2.5 | 28 | 15 | 45±1 |
| BTO-30 | 0.5±0.05 | 2.5 | 30 | 18 | 45±1 |
| CBT-60 | 0.5±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 |
| CBT-65 | 0.5±0.05 | 2.5±0.1 | 65±2 | 32±1 | 100±2 |
Barbed Tape Concertina (CBT);Barbed Tape Obstacle (BTO) Standard materials are either galvanized or stainless steel. Standard packages products are shown in the tables above, special specifications available on request. |
Wire Gauge (mm) |
Barbs Spacing (inch) | weight(kg) | material |
| 1.6 × 1.6 | 4"-5" | 5-10 | galvanized wire, pvc coated wire, stainless steel wie |
| 1.8 × 1.8 | 4"-5" | 25 | |
| 2.0 × 2.0 | 4"-5" | 25 | |
| 2.2 × 2.0 | 4"-5" | 25 | |
| 2.2 × 2.2 | 4"-5" | 25 | |
| 2.5 × 2.2 | 4"-5" | 25 | |
| 2.6 × 2.2 | 4"-5" | 25 | |
| 2.7 × 2.2 | 4"-5" | 25 | |
| 2.8 × 2.2 | 4"-5" | 25 | |
| 3.0 × 2.0 | 4"-5" | 25 | |
| Other Single Barbed Wire Gauge Made According to Customers' requirement. |
