CE Standard Customizable Galvanized 60%-85% Open Area Drain Steel Grating

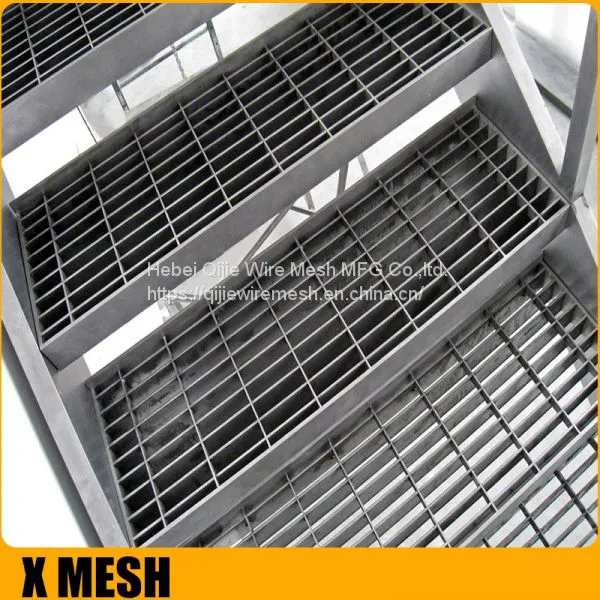

Steel bar grating, known for its high strength and robust structure, is manufactured from carbon steel, aluminum, or stainless steel. Depending on the production method, steel grating can be categorized into four types: welded bar grating, press-locked grating, swage-locked grating, and riveted grating. Based on surface design, it is available in both smooth and serrated options. With a wide range of styles and sizes, steel grating serves versatile applications in everyday life, including stair treads, walkways, platforms, flooring, trench covers, wheeled equipment, security screens, and heavy-duty constructions.
| Product Parameters (Technical Specifications)ParameterSpecification OptionsStandard / NotesMaterialMild Carbon Steel (Q235), Stainless Steel (304, 316), AluminumMost common: Carbon steel with galvanizingBearing BarFlat, Serrated, I-BarSerrated for maximum slip resistanceBearing Bar Thickness3mm, 4mm, 5mm, 6mmCustom thicknesses availableBearing Bar Spacing30mm, 34.3mm (1-3/16"), 40mm, 41mm30mm spacing is standard for walkwaysCross Bar Spacing50mm, 100mm100mm is most commonSurface TreatmentHot-Dip Galvanized, Painted, Powder Coated, Black (Ungalvanized)HDG to ASTM A123 is standard for carbon steelPanel Standard Size1000mm x 6000mm, 1000mm x 5000mm, Custom SizesCan be cut to your exact dimensionsLoad ClassesStandard (15A/15B), Heavy-Duty, Special DutyAccording to ANSI/NAAMM MBG 531 or EN ISO 14122Note: All specifications can be customized. Consult our engineering team for project-specific requirements. |
metal walking grates introduction-- galvanized road drainage grates
| Bearing bar type | Flat bar | I bar | Serrated bar | |
| Cross bar type | Twisted bar | Round bar | flat bar | |
| Production process | welded | Pressure locked | ||
| Surface treatment | Self-colour | Galvanized | painted | |
| application | Platform | walkway&floor | Trench cover | Steel stair treads |
| Suspended ceiling | Barrier fence |
bearing bar types:
surface treatment: mill finish,hot dip galvanized,painted
Material |
Carbon Steel, Stainless Steel, Aluminum |
|
Surface treatment |
Hot dipped galvanized, Spray painting, Polished and powder coated |
|
Bearing bar type |
Plain(Flat) bar, Serrated bar, I-bar, etc. |
|
Common specification |
||
Bearing bar pitch (mm) |
Cross bar pitch (mm) |
Bearing bar size |
30 |
100 |
WSG_203/253/323/403/205/325/405/455/505/555_30_100 |
50 |
WSG_203/253/323/403/205/325/405/455/505/555_30_50 |
|
40 |
100 |
WSG_203/253/323/403/205/325/405/455/505/555_40_100 |
50 |
WSG_203/253/323/403/205/325/405/455/505/555_40_50 |
|
60 |
50 |
WSG_203/253/323/403/205/325/405/455/505/555_60_50 |
If you have any questions regarding the dimensions or specific specifications, please feel free to contact us immediately. |
Advantages:
high strength, anti-slip, ventilation and light transmission properties.
