Thin-Walled Crossed Roller Bearings OSX 011868
Product Spotlights
The OSX series is widely used due to its features such as ultra-thinness, high rigidity and high precision.
The joint or rotating part of an industrial robot
Rotary table of the machining center
Rotating part of the mechanical hand
Precision rotary table
The joint or rotating part of an industrial robot
Rotary table of the machining center
Rotating part of the mechanical hand
Precision rotary table
Negotiable
MOQ: 5 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Bearing Steel
Feature:
High Speed, Other, thin section
Style:
Other, Outer ring division ,inner ring rotation
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
30 days
Related Products
-
Thin-Walled Crossed Roller Bearings OSX 011880NegotiableMOQ: 5 Pieces -
Thin-Walled Crossed Roller Bearings OSX 011814NegotiableMOQ: 5 Pieces
-
Thin-Walled Crossed Roller Bearings OSX 011818NegotiableMOQ: 5 Pieces
-
Precision Crossed Taper Roller Bearings JXR637050NegotiableMOQ: 5 Pieces
-
Precision Crossed Taper Roller Bearings JXR652050NegotiableMOQ: 5 Pieces
Material
Bearing Steel
Feature
High Speed, Other, thin section
Style
Other, Outer ring division ,inner ring rotation
Rows Number
Single
Load Direction
Other, Radial + Axial + Moment
Customisation
available
Accuracy class
P5/P4/P2
Transport Package
Wooden Case
Specification
d: 340mm D:420mm Weight: 13.5kg
Trademark
ONA
Origin
Luoyang,China

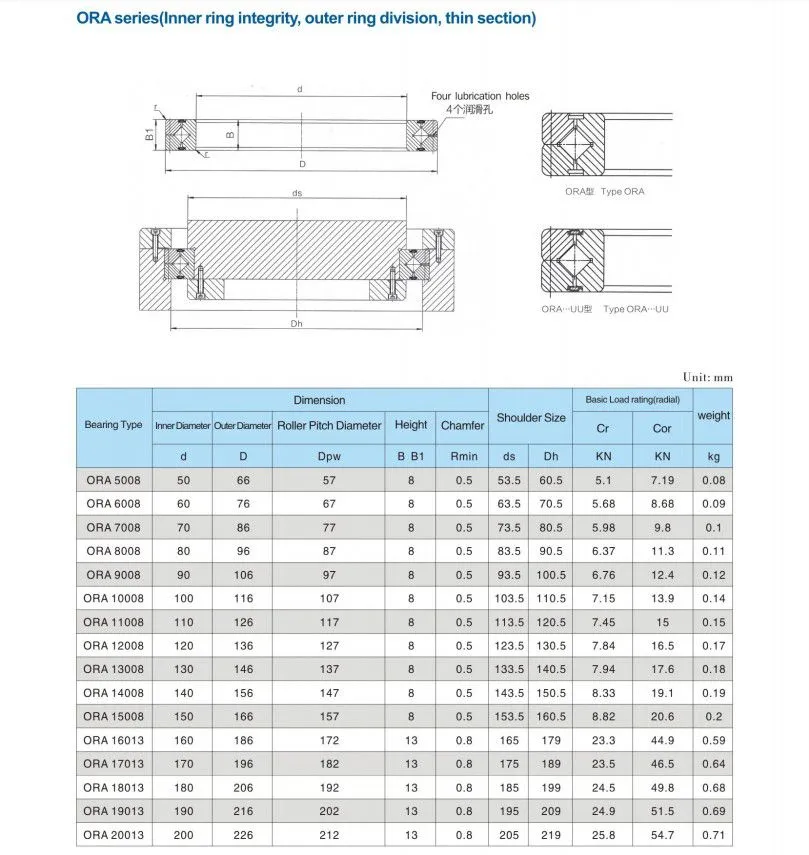

ORA series crossed cylindrical roller bearings (integrated inner ring, split outer ring, ultra-thin)
The ORA series crossed cylindrical roller bearings are compact types with the inner and outer ring thicknesses of the ORB type reduced to the minimum. They have the same structure as the ORB series with a split outer ring. They are suitable for applications requiring lightweight and compact designs, such as the rotating parts of robots and mechanical arms.
In addition, we have many other models that have not been listed.If you need any information, please contact us.
