Introduction

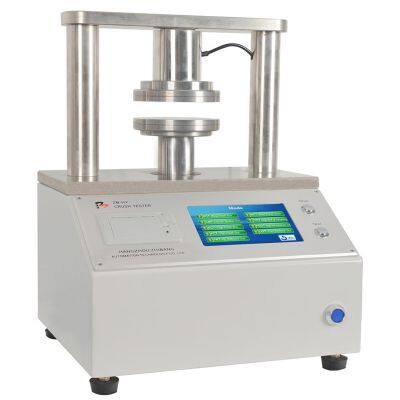

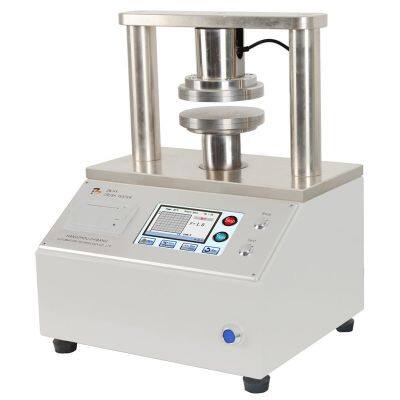

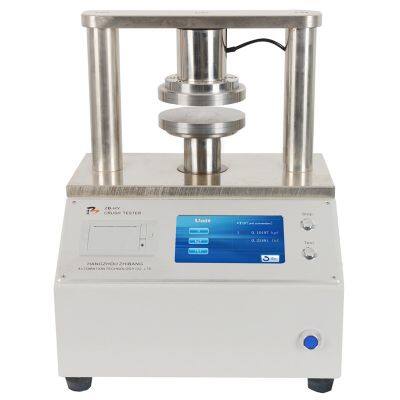

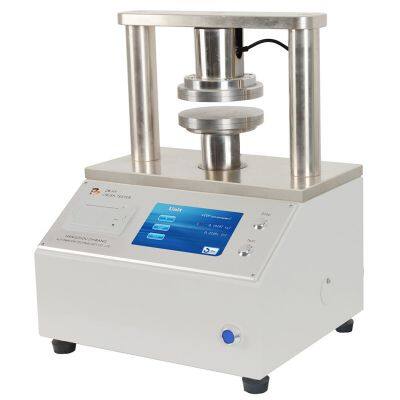

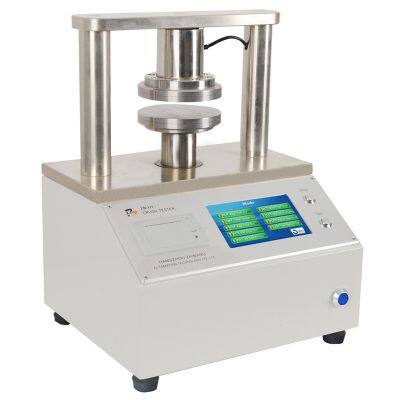

ZB-HY3000 Crush tester adopts the advanced parts, MCU to have a reasonable frame and multifunctional design.It can test ,translate,adjust,display,remember,and print.Besides, it is the basic equipment to test the compression.
(1)With the compression plate and compression special sampler, can have the Ring Crush Test (RCT)
(2)With the edge crush cutter and auxiliary guide block can have Edge Crush Test(ECT)
(3)With the peel test rack to test the peel strength (PAT)
(4)Equipped with flat compression sampler to test the strength of flat compression (FCT)
(5)With other auxiliary appliance can test CCT and CMT
Standards
ISO 12192 ISO 3037 ISO 7263 ISO 3035 GB/T 2679.8 GB/T 6546 GB/T 6548 GB/T 2679.6 GB/T22874
Main features
1.The user can order corresponding accessories according to actual conditions , to achieve a variety of paper and cardboard strength test
2.Test data can be printed out
3.Mechatronics design, compact structure, nice appearance, easy maintenance
Main technical parameters
Power supply |
AC220V±10% 50HZ |
Measuring range |
50-3000N |
Resolution |
0.1N |
Accuracy |
±1% |
Variability |
≤1% |
Speed |
12.5±2.5mm/min |
Maximum distance |
78mm |
Dimension |
450*400*500mm |
Weight |
50kg |
