Help CenterRohde Schwarz NRP67SN Three-path Diode Power Sensors，50 MHz to 67 GHz LAN Interface
Product Spotlights
Related Products
-
Rohde Schwarz NRP90SN Three-path Diode Power Sensors，50 MHz to 90 GHz LAN InterfaceNegotiableMOQ: 1 Unit -
Rohde Schwarz NRP33SN-V Three-path Diode Power Sensors，10 MHz to 33 GHzNegotiableMOQ: 1 Unit
-
Rohde Schwarz NRP67SN-V Three-path Diode Power Sensors，50 MHz to 67 GHzNegotiableMOQ: 1 Unit
-
Rohde Schwarz NRP18S-10 Three-path Diode Power Sensors，10 MHz to 18 GHz ，-60 DBm - +33 DBm，NegotiableMOQ: 1 Unit
-
Rohde Schwarz NRP18S-20 Three-path Diode Power Sensors，10 MHz to 18 GHz，-50 DBm - +42 DBm ，NegotiableMOQ: 1 Unit
rohde schwarz NRP67SN three-path diode power sensors，50 MHz to 67 GHz LAN Interface
USB and LAN Power Sensors
three-path diode power sensors NRP8SN ：10 MHz to 8 GHz LAN Interface， -70 dBm - +23 dBm
three-path diode power sensors NRP18SN ：10 MHz to 18GHz LAN Interface， -70 dBm - +23 dBm
three-path diode power sensors NRP33SN ：10 MHz to 33 GHz LAN Interface，-70 dBm - +23 dBm

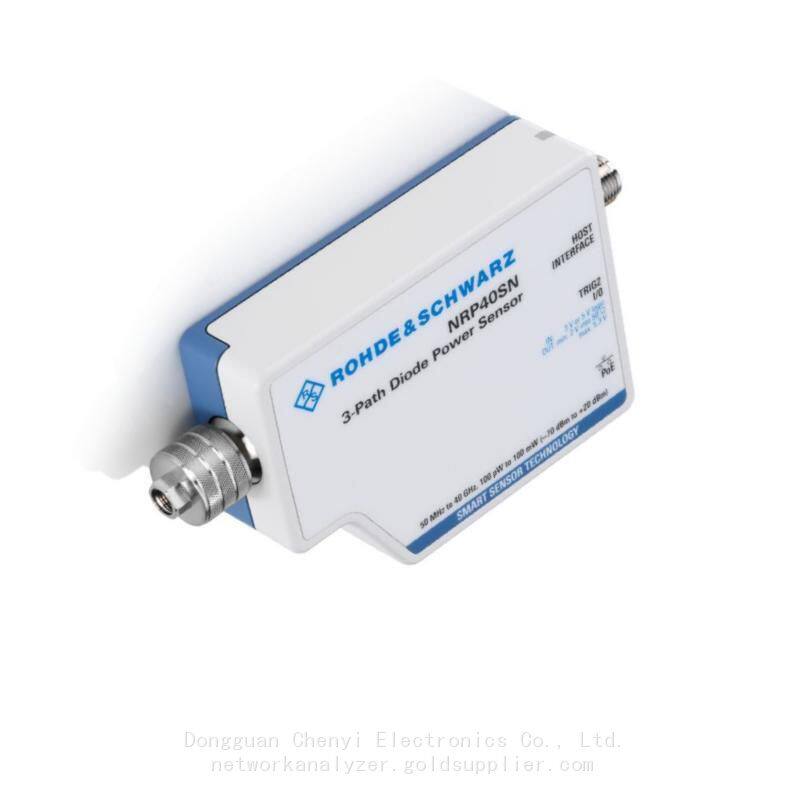

three-path diode power sensors NRP40SN ：50 MHz to 40GHz LAN Interface ，-70 dBm - +20 dBm

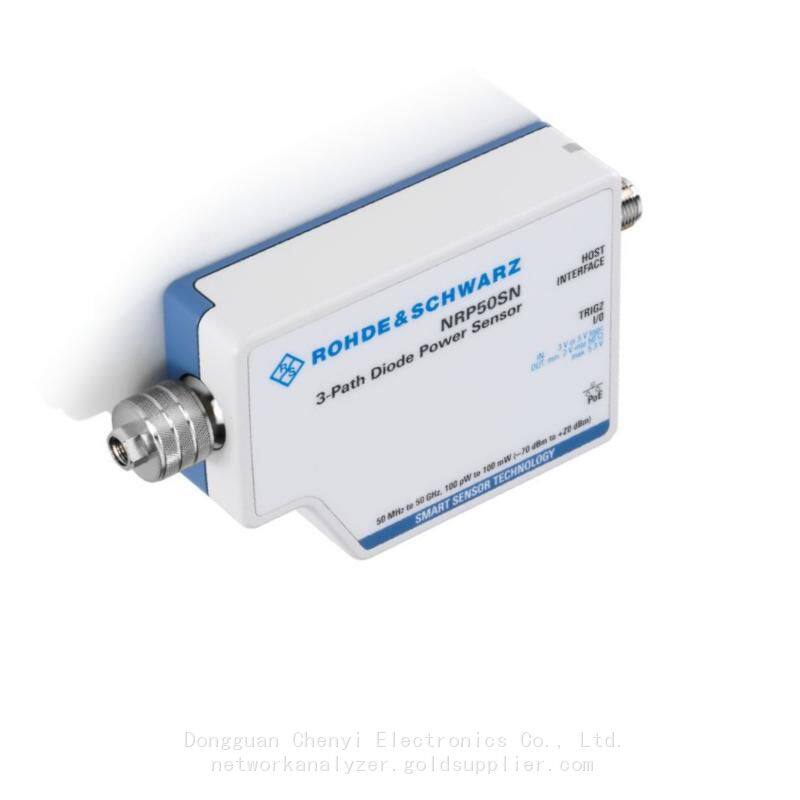

three-path diode power sensors NRP50SN ：50 MHz to 50 GHz LAN Interface，-70 dBm - +20 dBm

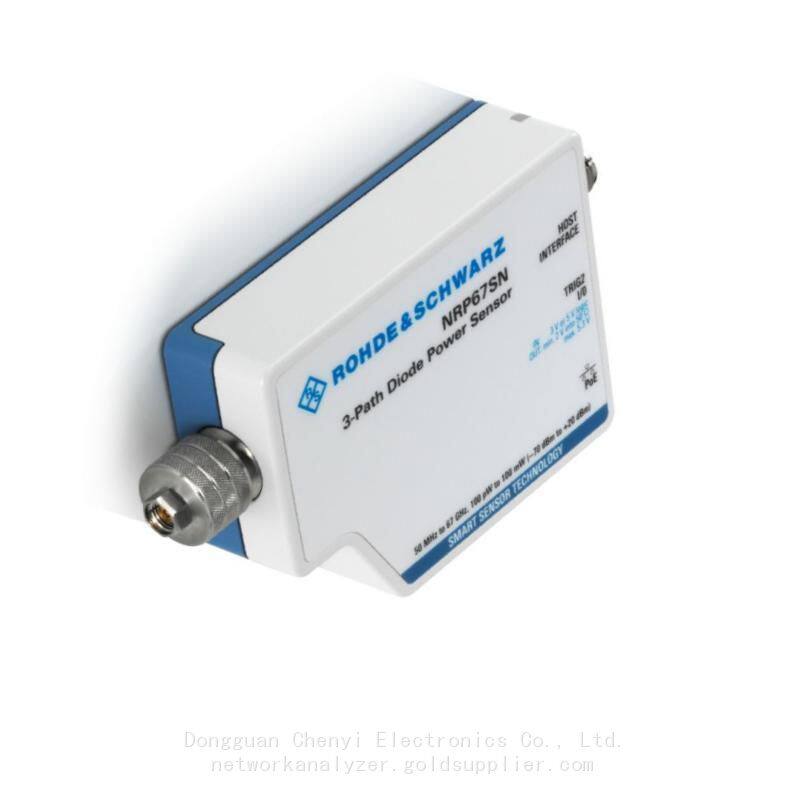

three-path diode power sensors NRP67SN ：50 MHz to 67 GHz LAN Interface，-70 dBm - +20 dBm

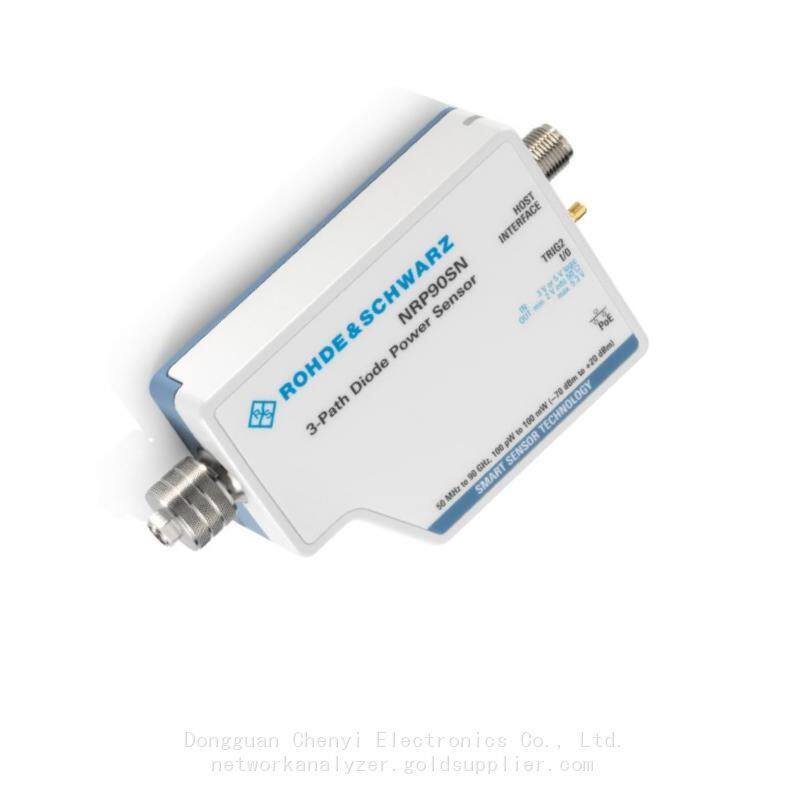

three-path diode power sensors NRP90SN ：50 MHz to 90 GHz LAN Interface-，70 dBm - +20 dBm
Key facts
▶Fast and accurate power measurements for CW and modulated signals
▶100,000 readings/s
▶Control and monitoring via LAN and USB
▶Sensors for high-power applications
▶Flexible operation with R&S®NRX base unit
Fast, accurate and packed with features to measure
CW and modulated signals
The R&S®NRPxxS/SN power sensors use three separate diode paths, each operated in the optimum detector range. As a result, the average power can be determined with high accuracy independent of the modulation type. Measurement results are hardly affected by interfering signals or harmonics. The R&S®NRPxxS/SN power sensors therefore behave in a way similar to thermal power sensors but offer significantly higher speed. They provide up to 93 dB dynamic range with an excellent lower measurement limit of –70 dBm.
Features & benefits
The universal power sensor
Ideal solution for many applications
Three-path diode power sensors are suitable for numerous applications, since they support continuousaverage, burst average, timeslot average, gate average and trace measurements. Featuring outstandingperformance and unprecedented measurement speed and accuracy, the sensors can be used toperform precise average power measurements on wireless signals such as GSM and 3GPP as well ason higher bandwidth signals such as LTE,LTE-Advanced or 5G.
93 dB dynamic range
Improved thre-path concept
The R&S@NRPxxS(N) power sensors use three separate diode paths, each operated in the optimumdetector range. The average power can be determined with high accuracy irrespective of themodulation type. Measurement results are hardly affected by interfering signals or harmonics. TheR&S@NRPxxS(N) power sensors therefore behave similar to thermal power sensors but offer significantlyhigher speed and up to 93 dB dynamic range.
Unprecedented measurement speed and accuracy
Even at low levels down to -70 dBm
To increase measurement accuracy at low levels, it is necessary to average multiple measured values.While averaging reduces the noise component, it also slows down the measurement. TheR&S@NRPxxS(N) power sensors have therefore been designed with an extremely low measurementnoisein mind.
The R&S@NRPxxS(N) power sensors can perform measurements down to a lower limit of -70 dBm withthe highest speed and accuracy currently available on the market.
New fast mode
Unlimited time measurement with up to 100.000 measurements/s
In fast continuous average mode, the R&SeNRPxxS(N) power sensors can perform up to 100,000triggered measurements/s with a minimum trigger repetition time of 100 us without losing anymeasurement. This measurement speed is achieved by using the buffered mode. In buffered mode, almeasured data is collected inside the sensor and transmitted in one block to the sensor's host. TheR&SeNRPxxS(N) sensors perform the new fast mode without time limitation!
Sensors for high-power applications
Perform power measurements up to 30 W
The R&SeNRP18S-10,R&SNRP18S-20 and R&SeNRP18S-25 high-power three-path diode powersensors consist of an R&SeNRP18S and a 10/20/25 dB upstream attenuator, They are able to performpower measurements up to 2 W, 15 W and 30 W. When used with the attenuator. mismatch errorsbetween the sensor and attenuator are automatically corrected. The S-parameters for the attenuator aredetermined and stored in the sensor during production.
TVAC-compliant three-path diode power sensor
Specially designed for use in thermal vacuum (TVAC) chambers

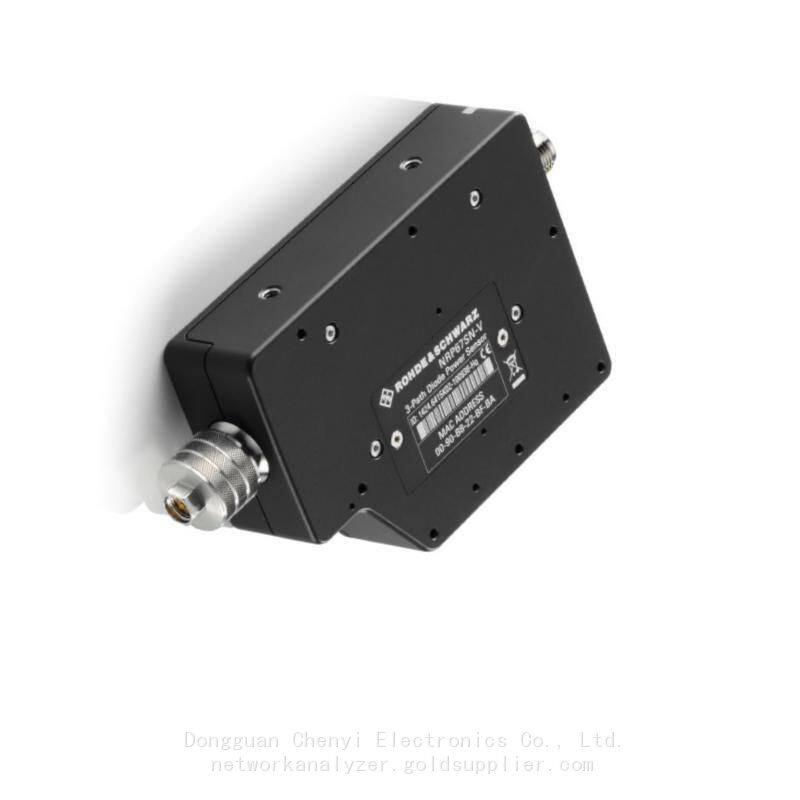

The R&S@NRPxxSN-VTVAC-compliant power sensor is designed for satellite communicationsapplications in a frequency range up to 67 GHz. All components are baked in a vacuum chamber duringthe production process, so outgassing is reduced to a minimum. Thanks to their LAN capability, thepower sensors can be easily controlled and monitored from outside the chamber while the ventingholes in the housing ensure pressure equalization.
