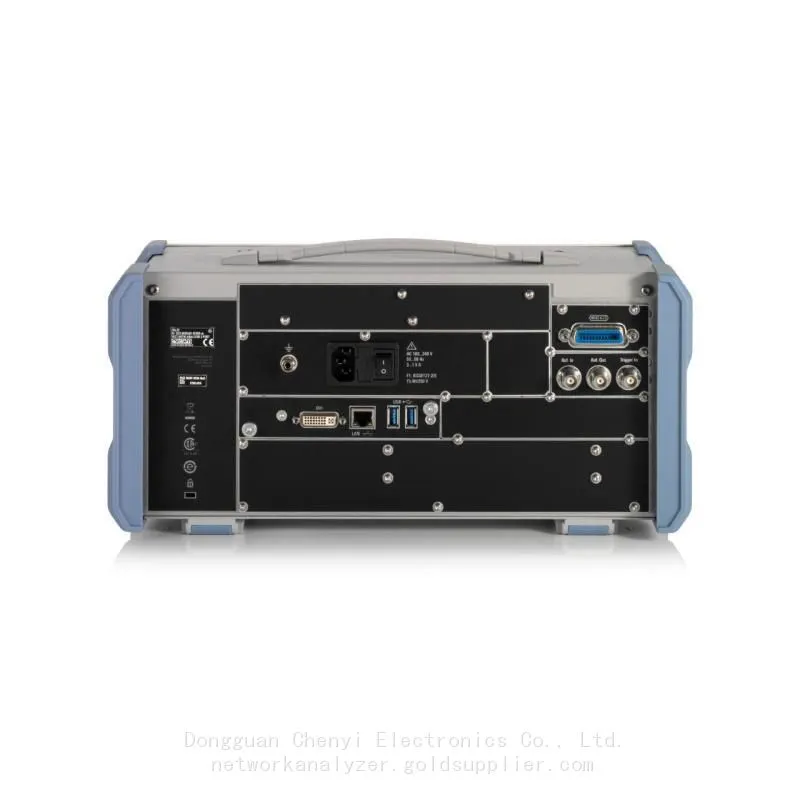

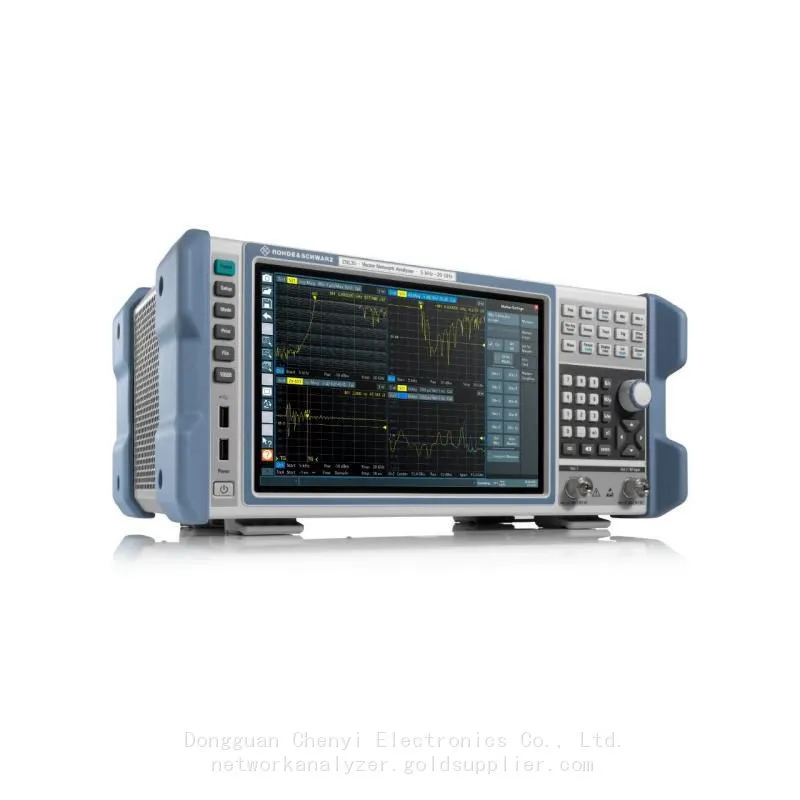

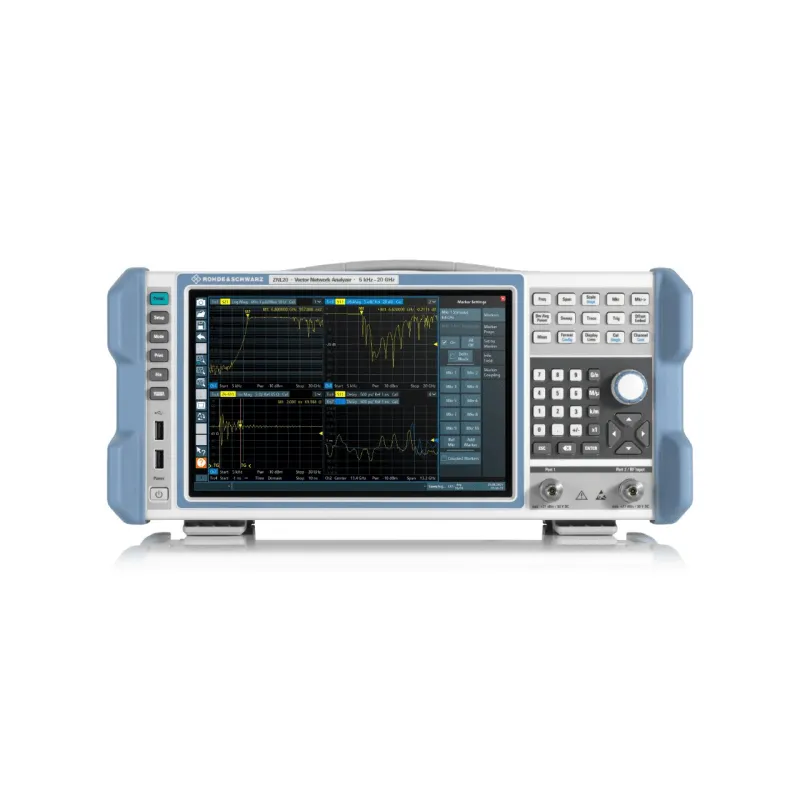

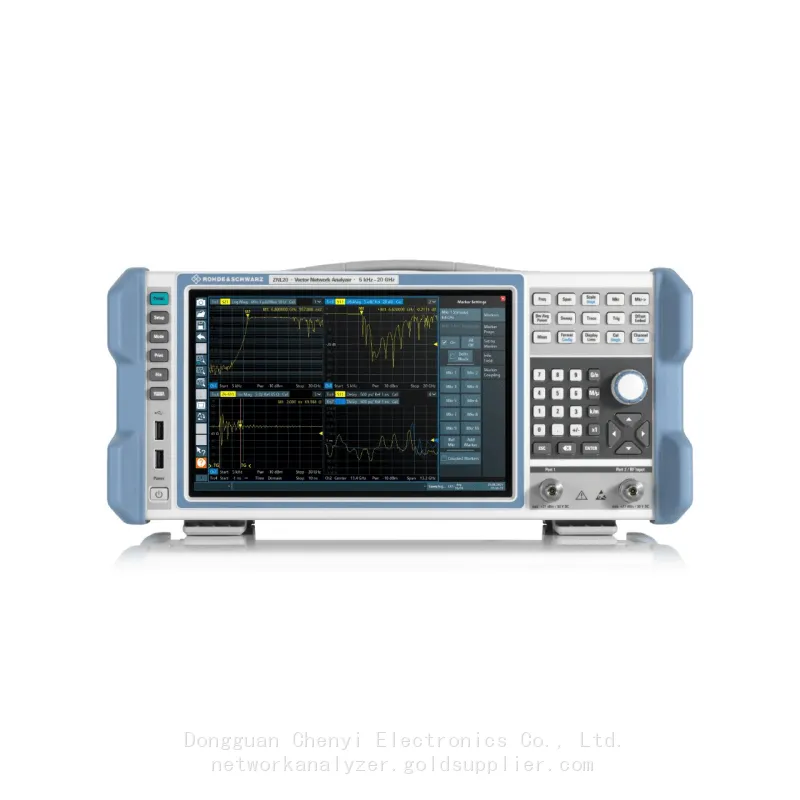

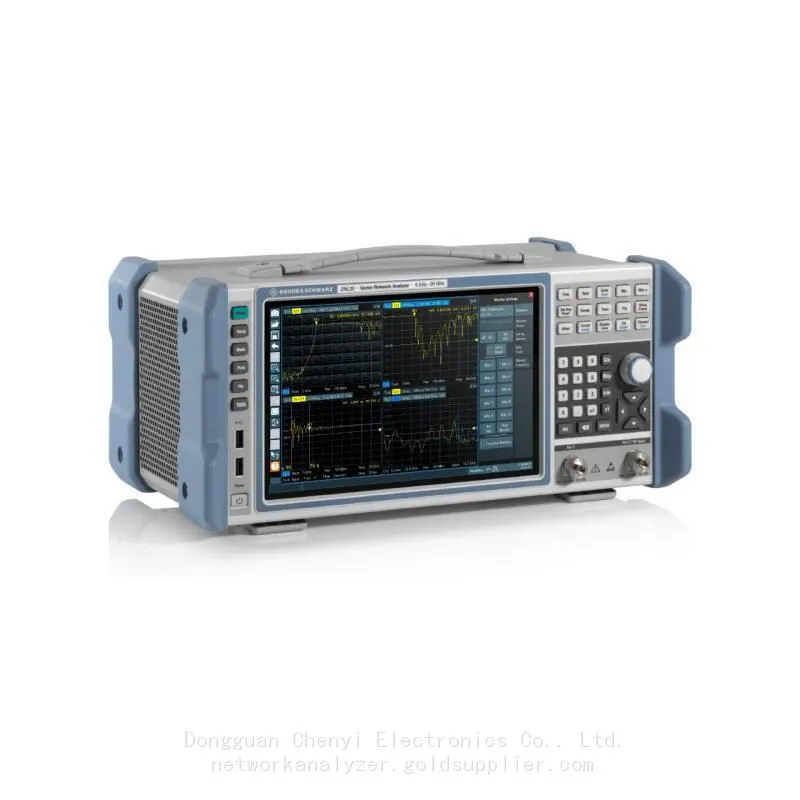

Help CenterRohde Schwarz ZNL4 Vector Network Analyzer，5kHz to 4.5 GHz. 2 Ports, N(f) Connectors
Product Spotlights
Wide frequency range from 5 kHz up to 20 GHz
High dynamic range and low trace noise
2-port vector network analyzer for bidirectional measurements
Optional fully integrated spectrum analyzer on hardware board for up to 26.5 GHz
Compact, versatile and cost-efficient
Related Products
-
Rohde Schwarz ZNL6 Vector Network Analyzer， 5 KHz to 6 GHz. 2 Ports, N(f) ConnectorsNegotiableMOQ: 1 Unit -
Rohde Schwarz ZNL14 Vector Network Analyzer，5 KHz to 14 GHz.2 Ports. N(f) ConnectorsNegotiableMOQ: 1 Unit
-
Rohde Schwarz ZNL20 Vector Network Analyzer，5 KHz to 20 GHz.2 Ports.3.5mm(m) ConnectorsNegotiableMOQ: 1 Unit
-
Rohde Schwarz ZNLE3 Vector Network Analyzer，100 KHz to 3 GHzNegotiableMOQ: 1 Unit
-
Rohde Schwarz ZNLE4 Vector Network Analyzer，100 KHz to 4.5 GHzNegotiableMOQ: 1 Unit
rohde schwarz ZNL4 vector network analyzer，5kHz to 4.5 GHz. 2 ports, N(f) connectors
Versatile and portable
Vector Network Analyzer ZNL3: 5kHz to 3 GHz.2 ports, N(f) connectors
Vector Network Analyzer ZNL4: 5kHz to 4.5 GHz. 2 ports, N(f) connectors
Vector Network Analyzer ZNL6: 5 kHz to 6 GHz. 2 ports, N(f) connectors
Vector Network Analyzer ZNL14: 5 KHz to 14 GHz.2 ports. N(f) connectors
Vector Network Analyzer ZNL20: 5 kHz to 20 GHz.2 ports.3.5mm(m) connectors
Key Features
▶ Frequency Range: 5 kHz ~ 3 / 4.5 / 6 / 14 / 20 GHz
▶ Can be equipped with a spectrum analyzer (Optional)
▶ High-precision power measurement (Option / Power sensor sold separately)
▶ Space-saving design with a depth of only 23.5 cm
▶ Equipped with a 10.1-inch capacitive touchscreen
Key facts
Wide frequency range from 5 kHz up to 20 GHz
High dynamic range and low trace noise
2-port vector network analyzer for bidirectional measurements
Optional fully integrated spectrum analyzer on hardware board for up to 26.5 GHz
Compact, versatile and cost-efficient
Versatile and portable
The three-in-one vector network analyzer (VNA), spectrum analyzer (SA) and power meter for field and lab excellence
The R&S®ZNL helps reduce investment costs with a unique option concept. The base models support frequencies from 5 kHz to 20 GHz and they can be expanded to include a fully integrated spectrum analyzer and support RF power meters. Furthermore, spectrum analysis supports a CW signal generator option. Instead of investing in multiple instruments, research labs, service centers, universities and production facilities can use a single, compact instrument that offers even higher measurement speeds and better RF performance than dedicated instruments in comparable classes.
Available models
Models：R&S®ZNL3 Order number 1323.0012.03
Ports： 2 Ports
Frequency：3 GHz
Connectors：N (f)
Models：R&S®ZNL4 Order number 1323.0012.04
Ports： 2 Ports
Frequency：4.5 GHz
Connectors：N (f)
Models：R&S®ZNL6 Order number 1323.0012.06
Ports： 2 Ports
Frequency：6 GHz
Connectors：N (f)
Models：R&S®ZNL14 Order number 1323.0012.14
Ports： 2 Ports
Frequency：14 GHz
Connectors：N (f)
Models：R&S®ZNL20 Order number 1323.0012.20
Ports： 2 Ports
Frequency：20 GHz
Connectors：3.5mm (m)
