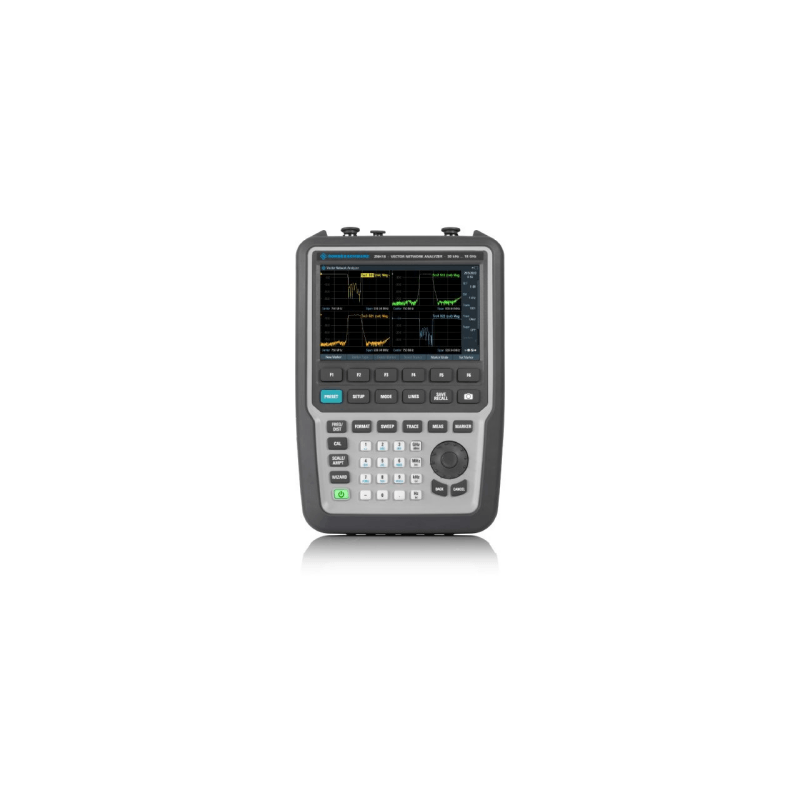

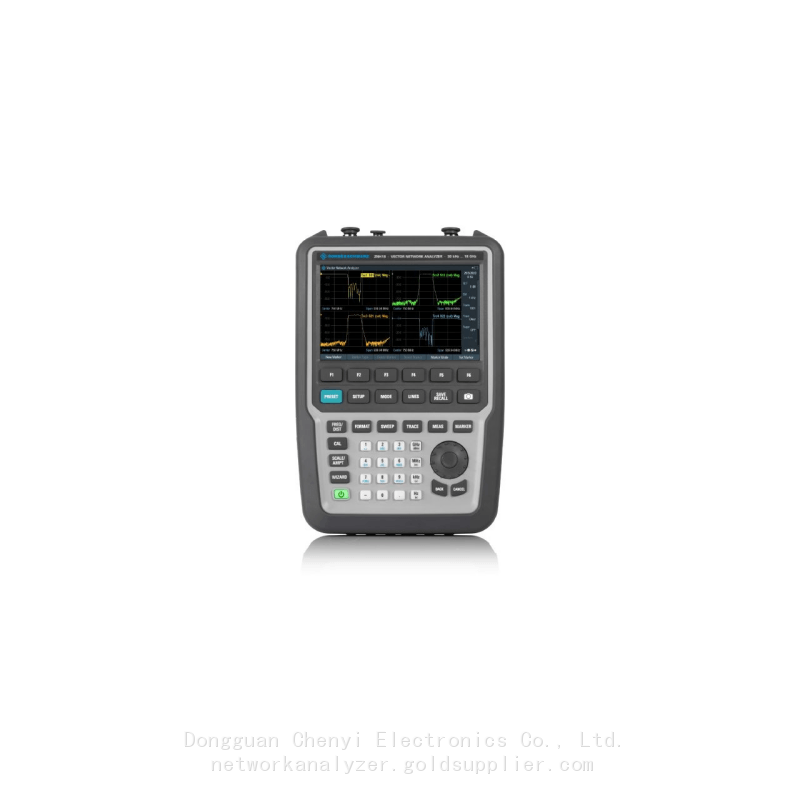

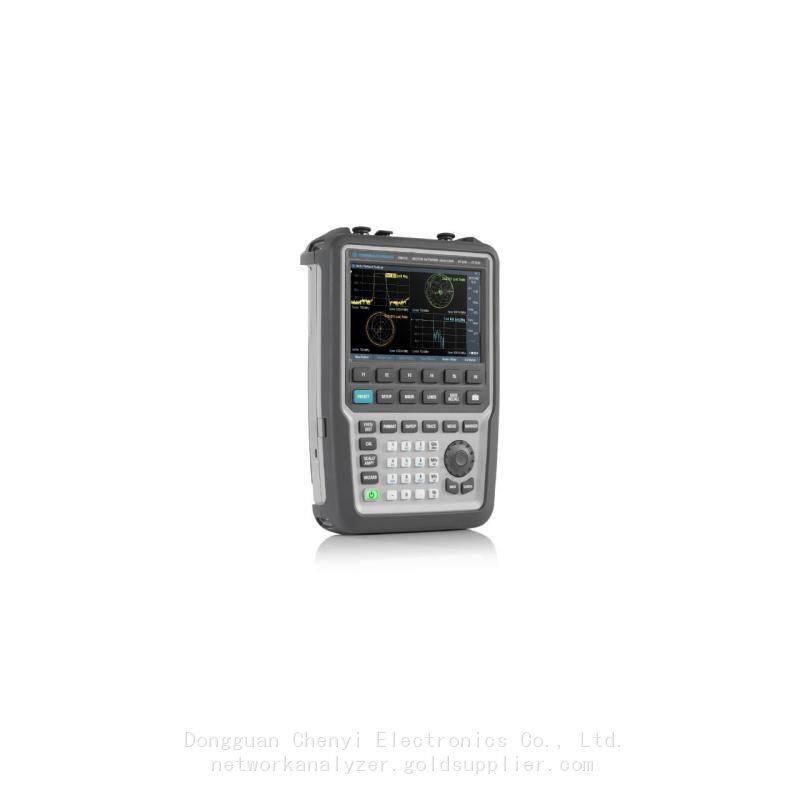

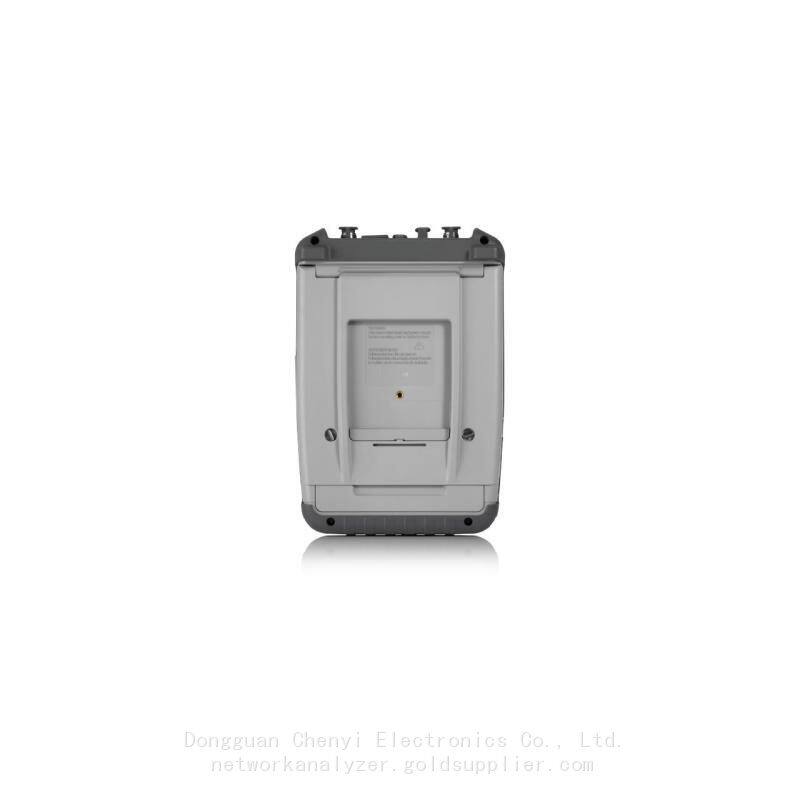

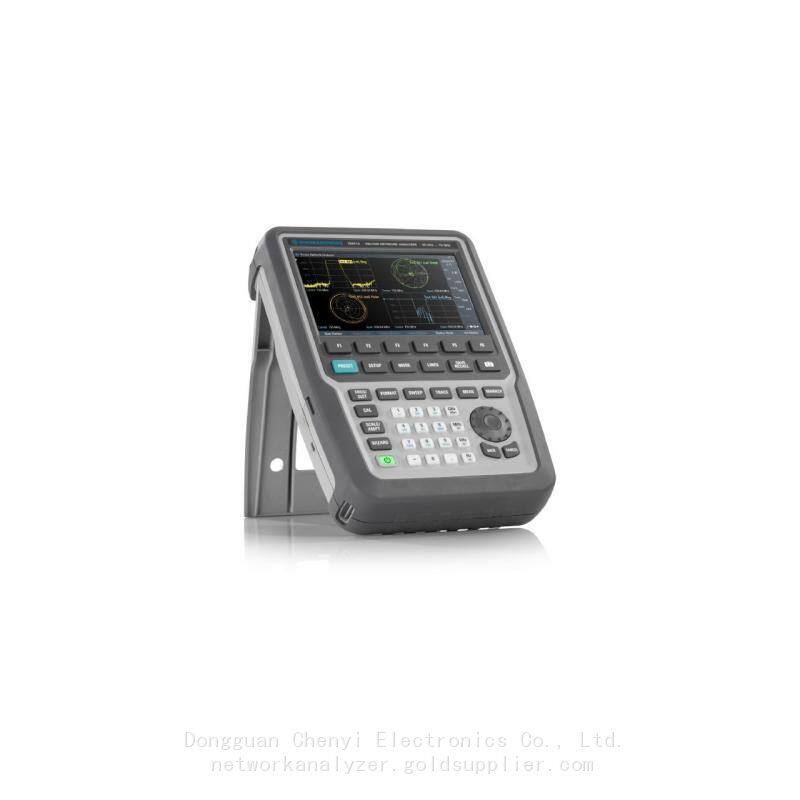

Help CenterRohde Schwarz ZNH18 Handheld Vector Network Analyzer，30 KHz to 18 GHz
Product Spotlights
Frequency range from 30 kHz to 4/8/18/26.5 GHz
One-port cable and antenna measurement with basic instrument
S-parameter (S11, S12, S21, S22) measurement with basic instrument
100 dB (typ.) dynamic range for filter and antenna isolation measurements
Non-reflective display, small form f
Related Products
-
Rohde Schwarz ZNH20 Handheld Vector Network Analyzer，30 KHz to 26.5 GHzNegotiableMOQ: 1 Unit -
Rohde Schwarz ZNA26 ZNA43 ZNA50 ZNA67 10 MHz to 67 GHz Vector Network AnalyzersNegotiableMOQ: 1 Unit
-
Rohde Schwarz ZNB4 ZNB8 ZNB20 ZNB26 ZNB43 100 KHz to 43.5 GH Zvector Network AnalyzerNegotiableMOQ: 1 Unit
-
Rohde Schwarz ZNB3000 ZNB3004 ZNB3020 ZNB3032 ZNB3044 Vector Network AnalyzerNegotiableMOQ: 1 Unit
-
Rohde Schwarz ZNBT8 ZNBT20 ZNBT26 ZNBT40 100 KHz to 40 GHzVector Network AnalyzerNegotiableMOQ: 1 Unit
rohde schwarz ZNH18 Handheld vector network analyzer，30 kHz to 18 GHz
Low in complexity, high in precision
Handheld Vector Network Analyzer ZNH4: 30 kHz ~ 4 GHz
Handheld Vector Network Analyzer ZNH8: 30 kHz ~ 8 GHz
Handheld Vector Network Analyzer ZNH18: 30 kHz ~ 18 GHz
Handheld Vector Network Analyzer ZNH26: 30 kHz ~ 26.5 GHz
Key Features
▶ Frequency Range: 30 kHz to 4/8/18/26.5 GHz
▶ Supports standard functions, including 2-port S-parameter measurement and cable and
antenna measurement
▶ Built-in receiver attenuator for amplifier measurement
▶ Maximum number of measurement points: 16,001 points
▶ Enables absolute and ratio measurement of receiver input power
Key facts
Frequency range from 30 kHz to 4/8/18/26.5 GHz
One-port cable and antenna measurement with basic instrument
S-parameter (S11, S12, S21, S22) measurement with basic instrument
100 dB (typ.) dynamic range for filter and antenna isolation measurements
Non-reflective display, small form factor, ruggedized housing (IP51)
Lightweight design, heavyweight performance
R&S®ZNH is a full two-port handheld vector network analyzer that offers one-port cable and antenna measurement and full two-port S-parameter measurements. The touch based interface is simple to operate and a configuration overview menu makes measurement preparation more efficient. The R&S®ZNH may have a small form factor but it is complete in every detail and delivers high performance and all the key functionalities.
Available models
Models：R&S®ZNH4 Order number 1321.1611.04
Ports： 2 Ports
Frequency：4 GHz
Connectors：N
Starting at ：Price On Request
Models：R&S®ZNH8 Order number 1321.1611.08
Ports： 2 Ports
Frequency：8 GHz
Connectors：N
Starting at ：Price On Request
Models：R&S®ZNH18 Order number 1321.1611.18
Ports： 2 Ports
Frequency：18 GHz
Connectors：N
Starting at ：Price On Request
Models：R&S®ZNH26 Order number 1321.1611.26
Ports： 2 Ports
Frequency：26.5 GHz
Connectors：PC 3.5mm
Starting at ：Price On Request
WhatsApp：+85268839563
WeChat ：13728300615
Send Inquiry to This Supplier
